TP-Link Access Point EAP115-Wall Unterputz

Hover to zoom1/4

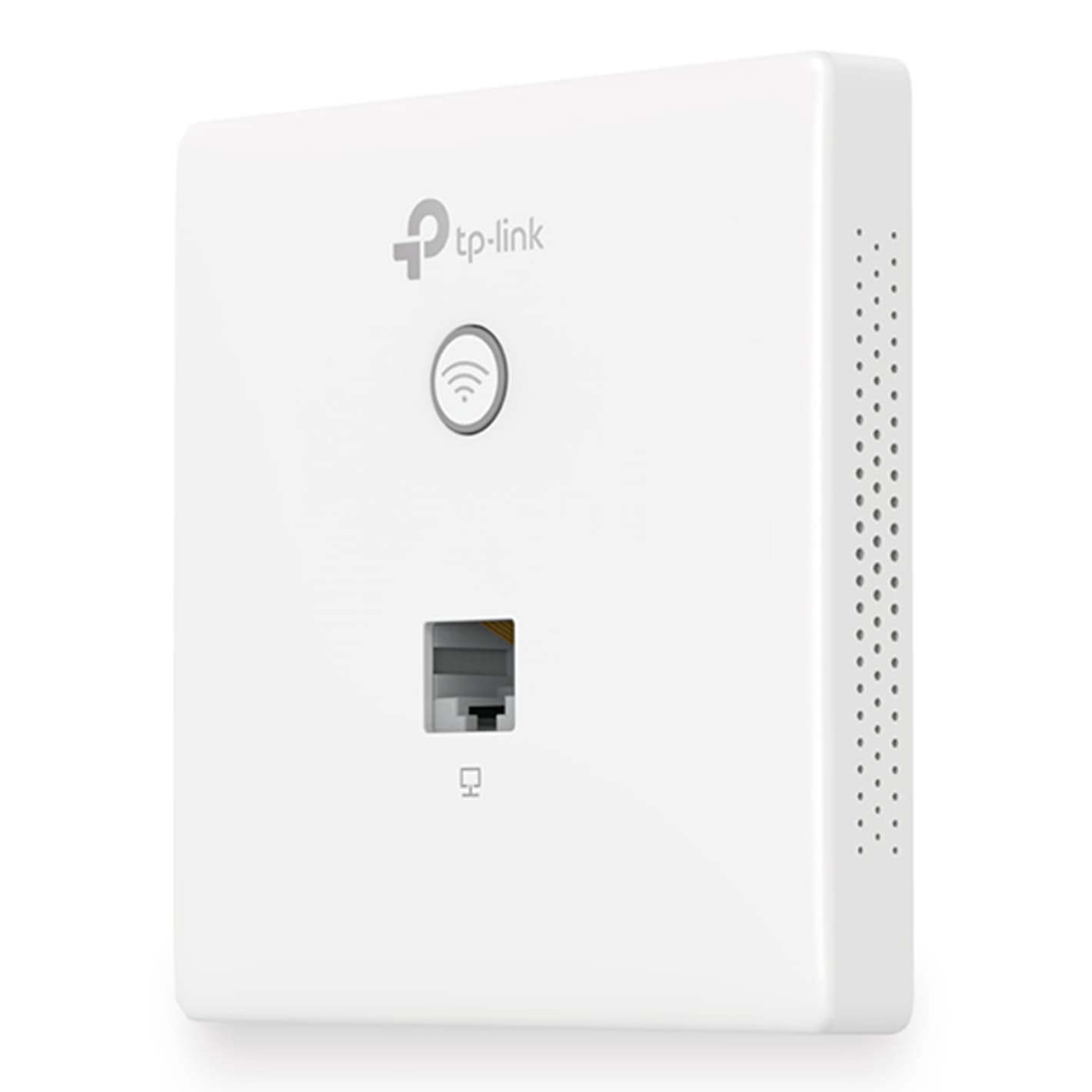

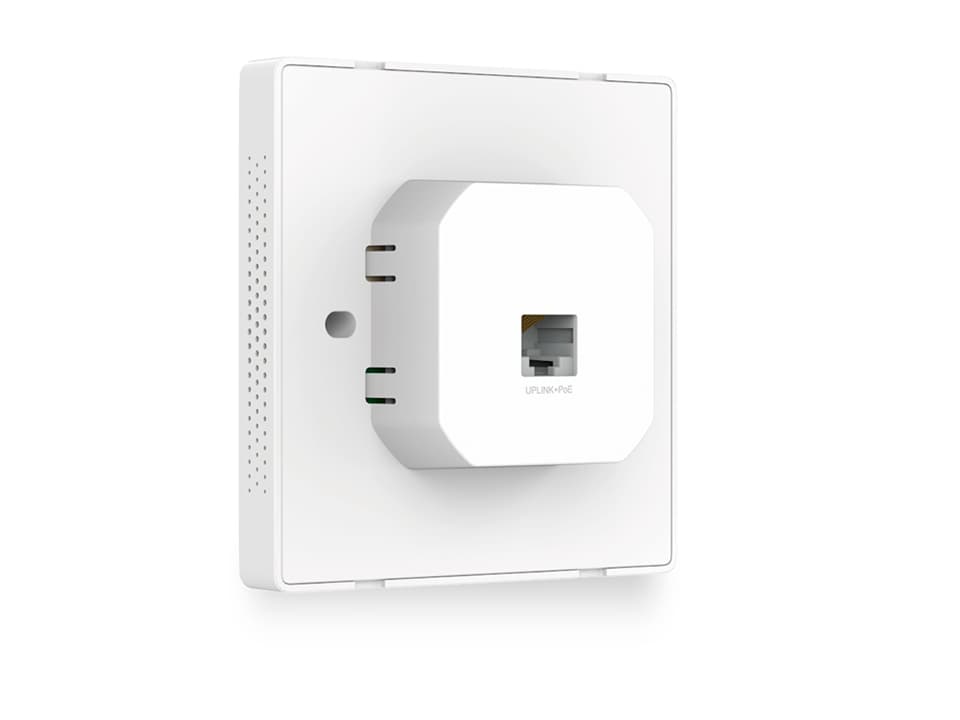

TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point

Part number: 534137
MPN: EAP115-Wall
EAN: 6935364093457

TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point, 2.4 GHz, 300 Mbit/s, 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s

Access Point Features	Multiple SSID, Verwaltbar
Depth	86.8 mm
Width	86.8 mm
Outdoor use	No
Antennenanschluss	Kein externer Anschluss
Height	30.2 mm
2.4 GHz	Yes
5 GHz	No

Description

TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White

Documents

Specifications

Access Point Features	Multiple SSID, Verwaltbar
Depth	86.8 mm
Width	86.8 mm
Outdoor use	No
Antennenanschluss	Kein externer Anschluss
Height	30.2 mm

Features

2.4 GHz	Yes
5 GHz	No
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100Base-T(X)
Automatic channel selection	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, VLAN mapping
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Transmitting power (CE)	20 dBm
Transmitting power	15 dBmW

Security

Security algorithms	802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Access Control List (ACL)	Yes

Protocols

Management protocols	SNMP, Telnet

Management features

Web-based management	Yes
Syslog	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)

Power

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Power consumption (typical)	2.8 W

Design

Placement	Wall
Product colour	White
Cable lock slot	No
Reset button	Yes
LED indicators	Yes
Internal	No

Antenna

Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	1.8 dBi

Performance

Compatible operating systems	Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

Certificates

Compliance certificates	CE, RoHS

Packaging data

Package width	118 mm
Package depth	130 mm
Package height	47 mm
Package weight	190 g

Packaging content

Quantity per pack	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Harmonized System (HS) code	85176990

Sustainability

Sustainability compliance	Yes
Weight	0.19 kg
