TP-Link Switch Omada L2+ 8 x 2.5G Ports + 2 x 10G SG3210X-M2 10 Port

Hover to zoom1/2

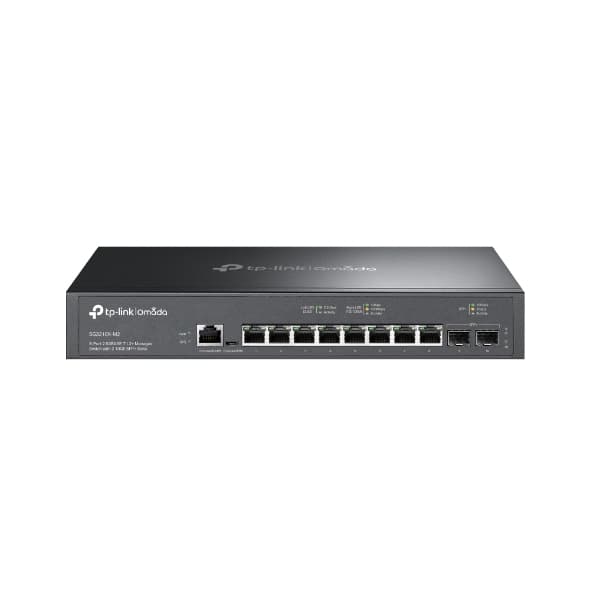

TP-Link Omada 8-Port 2.5G L2+ Managed Switch

Part number: 1650685
MPN: SG3210X-M2
EAN: 4897098689523

TP-Link Omada 8-Port 2.5G L2+ Managed Switch, Managed, L2+, 2.5G Ethernet (100/1000/2500), Rack mounting, 1U

SFP Anschlüsse	0
Montage Switch	19" Rack, Desktop
SFP+ Anschlüsse	2
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Cloud-Managed
Switch type	Managed
Switch layer	L2+

Description

TP-Link Omada 8-Port 2.5G L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w. Power connector: AC-in jack. Rack mounting, Form factor: 1U

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack, Desktop
SFP+ Anschlüsse	2
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Cloud-Managed

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
2.5G Ethernet (copper) ports quantity	8
SFP+ module slots quantity	2
Console port	RJ-45/micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000

Data transmission

MAC address table	16000 entries
Switching capacity	80 Gbit/s
Forwarding rate	59.52 Mpps
Static route	Yes
Number of static routes	48
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y

Protocols

Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Performance

Fanless	Yes

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	15 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	51.18 BTU/h

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Packaging data

Package type	Box
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	2.84 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	2.33 kg
