TP-Link Access Point EAP230-Wall Unterputz

Hover to zoom1/4

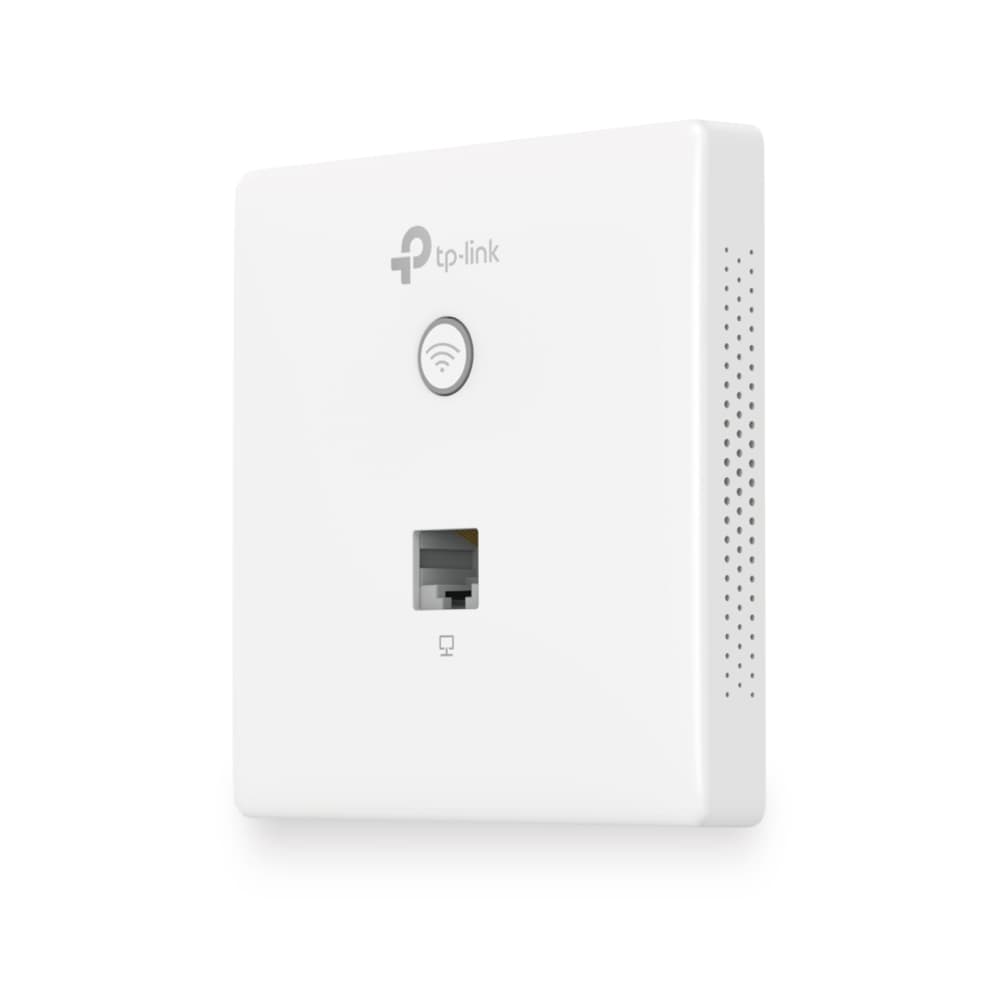

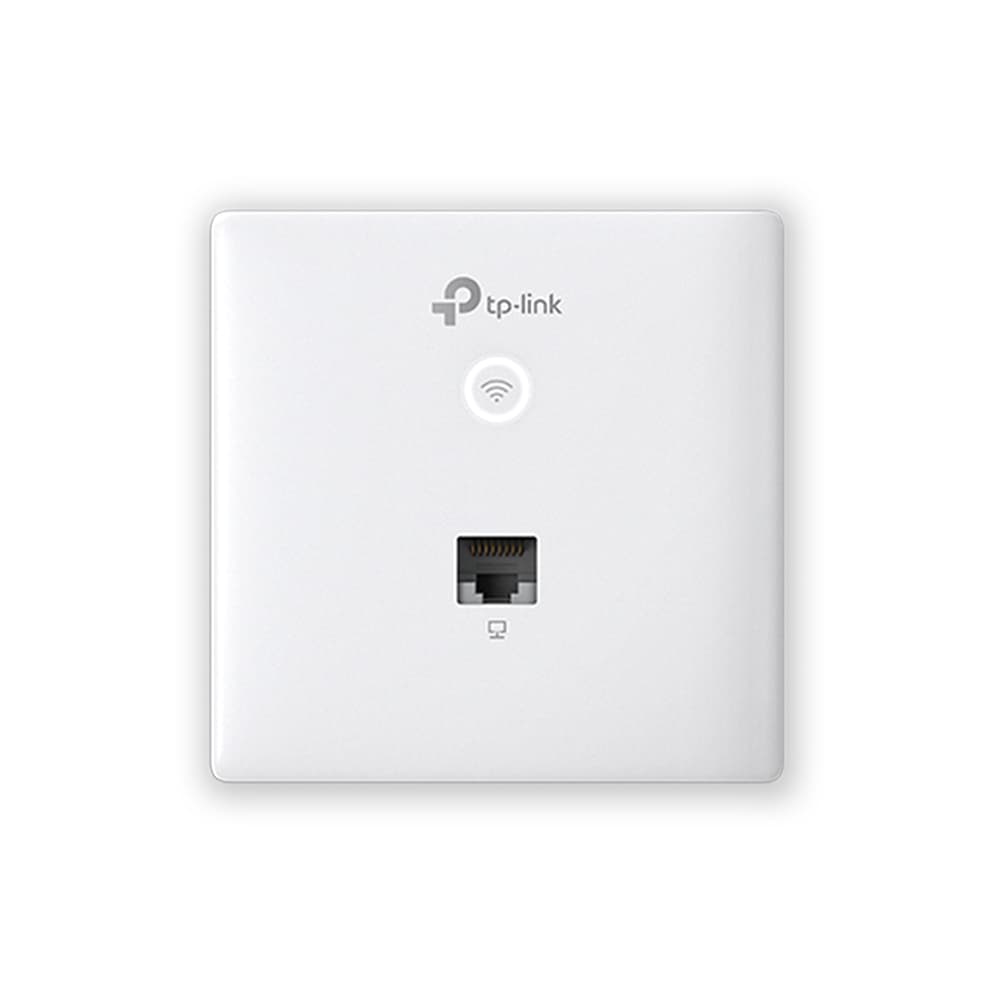

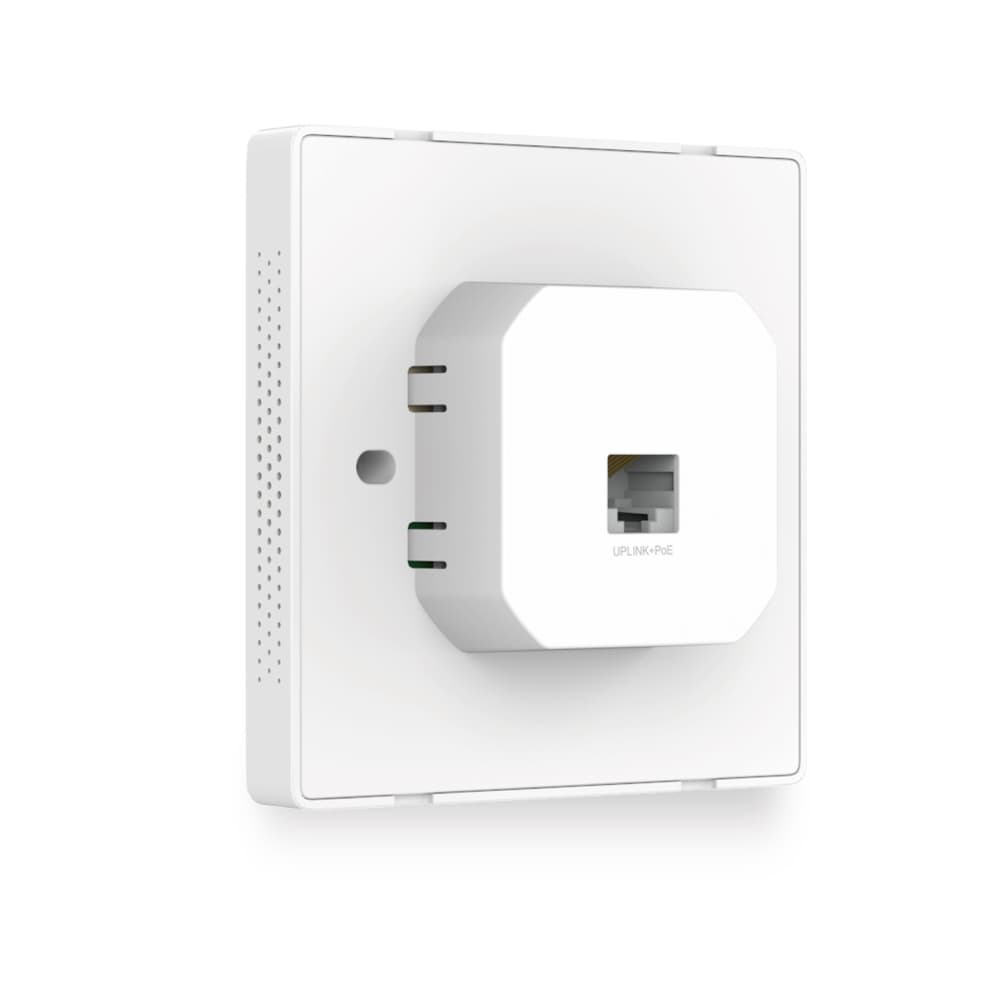

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Part number: 1171044
MPN: EAP230-Wall
EAN: 1210002615679

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, 2.4 GHz, 5 GHz, 1167 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s

Access Point Features	Cloud Management, Multiple SSID
Depth	86.8 mm
Width	86.8 mm
Outdoor use	No
Antennenanschluss	Antennen Intern vor verbaut
Height	30.2 mm
2.4 GHz	Yes
5 GHz	Yes

Description

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 25.5 W

Documents

Specifications

Access Point Features	Cloud Management, Multiple SSID
Outdoor use	No
Antennenanschluss	Antennen Intern vor verbaut

Weight & dimensions

Depth	86.8 mm
Width	86.8 mm
Height	30.2 mm

Features

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, VLAN mapping
Rate limiting	Yes
Band steering	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 - 23 dBm

Security

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes

Management features

Web-based management	Yes
Syslog	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)

Power

Power over Ethernet (PoE)	Yes
Power consumption (typical)	9 W
Power consumption (max)	25.5 W

Design

Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	Operation

Antenna

Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	3.6 dBi

Performance

Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Certificates

Compliance certificates	CE, RoHS

Packaging data

Package width	118 mm
Package depth	130 mm
Package height	47 mm
Package weight	210 g

Packaging content

Quantity per pack	2 pc(s)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Harmonized System (HS) code	85176990

Sustainability

Sustainability compliance	Yes
Weight	0.22 kg
