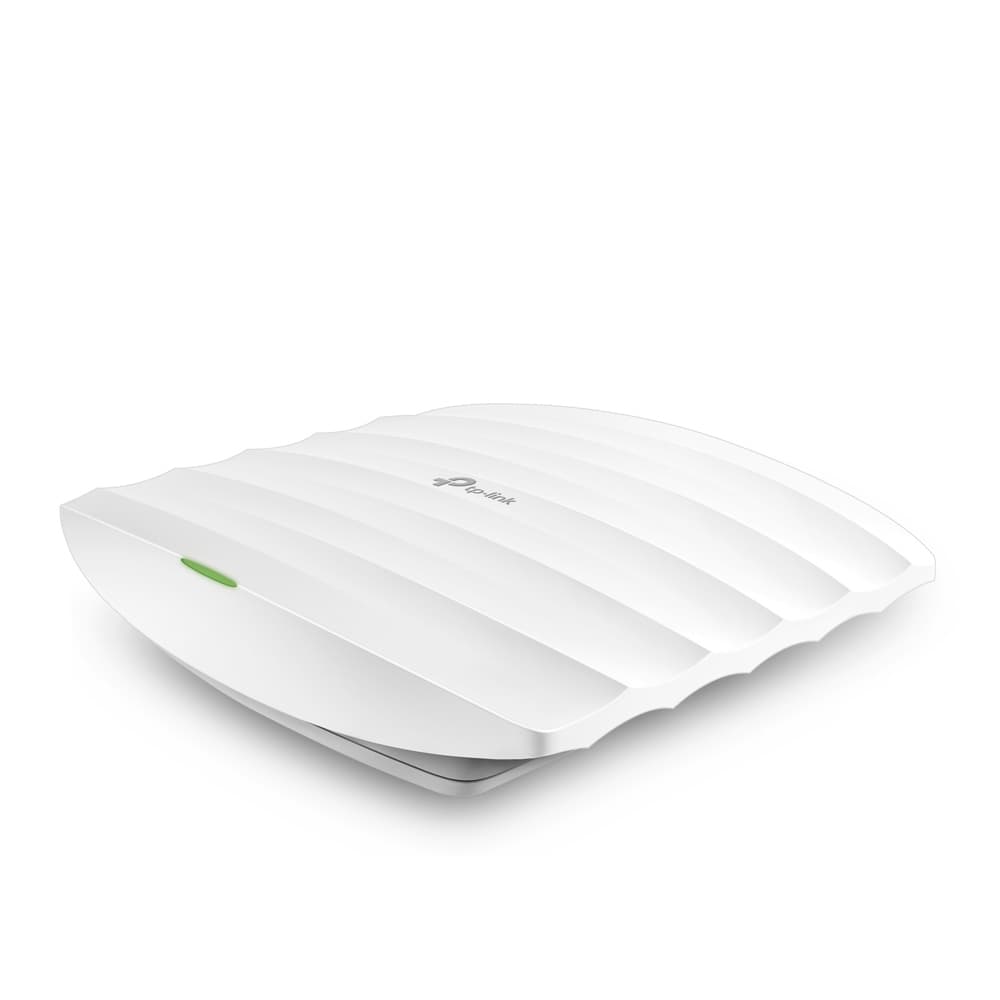

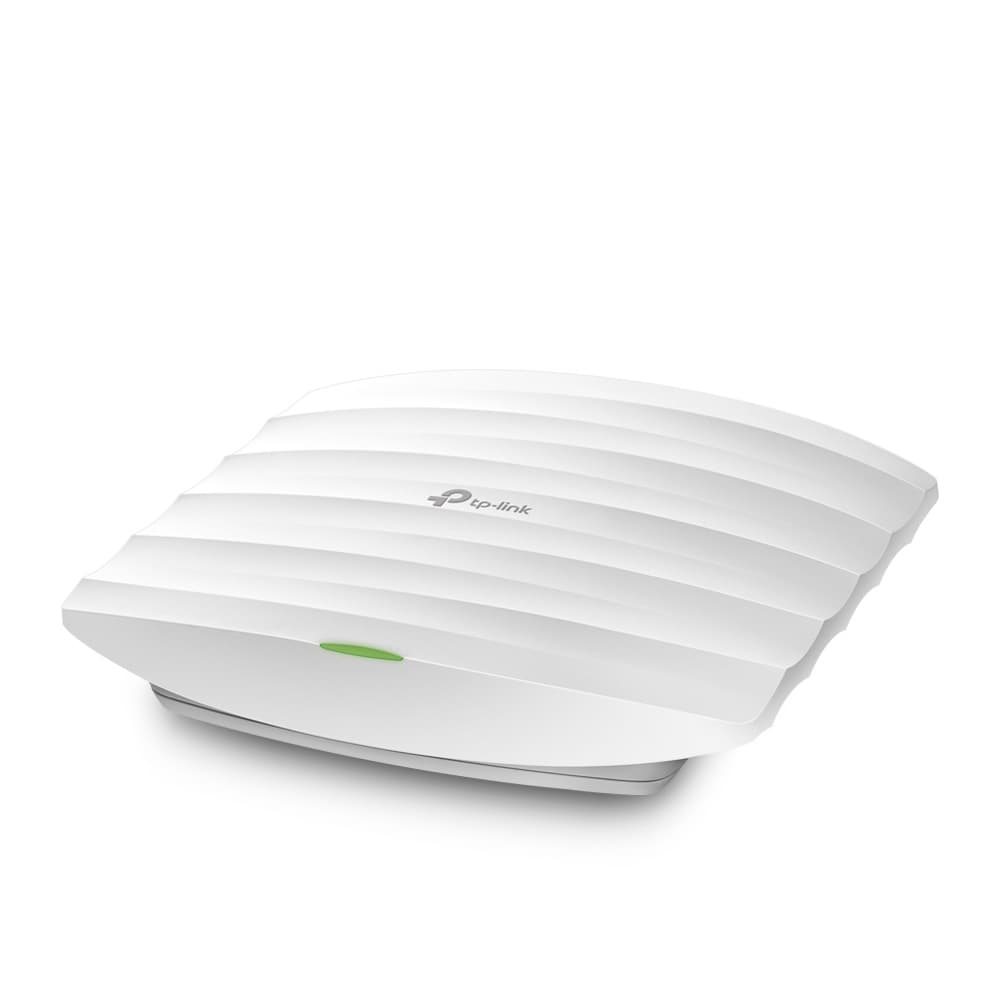

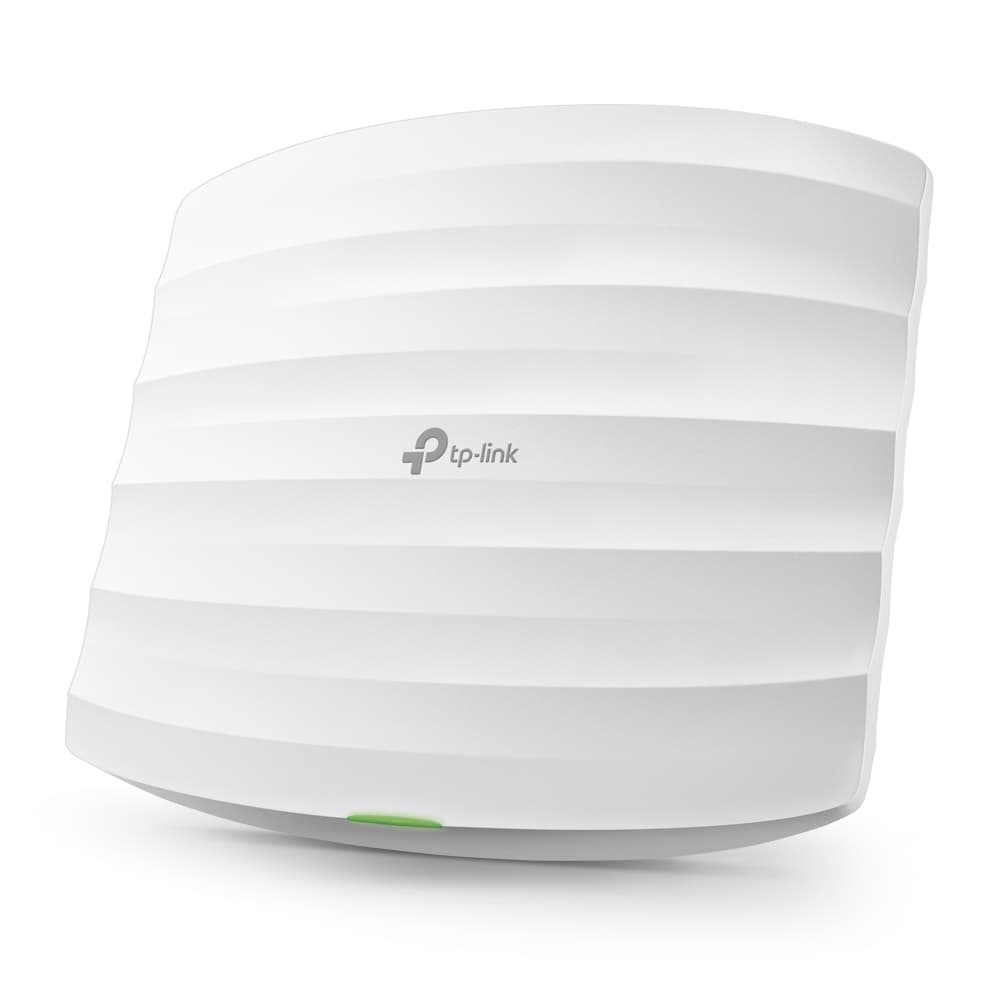

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

Part number: 504523
MPN: EAP225
EAN: 1210002618496

TP-Link Omada EAP225, 2.4 GHz, 5 GHz, 1350 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s

Access Point Features	Multiple SSID, Timer- und Zeitschaltfunktion, VLAN
Depth	181.5 mm
Width	205.5 mm
Outdoor use	No
Antennenanschluss	Kein externer Anschluss
Height	37.1 mm
2.4 GHz	Yes
5 GHz	Yes

Description

TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Documents

Data sheetPDF · DE

Specifications

Access Point Features	Multiple SSID, Timer- und Zeitschaltfunktion, VLAN
Depth	181.5 mm
Width	205.5 mm
Outdoor use	No
Antennenanschluss	Kein externer Anschluss
Height	37.1 mm

Features

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1350 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	VLAN mapping
Rate limiting	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	24 dBm

Security

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes

Management features

Web-based management	Yes
Syslog	Yes

Ports & interfaces

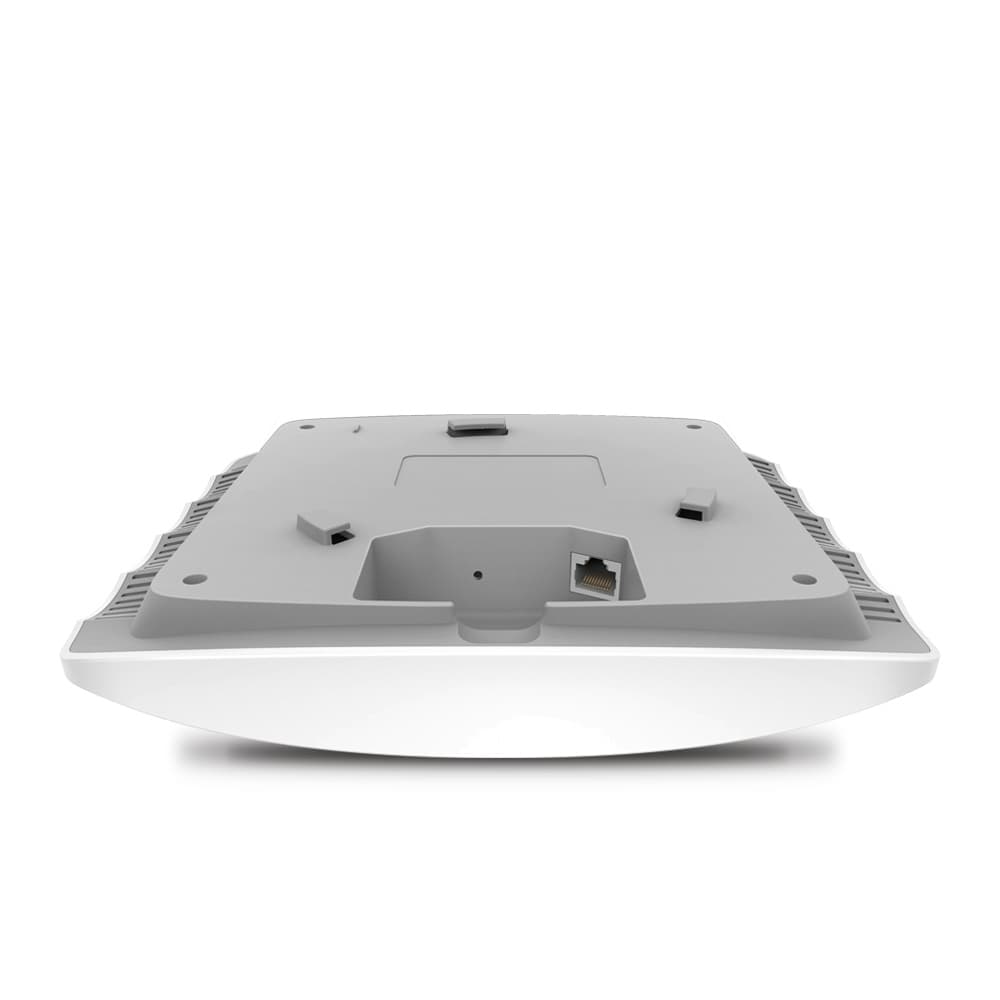

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	10.15 W

Design

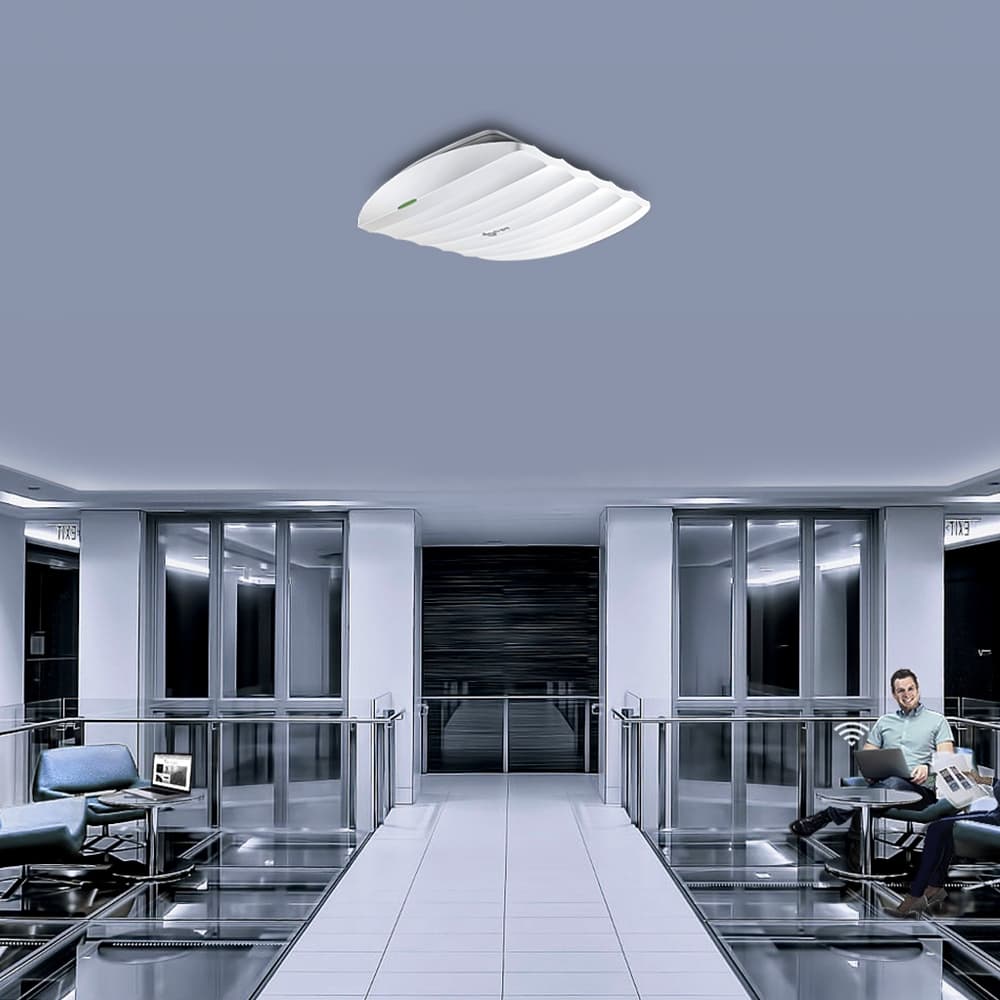

Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Reset button	Yes
LED indicators	Power, WLAN

Antenna

Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	5
Antenna gain level (max)	5 dBi

Performance

Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Mobile network

SIM card slot	No

Packaging data

Package width	228 mm
Package depth	340 mm
Package height	65 mm
Package weight	910 g
Package type	Box

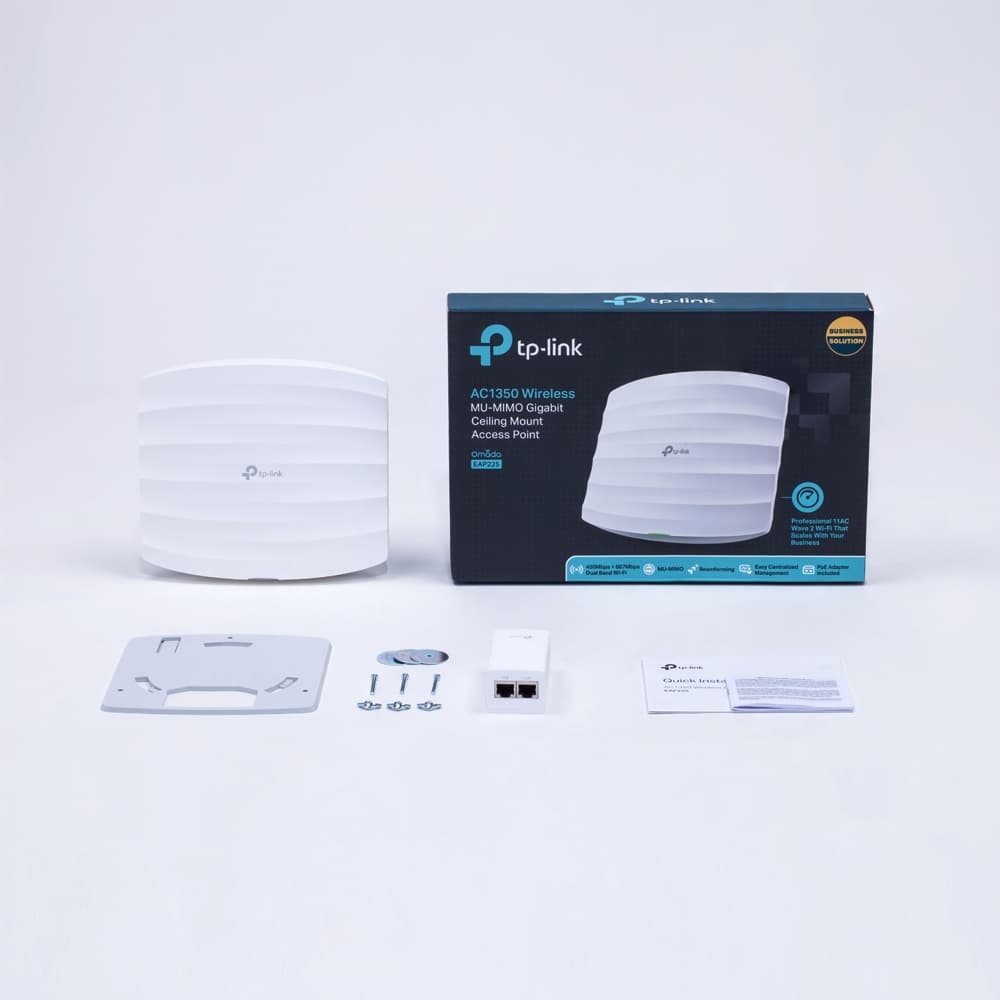

Packaging content

Quantity per pack	1 pc(s)
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Harmonized System (HS) code	85176990

Sustainability

Sustainability compliance	Yes
Weight	0.89 kg
