TP-Link PoE+ Switch ES208GP 8 Port1/6
TP-Link

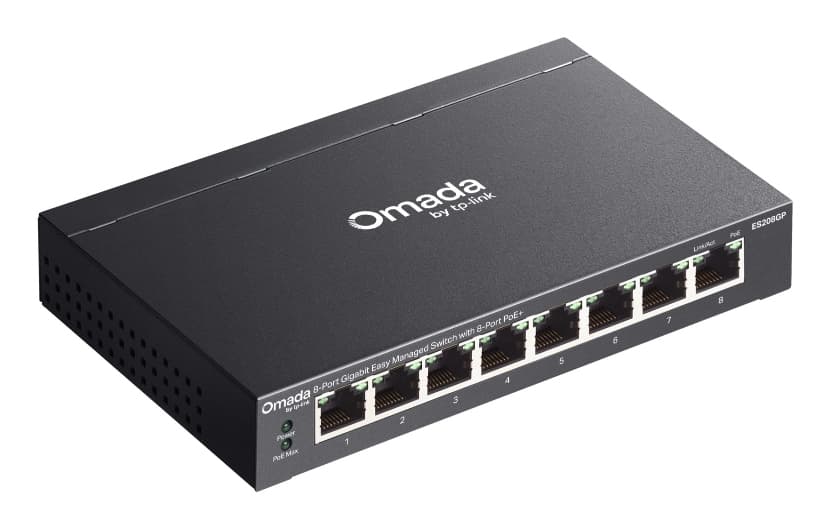

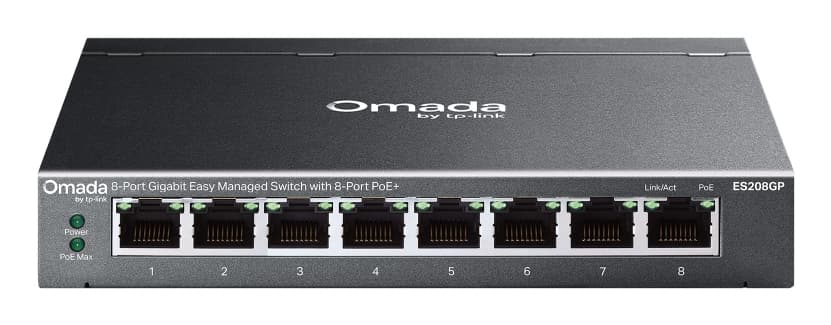

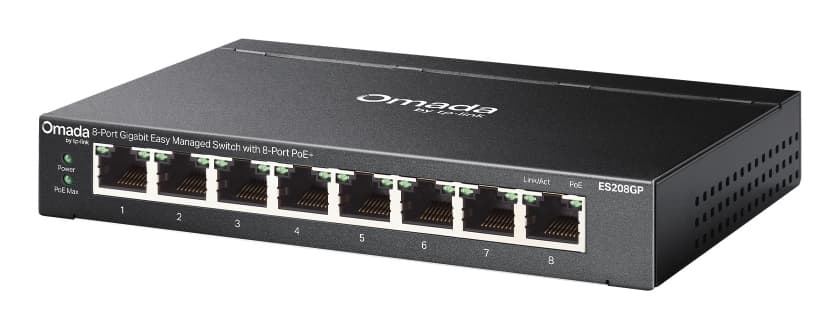

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

Part number
2005898
MPN
ES208GP
EAN
1210002609708

TP-Link Omada ES208GP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail

SFP Anschlüsse0
Montage SwitchDesktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed
Switch typeManaged
Switch layerL2
All 58 specifications

Description

TP-Link Omada ES208GP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 53 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

Documents

Specifications

SFP Anschlüsse0
Montage SwitchDesktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Network

Networking standardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G supportNo
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs4000

Optical fiber

Transmission distance (max)0.25 km

Data transmission

MAC address table8000 entries
Switching capacity16 Gbit/s
Forwarding rate11.904 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory0.5 MB

Security

DHCP featuresDHCP client
IGMP snoopingYes
Loop protectionYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factorDIN rail
Product colourBlack
LED indicatorsYes

Power

Power sourceDC
DC input voltage53 V
Input current1.31 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget64 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width158 mm
Depth100.7 mm
Height25.4 mm

Packaging content

Cables includedPower
Quick start guideYes

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Weight0.94 kg
