TP-Link Omada Multi-Gigabit VPN Router

TP-Link VPN-Router ER707-M21/4
Part number
1564844
MPN
ER707-M2
EAN
4895252500738

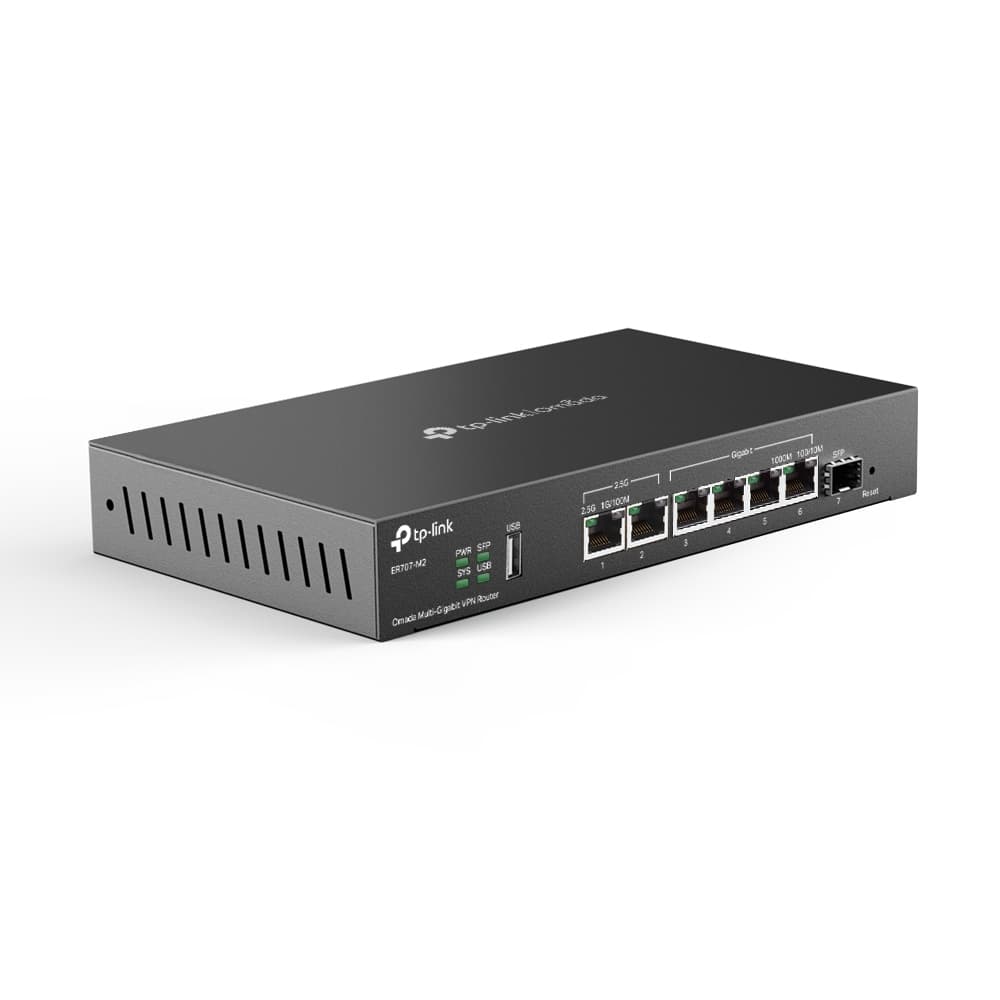

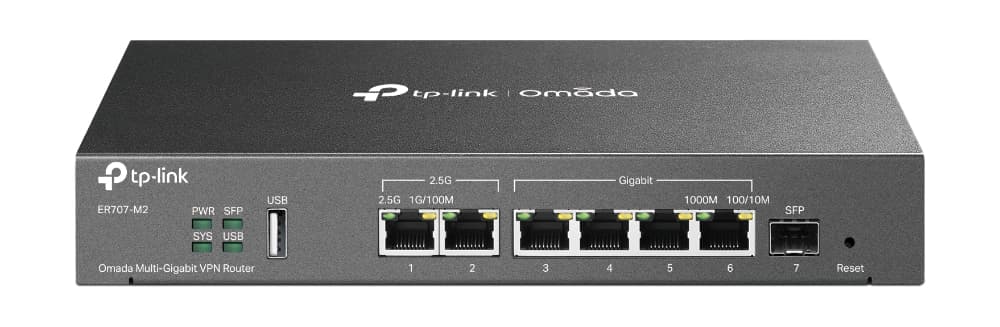

TP-Link Omada Multi-Gigabit VPN Router, Ethernet WAN, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Black

Application AreaSmall/Medium Business
RJ-45 Ports5
RJ-45 Speed1 Gbit/s, 2.5 Gbit/s
Number of PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W
Ethernet WANYes
SFP WANYes
All 63 specifications

Description

TP-Link Omada Multi-Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Flash memory: 128 MB, Internal memory: 1000 MB, Internal memory type: DDR4

Documents

Specifications

Application AreaSmall/Medium Business
RJ-45 Ports5
RJ-45 Speed1 Gbit/s, 2.5 Gbit/s
Number of PoE Ports0
PoE In/OutNicht vorhanden
PoE Budget0 W

WAN connection

Ethernet WANYes
SFP WANYes

Network

Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Throughput1.44 Gbit/s
Static routeYes
VLAN supportYes
Policy-based routingYes

Management features

Web-based managementYes
Universal Plug and Play (UPnP)Yes
Reset buttonYes

Ports & interfaces

Number of Ethernet LAN Connections (RJ-45)6
WAN/Ethernet LAN ports quantity6
WAN ports quantity1
Installed SFP modules quantity1
USB ports quantity1
USB version2.0

Protocols

DHCP clientYes
DHCP serverYes
DMZ supportYes
Supported network protocolsTCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Security

Supported Security Algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
URL filteringYes
ICMP attack preventionYes
Access Control List (ACL)Yes
Network address translation (NAT)Yes
System event logYes
VPN tunnels quantity66

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Sustainability complianceYes

Packaging content

AC adapter includedYes
Quick installation guideYes

Features

Flash memory128 MB
Storage Capacity1000 MB
Internal Memory TypeDDR4
Supported Windows Operating SystemsWindows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Supports Mac Operating SystemsYes
Linux operating systems supportedYes

Design

ColourBlack
Case MaterialSteel
Wall MountingYes
LED indicatorsLAN, Link, Power, Speed, System, USB, WAN

Power

Power SourceDC
Output Voltage12 V
Output current1.5 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width226 mm
Depth131 mm
Height35 mm

Packaging data

Package width242 mm
Package depth323 mm
Package height73 mm
Package Weight1.1 kg
Weight1.49 kg
