TP-Link PoE+ Switch Omada Pro S4500-16GP with 8-Port PoE+

Hover to zoom1/6

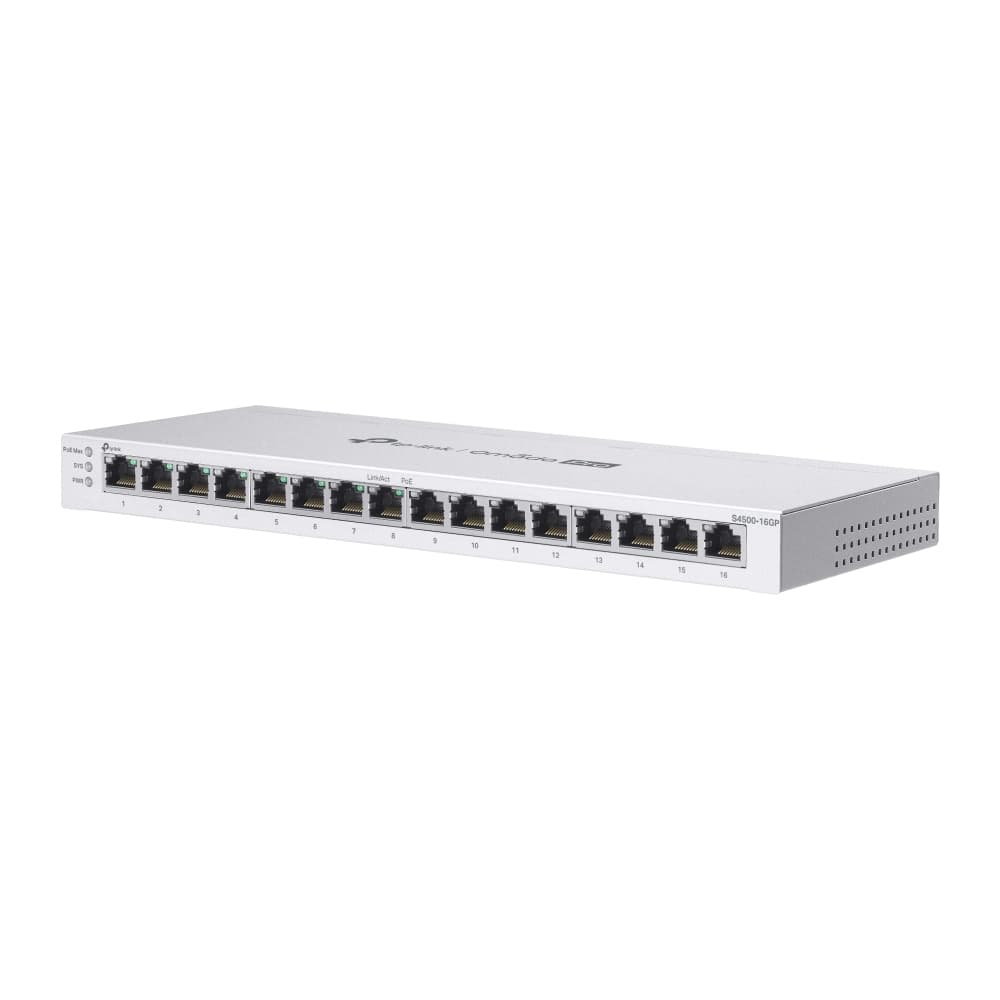

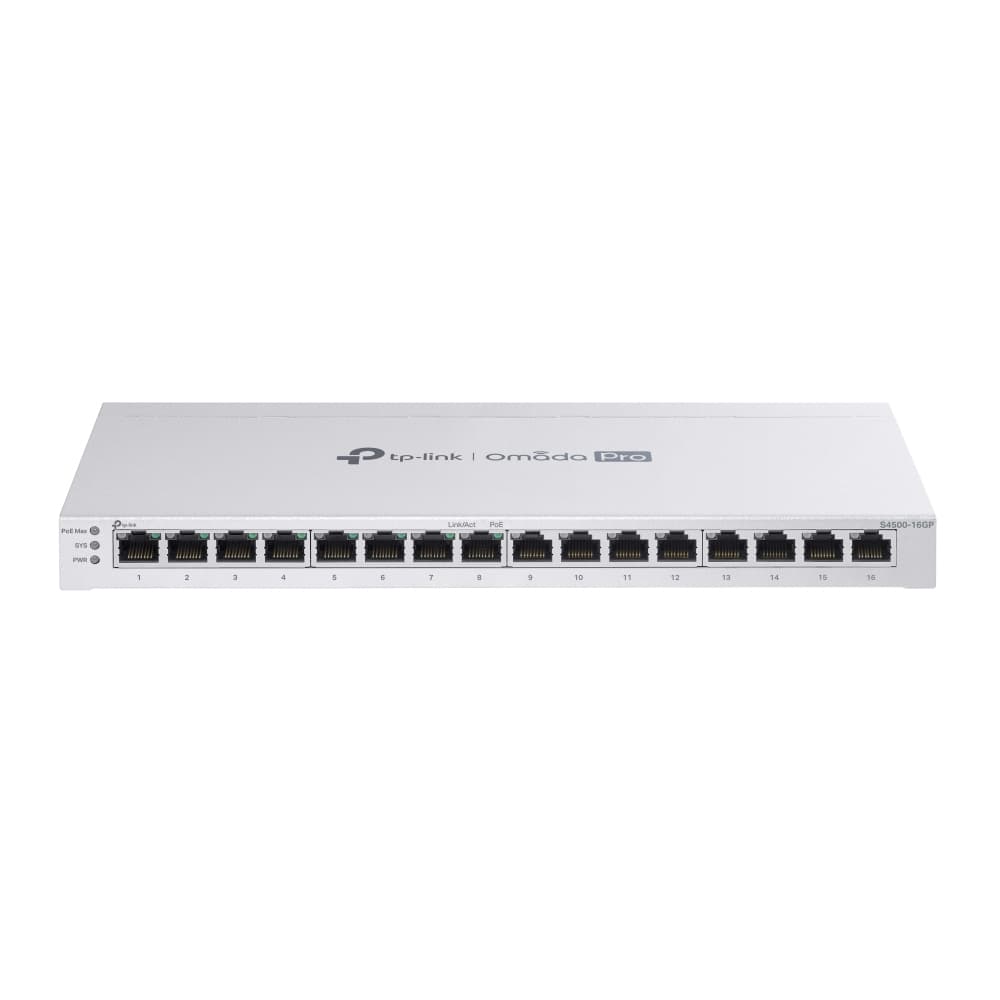

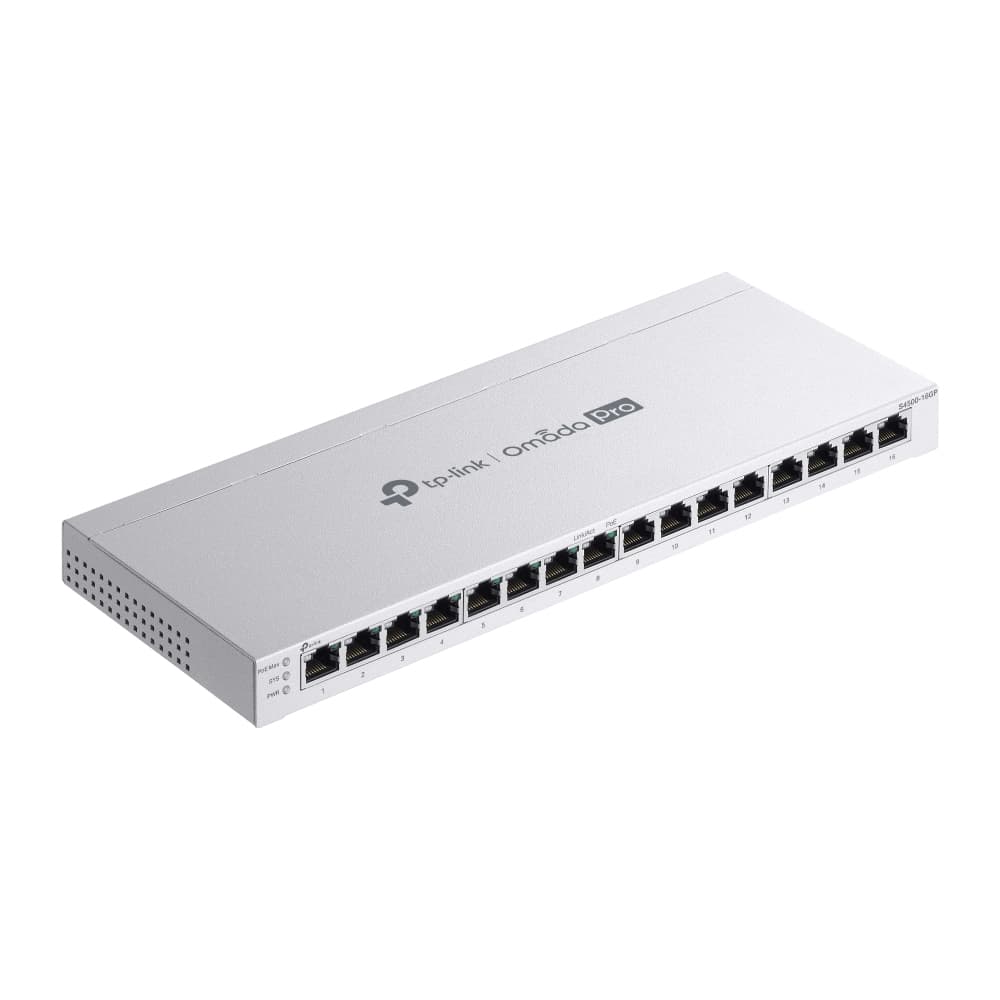

TP-Link Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+

Part number: 2175572
MPN: S4500-16GP
EAN: 4895252507362

TP-Link Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

SFP Anschlüsse	0

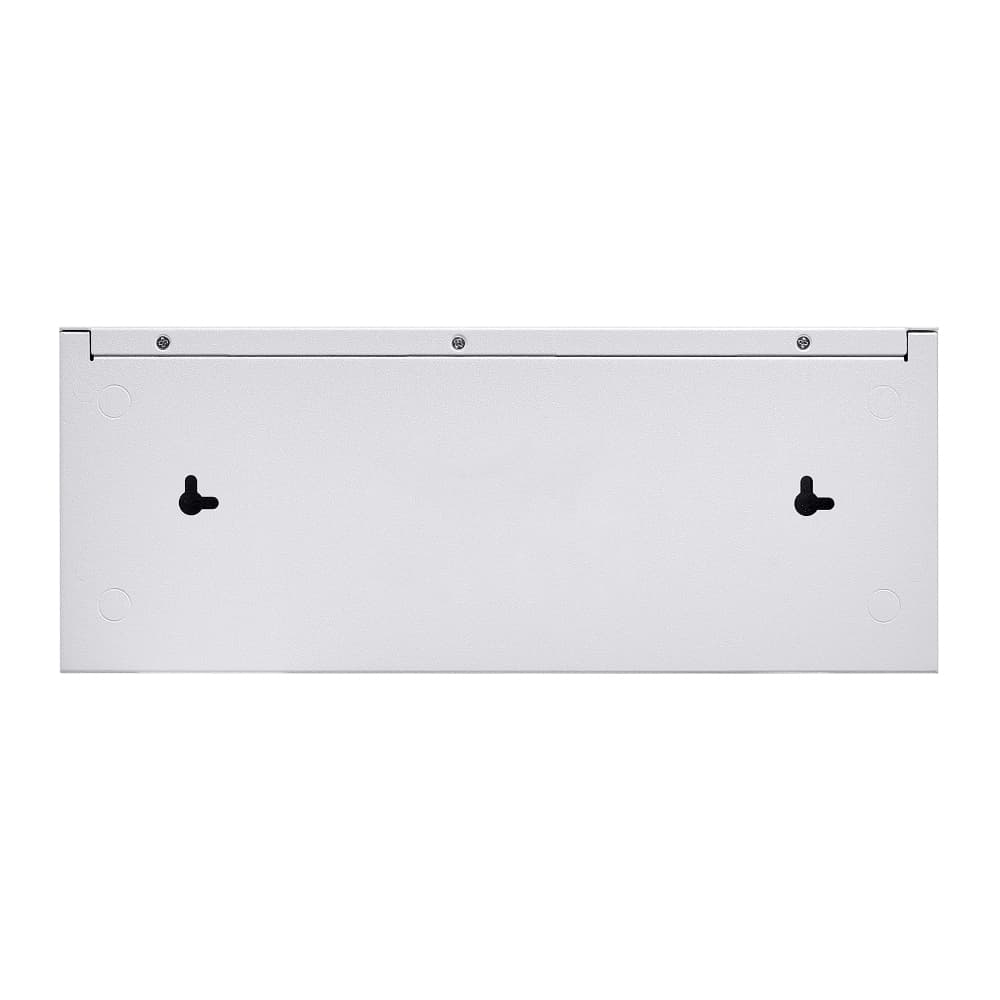

Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed
Switch type	Managed
Switch layer	L2/L2+

Description

TP-Link Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x, IEEE 802.1s, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE)

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed

Management features

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

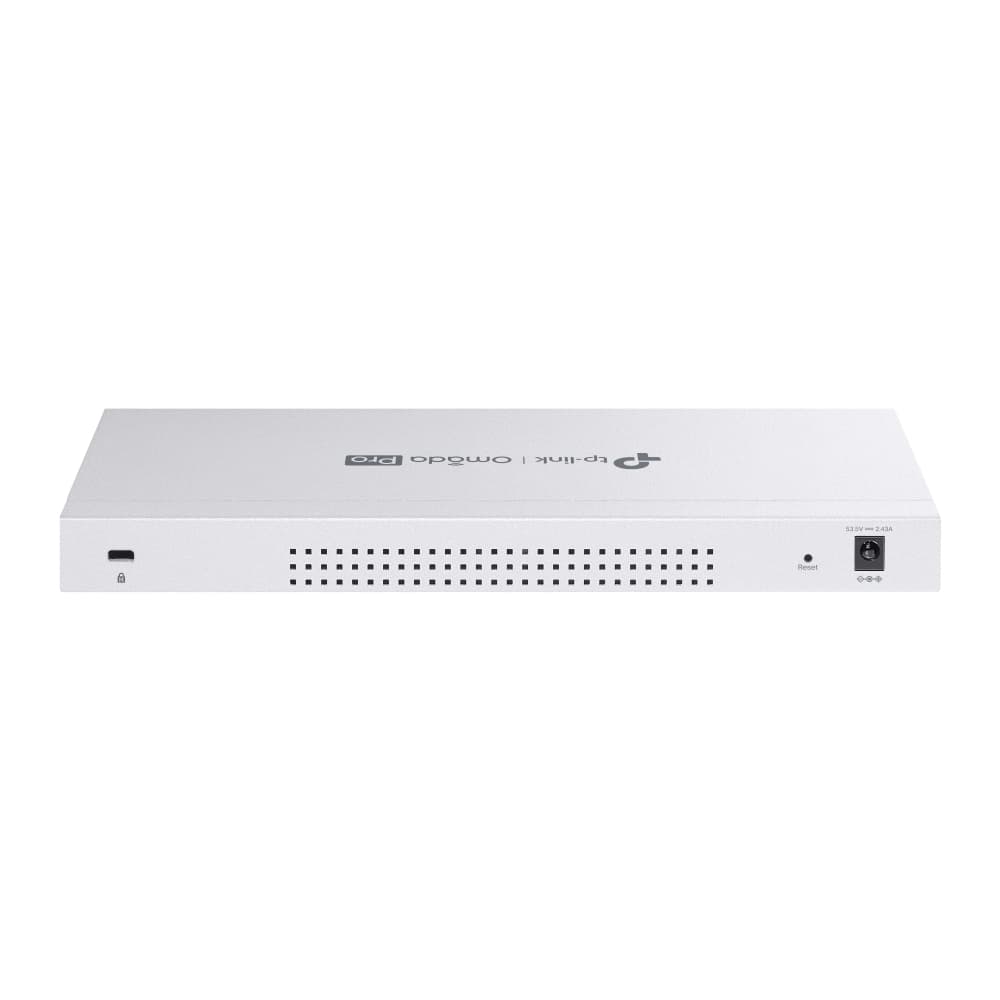

Power connector	DC-in jack

Network

Networking standards	IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x, IEEE 802.1s, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 1000BASE-TX
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Active link detection	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Data transmission

MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
Store-and-forward	Yes
Number of queues	8
Static route	Yes
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB

Security

DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Loop protection	Yes
Password protection	Yes
Authentication type	RADIUS

Multicast features

Multicast support	Yes

Design

Rack mounting	No
Product colour	Grey
LED indicators	Yes

Performance

Internal memory	256 MB
Flash memory	32 MB
Fanless	Yes

Power

Power source	DC
Power supply included	Yes
Input current	2.43 A
Input voltage	2.43 V
Power consumption (max)	146.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	499.98 BTU/h

Weight & dimensions

Width	286 mm
Depth	111.7 mm
Height	25.4 mm

Packaging content

Quick start guide	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability compliance	Yes
Weight	3.24 kg
