TP-Link PoE+ Switch Omada PRO S5500-48GP4XF 52 Port1/6
TP-Link

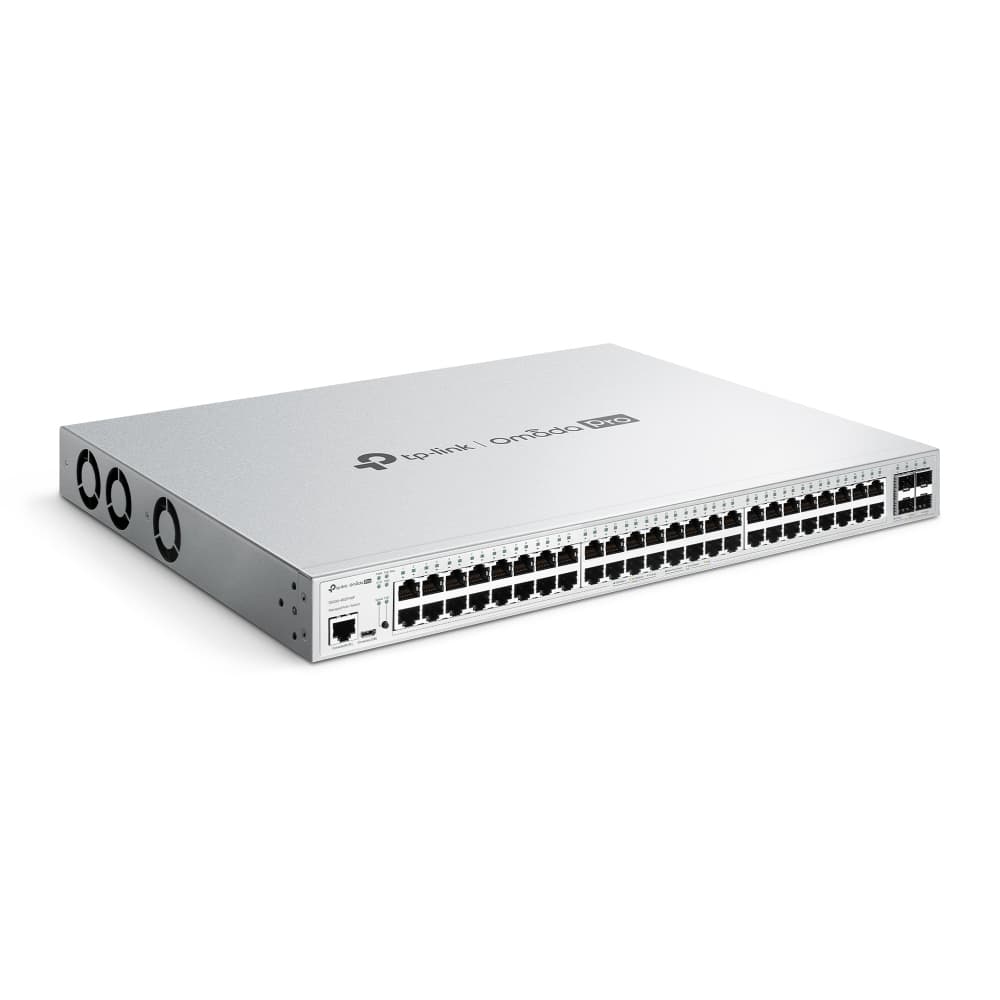

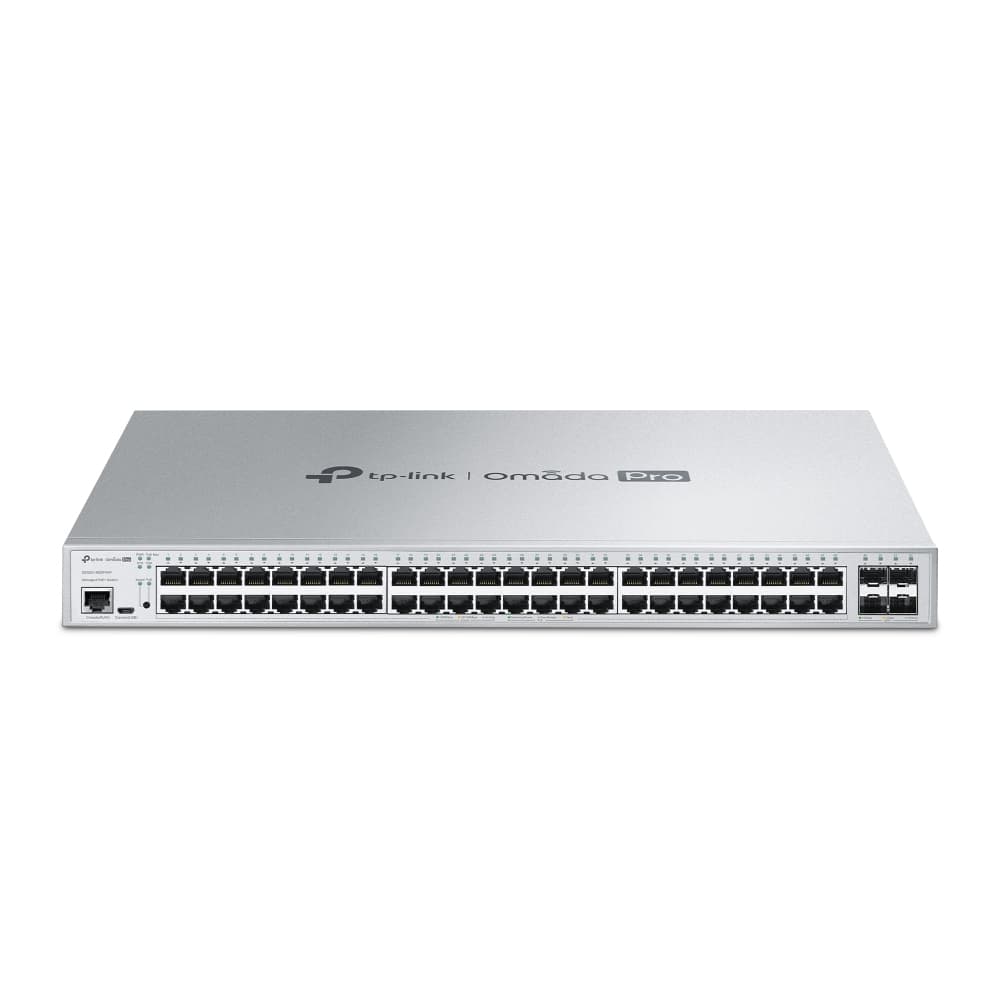

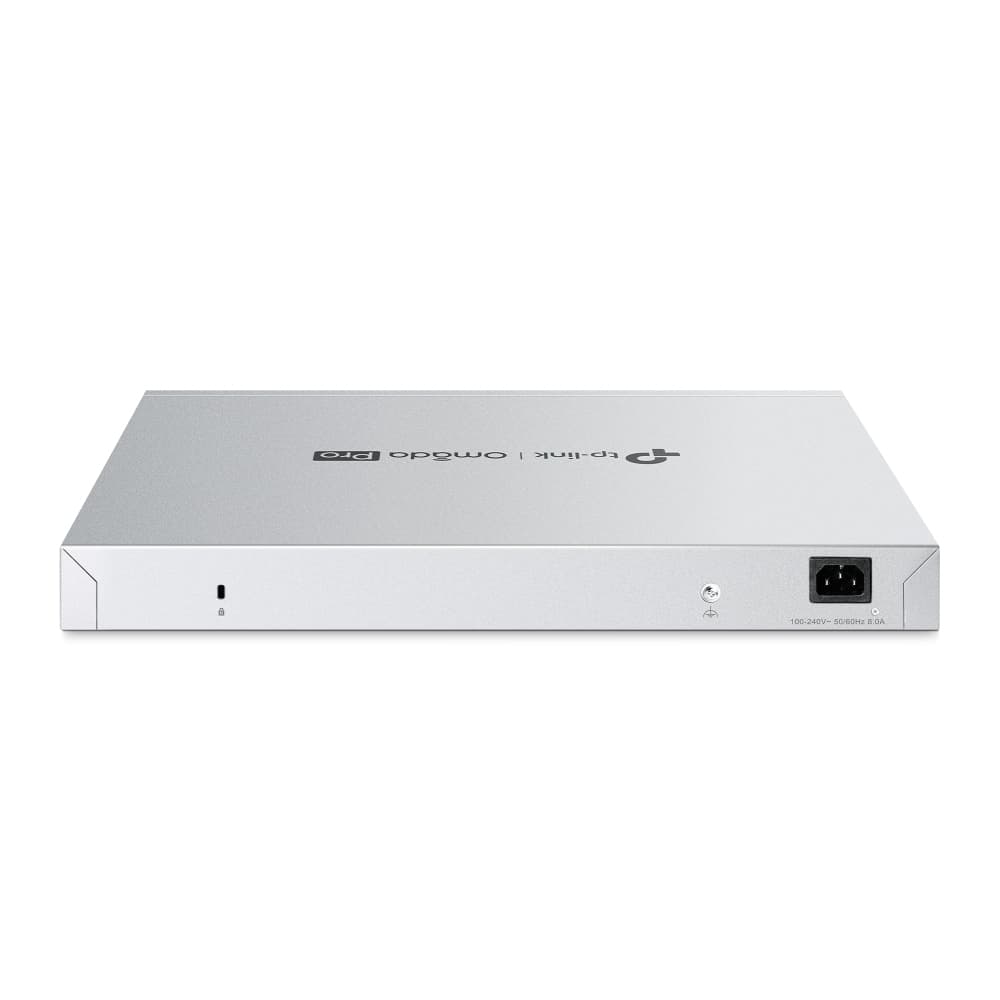

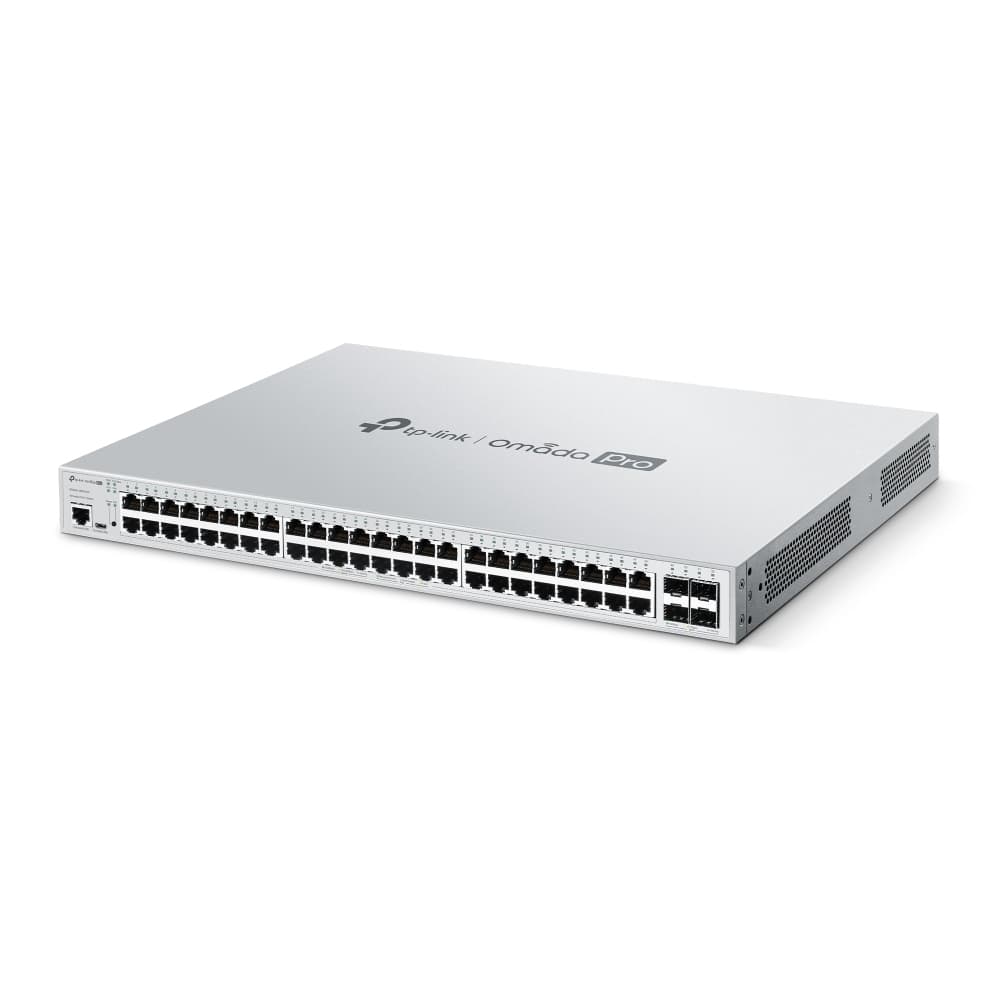

TP-Link Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots

Part number
2157938
MPN
S5500-48GP4XF
EAN
4895252505795

TP-Link Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse4
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementFull-Managed
Switch typeManaged
Switch layerL2/L2+
All 77 specifications

Description

TP-Link Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Documents

Specifications

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse4
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementFull-Managed

Management features

Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
Configuring Location Settings (CLI)Yes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity4
Console portRJ-45/Micro-USB
Power connectorAC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportYes
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Active link detectionYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs4000

Data transmission

MAC address table16000 entries
Switching capacity176 Gbit/s
Forwarding rate130.94 Mpps
Store-and-forwardYes
Number of queues8
Static routeYes
Number of static routes48
Number of IP interfaces16
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory12 MB

Security

DHCP featuresDHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Static port securityYes
SSH/SSL supportYes
Loop protectionYes
Password protectionYes
Authentication typeRADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourGrey
LED indicatorsYes

Performance

Internal memory512 MB
Flash memory32 MB

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)635.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Total Power over Ethernet (PoE) budget500 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation2169.2 BTU/h

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm

Packaging content

Cables includedAC
Quick start guideYes

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability complianceYes
Weight6.02 kg
