TP-Link SFP+ Switch Omada PRO S5500-8XF 8 Port

Hover to zoom1/7

TP-Link Omada Pro 8-Port SFP+ L2+ Managed Switch

Part number: 2157935
MPN: S5500-8XF
EAN: 4895252505733

TP-Link Omada Pro 8-Port SFP+ L2+ Managed Switch, Managed, L2/L2+, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	8
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Full-Managed
Switch type	Managed
Switch layer	L2/L2+

Description

TP-Link Omada Pro 8-Port SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L2+. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	8
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Full-Managed

Management features

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	8
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Active link detection	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Data transmission

MAC address table	32000 entries
Switching capacity	160 Gbit/s
Forwarding rate	119.04 Mpps
Store-and-forward	Yes
Number of queues	8
Static route	Yes
Number of static routes	48
Number of IP interfaces	16
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	16 MB

Security

DHCP features	DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
Password protection	Yes
Authentication type	RADIUS

Multicast features

Multicast support	Yes

Design

Rack mounting	Yes
LED indicators	Yes

Performance

Internal memory	256 MB
Flash memory	32 MB
Fanless	Yes

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	16.46 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	52.75 BTU/h

Weight & dimensions

Width	440 mm
Depth	180 mm
Height	44 mm

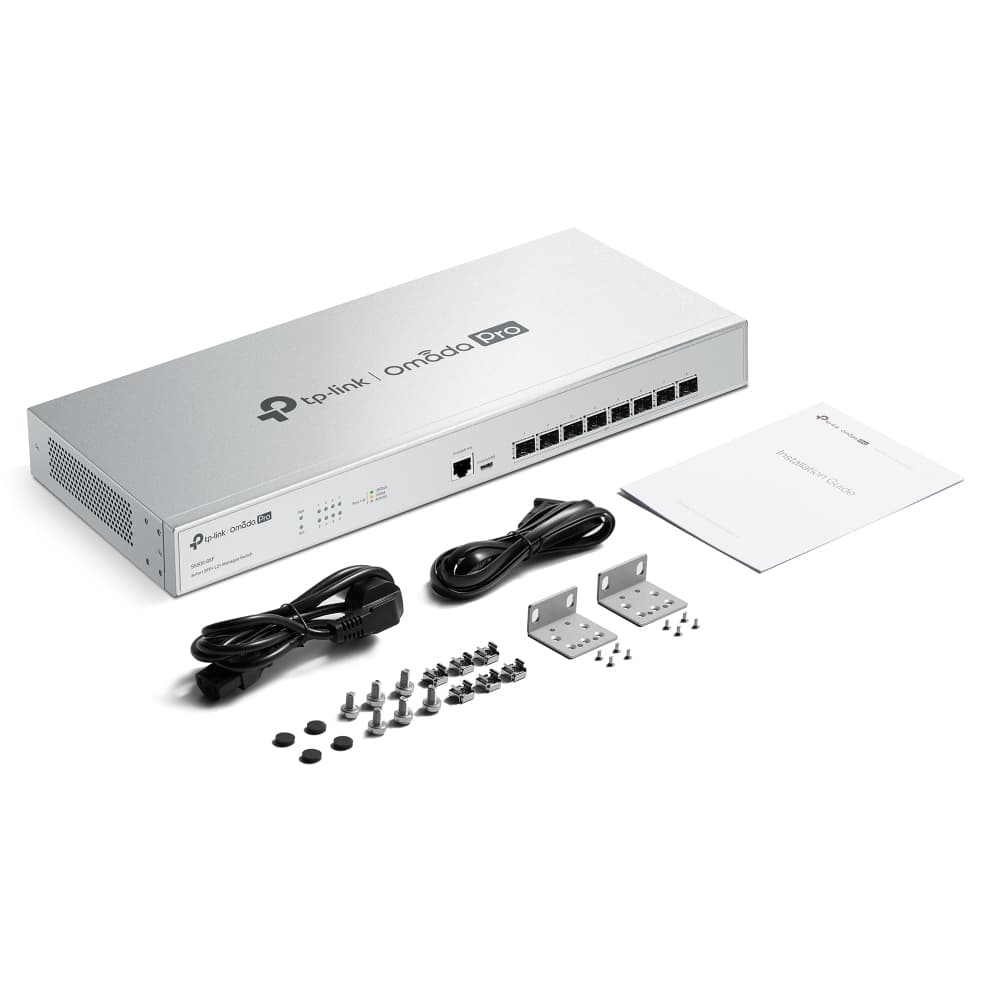

Packaging content

Cables included	AC
Quick start guide	Yes

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability compliance	Yes
Weight	6.02 kg
