TP-Link Access Point Omada PRO WIFI 6 AP9650 Indoor 1 GbE AX30001/6
TP-Link

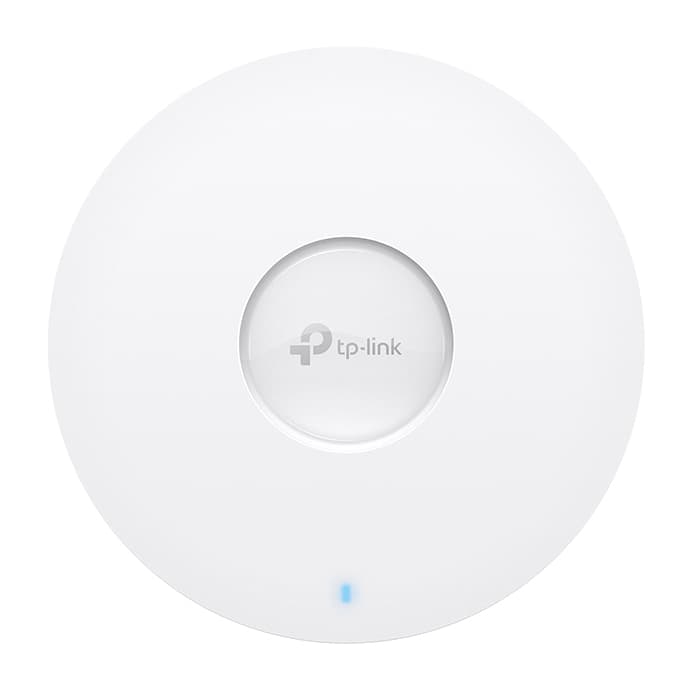

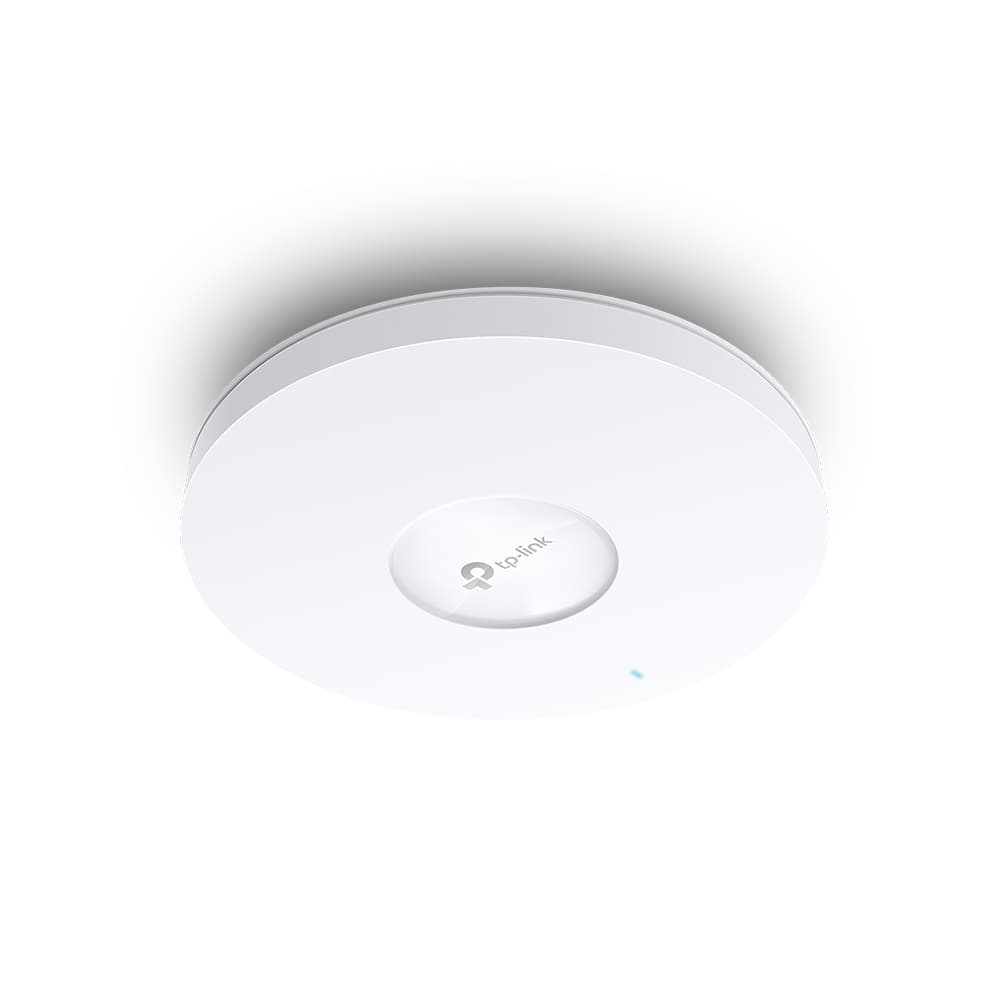

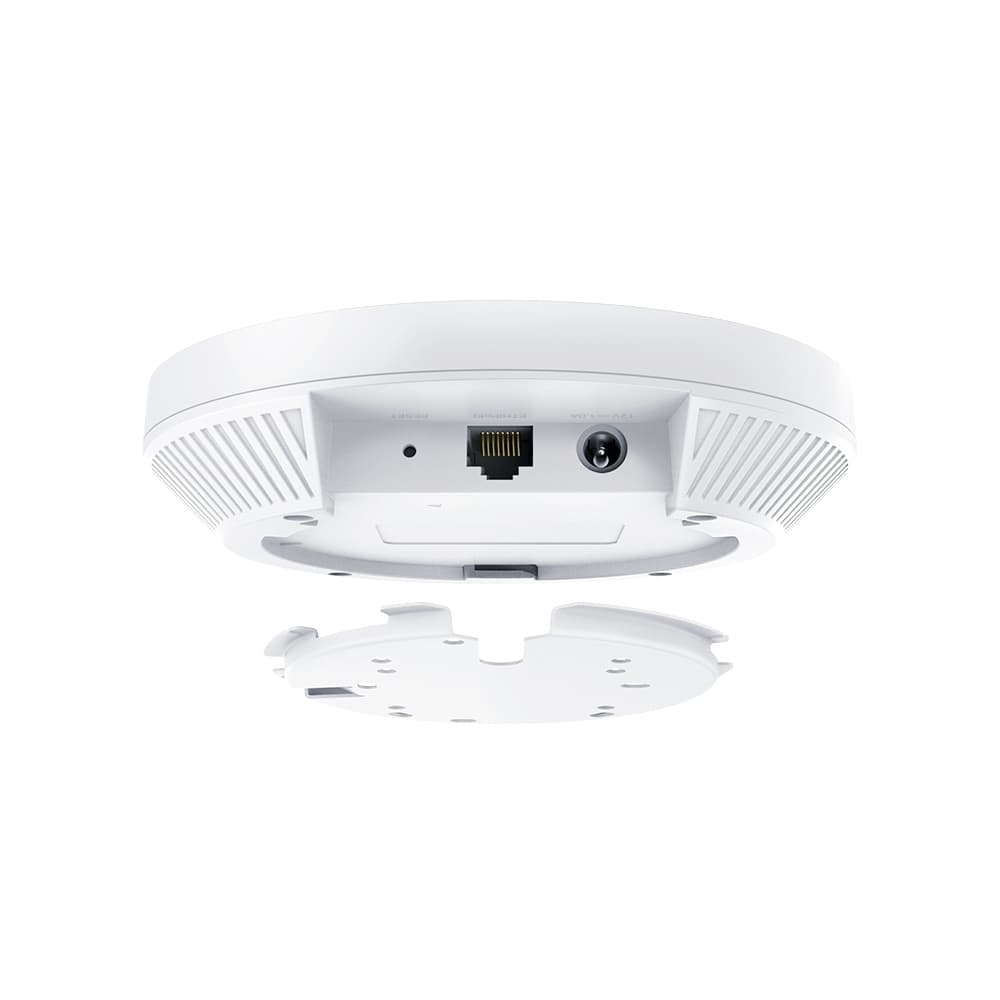

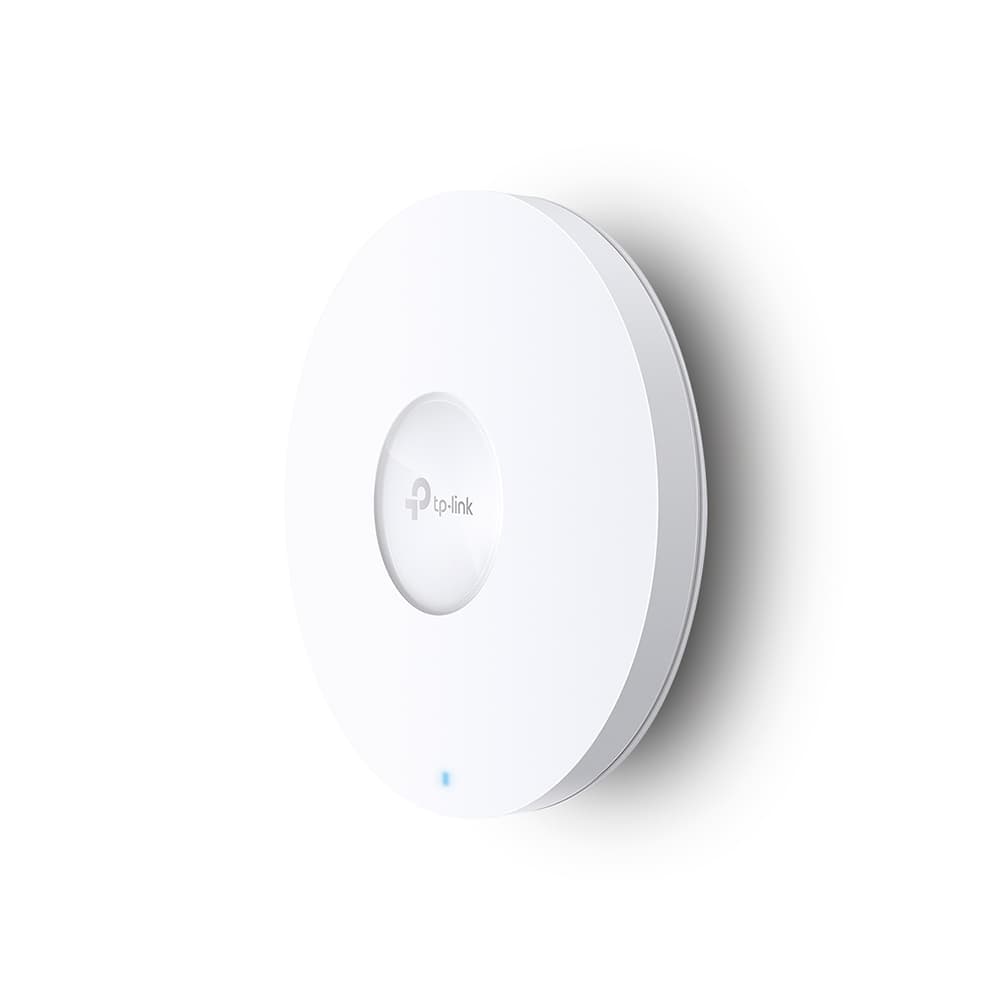

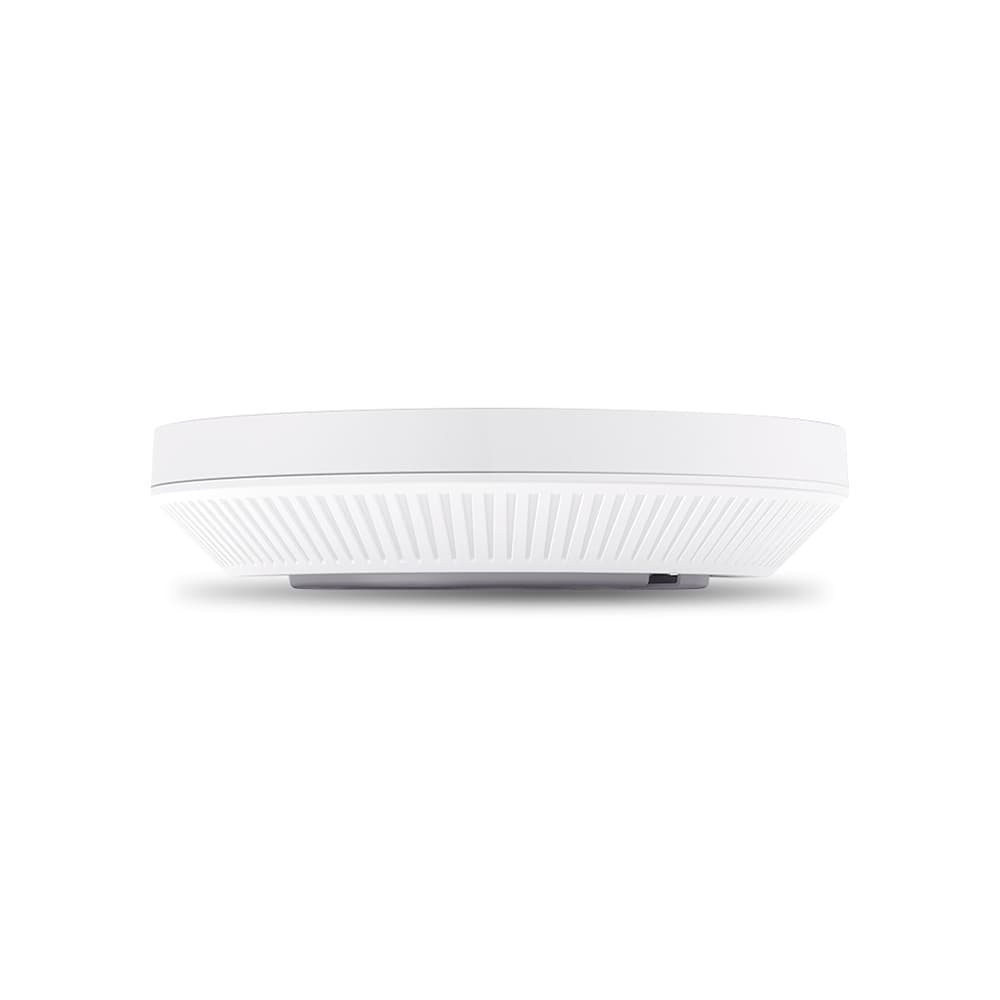

TP-Link Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point

Part number
2175581
MPN
AP9650
EAN
4895252501032

TP-Link Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 3000 Mbit/s, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, 10,100,1000 Mbit/s

Access Point FeaturesAccess Point, Cloud Management, Mesh, Multiple SSID, PoE+, Quality of Service (QoS), Schnelles Roaming, TP-Link Omada SDN, VLAN
Depth160 mm
Width160 mm
Outdoor useNo
AntennenanschlussAntennen nicht abnehmbar
Height33 mm
2.4 GHzYes
5 GHzYes
All 55 specifications

Description

TP-Link Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Documents

Specifications

Access Point FeaturesAccess Point, Cloud Management, Mesh, Multiple SSID, PoE+, Quality of Service (QoS), Schnelles Roaming, TP-Link Omada SDN, VLAN
Outdoor useNo
AntennenanschlussAntennen nicht abnehmbar

Weight & dimensions

Depth160 mm
Width160 mm
Height33 mm

Features

2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate3000 Mbit/s
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)2402 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11n
Number of users250 user(s)
Automatic channel selectionYes
Automatic channel scanningYes
MIMOYes
MIMO typeMulti User MIMO
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Rate limitingYes
Band steeringYes
Airtime Fairness (ATF)Yes
Quality of Service (QoS) supportYes
BeamFormingYes

Security

Security algorithmsWPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported16
Remote Authentication Dial-In User Service (RADIUS)Yes
Access Control List (ACL)Yes

Management features

Web-based managementYes
SyslogYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
DC voltage range12 V
Input current1 A

Design

PlacementCeiling, Wall
Product colourWhite
Reset buttonYes

Antenna

Antenna typeInternal
Antenna gain level (max)5 dBi

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Packaging content

Quantity per pack1 pc(s)
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)-10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%

Sustainability

Sustainability complianceYes
Weight1.48 kg
