TP-Link SFP+ Switch Omada PRO S7500-48XF4C 52 Port

Hover to zoom1/6

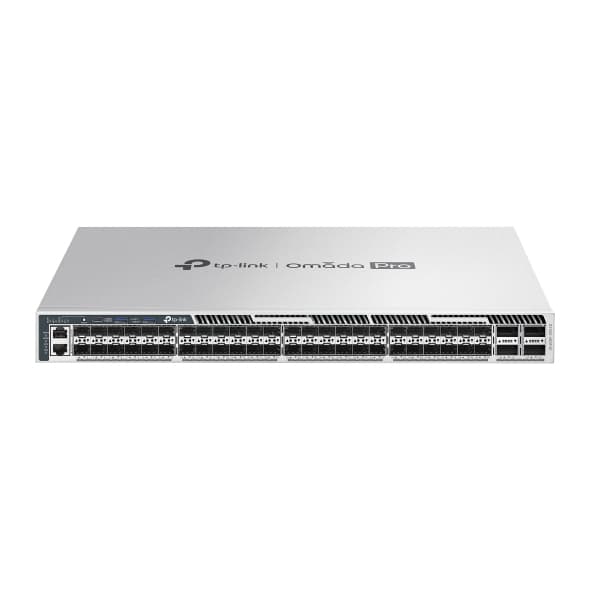

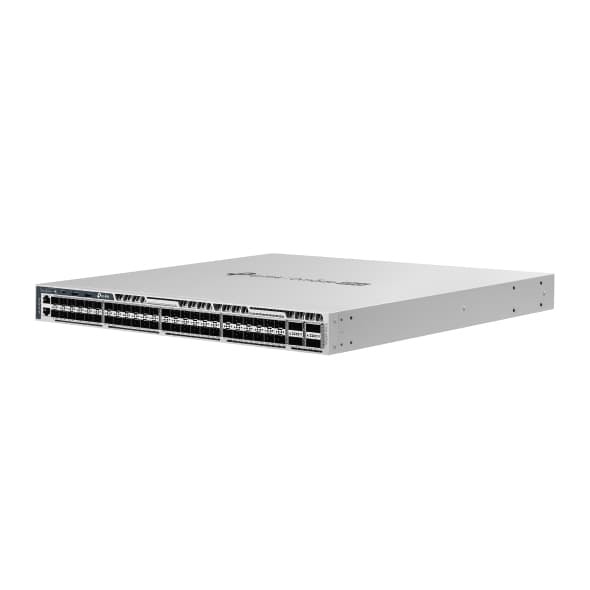

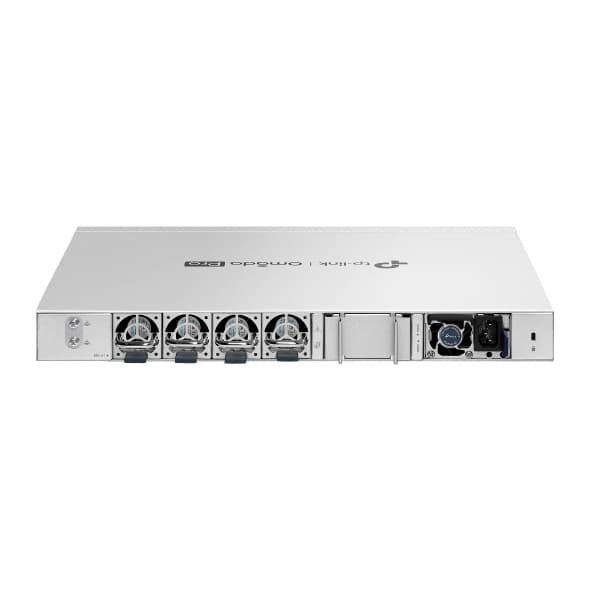

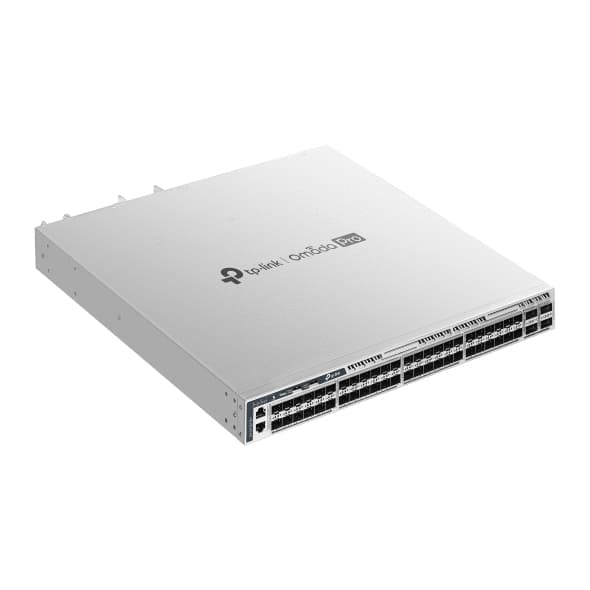

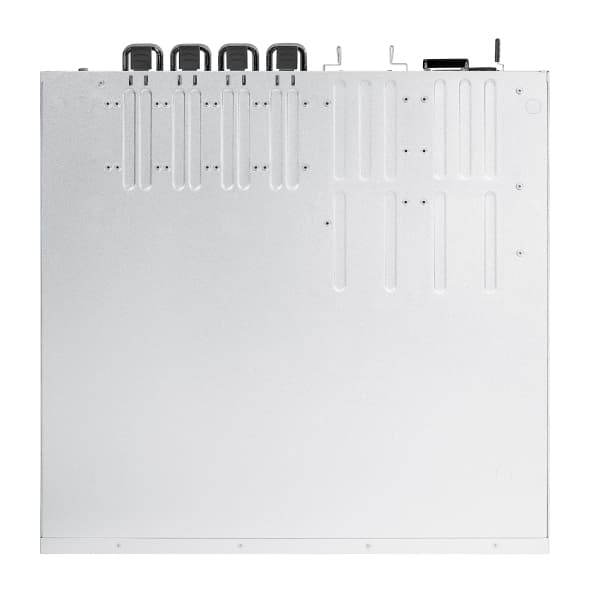

TP-Link Omada S7500-48XF4C network switch Managed

Part number: 2156080
MPN: S7500-48XF4C
EAN: 4895252505375

TP-Link Omada S7500-48XF4C, Managed, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	48
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Full-Managed
Switch type	Managed
Web-based management	Yes

Description

TP-Link Omada S7500-48XF4C. Switch type: Managed. USB 2.0 ports quantity: 3, Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 1760 Gbit/s. Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	48
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Full-Managed

Management features

Switch type	Managed
Web-based management	Yes
Cloud-managed	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	48
Console port	RJ-45
QSFP28 ports quantity	4
USB 2.0 ports quantity	3

Network

10G support	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	1000,10000,40000,100000 Mbit/s
VLAN support	Yes

Data transmission

MAC address table	128000 entries
Switching capacity	1760 Gbit/s
Forwarding rate	610.1 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	8 MB

Security

DHCP features	DHCP client

Multicast features

Multicast support	Yes

Protocols

Management protocols	SNMPv1/v2c/v3

Design

Rack mounting	Yes
Stackable	Yes

Power

Power source	AC
Power supply included	Yes
AC input voltage	110 V
AC input frequency	60 Hz
Power consumption (max)	86.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	295.85 BTU/h

Weight & dimensions

Width	440 mm
Depth	380 mm
Height	44 mm

Packaging content

Cables included	AC, LAN (RJ-45)

Packaging data

Package type	Box
Weight	2.00 kg
