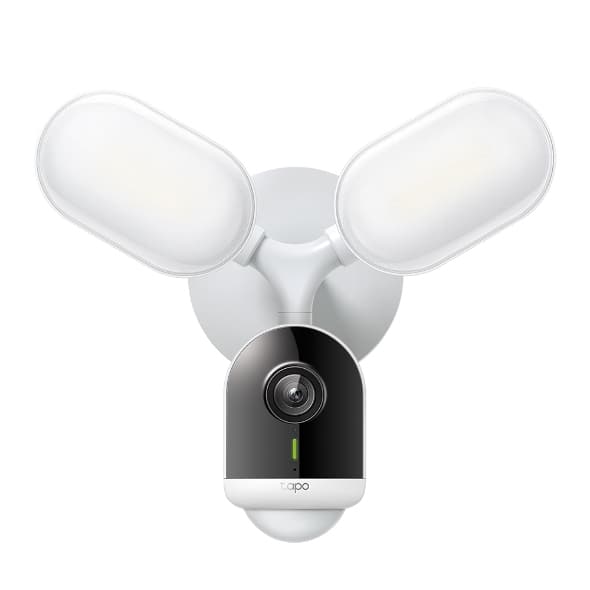

TP-Link Smart Floodlight Camera

Part number: 1710317
MPN: Tapo C720
EAN: 8885020625479

TP-Link Smart Floodlight Camera, IP security camera, Outdoor, Wired & Wireless, 2800 lm, 5000 K, Wall

Type	IP security camera
Indoor/Outdoor	Outdoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	4 Megapixel
Vandal protection	No
Application area	Visuelle Videoüberwachung
Placement supported	Outdoor
Connectivity technology	Wired & Wireless

Description

TP-Link Smart Floodlight Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Wall, Product colour: White, International Protection (IP) code: IP65. Lens viewing angle, horizontal: 153°, Lens viewing angle, vertical: 77.6°, Lens viewing angle, diagonal: 153°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 12x, Focal length range: 2.1 mm

Documents

Data sheetPDF · DE

Specifications

Type	IP security camera
Indoor/Outdoor	Outdoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	4 Megapixel
Vandal protection	No
Application area	Visuelle Videoüberwachung

Performance

Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Day/night mode	Yes
Built-in light	Yes
Luminous flux	2800 lm
Colour temperature	5000 K

Design

Mounting type	Wall
Product colour	White
International Protection (IP) code	IP65

Camera

Lens viewing angle, horizontal	153°
Lens viewing angle, vertical	77.6°
Lens viewing angle, diagonal	153°

Image sensor

Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Number of lenses	1
Zoom capability	Yes
Digital zoom	12x
Focal length range	2.1 mm
Maximum aperture number	2.1

Night vision

Night vision	Yes
Night vision distance	29.9 m
LED type	IR
Infra-red wavelength	850 nm

Video

Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264
Frame rate	15 fps

Audio

Built-in speaker(s)	Yes
Audio system	2-way
Built-in microphone	Yes

Network

Wi-Fi	Yes
Supported network protocols	SL/TLS WPA/WPA2-PSK/WPA3
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view	Yes

Storage

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB

Security

Built-in siren	Yes
Siren noise level	93 dB
Video motion detection	Yes
Active tampering alarm	Yes
Motion sensor	Yes
Motion sensor technology	Passive infrared (PIR) sensor
Human and vehicle targets classification	Yes

Power

Power source type	DC
AC input voltage	110/240 V
AC input frequency	50/60 Hz

Operational conditions

Operating temperature (T-T)	-20 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%

System requirements

Mobile operating systems supported	Android, iOS

Weight & dimensions

Width	151 mm
Depth	145.6 mm
Height	151 mm

Packaging data

Package width	256.5 mm
Package depth	356.5 mm
Package height	179 mm
Package weight	1.46 kg

Packaging content

Number of cameras	1
Mounting kit	Yes
Mounting brackets included	Yes
Screws included	Yes
Weight	1.50 kg
