TP-Link Überwachungsset Tapo C420S11/2
TP-Link

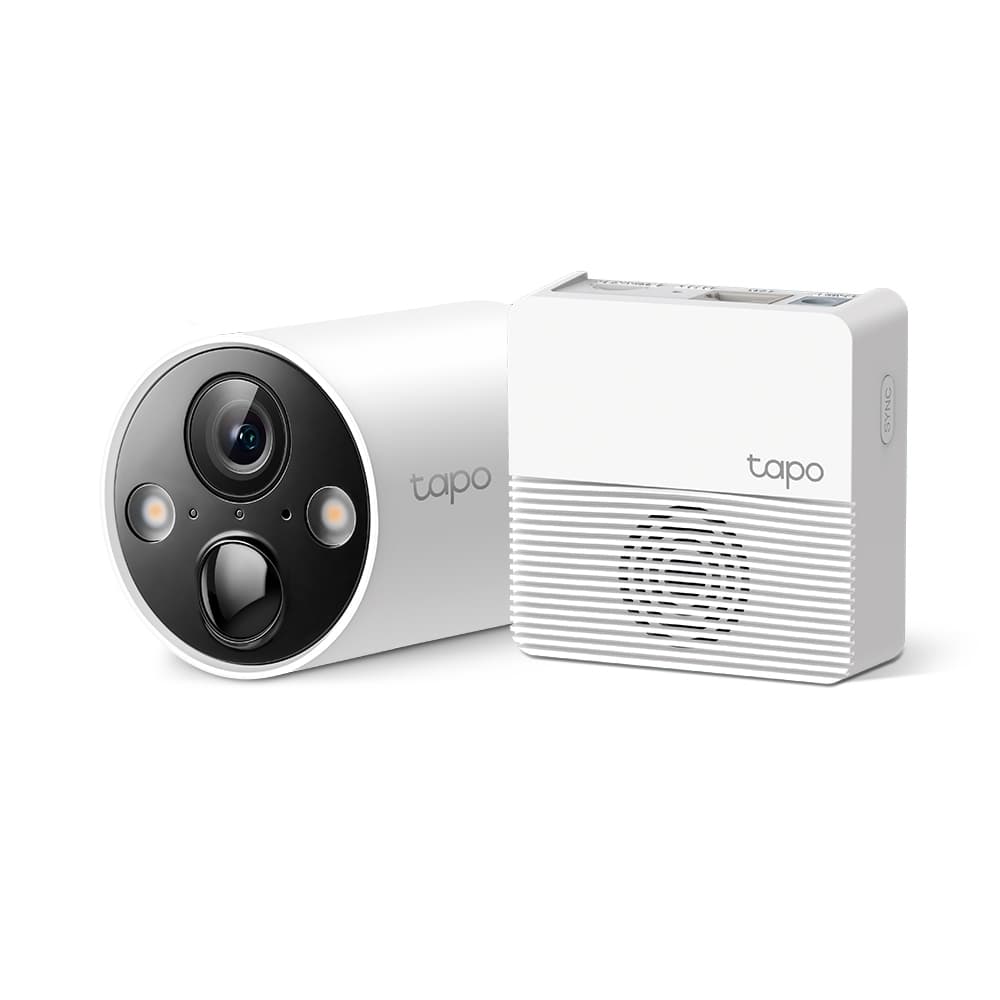

TP-Link Tapo Smart Wire-Free Security Camera System, 1-Camera System

Part number
1494162
MPN
Tapo C420S1
EAN
4897098685105

TP-Link Tapo Smart Wire-Free Security Camera System, 1-Camera System, CCTV security camera, Indoor & outdoor, Wireless, VGA, 25.4 / 3 mm (1 / 3"), 3.18 mm

TypeCCTV security camera
Indoor/OutdoorOutdoor
Day/night functionIR-Cut-Filter and IR-LED
Image sensor resolution4 megapixels
Vandal protectionNo
Application areaVisual video surveillance
Placement supportedIndoor & outdoor
Connectivity technologyWireless
All 58 specifications

Description

TP-Link Tapo Smart Wire-Free Security Camera System, 1-Camera System. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wireless. Sensor type: VGA, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 3.18 mm. Night vision distance: 15 m, LED type: IR, Infra-red wavelength: 850 nm. Maximum resolution: 2560 x 1440 pixels, Video compression formats: H.264, Supported graphics resolutions: 2560 x 1440

Documents

Specifications

Indoor/OutdoorOutdoor
Day/night functionIR-Cut-Filter and IR-LED
Image sensor resolution4 megapixels
Vandal protectionNo
Application areaVisual video surveillance

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWireless
Day/night modeYes
Alarm input/outputYes
Built-in lightYes

Design

LED indicatorsYes

Image sensor

Sensor typeVGA
Optical sensor size25.4 / 3 mm (1 / 3")

Lens system

Number of lenses2
Fixed focal length3.18 mm

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Infra-red wavelength850 nm

Video

Maximum resolution2560 x 1440 pixels
Video compression formatsH.264
Supported graphics resolutions2560 x 1440
Frame rate20 fps
Video streamingYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiYes
BluetoothNo
Supported network protocolsTCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth2400 MHz

Storage

Built-in HDDYes

Security

Built-in sirenYes
Video motion detectionYes
Motion sensorYes

Management features

Reset buttonYes

Power

Power source typeAC
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)-20 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width110.6 mm
Depth64.2 mm
Height64.2 mm

Packaging content

Number of cameras1
Cables includedLAN (RJ-45), USB
Mounting brackets includedYes
Screws includedYes
Drilling template includedYes
Battery includedYes
ManualYes
Mounting templateYes
Packaging contentTapo C420 Cameras (Battery Included) Tapo H200 Hub USB Adapter USB Adapter Cable DC Power Adapter Mounting Screws Mounting Templates Camera Brackets Quick Start Guide RJ45 Ethernet Cable
Weight0.88 kg
