TP-Link PoE Switch TL-SF1008 lP 8 Port1/4
TP-Link

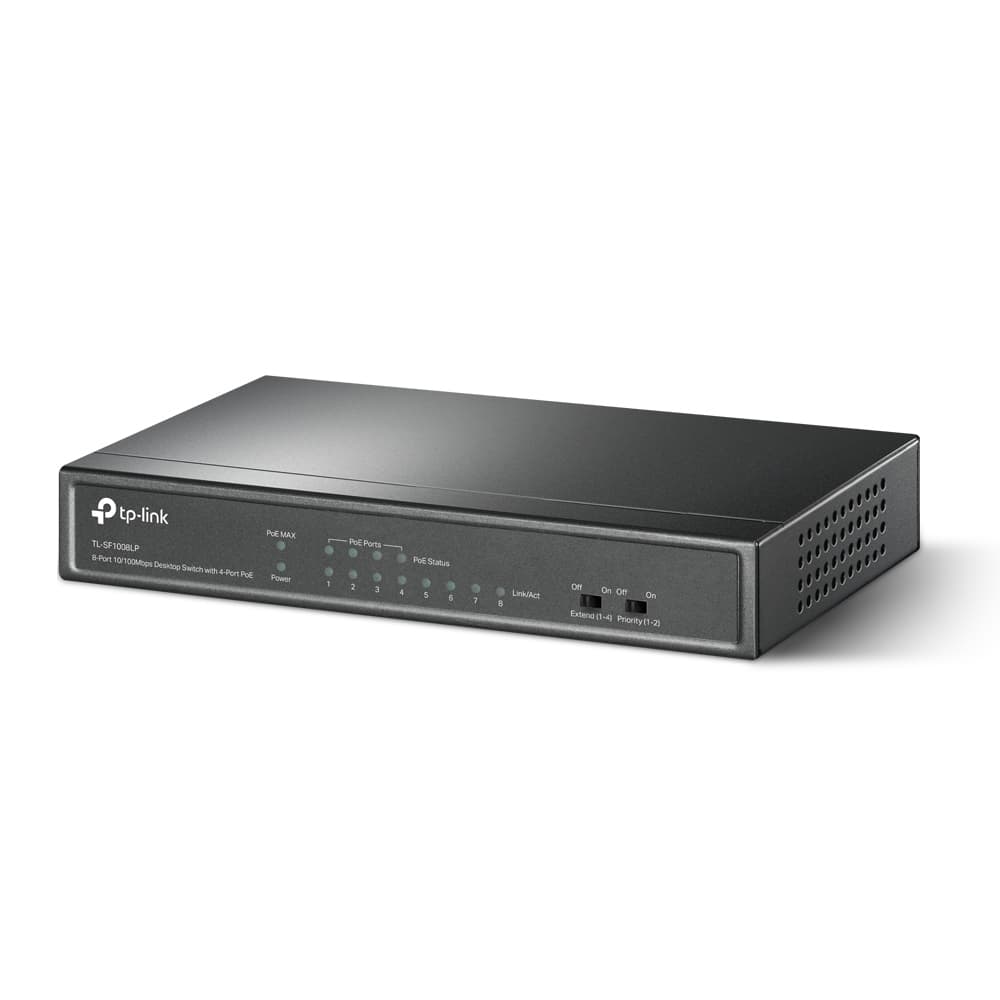

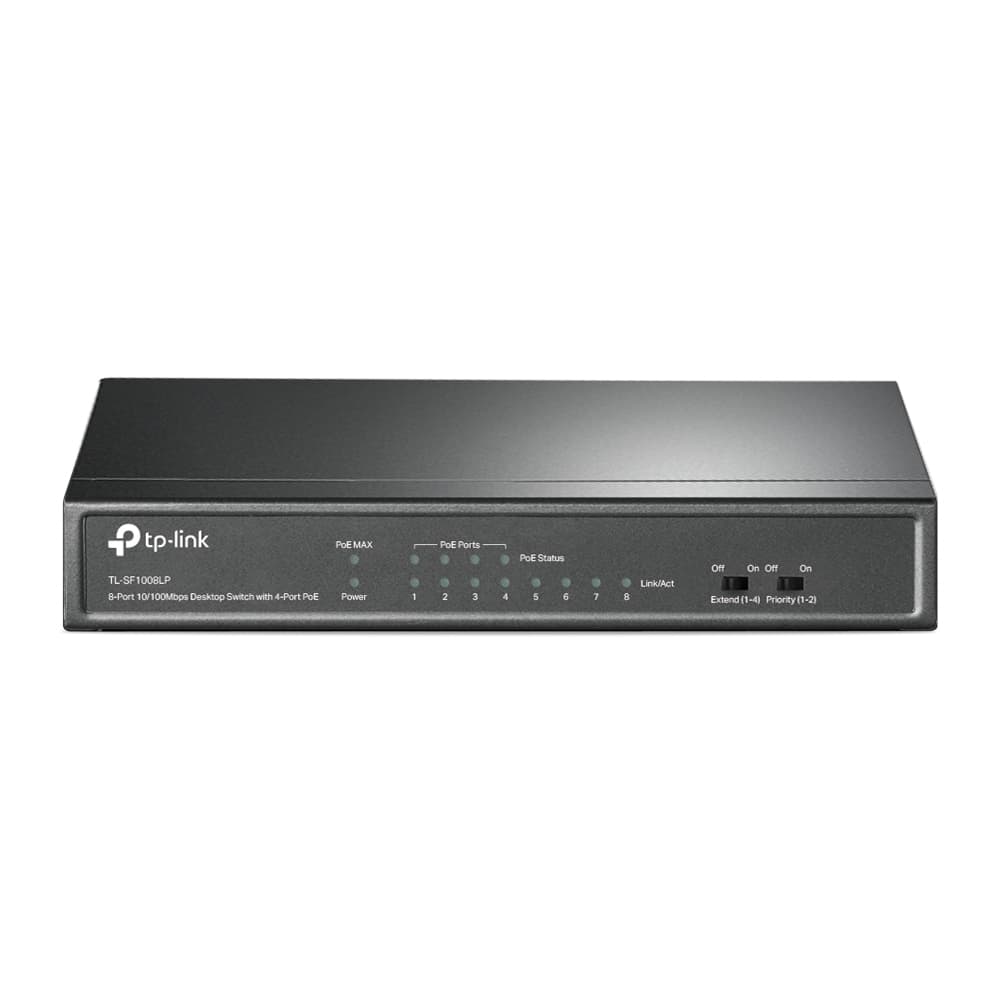

TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Part number
2000894
MPN
TL-SF1008LP
EAN
6935364052768

TP-Link TL-SF1008LP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable

SFP Anschlüsse0
Montage SwitchDesktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged
Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity8
All 67 specifications

Description

TP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Documents

Specifications

SFP Anschlüsse0
Montage SwitchDesktop, Wand
SFP+ Anschlüsse0
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementUnmanaged

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity8
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3af, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10GBASE-T, 100BASE-TX
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes

Data transmission

MAC address table2000 entries
Switching capacity1.6 Gbit/s
Forwarding rate1.1904 Mpps
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000

Security

DHCP featuresDHCPv6 relay

Protocols

Routing protocolsOSPF
IPv4 & IPv6 featuresIPv6 portal

Design

Rack mountingNo
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsYes
Wall mountableYes
Number of fans0 fan(s)

Performance

FanlessYes

Power

Power sourceDC/PoE
Power supply includedNo
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Input current0.81 A
Power consumption (max)47.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget41 W

Other features

Bandwidth1.6 Gbit/s

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation160.61 BTU/h

Weight & dimensions

Width171 mm
Depth98 mm
Height27 mm

Packaging content

Cables includedAC
User guideYes

Packaging data

AC adapter includedYes
Package width223 mm
Package depth280 mm
Package height68 mm
Package weight750 g

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code85176990

Sustainability

Sustainability complianceYes
Weight0.84 kg
