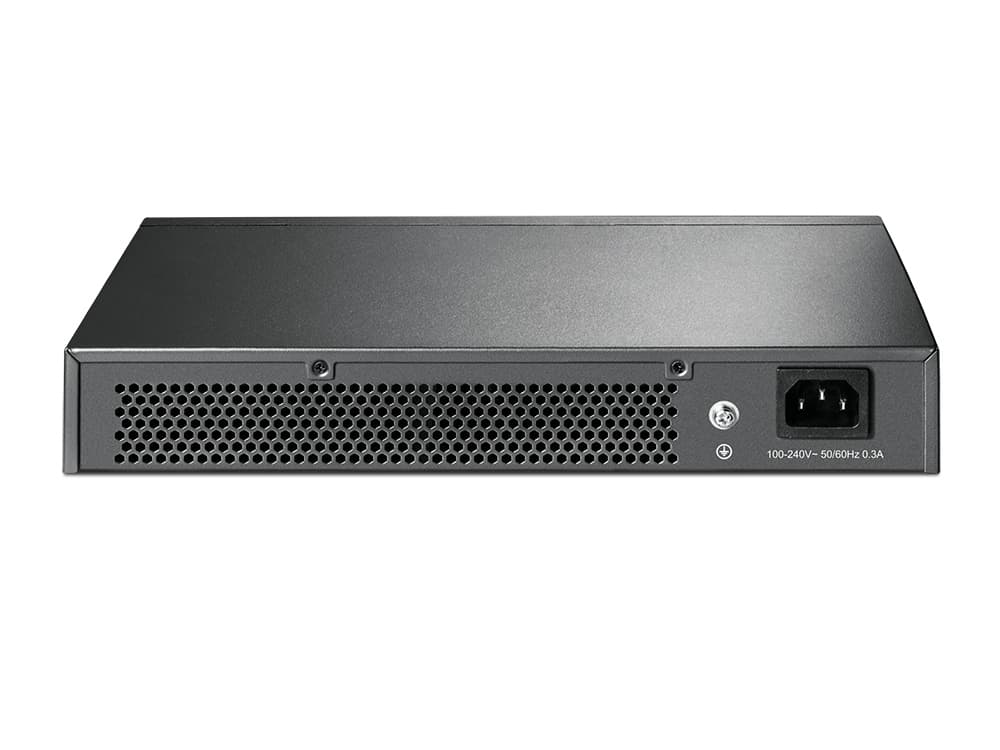

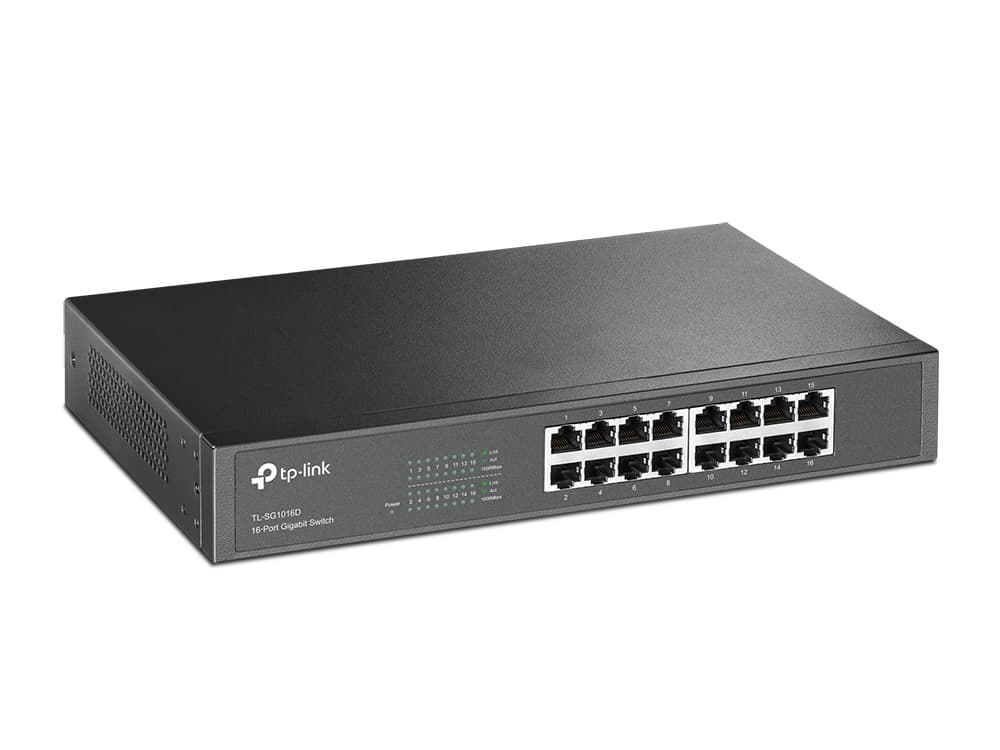

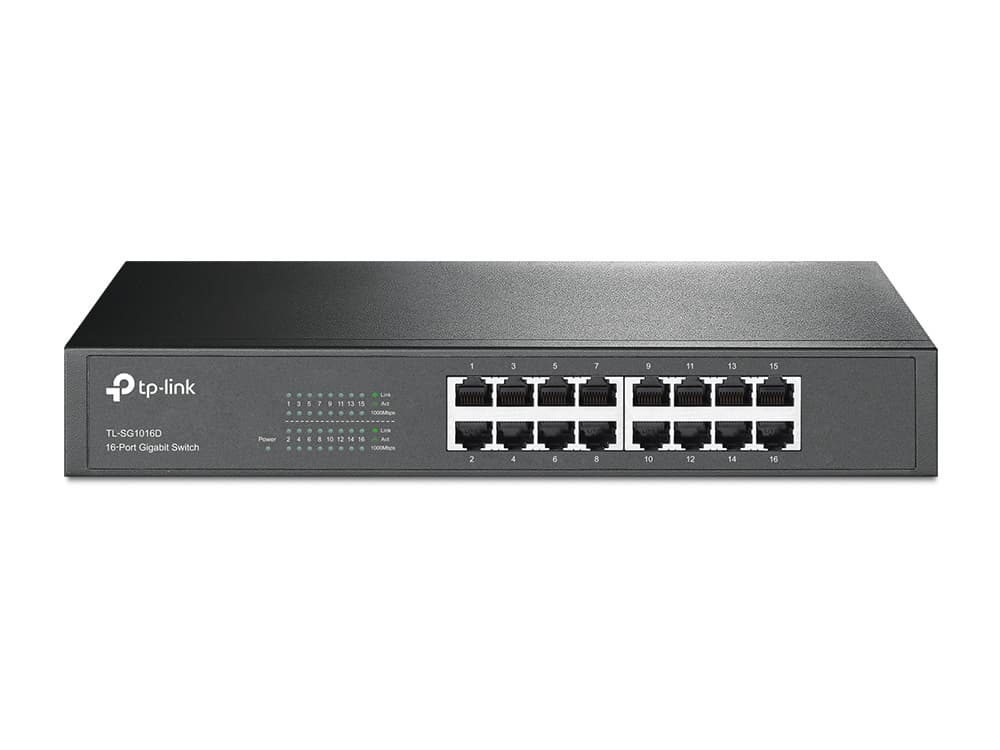

TP-Link TL-SG1016D(UN) network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Part number: 152961
MPN: TL-SG1016D
EAN: 1210002616737

TP-Link TL-SG1016D(UN), Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Switch type	Unmanaged
Switch layer	L2

Description

TP-Link TL-SG1016D(UN). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack

Network

Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
VLAN support	Yes
Number of VLANs	32

Data transmission

MAC address table	8000 entries
Switching capacity	32 Gbit/s
Throughput	23.08 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.5 MB

Security

IGMP snooping	Yes

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Power

Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	11.73 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
User guide	Yes
Rack mount kit	Yes

Certificates

Certification	FCC, CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	2.50 kg
