TP-Link Switch Omada Unmanaged 24 x 1G Ports TL-SG1024 24 Port

Hover to zoom1/4

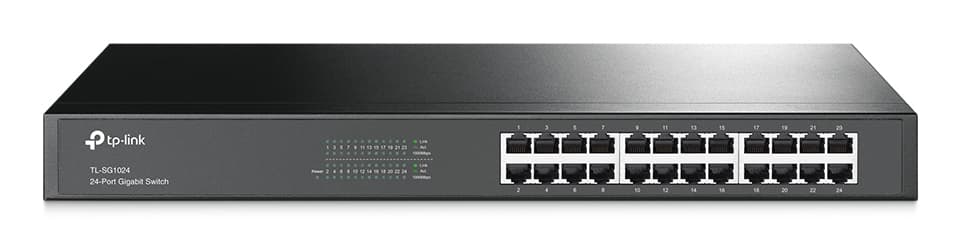

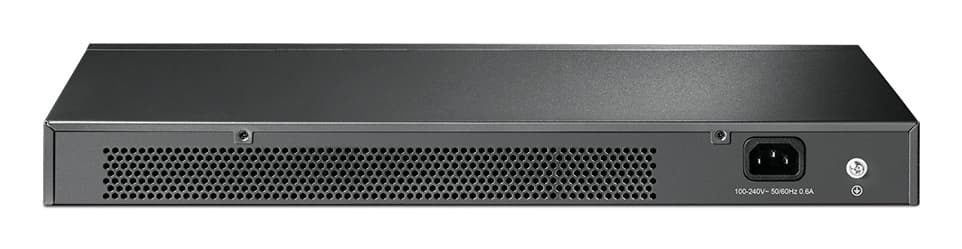

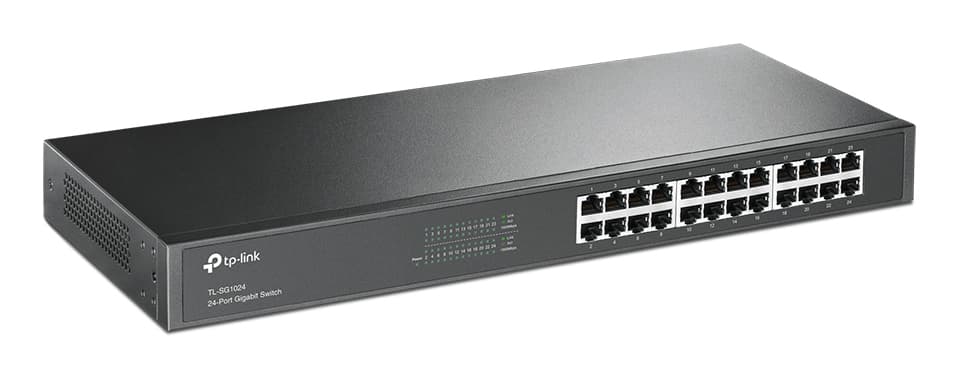

TP-Link TL-SG1024 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Part number: 110612
MPN: TL-SG1024
EAN: 1210002616799

TP-Link TL-SG1024, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Switch type	Unmanaged
Switch layer	L2

Description

TP-Link TL-SG1024. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Number of VLANs	32

Data transmission

MAC address table	8000 entries
Switching capacity	48 Gbit/s
Throughput	35.7 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB

Security

IGMP snooping	Yes

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Power

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.19 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	48.39 BTU/h

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
User guide	Yes
Rack mount kit	Yes

Packaging data

Package type	Box

Certificates

Certification	FCC, CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	3.44 kg
