TP-Link Netzwerkrekorder VIGI NVR4032H 0 TB, 32 Kanal1/3
TP-Link

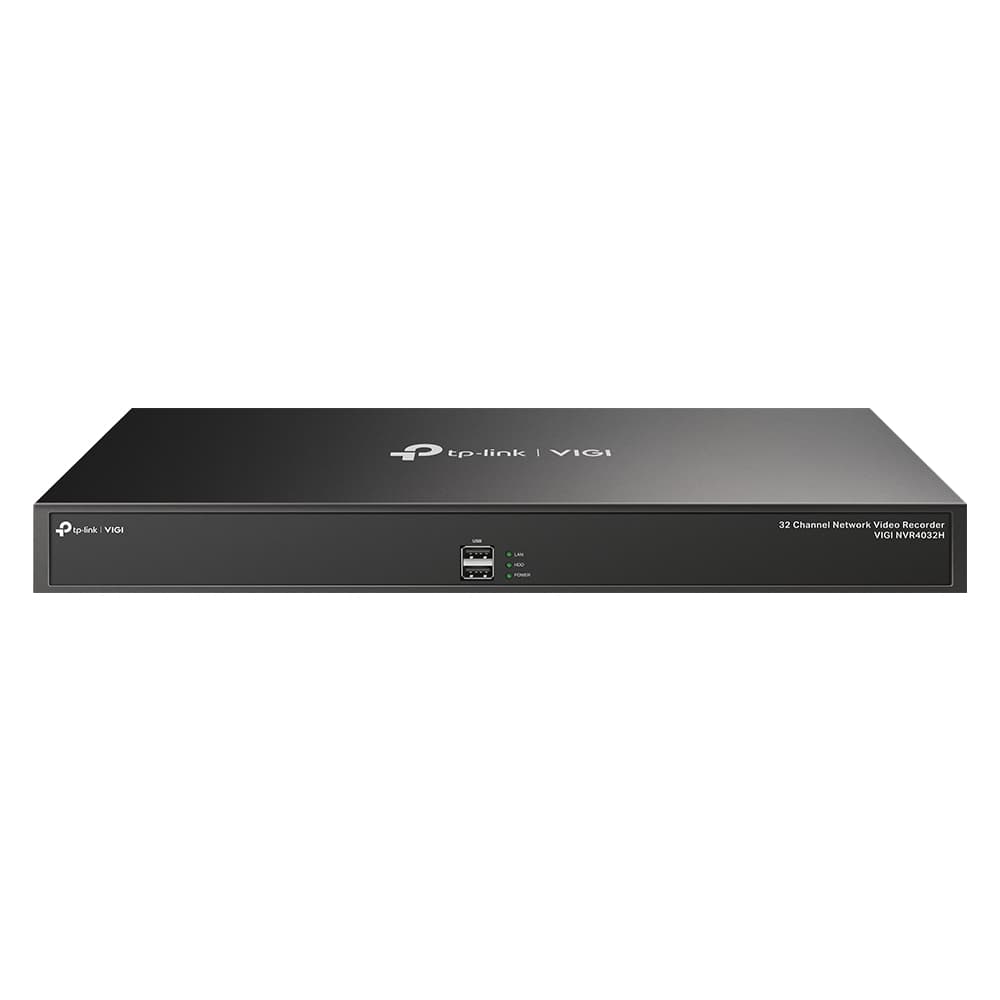

TP-Link VIGI 32 Channel Network Video Recorder

Part number
1930776
MPN
VIGI NVR4032H
EAN
4895252500752

TP-Link VIGI 32 Channel Network Video Recorder, 32 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768, H.264, H.264+, H.265, H.265+

Anzahl Festplatten vorverbaut0
Anzahl Kanäle32
Anzahl Laufwerkschächte4
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF
Video input channels32 channels
Maximum resolution3840 x 2160 pixels
All 57 specifications

Description

TP-Link VIGI 32 Channel Network Video Recorder. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP, NTP, ONVIF, CGI. Product colour: Black. Power consumption (max): 48 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Documents

Specifications

Anzahl Festplatten vorverbaut0
Anzahl Kanäle32
Anzahl Laufwerkschächte4
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF

Performance

Video input channels32 channels
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Supported resolutions3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Video motion detectionYes
Video loss detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity10 TB
HDD interfaceSATA
Number of HDDs supported4

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Line-inYes
Audio output1
RS-232 ports1
Supported network protocolsUPnP, NTP, ONVIF, CGI

Features

Rack mountingYes
Buzzer offYes
Product colourBlack

Power

Power consumption (max)48 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5.22 kg

Packaging content

Cables includedAC, Power
Quick installation guideYes
Weight5.25 kg
