TP-Link Netzwerkkamera VIGI C340 4 mm1/2
TP-Link

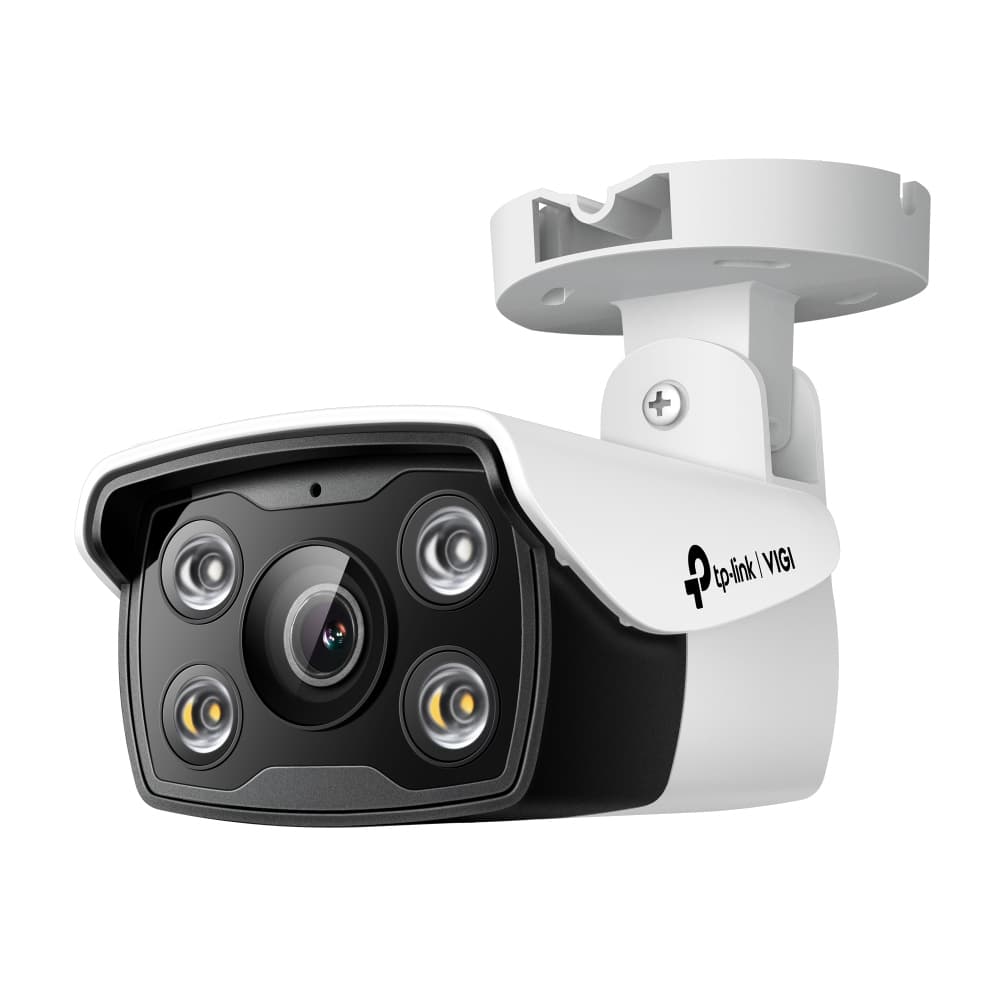

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera

Part number
1870242
MPN
VIGI C340(4mm)
EAN
4897098688625

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, Black, White, Bullet

TypeIP security camera
Indoor/OutdoorOutdoor
Tag-/Nacht-FunktionIR-Cut-Filter & IR-LED & Spotlight (Licht)
Bildsensor Auflösung4 Megapixel
Vandal protectionNo
Application areaVisuelle Videoüberwachung
Placement supportedOutdoor
Connectivity technologyWired
All 107 specifications

Description

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Documents

Specifications

TypeIP security camera
Indoor/OutdoorOutdoor
Tag-/Nacht-FunktionIR-Cut-Filter & IR-LED & Spotlight (Licht)
Bildsensor Auflösung4 Megapixel
Vandal protectionNo
Application areaVisuelle Videoüberwachung

Performance

Placement supportedOutdoor
Connectivity technologyWired
Day/night modeYes

Design

Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Form factorBullet
LED indicatorsYes
Housing materialPlastic
International Protection (IP) codeIP66

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal79°
Lens viewing angle, vertical43°
Lens viewing angle, diagonal93°
Tilt angle range-90 - 90°
Pan range-90 - 90°
Camera shutter speed1/3 - 1/10000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Panoramic camera

Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes

Lens system

Number of lenses1
Detect distance80 m
Observe distance33 m
Recognize distance16 m
Maximum aperture number1.6
Identify distance8 m
Fixed focal length4 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2
Infra-red wavelength850 nm

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Mirror, Saturation
Privacy maskingYes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate256 Kbps - 4 Mbps
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Sample rate8 kHz
Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes
Bit rate range64 - 4000 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Live viewYes
Number of simultaneous live view channels3 channels

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Password protectionYes
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Network access storage (NAS)Yes

Management features

Web browserYes
Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (typical)3.4 W
Power consumption (max)7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width78 mm
Depth70 mm
Height174 mm
Weight195 g

Packaging data

Package width128 mm
Package depth218 mm
Package height103 mm
Package weight420 g
Package typeBox

Packaging content

Number of cameras1
Mounting kitYes
ManualYes

Sustainability

Sustainability complianceYes
Weight0.51 kg
