TP-Link Netzwerkrekorder + VIGI NVR2016H-16MP 0 TB, 16 Kanal1/5
TP-Link

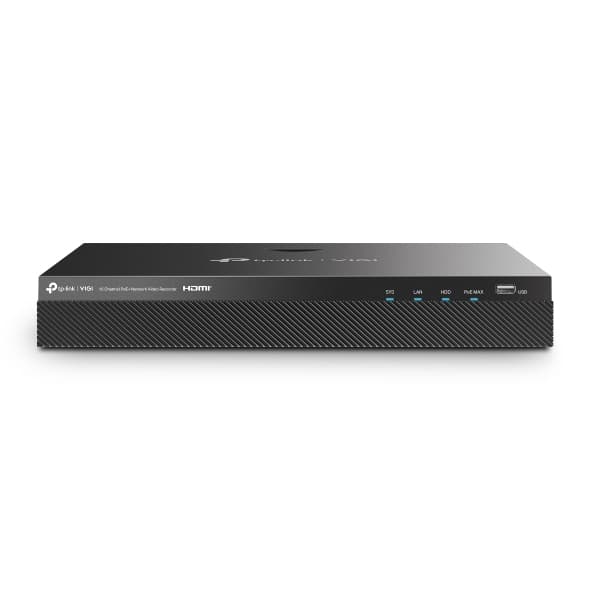

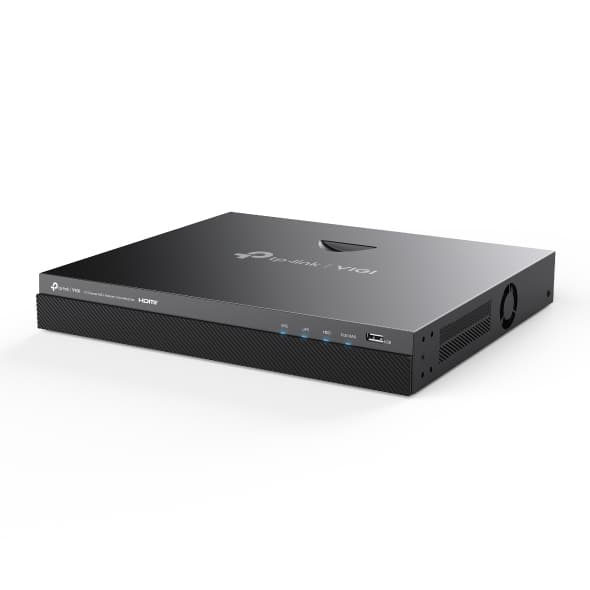

TP-Link VIGI NVR2016H-16MP network video recorder Black

Part number
1822202
MPN
VIGI NVR2016H-16MP
EAN
4895252504026

TP-Link VIGI NVR2016H-16MP, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte1
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF
Video input channels16 channels
Maximum resolution3840 x 2160 pixels
All 59 specifications

Description

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V

Documents

Specifications

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte1
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF

Performance

Video input channels16 channels
Maximum resolution3840 x 2160 pixels
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Supported resolutionsHDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controlsYes
Maximum frame rate30 fps
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
Recording modesManual, Schedule

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity10 TB
HDD interfaceSATA
Number of HDDs supported2

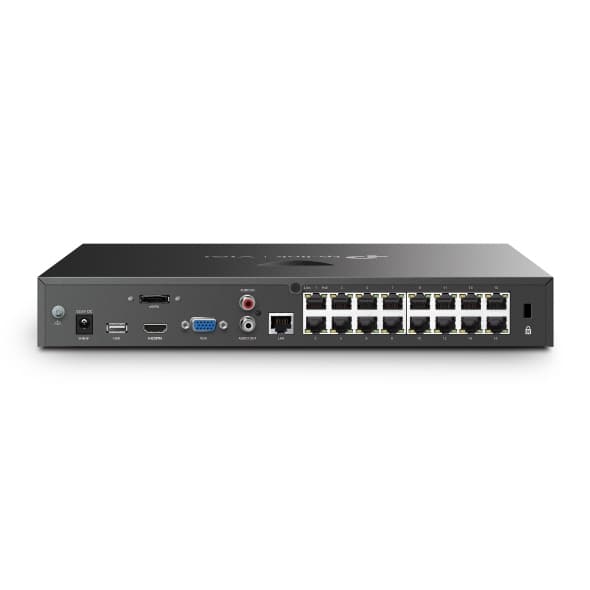

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Power over Ethernet (PoE)Yes
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity16
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
eSATA ports quantity1
Internal SATA ports quantity2
eSATAYes
Line-inYes
Audio output1
DC-in jackYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing)

Features

Reset buttonYes
Product colourBlack
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Power

Power consumption (max)40 W
Output current2.43 A
Output voltage53.5 V
Total Power over Ethernet (PoE) budget140 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Width330 mm
Depth285 mm
Height45 mm
Weight2.1 kg
Package weight4.1 kg

Packaging content

Cables includedAC
AC adapter includedYes
Quick installation guideYes
Weight4.82 kg
