TP-Link Netzwerkrekorder VIGI NVR4016H 0 TB, 16 Kanal1/4
TP-Link

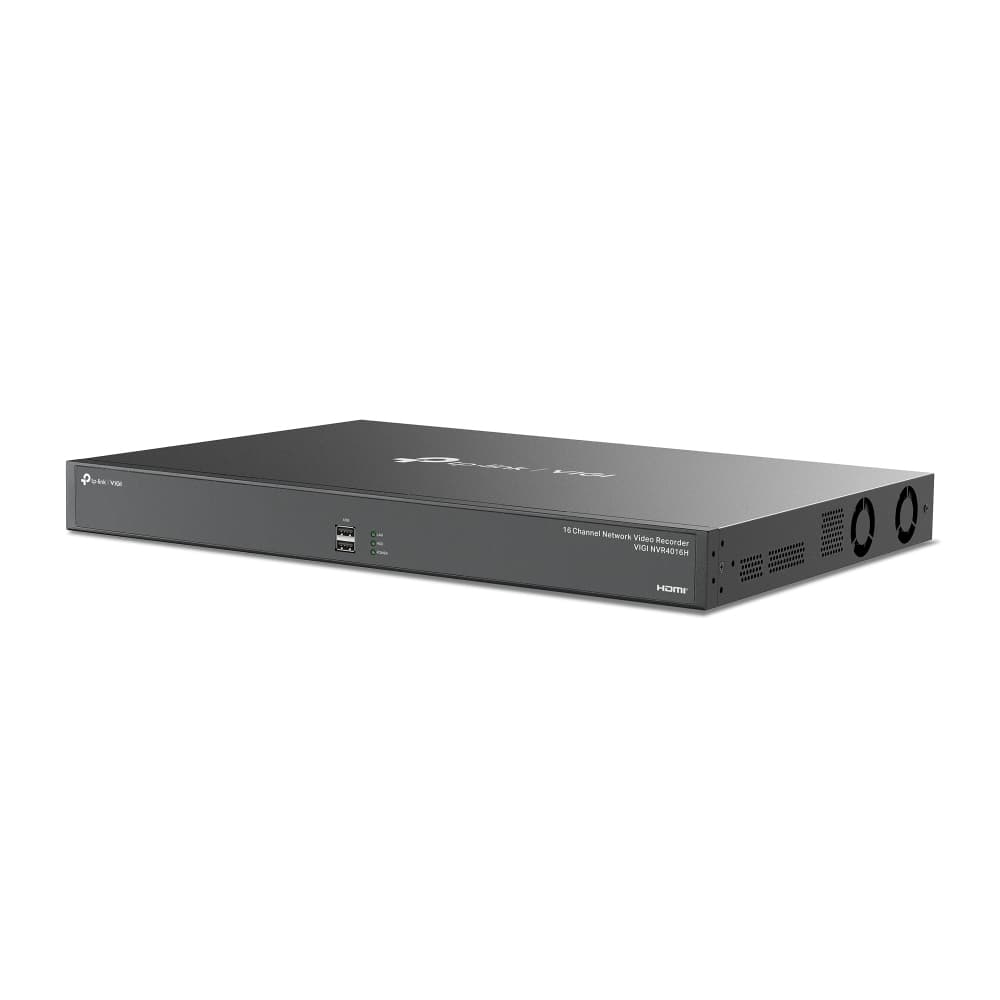

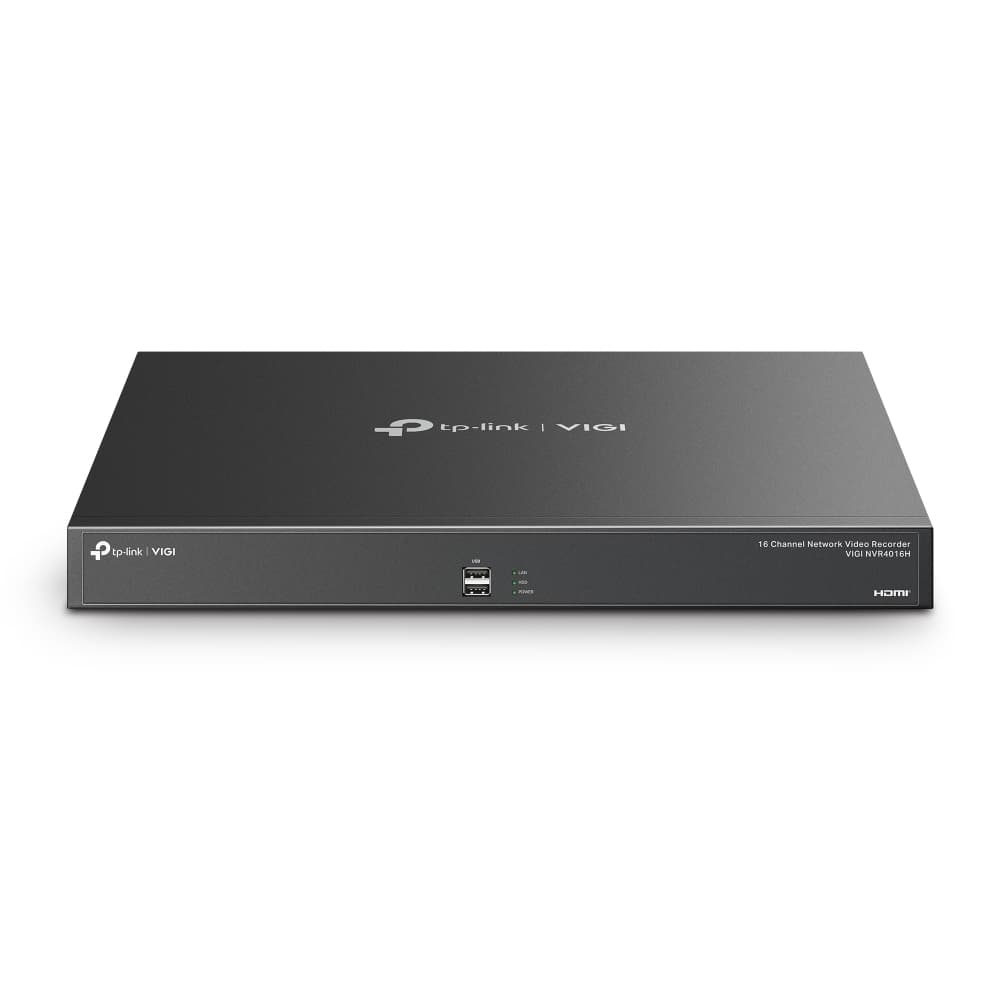

TP-Link VIGI NVR4016H network video recorder Black

Part number
1968517
MPN
VIGI NVR4016H
EAN
8885020623666

TP-Link VIGI NVR4016H, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, G.711, G.711u, G.726

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte1
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop, Rack
Kompatibel mitONVIF
Video input channels16 channels
Maximum resolution3840 x 2160 pixels
All 63 specifications

Description

TP-Link VIGI NVR4016H. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 64 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP,.... Product colour: Black. Power consumption (max): 45 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Documents

Specifications

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte1
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop, Rack
Kompatibel mitONVIF

Performance

Video input channels16 channels
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Supported resolutions3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video motion detectionYes
Video loss detectionYes
Audio formats supportedG.711, G.711u, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Recording modesManual, Schedule
Audio system2-way

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity64 TB
HDD interfaceSATA
Number of HDDs supported4

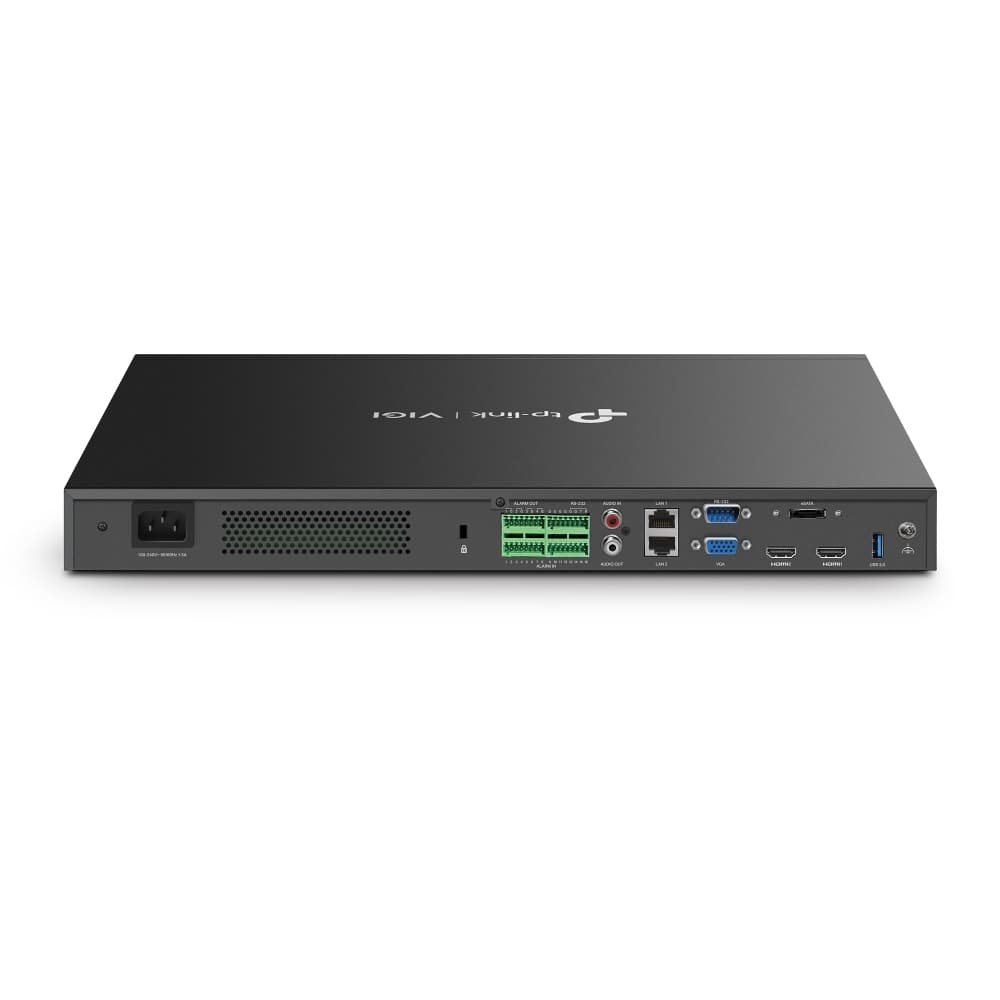

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
eSATAYes
RS-232 ports1
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Features

Rack mountingYes
Reset buttonYes
Buzzer offYes
Product colourBlack

Power

Power consumption (max)45 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Output current1.5 A

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Technical details

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, UKCA, VCCI

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5 kg
Weight5.50 kg
