Zebra Technologies

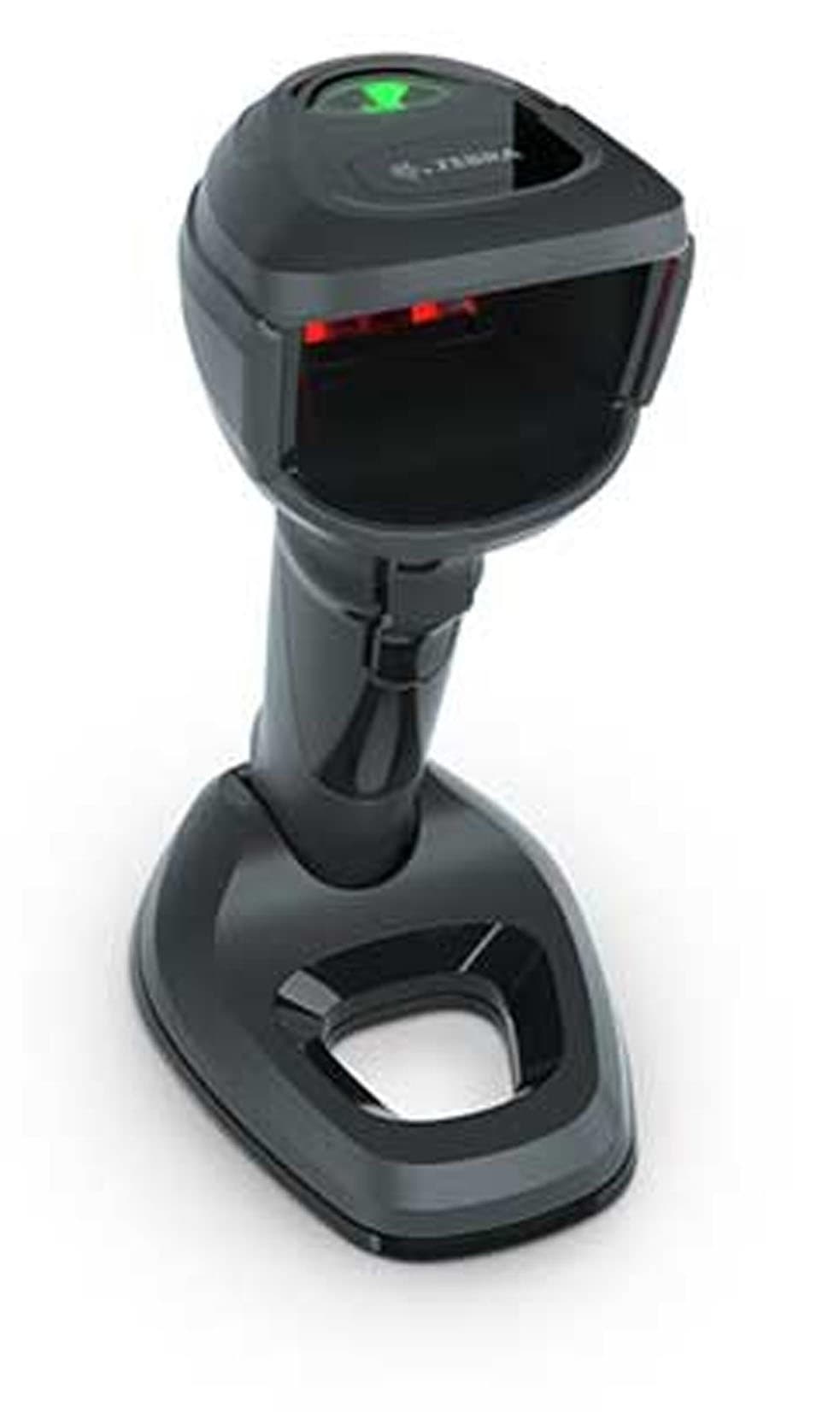

Zebra DS9908-SR Handheld bar code reader 1D/2D Black

Zebra Technologies Barcode Scanner DS9908-SR USB1/2
Part number
965099
MPN
DS9908-SR4U2100AZW
EAN
ZEB-190.0150

Zebra DS9908-SR, Handheld bar code reader, 1D/2D, Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 1280 x 800 pixels, 528 nm

Scanner-Base Station Connectionnone
Scanner ApplicationPoint of Sale (PoS)
Protection ClassIP52
Base station computer connectionnone
Scanner-Computer ConnectionUSB
Base Station IncludedNo
TypeHandheld bar code reader
Scanner Type1D/2D
All 31 specifications

Description

Zebra DS9908-SR. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Input voltage: 5 V. Weight: 330 g, Width: 94 mm, Depth: 132 mm

Documents

Specifications

Scanner-Base Station Connectionnone
Scanner ApplicationPoint of Sale (PoS)
Protection ClassIP52
Base station computer connectionnone
Scanner-Computer ConnectionUSB
Base Station IncludedNo

Scanning

TypeHandheld bar code reader
Scanner Type1D/2D
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)1280 x 800 pixels
Wavelength528 nm

Ports & interfaces

Connection TypeWired
Standard interfacesUSB

Performance

ColourBlack
IP RatingIP52
LED indicatorsYes
Built-in DisplayNo
Image formats supportedBMP, JPEG, TIFF
Built-in ProcessorYes
Processor frequency800 MHz

Power

Input Voltage5 V

Weight & dimensions

Weight330 g
Width94 mm
Depth132 mm
Height203 mm

Packaging data

Included CablesUSB

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code84716070
Weight0.49 kg
