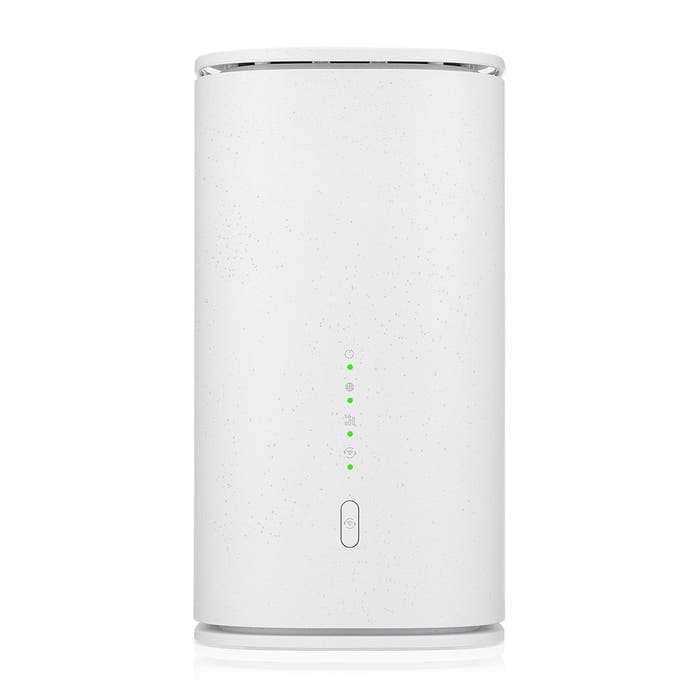

Zyxel FWA515-EU0102F wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 5G White

Zyxel 5G-Router FWA5151/2
Part number
1971713
MPN
210043
EAN
4718937650583

Zyxel FWA515-EU0102F, Wi-Fi 7 (802.11be), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 5G, White, Tabletop router

Application AreaSmall/Medium Business
SFP Ports0
Primary ConnectionMobilfunk
Depth130 mm
SFP SpeedKeine SFP Ports
Width117 mm
Ethernet WANYes
DSL WANNo
All 74 specifications

Description

Zyxel FWA515-EU0102F. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 7200 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 100,1000,2500 Mbit/s. Mobile network generation: 5G, 4G standard: LTE-TDD & LTE-FDD, 5G standard: NR. Security algorithms: WPA2-PSK, WPA3-SAE

Documents

Specifications

Application AreaSmall/Medium Business
SFP Ports0
Primary ConnectionMobilfunk
Depth130 mm
SFP SpeedKeine SFP Ports
Width117 mm

WAN connection

Ethernet WANYes
DSL WANNo
SIM card slotYes
3G/4G USB modem compatibilityNo
WAN connection typeRJ-45

Wireless LAN features

WLAN BandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi StandardWi-Fi 7 (802.11be)
WLAN Data Transfer Rate (max.)7200 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Modulation16-QAM, 64-QAM, 256-QAM, QPSK

Network

Ethernet/LANYes
Ethernet-LAN Interface Type2.5 Gigabit Ethernet
Ethernet LAN data rates100,1000,2500 Mbit/s
Port forwardingYes
Static routeYes

Mobile network

Mobile Network Generation5G
4G standardLTE-TDD & LTE-FDD
5G standardNR
SIM card typeNanoSIM

Ports & interfaces

Number of Ethernet LAN Connections (RJ-45)2
USB ConnectionYes
USB 2.0 ports quantity1

Management features

Wi-Fi Multimedia (WMM)/(WME)Yes
Reset buttonYes
WPS push buttonYes
MIMOYes
Cloud-managedYes

Security

Supported Security AlgorithmsWPA2-PSK, WPA3-SAE
FirewallYes
Stateful Packet Inspection (SPI)Yes
DoS attack preventionYes
FilteringYes
MAC address filteringYes
IP address filteringYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
IPv4 & IPv6 featuresDual stack IPv4/IPv6

Design

Product TypeTabletop router
ColourWhite
Case MaterialPlastic
Indication lightYes
LED indicatorsLAN, Power, WLAN, WPS
On/off switchYes

Certificates

Compliance certificatesCE, UKCA

Packaging content

Included CablesLAN (RJ-45)
AC adapter includedYes
Warranty cardYes

Sustainability

Doesn't containHalogen

Antenna

Antenna DesignInternal
Antenna type4x4
Antenna gain level (max)7 dBi
Antenna direction typeOmni-directional

Features

Number of simultaneously connected devices (max)64

Power

Power SourceUSB
Power Consumption (Standard Operation)48 W
Power Supply45 W

Operational conditions

Operating temperature (T-T)-10 - 40 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height217 mm
Weight1.08 kg

Packaging data

Package width126 mm
Package depth154 mm
Package height287 mm
Package Weight1.65 kg

Other features

USB connector typeUSB Type-A, USB Type-C
Weight1.74 kg
