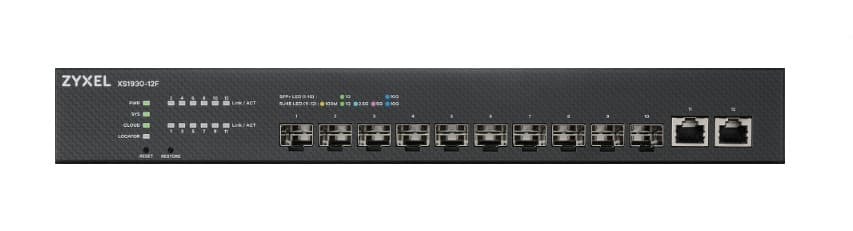

Zyxel XS1930-12F-ZZ0101F network switch Managed L2/L3 Black

Part number: 1322928
MPN: 170750
EAN: 4718937620791

Zyxel XS1930-12F-ZZ0101F, Managed, L2/L3, Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	10
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed
Switch type	Managed
Switch layer	L2/L3

Description

Zyxel XS1930-12F-ZZ0101F. Switch type: Managed, Switch layer: L2/L3. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z. Power connector: AC-in jack. Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	10
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed

Management features

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
MIB support	Y

Ports & interfaces

Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	10
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	1000,2500,5000,10000 Mbit/s
VLAN support	Yes
Number of VLANs	4000

Data transmission

MAC address table	16000 entries
Switching capacity	240 Gbit/s
Forwarding rate	178.5 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	2 MB

Security

DHCP features	DHCP client, DHCP relay
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SHA-2, SSL/TLS
SSH/SSL support	Yes
Loop protection	Yes

Multicast features

Multicast support	Yes

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Performance

Internal memory	256 MB
Flash memory	32 MB

Power

Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	24.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	84.91 BTU/h

Weight & dimensions

Width	484 mm
Depth	337 mm
Height	79 mm
Weight	3.63 kg

Logistics data

Harmonized System (HS) code	85176990
Weight	3.29 kg
