APC USV SRV2KRIRK-E 2000 VA / 1800 W1/4
APC

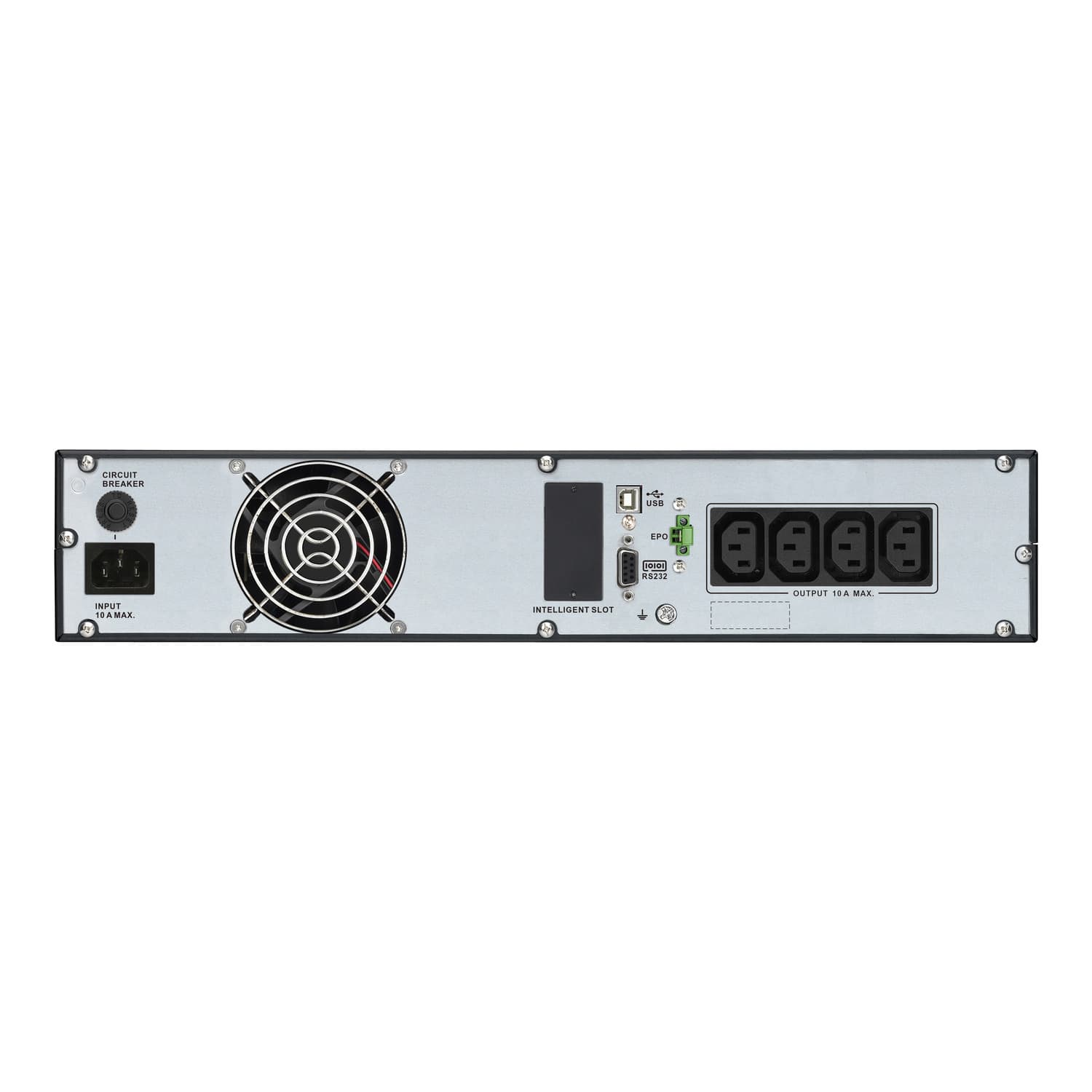

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

Part number
1919194
MPN
SRV2KRIRK-E
EAN
731304436898

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit, Double-conversion (Online), 2 kVA, 1800 W, Sine, 110 V, 285 V

USV-TypOnline
Battery typeBlei-Säure
KühlungstypAktiv (mit Lüfter)
Klemmen Ausgang0 ×
C134
Wirkleistung1800 W
UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
All 80 specifications

Description

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 48 V. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, REACH, WEEE, Certification: CE; UKCA; TISI

Documents

Specifications

USV-TypOnline
Battery typeBlei-Säure
KühlungstypAktiv (mit Lüfter)
Klemmen Ausgang0 ×
C134
Wirkleistung1800 W

Features

UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power1800 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation3%
Surge energy rating945 J
Number of input phases1
Number of output phases1
Single-phase input voltage supported230 V
Efficiency88%
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)3%
Noise level50 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Power source typeAC
Detachable power cordYes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity3 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
RS-232 ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage48 V
Battery recharge time4 h
Replacement battery cartridgeAPCRBCV201

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length1.5 m
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Technical details

Packaging recycled materialsRecycled cardboard
Preferred mounting positionlower
Sustainable packagingNo
Take-back systemNo
Packaging without single use plasticNo

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesRoHS, REACH, WEEE
CertificationCE; UKCA; TISI

Packaging content

Rack mount kitYes
Cables includedOutput power cable, RS-232, USB cable, Input power cable
ManualYes

Weight & dimensions

Width438 mm
Depth462 mm
Height86 mm
Weight18.8 kg

Packaging data

Package width525 mm
Package depth235 mm
Package height355 mm
Package weight18.9 kg

Logistics data

Customs product code (TARIC)8504409590
Country of originChina

Other features

Input connection typeIEC 60320 C14
Output connection type4 IEC 60320C13
Output voltage230 V
Mountingfront; horizontal
Weight21.00 kg
