APC USV SMT3000IC 3000 VA / 2700 W1/10
APC

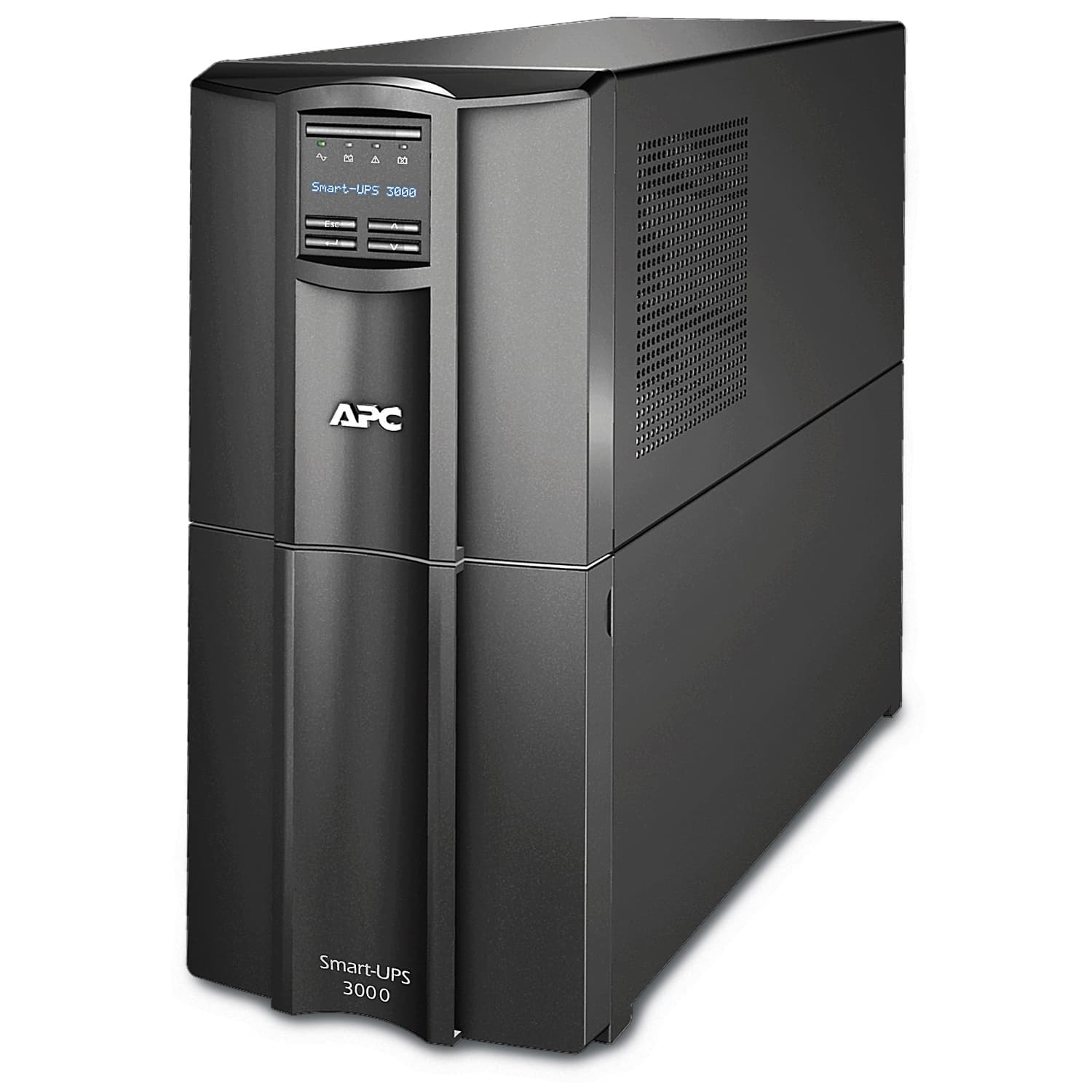

APC Smart-UPS SMT3000IC - 8x C13, 1x C19, USB, SmartConnect, 3000VA

Part number
821470
MPN
SMT3000IC
EAN
731304337331

APC Smart-UPS SMT3000IC - 8x C13, 1x C19, USB, SmartConnect, 3000VA, Line-Interactive, 3 kVA, 2700 W, Sine, 151 V, 302 V

USV-TypLine-Interaktiv
Battery typeBlei-Säure
KühlungstypAktiv (mit Lüfter)
Klemmen Ausgang11 ×
C138
Wirkleistung2700 W
UPS topologyLine-Interactive
Output power capacity3 kVA
All 66 specifications

Description

APC Smart-UPS SMT3000IC - 8x C13, 1x C19, USB, SmartConnect, 3000VA. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5.1 min, Typical backup time at half load: 17.2 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI

Documents

Specifications

USV-TypLine-Interaktiv
Battery typeBlei-Säure
KühlungstypAktiv (mit Lüfter)
Klemmen Ausgang11 ×
C138
Wirkleistung2700 W

Features

UPS topologyLine-Interactive
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating365 J
Efficiency98.4%
Emergency Power Off (EPO)Yes
Noise level53 dB
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

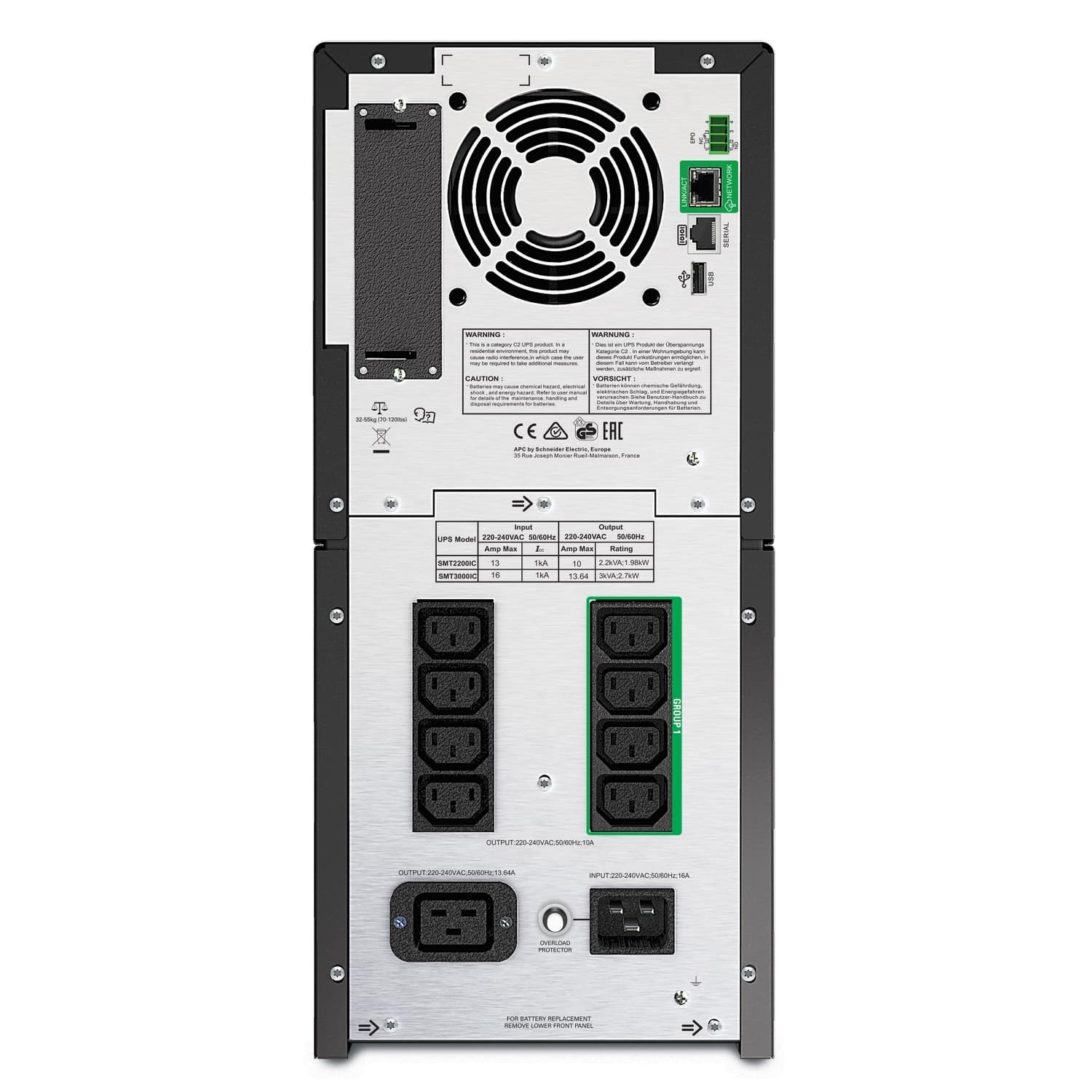

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity9 AC outlet(s)
Number of output IEC jumpers2
USB portYes
SmartSlotYes
SmartConnect portYes

Battery

Battery technologySealed Lead Acid (VRLA)

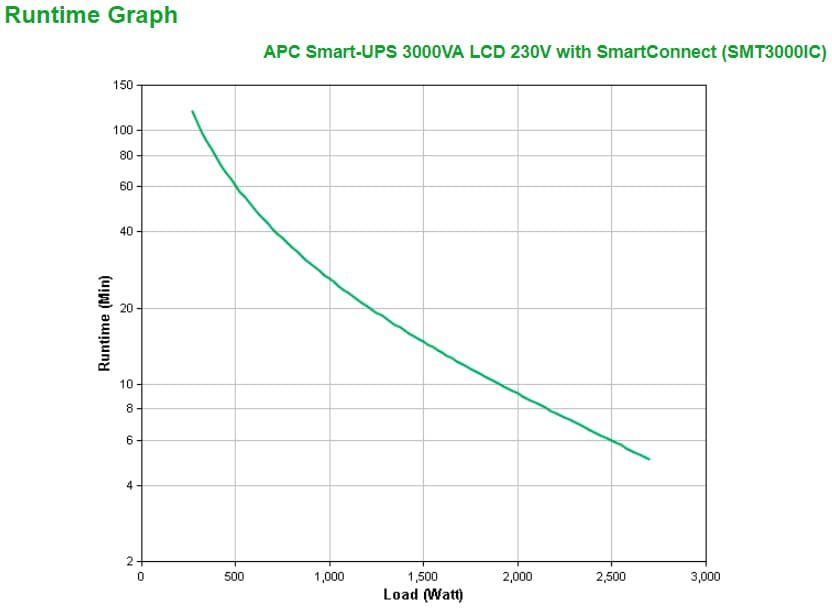

Typical backup time at full load5.1 min
Typical backup time at half load17.2 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorTower
Product colourBlack
Cable length1.83 m
Display typeLCD
LED indicatorsStatus

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI

Packaging content

Cables includedRS-232, USB cable
Management card includedNo
Quick installation guideYes

Sustainability

Sustainability certificatesGreen Premium

Weight & dimensions

Width197 mm
Depth544 mm
Height435 mm
Weight52.5 kg

Packaging data

Package width381 mm
Package depth762 mm
Package height699 mm
Package weight63.7 kg

Logistics data

Products per pallet9 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)3335.07
Weight64.00 kg
