Aten

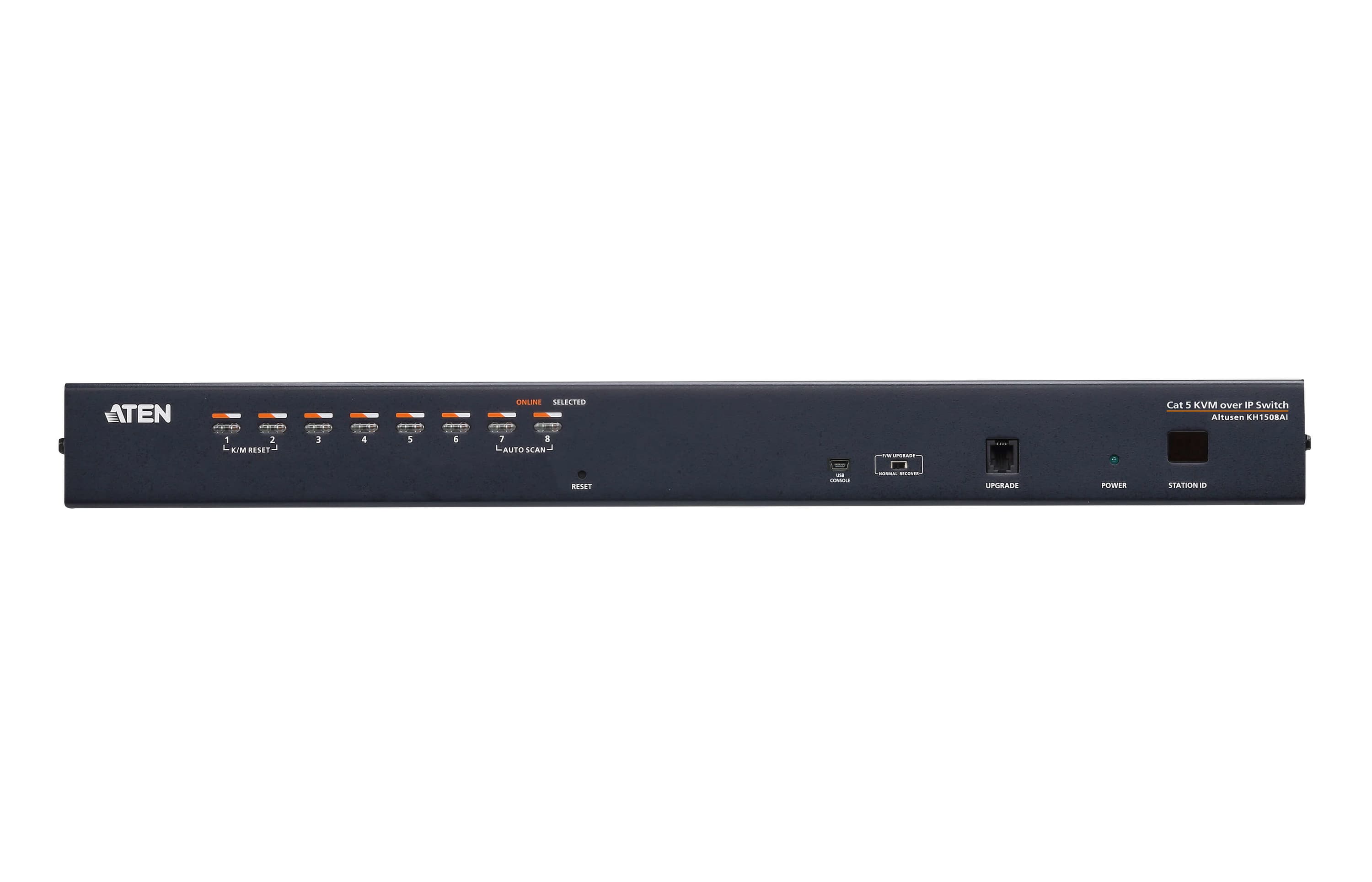

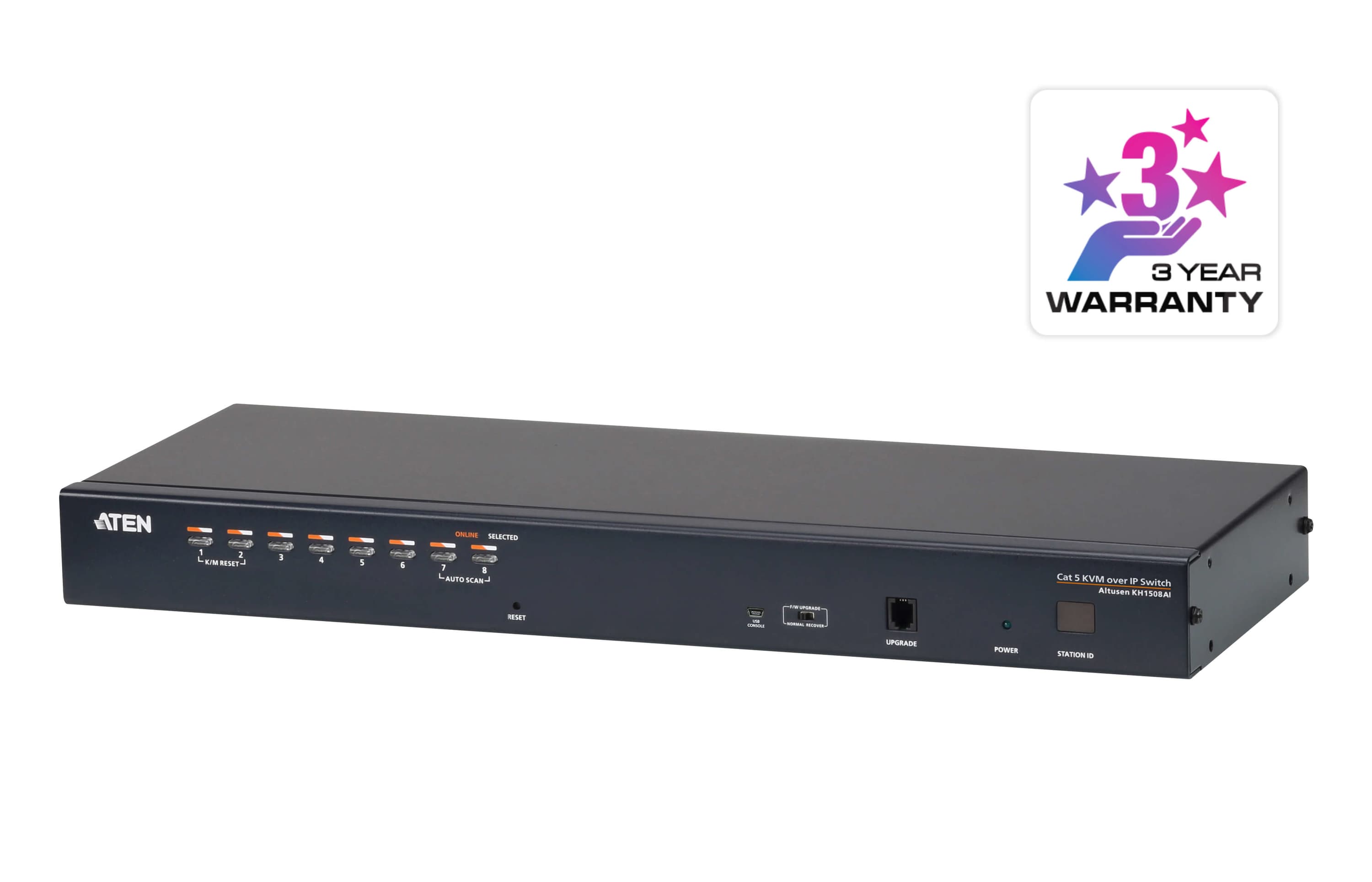

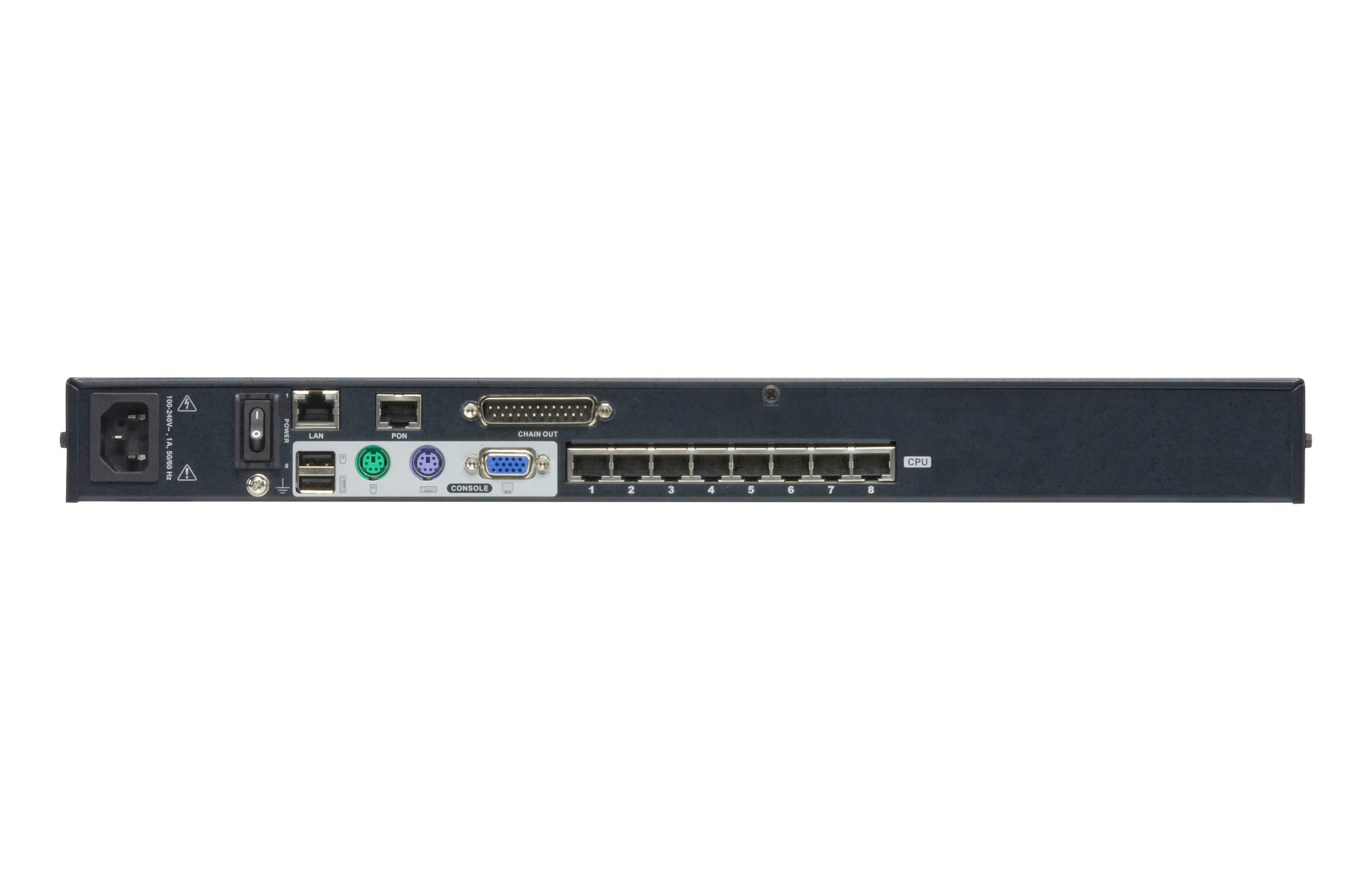

ATEN 8-Port CAT5e/6 KVM Over IP Switch
PS/2, USB 2.0, VGA · RJ-45 · 19" Rack
2 in stock
CHF 684.04
CHF 739.45 incl. VAT
1/4Aten
All 50 specifications
ATEN 8-Port CAT5e/6 KVM Over IP Switch
- Part number
- 673359
- MPN
- KH1508AI
- EAN
- 4710423777439
ATEN 8-Port CAT5e/6 KVM Over IP Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 8.7 W, Black
| Konsolen Ports | PS/2, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Mounting | 19" Rack |
| KVM-Art | Netzwerk |
| Power supply | Internes Netzteil |
| Max. Auflösung | 1600 x 1200 (UXGA) |
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
Description
ATEN 8-Port CAT5e/6 KVM Over IP Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.6 mm, Height: 44 mm
Documents
Specifications
| Konsolen Ports | PS/2, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Mounting | 19" Rack |
| KVM-Art | Netzwerk |
| Power supply | Internes Netzteil |
| Max. Auflösung | 1600 x 1200 (UXGA) |
Ports & interfaces
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| PS/2 ports quantity | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
Performance
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
Display
| Built-in display | No |
|---|
Power
| Power source | AC |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 8.7 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Width | 437.2 mm |
|---|---|
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 3.18 kg |
Packaging data
| Package width | 131 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.58 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Logistics data
| Master (outer) case net weight | 9.54 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.4 kg |
| Products per master (outer) case | 3 pc(s) |
| Weight | 3.47 kg |
