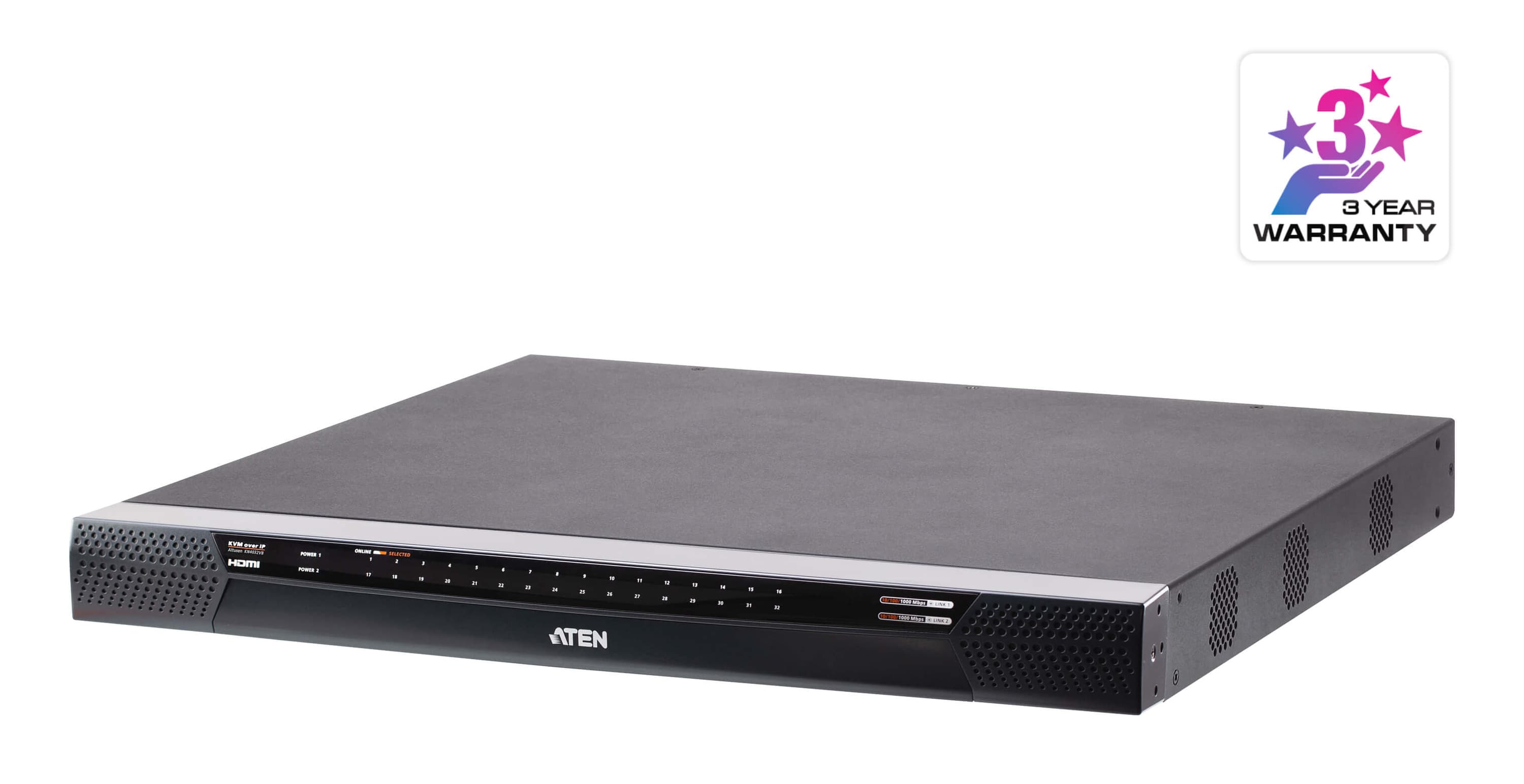

ATEN KN4032VB KVM switch Black
- Part number
- 2004242
- MPN
- KN4032VB
- EAN
- 4710469342226
ATEN KN4032VB, 1920 x 1200 pixels, Ethernet LAN, Full HD+, Black
| Konsolen Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, HDMI Typ A, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Mounting | Rack Montage |
| KVM-Art | Netzwerk |
| Power supply | Mains powered |
| Max. Auflösung | 1920 x 1200 (WUXGA) |
| Number of computers controlled | 32 |
| Keyboard port type | USB, PS/2 |
Description
ATEN KN4032VB. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: HDMI/VGA. HD type: Full HD+, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 412.1 mm, Depth: 433.6 mm, Height: 44 mm
Documents
Specifications
| Konsolen Ports | 3.5 mm Kopfhöreranschluss, 3.5 mm Mikrofoneingang, HDMI Typ A, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Mounting | Rack Montage |
| KVM-Art | Netzwerk |
| Power supply | Mains powered |
| Max. Auflösung | 1920 x 1200 (WUXGA) |
Ports & interfaces
| Number of computers controlled | 32 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | HDMI/VGA |

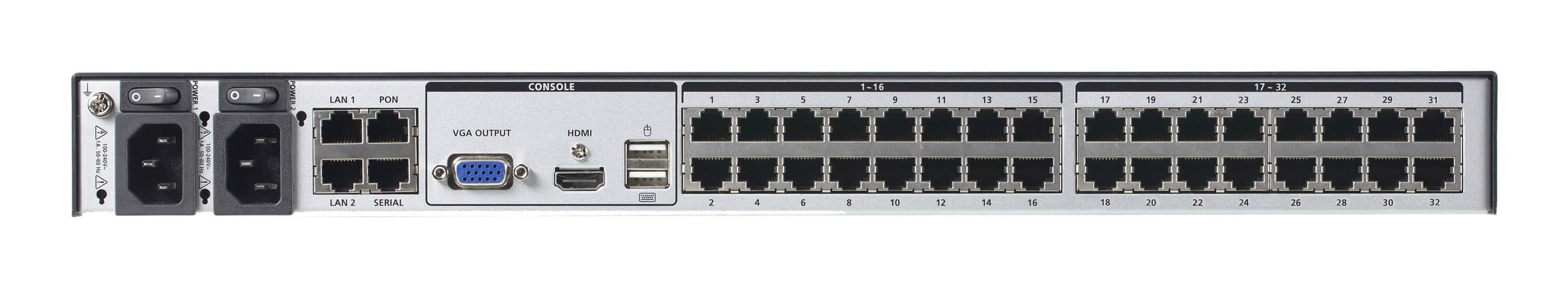

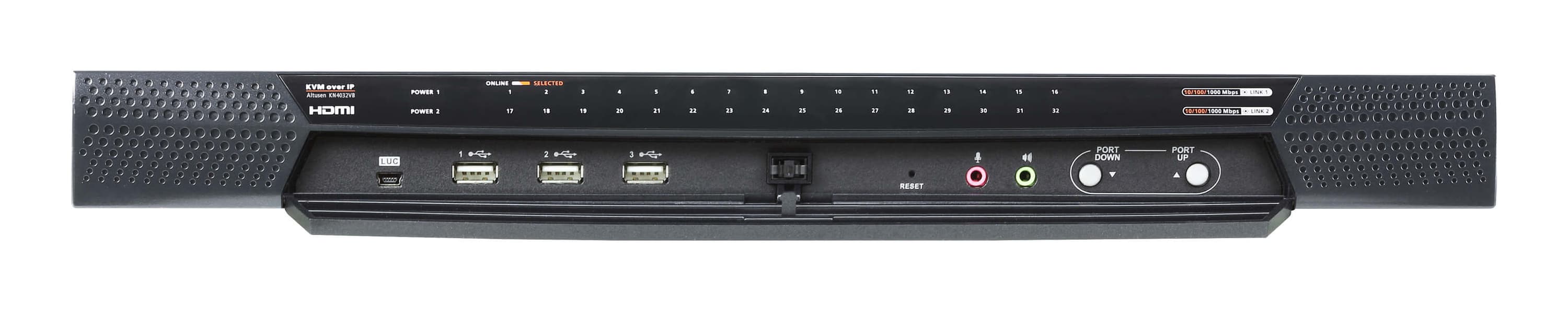

| Console ports | HDMI, Mini-USB B, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 1 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | Mini-USB B, USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Audio connections | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 36 |
Performance
| HD type | Full HD+ |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Firmware upgradeable | Yes |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Built-in display | No |
|---|
Power
| Power source | AC |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Width | 412.1 mm |
|---|---|
| Depth | 433.6 mm |
| Height | 44 mm |
| Weight | 5.22 kg |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Weight | 3.89 kg |
