D-Link PoE++ Switch DXS-3130-28P 28 Port

Hover to zoom1/5

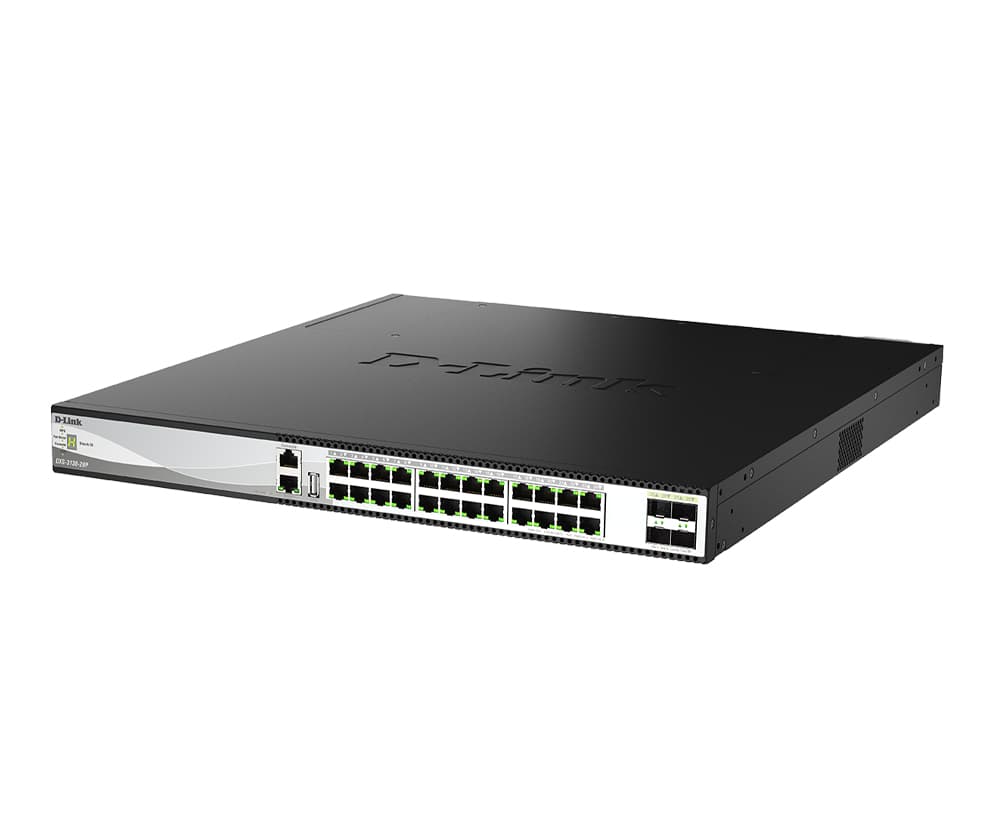

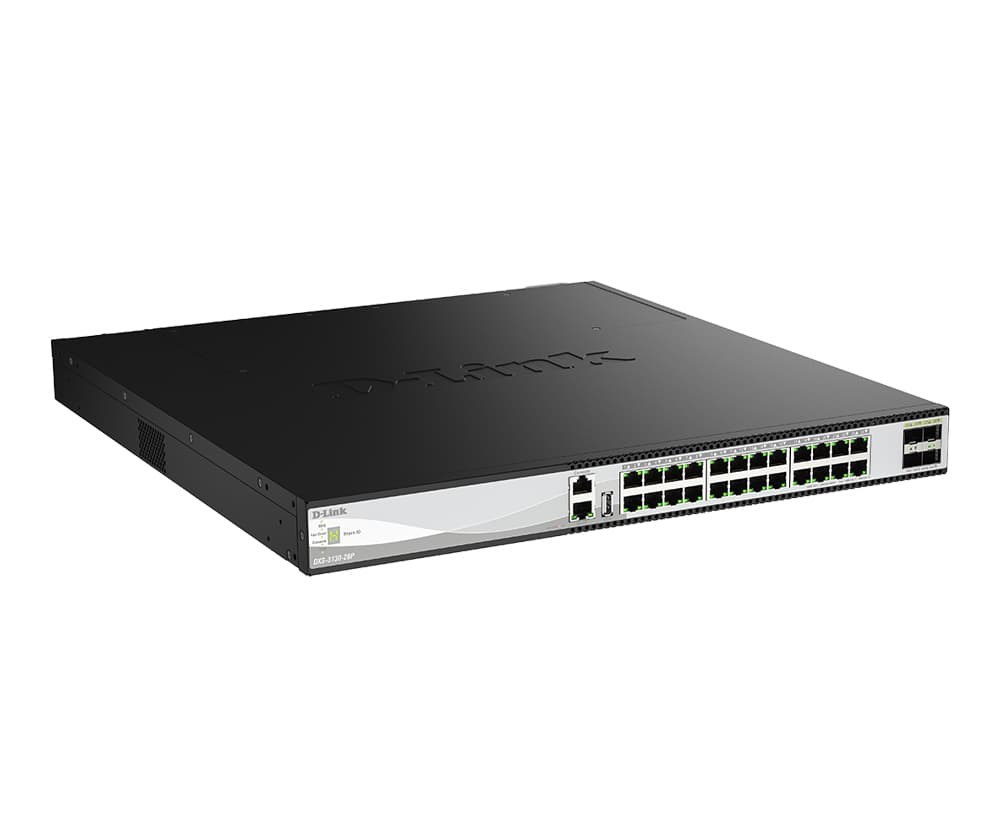

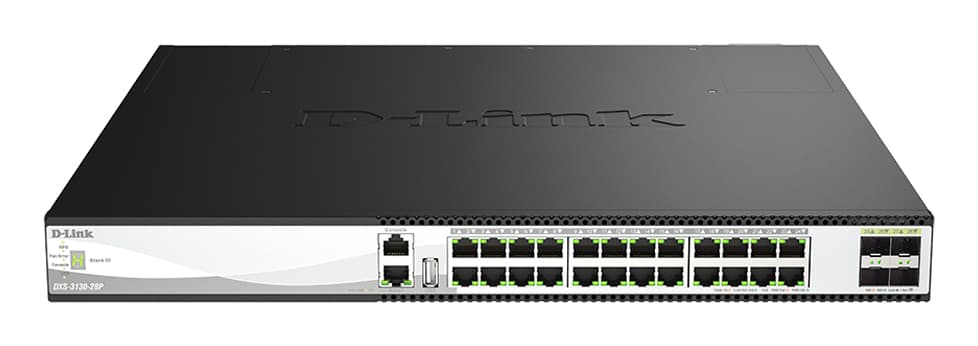

D-Link 28-Port 10G Multi-Gigabit Layer 3 Stackable PoE++ Managed Switch with 25G Uplinks

Part number: 2107147
MPN: DXS-3130-28P/E
EAN: 790069474125

D-Link 28-Port 10G Multi-Gigabit Layer 3 Stackable PoE++ Managed Switch with 25G Uplinks, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	4
Switch Management	Full-Managed
Switch type	Managed
Switch layer	L3

Description

D-Link 28-Port 10G Multi-Gigabit Layer 3 Stackable PoE++ Managed Switch with 25G Uplinks. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 32000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	4
Switch Management	Full-Managed

Management features

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	24
SFP28 ports quantity	4
USB 2.0 ports quantity	1
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
VLAN support	Yes
Number of VLANs	4000

Data transmission

MAC address table	32000 entries
Switching capacity	680 Gbit/s
Forwarding rate	505.92 Mpps
Static route	Yes
Number of static routes	512
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB

Security

DHCP features	DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	1024
Access Control List (ACL) ingress	3072
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
Loop protection	Yes
Password protection	Yes
Authentication type	RADIUS, TACACS+

Multicast features

Multicast support	Yes

Design

Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
LED indicators	Yes
Number of fans	2 fan(s)

Performance

Noise level	50.01 dB
Mean time between failures (MTBF)	286495.2 h

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	1782.37 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	60 W

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	3439.64 BTU/h

Weight & dimensions

Width	440 mm
Depth	250 mm
Height	44 mm
Weight	6.48 kg

Packaging content

Quick start guide	Yes
Weight	4.50 kg
