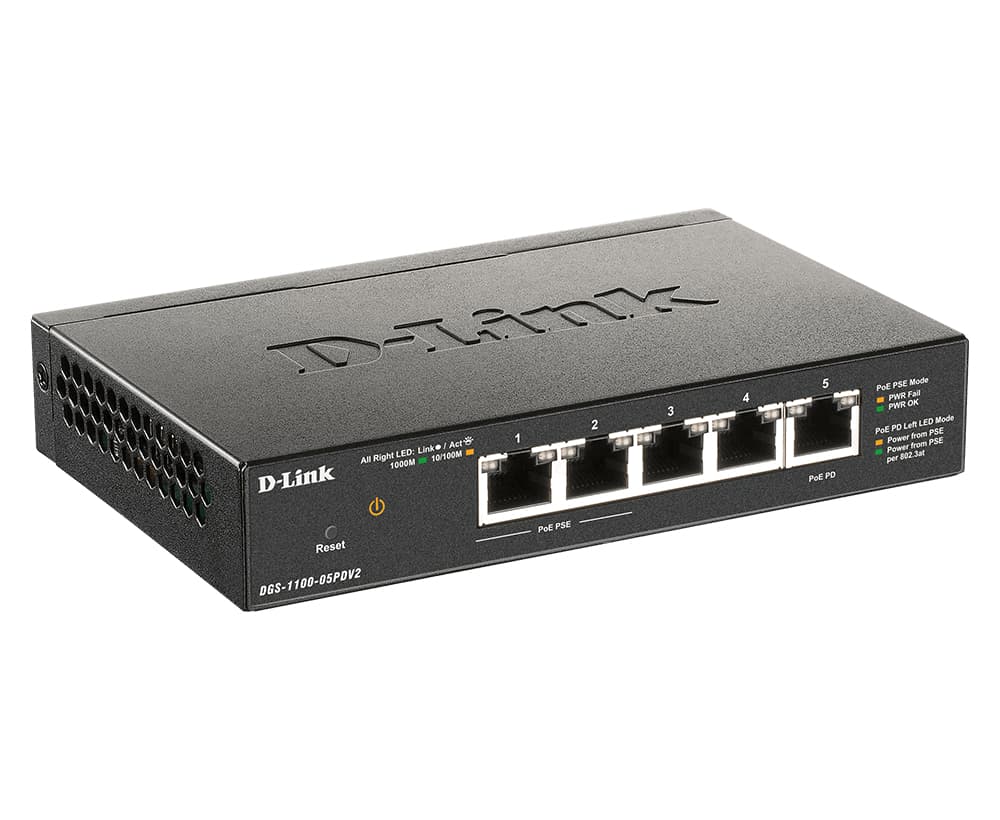

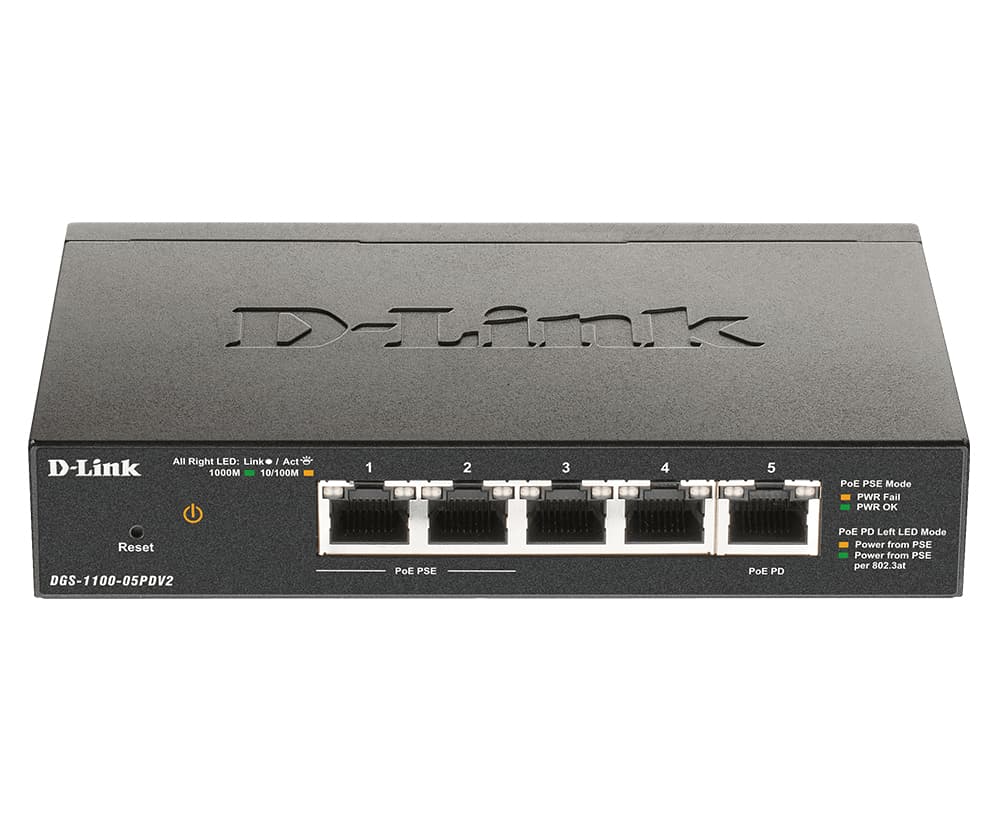

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port

Part number: 1097726
MPN: DGS-1100-05PDV2
EAN: 790069453298

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

SFP Anschlüsse	0
Montage Switch	Desktop
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed
Switch type	Managed
Quality of Service (QoS) support	Yes

Description

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Documents

Specifications

SFP Anschlüsse	0
Montage Switch	Desktop
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Smart-Managed

Management features

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094

Data transmission

MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Number of trunks	1
Number of queues	4
Jumbo frames	9216
Packet buffer memory	1 MB

Security

DHCP features	DHCP client
IGMP snooping	Yes
IGMP entries	128
Static port security	Yes
SSH/SSL support	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
MAC address entries	Static MAC address entries

Design

Rack mounting	No
Product colour	Black

Performance

Flash memory	2 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	2357475 h

Power

Power source	PoE
Power supply included	No
Power consumption (typical)	3.24 W
Power consumption (max)	24.08 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	2
Power over Ethernet (PoE) power per port	18 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	150 mm
Depth	97 mm
Height	28 mm
Weight	380 g

Certificates

Compliance certificates	BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Logistics data

Harmonized System (HS) code	85176990
Weight	0.62 kg
