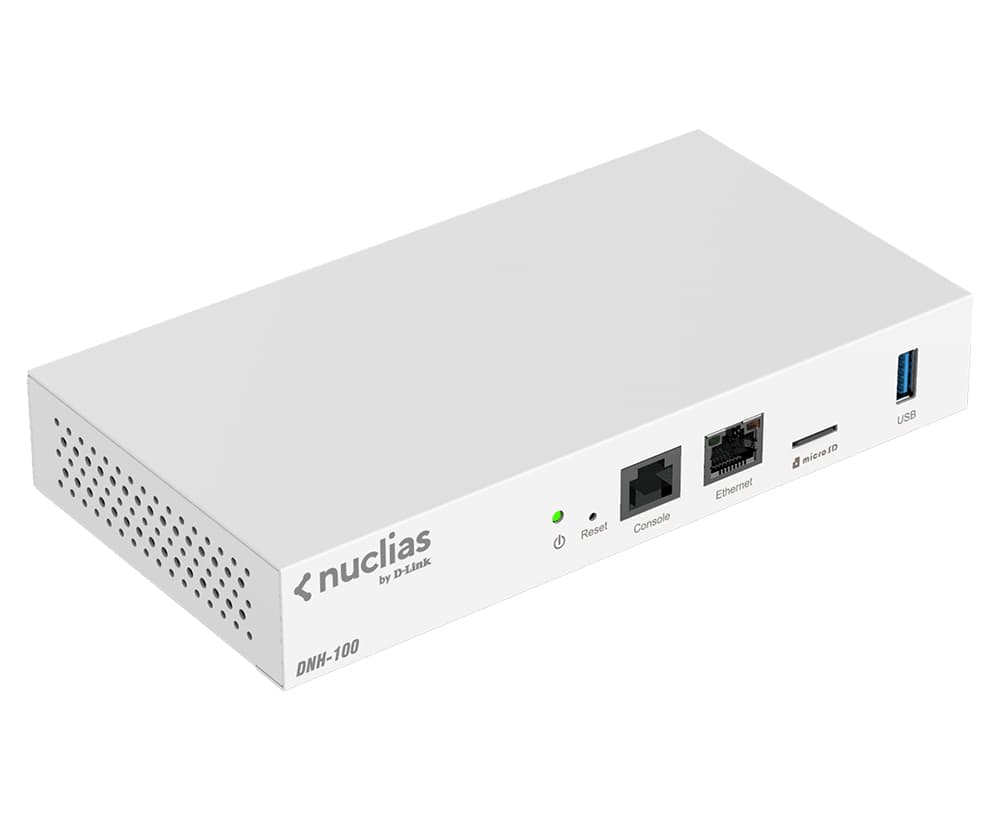

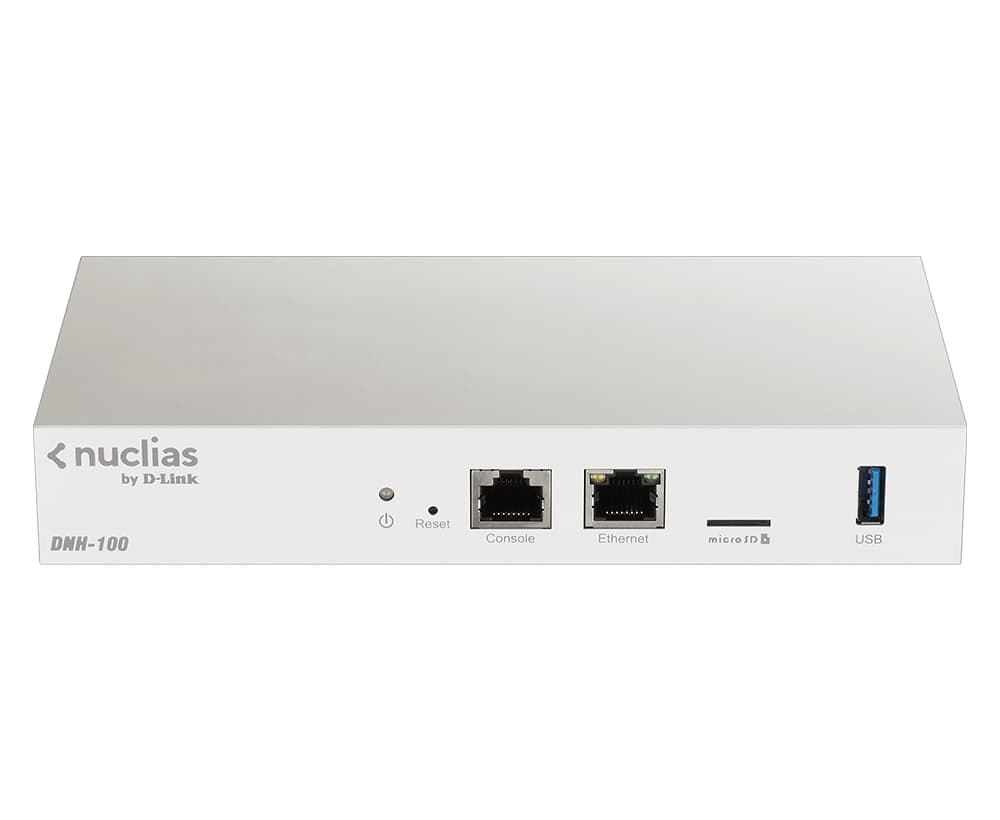

D-Link Nuclias Connect Hub
- Part number
- 1099295
- MPN
- DNH-100
- EAN
- 790069451980
D-Link Nuclias Connect Hub, 100 Mbit/s, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, 10,100,1000 Mbit/s, WPA2, WPA3, Wired, 100 - 240 V
| Mounting | 19" Rack |
|---|---|
| Anzahl integrierte Lizenzen | 100 × |
| Max. Anzahl Access Points | 100 × |
| Firewall throughput | 100 Mbit/s |
| Number of LAN Access Points (max) | 2 |
| Concurrent IPSec tunnels | 0 |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
Description
D-Link Nuclias Connect Hub. Firewall throughput: 100 Mbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA2, WPA3. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 6.5 W
Documents
Specifications
| Mounting | 19" Rack |
|---|---|
| Anzahl integrierte Lizenzen | 100 × |
| Max. Anzahl Access Points | 100 × |
Performance
| Firewall throughput | 100 Mbit/s |
|---|---|
| Number of LAN Access Points (max) | 2 |
| Concurrent IPSec tunnels | 0 |
Network
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Management features
| Web-based management | Yes |
|---|---|
| Rate limiting | Yes |
| VLAN support | Yes |
Security
| Security algorithms | WPA2, WPA3 |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
Power
| Power over Ethernet (PoE) | No |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.5 W |
Design
| Product colour | White |
|---|---|
| Power LED | Yes |
| LED indicators | Power |
| Certification | FCC Class B, CE, C-Tick, VCCI, BSMI, cUL, CB, LVD (En60950-1) |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Dimensions (WxDxH) | 190 x 100 x 31 mm |
|---|---|
| Weight | 529 g |
| Width | 190 mm |
| Depth | 100 mm |
| Height | 31 mm |
Packaging content
| Manual | Yes |
|---|---|
| User guide | Yes |
| Weight | 1.24 kg |
