Electrolux

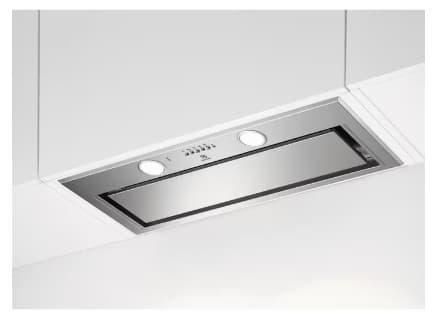

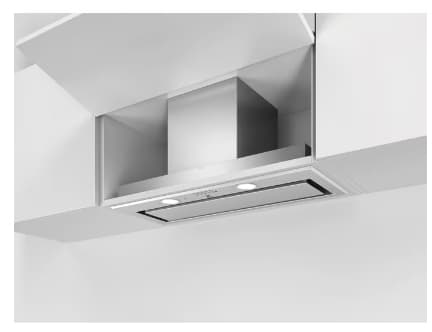

Electrolux DBGL7732CN Built-in Chrome 580 m³/h
1/11- Part number
- 1529105
- MPN
- 942022727
- EAN
- 7333394008585
Electrolux DBGL7732CN, 580 m³/h, Ducted, A, A, D, 67 dB
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 300 mm |
| Width | 770 mm |
| Height | 33.1 cm |
| Hood Type | Huttenlüfter |
| Max. Extraction Rate | 580 m³/h |
| Extraction Type | Ducted |
Description
Electrolux DBGL7732CN. Maximum extraction power: 580 m³/h, Type of extraction: Ducted, Fluid dynamic efficiency class: A. Type: Built-in, Product colour: Chrome. Grease filter type: Carbon, Number of filters: 1 pc(s), Number of filter layers: 1 pc(s). Number of bulbs: 2 bulb(s), Bulb type: LED, Illuminance: 298 lx. Annual energy consumption: 56 kWh, Energy efficiency scale: A+++ to D, Power consumption (standby): 0.49 W
Documents
Specifications
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 300 mm |
| Width | 770 mm |
| Height | 33.1 cm |
| Hood Type | Huttenlüfter |
Performance
| Max. Extraction Rate | 580 m³/h |
|---|---|
| Extraction Type | Ducted |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |

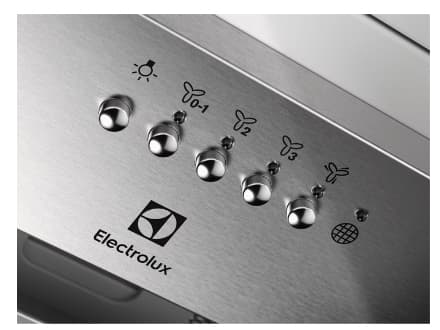

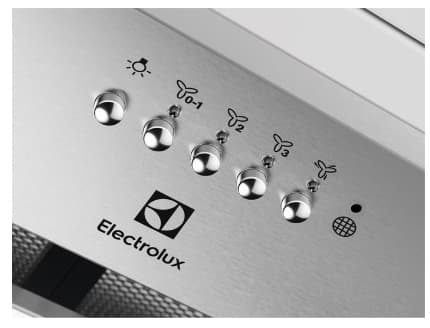

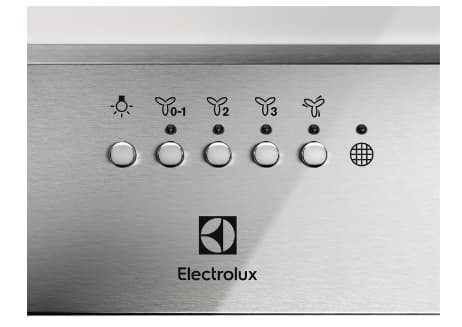

| Number of Speeds | 3 |
| Noise Level | 67 dB |
| Maximum recirculating power | 300 m³/h |
| Boost position air extraction power | 700 m³/h |
| Boost position output recirculating power | 580 m³/h |
| Intensive speed | Yes |
| Noise level (low speed) | 54 dB |
| Noise level (medium speed) | 62 dB |
| Noise level (high speed) | 67 dB |
| Noise level (intensive speed) | 68 dB |
| Noise level (recirculation mode) | 74 dB |
| Pressure (Pa) | 530 |
Design
| Type | Built-in |
|---|---|
| Colour | Chrome |
| Built-in Display | No |
Filtering

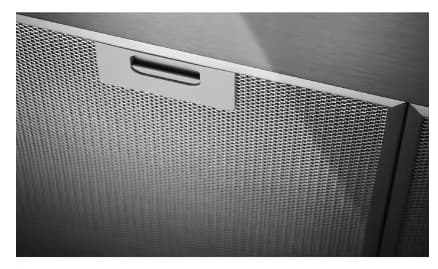

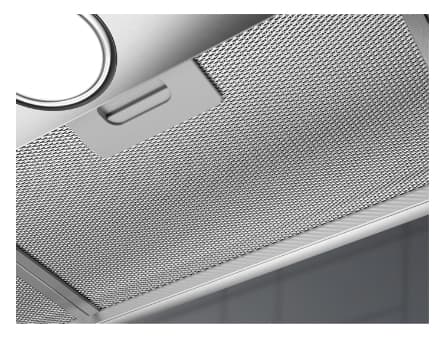

| Grease Filter Type | Carbon |
|---|---|
| Number of filters | 1 pc(s) |
| Number of filter layers | 1 pc(s) |

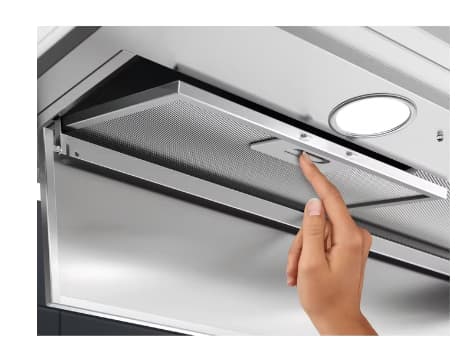

| Removable filter | Yes |
| Washable filter | Yes |

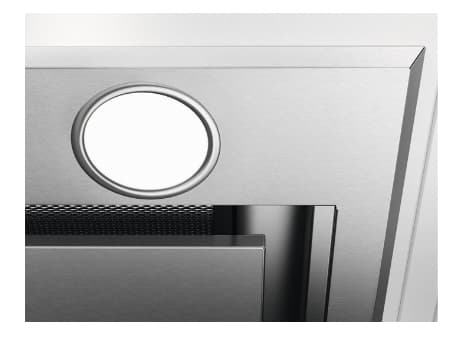

Lighting

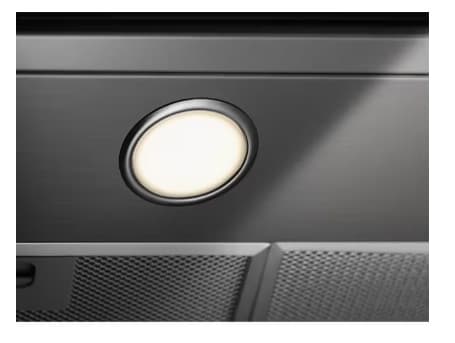

| Number of bulbs | 2 bulb(s) |
|---|---|
| Bulb type | LED |
| Illuminance | 298 lx |
| Colour temperature | 3000 K |
Power
| Annual Energy Consumption | 56 kWh |
|---|---|
| Energy efficiency scale | A+++ to D |
| Power consumption (standby) | 0.49 W |
| AC Input Voltage | 220-240 V |
| Energy efficiency class (legacy scale) | A |
| Energy efficiency index (EEI) | 53.5 |
Weight & dimensions
| Height (max) | 33.1 cm |
|---|---|
| Weight | 10 kg |
Packaging data
| Package Weight | 12.3 kg |
|---|---|
| Weight | 12.80 kg |
