Electrolux
Electrolux WHL6038CN Ceiling built-in Chrome 600 m³/h
1/4- Part number
- 1529220
- MPN
- 942490757
- EAN
- 7332543985784
Electrolux WHL6038CN, 600 m³/h, Ducted/Recirculating, A, A, B, 63 dB
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 490 mm |
| Width | 598 mm |
| Height | 24 cm |
| Hood Type | Wandhaube |
| Max. Extraction Rate | 600 m³/h |
| Extraction Type | Ducted/Recirculating |
Description
Electrolux WHL6038CN. Maximum extraction power: 600 m³/h, Type of extraction: Ducted/Recirculating, Fluid dynamic efficiency class: A. Type: Ceiling built-in, Product colour: Chrome, Control type: Buttons. Grease filter type: Metal, Number of filters: 2 pc(s). Bulb power: 2.2 W, Number of bulbs: 2 bulb(s), Bulb type: LED. Annual energy consumption: 52 kWh, Energy efficiency scale: A+++ to D, AC input voltage: 230 V
Documents
Specifications
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 490 mm |
| Width | 598 mm |
| Height | 24 cm |
| Hood Type | Wandhaube |
Performance
| Max. Extraction Rate | 600 m³/h |
|---|---|
| Extraction Type | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Number of Speeds | 3 |
| Noise Level | 63 dB |
| Maximum recirculating power | 430 m³/h |
| Boost position air extraction power | 450 m³/h |
| Boost position output recirculating power | 760 m³/h |
| Intensive speed | Yes |
| Noise level (low speed) | 47 dB |
| Noise level (medium speed) | 48 dB |
| Noise level (high speed) | 63 dB |
| Noise level (intensive speed) | 66 dB |
| Noise level (recirculation mode) | 68 dB |
| Pressure (Pa) | 560 |
Design
| Type | Ceiling built-in |
|---|---|
| Colour | Chrome |
| Built-in Display | No |

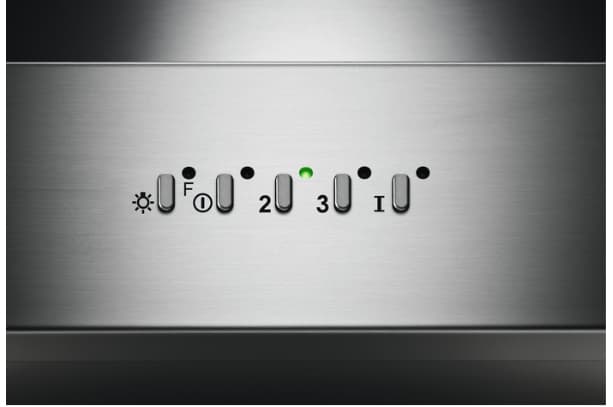

| Control | Buttons |
| Number of motors | 1 |
| Motor included | Yes |
Filtering

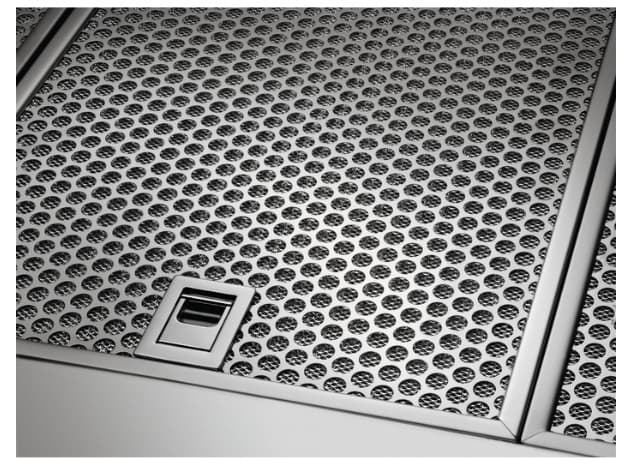

| Grease Filter Type | Metal |
|---|---|
| Number of filters | 2 pc(s) |
| Removable filter | Yes |
| Washable filter | Yes |
Lighting
| Lamp Power | 2.2 W |
|---|---|
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Illuminance | 150 lx |
Power
| Annual Energy Consumption | 52 kWh |
|---|---|
| Energy efficiency scale | A+++ to D |
| AC Input Voltage | 230 V |
| Energy efficiency class (legacy scale) | A |
| Energy efficiency index (EEI) | 46.6 |
Weight & dimensions
| Height without chimney | 24 cm |
|---|---|
| Weight | 11.2 kg |
Packaging data
| Package Weight | 14.7 kg |
|---|---|
| Weight | 2.00 kg |
