Electrolux

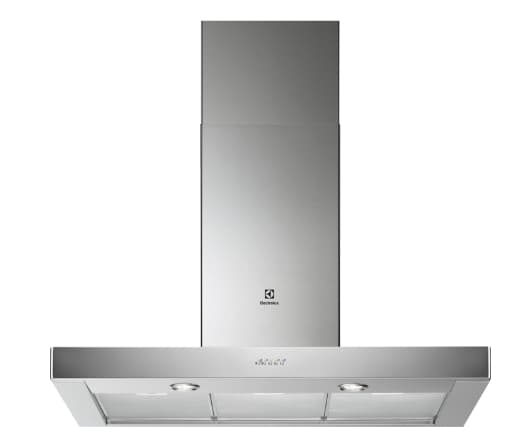

Electrolux WHL9037CN Built-under Chrome 590 m³/h
1/5- Part number
- 1529221
- MPN
- 942490754
- EAN
- 7332543985753
Electrolux WHL9037CN, 590 m³/h, Ducted/Recirculating, A, A, B, 66 dB
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 470 mm |
| Width | 898 mm |
| Height | 6 cm |
| Hood Type | Wandhaube |
| Max. Extraction Rate | 590 m³/h |
| Extraction Type | Ducted/Recirculating |
Description
Electrolux WHL9037CN. Maximum extraction power: 590 m³/h, Type of extraction: Ducted/Recirculating, Fluid dynamic efficiency class: A. Type: Built-under, Product colour: Chrome, Control type: Buttons. Grease filter type: Metal, Number of filters: 3 pc(s). Number of bulbs: 2 bulb(s), Bulb type: LED, Illuminance: 200 lx. Annual energy consumption: 58 kWh, Energy efficiency scale: A+++ to D, AC input voltage: 230 V
Documents
Specifications
| Energy Efficiency Class | A |
|---|---|
| Installation Standards | Keine |
| Depth | 470 mm |
| Width | 898 mm |
| Height | 6 cm |
| Hood Type | Wandhaube |
Performance
| Max. Extraction Rate | 590 m³/h |
|---|---|
| Extraction Type | Ducted/Recirculating |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Number of Speeds | 3 |
| Noise Level | 66 dB |
| Maximum recirculating power | 470 m³/h |
| Boost position air extraction power | 740 m³/h |
| Boost position output recirculating power | 510 m³/h |
| Intensive speed | Yes |
| Noise level (low speed) | 50 dB |
| Noise level (medium speed) | 63 dB |
| Pressure (Pa) | 580 |
Design
| Type | Built-under |
|---|---|
| Colour | Chrome |
| Built-in Display | No |

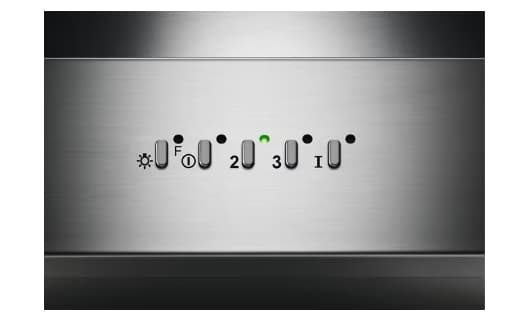

| Control | Buttons |
Filtering
| Grease Filter Type | Metal |
|---|---|
| Number of filters | 3 pc(s) |
| Filter cleaning indicator | Yes |
| Removable filter | Yes |
| Washable filter | Yes |

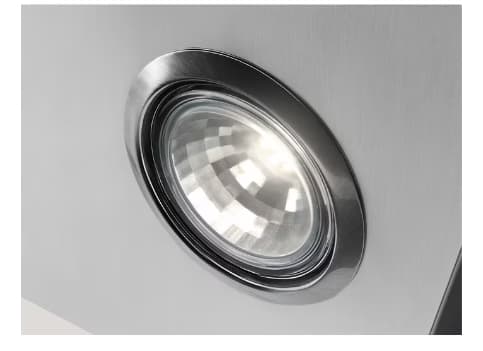

Lighting
| Number of bulbs | 2 bulb(s) |
|---|---|
| Bulb type | LED |
| Illuminance | 200 lx |
Power
| Annual Energy Consumption | 58 kWh |
|---|---|
| Energy efficiency scale | A+++ to D |
| AC Input Voltage | 230 V |
| Energy efficiency class (legacy scale) | A |
| Energy efficiency index (EEI) | 52.3 |
Weight & dimensions
| Height (max) | 6 cm |
|---|---|
| Weight | 17.7 kg |
Packaging data
| Package Weight | 21.3 kg |
|---|---|
| Weight | 2.00 kg |
