Epson

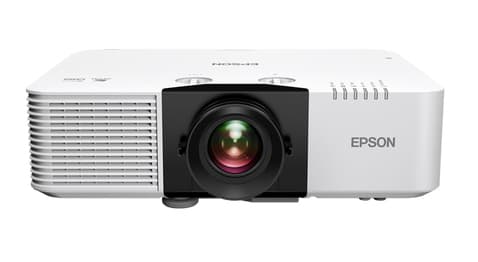

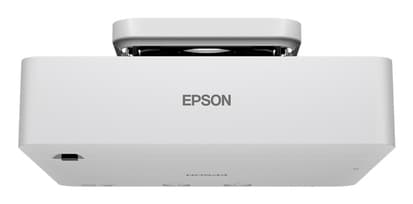

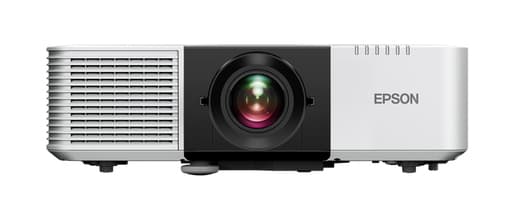

Epson EB-L690U

Part number: 1989946
MPN: V11HB29040
EAN: 8715946737980

Epson EB-L690U, 6500 ANSI lumens, 3LCD, WUXGA (1920x1200), 16:10, 1270 - 12700 mm (50 - 500"), 1.4 - 14.8 m

ANSI-Lumen	6500 lm
Resolution	1920 x 1200 (WUXGA)
Beamer Lampentechnologie	Laser
Lens Shift	Kein
Min. Projektionsverhältnis	1.35 : 1
Max. Projektionsverhältnis	2.2 : 1
Projector brightness	6500 ANSI lumens
Projection technology	3LCD

Description

Epson EB-L690U. Projector brightness: 6500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 30000 h, Service life of light source (economic mode): 20000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Supported graphics resolutions: 1920 x 1200 (WUXGA), Video processing: 10 bit, Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Noise level: 32 dB, Noise level (economic mode): 25 dB, Country of origin: Philippines

Documents

Data sheetPDF · DE

Specifications

ANSI-Lumen	6500 lm
Resolution	1920 x 1200 (WUXGA)
Beamer Lampentechnologie	Laser
Lens Shift	Kein
Min. Projektionsverhältnis	1.35 : 1
Max. Projektionsverhältnis	2.2 : 1

Projector

Projector brightness	6500 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Native aspect ratio	16:10
Smart projector	Yes
Screen size compatibility	1270 - 12700 mm (50 - 500")
Projection distance (wide)	1.4 - 14.8 m
Projection distance (tele)	2.4 - 23.8 m
Contrast ratio (dynamic)	5000000:1
Number of colours	1.07 billion colours
Projector brightness (economic mode)	4550 ANSI lumens
Keystone correction, horizontal	±30°
Keystone correction, vertical	±30°

Light source

Light source type	Laser
Service life of light source	30000 h
Service life of light source (economic mode)	20000 h

Lens system

Focus	Manual
Focal length range	20 - 31.8 mm
Aperture range (F-F)	1.5 - 1.7
Zoom capability	Yes
Zoom type	Manual
Zoom ratio	1.6:1
Throw ratio	1.35 - 2.20:1

Video

Full HD	Yes
Supported graphics resolutions	1920 x 1200 (WUXGA)
Video processing	10 bit
Video colour modes	BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Ports & interfaces

HDMI ports quantity	1
HDBaseT port	Yes
USB 2.0 Type-A ports quantity	1

Network

Ethernet LAN	Yes
Miracast	Yes
Apple AirPlay 2 support	Yes

Features

Noise level	32 dB
Noise level (economic mode)	25 dB
Country of origin	Philippines
High Dynamic Range (HDR) supported	Yes
Password protection	Yes

Multimedia

Built-in speaker(s)	Yes
RMS rated power	10 W
Number of built-in speakers	1

Design

Product type	Standard throw projector
Product colour	White
Housing material	Plastic
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power source	USB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Supplier features

Material	Recycled plastic

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Weight	8.2 kg
Width	440 mm
Height	138 mm
Package width	510 mm
Package depth	515 mm
Package height	230 mm
Package weight	12.2 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	Power
Manual	Yes

Technical details

Other features	21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Warranty period	3 year(s)
Mobile app support	Yes

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	18 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	2 pc(s)
Products per pallet (UK)	18 pc(s)

Other features

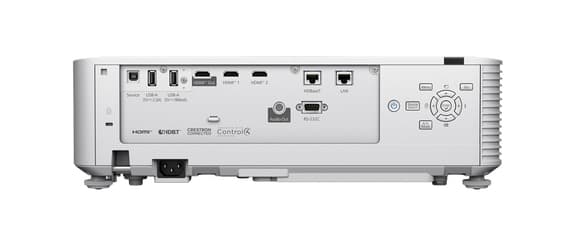

Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC), Apple AirPlay 2
Supported network protocols	HTTPS, SNMP, ESC/VP.net, PJLink
Security features	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
Option type	Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP20
Control panel	0.67 inch with C2 Fine
Weight	11.62 kg
