Kingston SO-DDR5-RAM KVR56S46BD8-48 5600 MHz 1x 48 GB1/5
Kingston

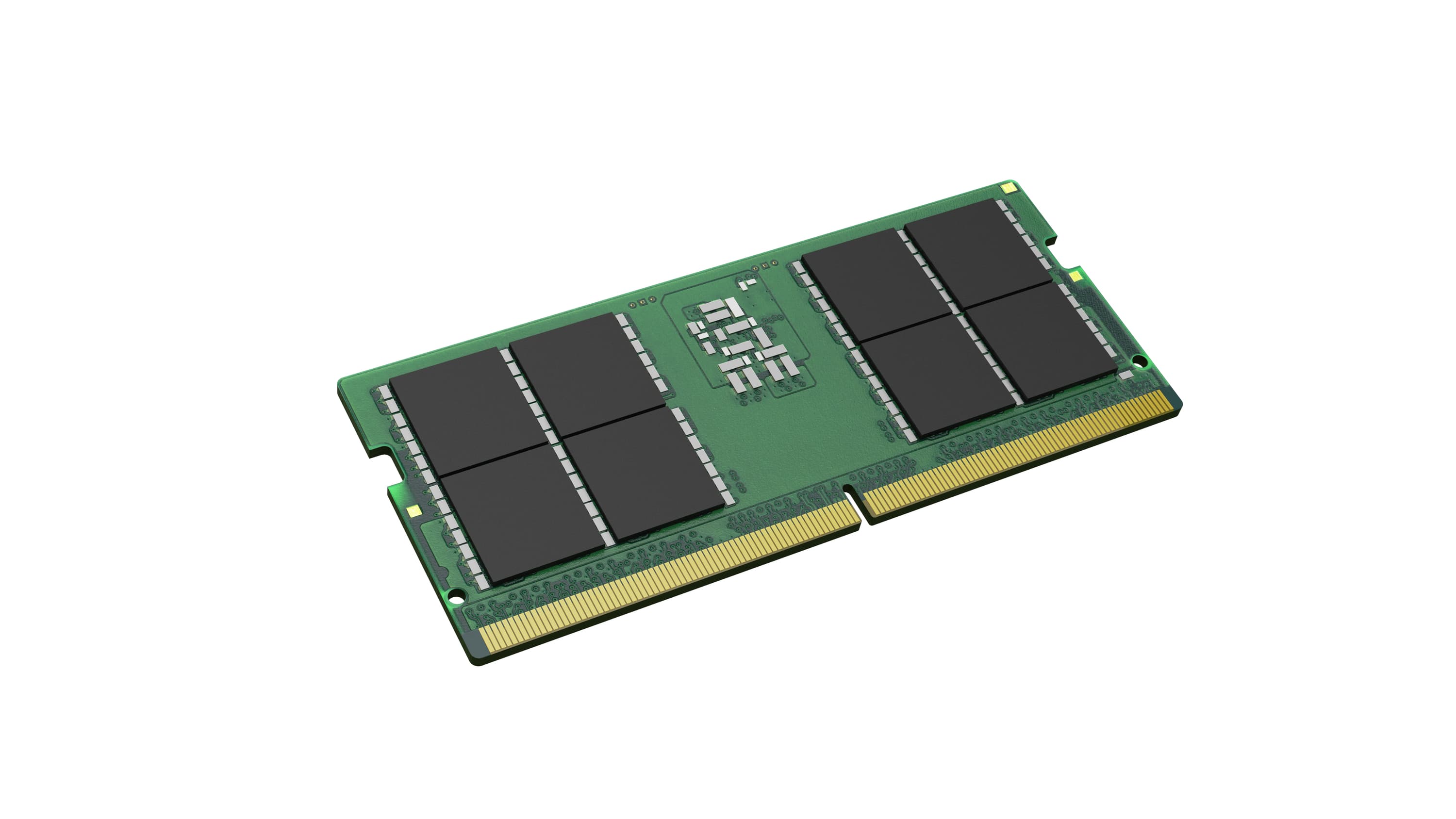

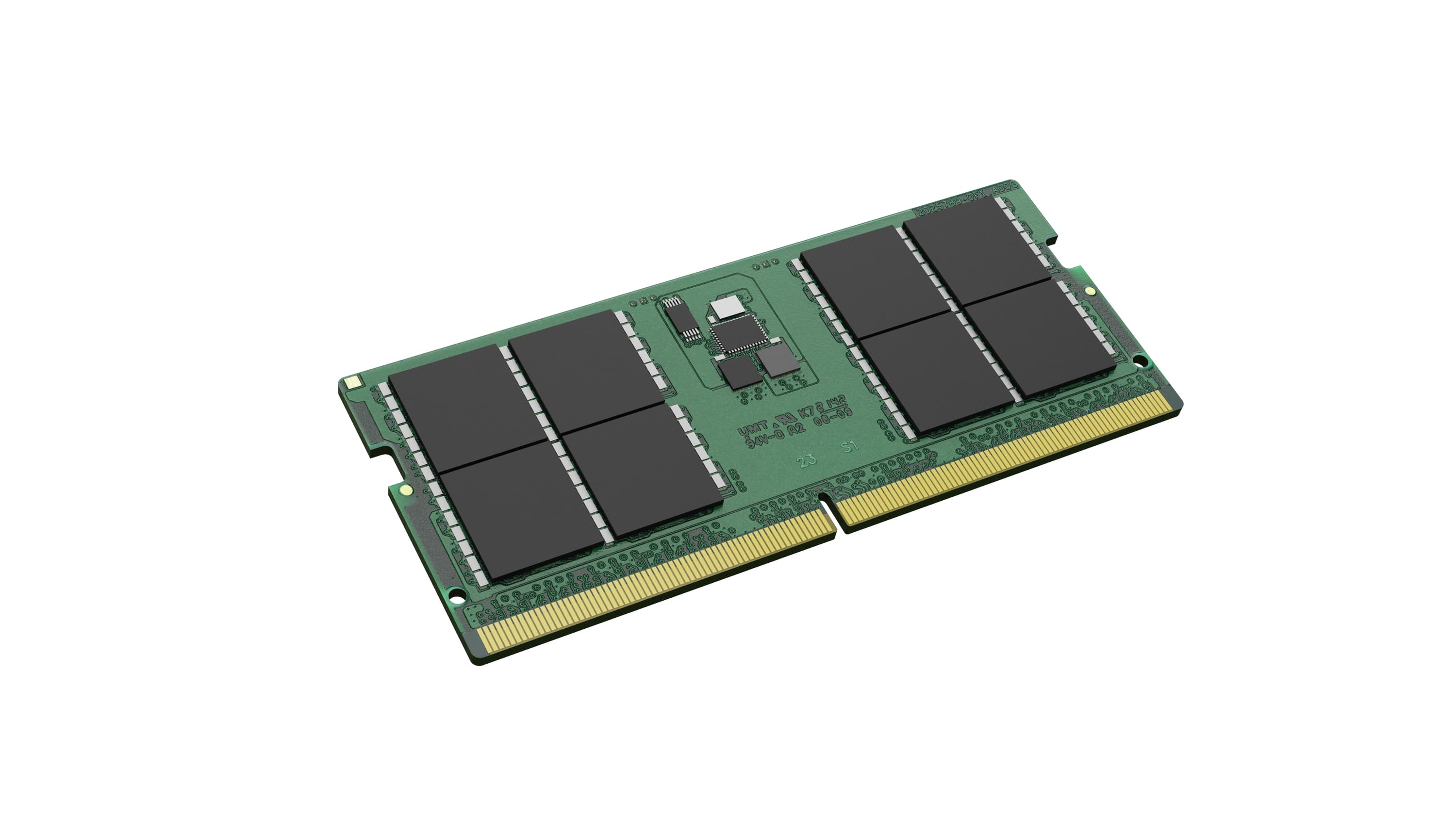

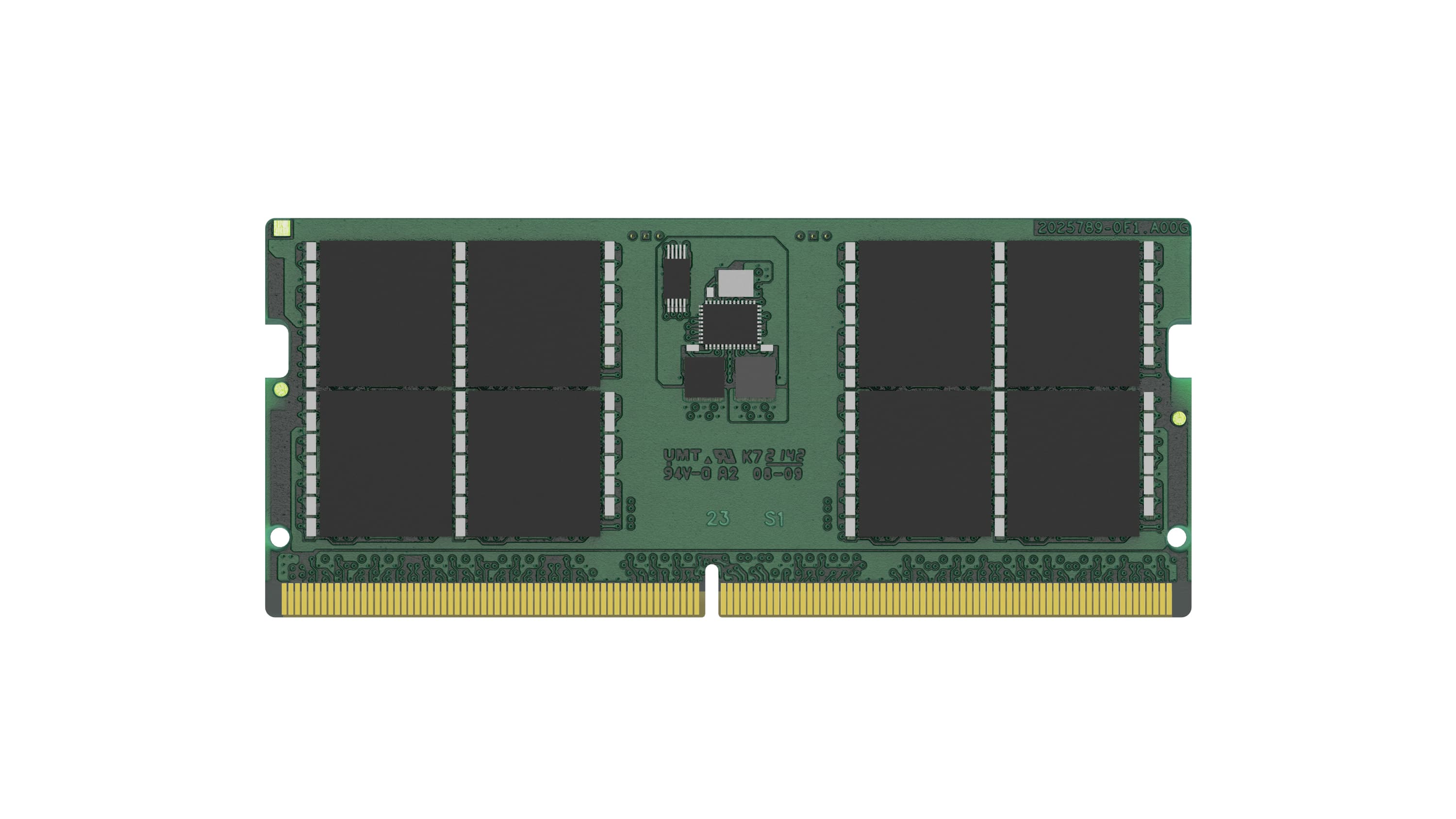

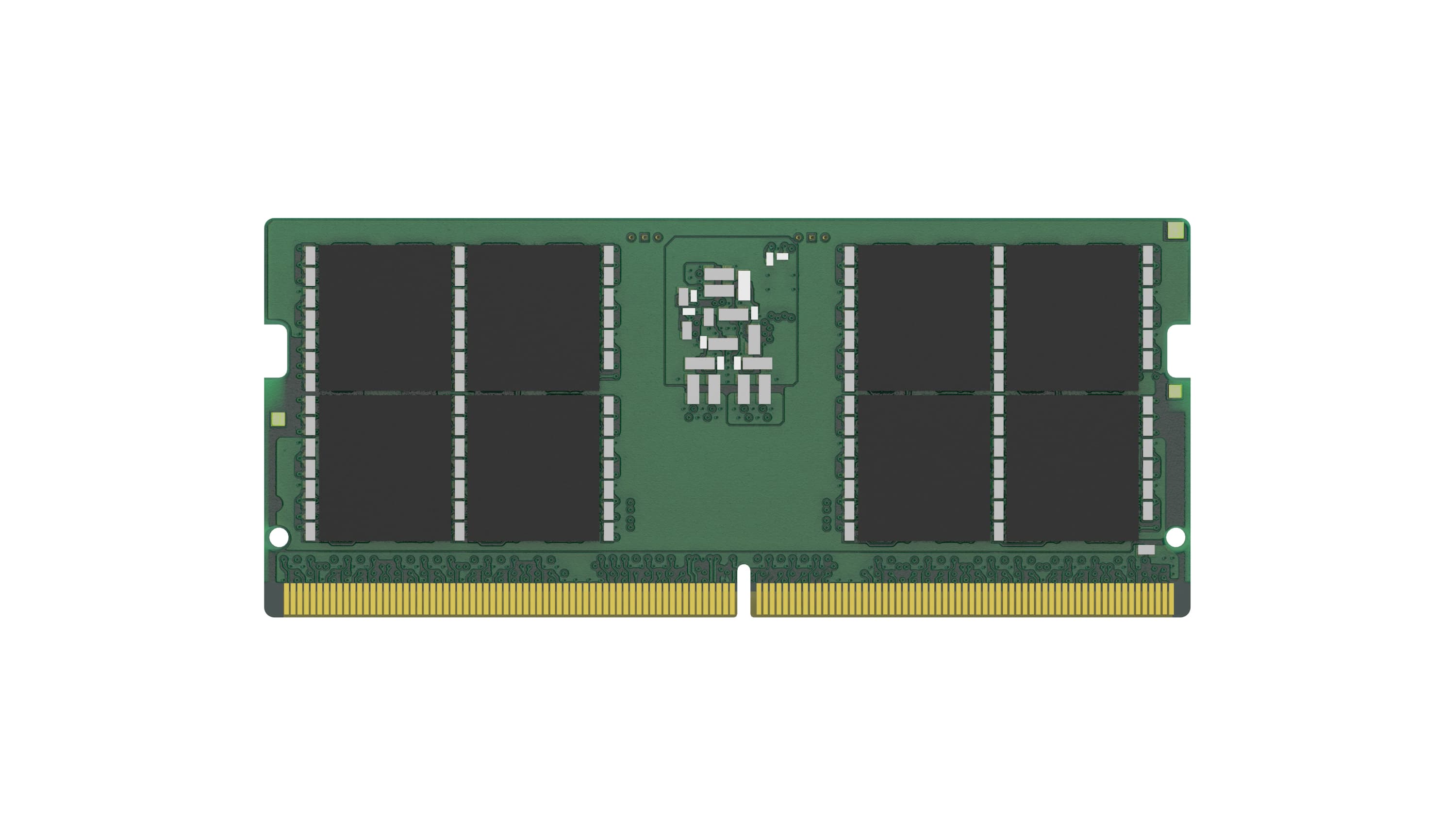

Kingston Technology ValueRAM memory module 48 GB 1 x 48 GB DDR5 5600 MT/s 262-pin SO-DIMM

Part number
1694632
MPN
KVR56S46BD8-48
EAN
740617336856

Kingston Technology ValueRAM , 48 GB, 1 x 48 GB, DDR5, 262-pin SO-DIMM

Arbeitsspeicher BauformSO-DIMM
Arbeitsspeicher-TypDDR5
Arbeitsspeicher Geschwindigkeit5600 MHz
Arbeitsspeicher Pins262
FehlerkorrekturODECC (On-Die ECC)
Anzahl Speichermodule1
Internal memory48 GB
Memory layout (modules x size)1 x 48 GB
All 31 specifications

Description

Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 48 GB, Memory layout (modules x size): 1 x 48 GB, Internal memory type: DDR5, Memory form factor: 262-pin SO-DIMM, CAS latency: 46

Documents

Specifications

Arbeitsspeicher BauformSO-DIMM
Arbeitsspeicher-TypDDR5
Arbeitsspeicher Geschwindigkeit5600 MHz
Arbeitsspeicher Pins262
FehlerkorrekturODECC (On-Die ECC)
Anzahl Speichermodule1

Features

Internal memory48 GB
Memory layout (modules x size)1 x 48 GB
Internal memory typeDDR5
Memory data transfer rate5600 MT/s
Component forLaptop
Memory form factor262-pin SO-DIMM
ECCNo
On-Die ECCYes
CAS latency46
Buffered memory typeUnregistered (unbuffered)
Memory ranking2
Memory voltage1.1 V
Module configuration6144M x 64
Row cycle time48 ns
Refresh row cycle time295 ns
Row active time32 ns
SPD profileYes
Programming power voltage (VPP)1.8 V
Lead platingGold
JEDEC standardYes

Operational conditions

Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-55 - 100 °C

Weight & dimensions

Width69.6 mm
Height30 mm

Other features

Doesn't containHalogen
Weight0.01 kg
