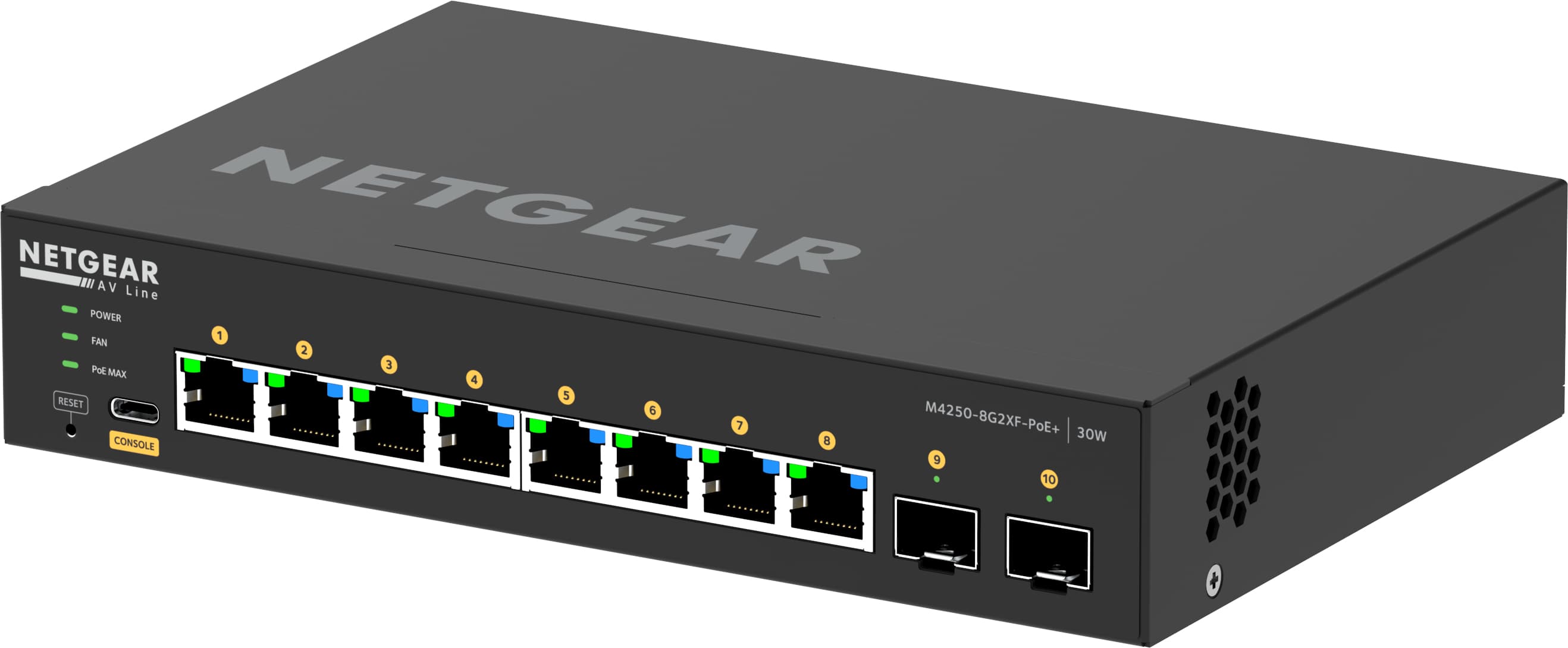

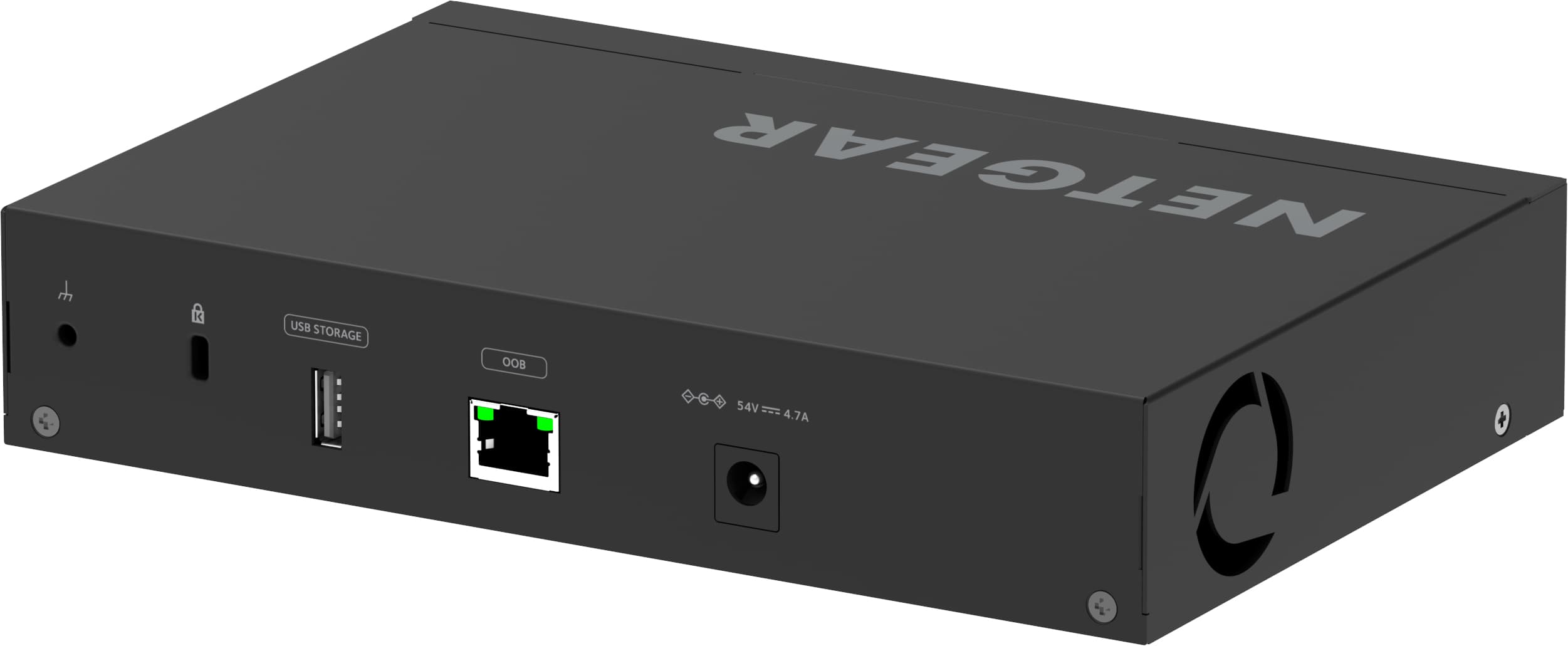

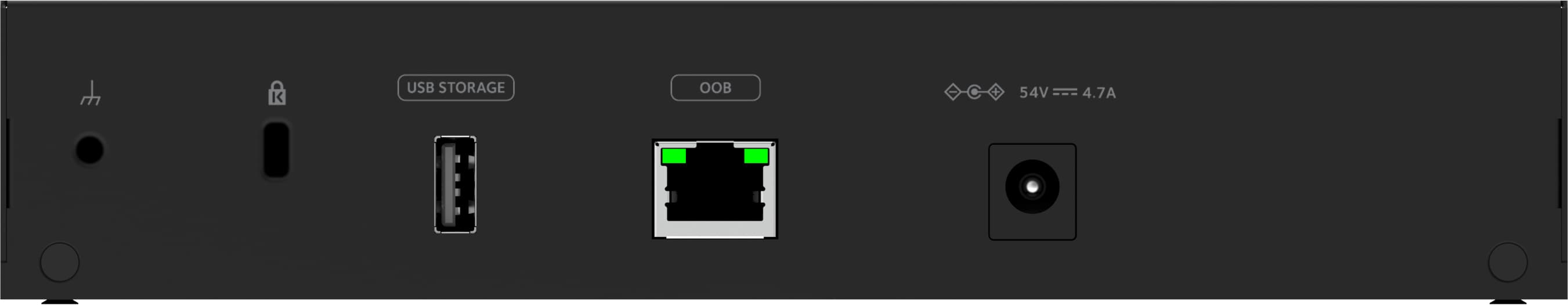

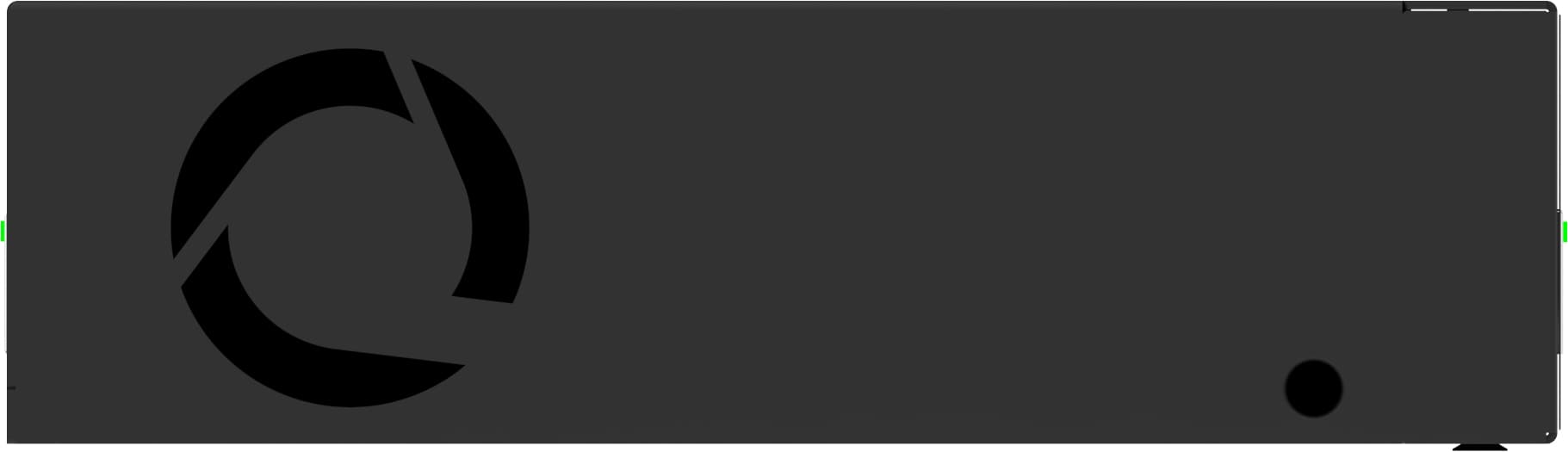

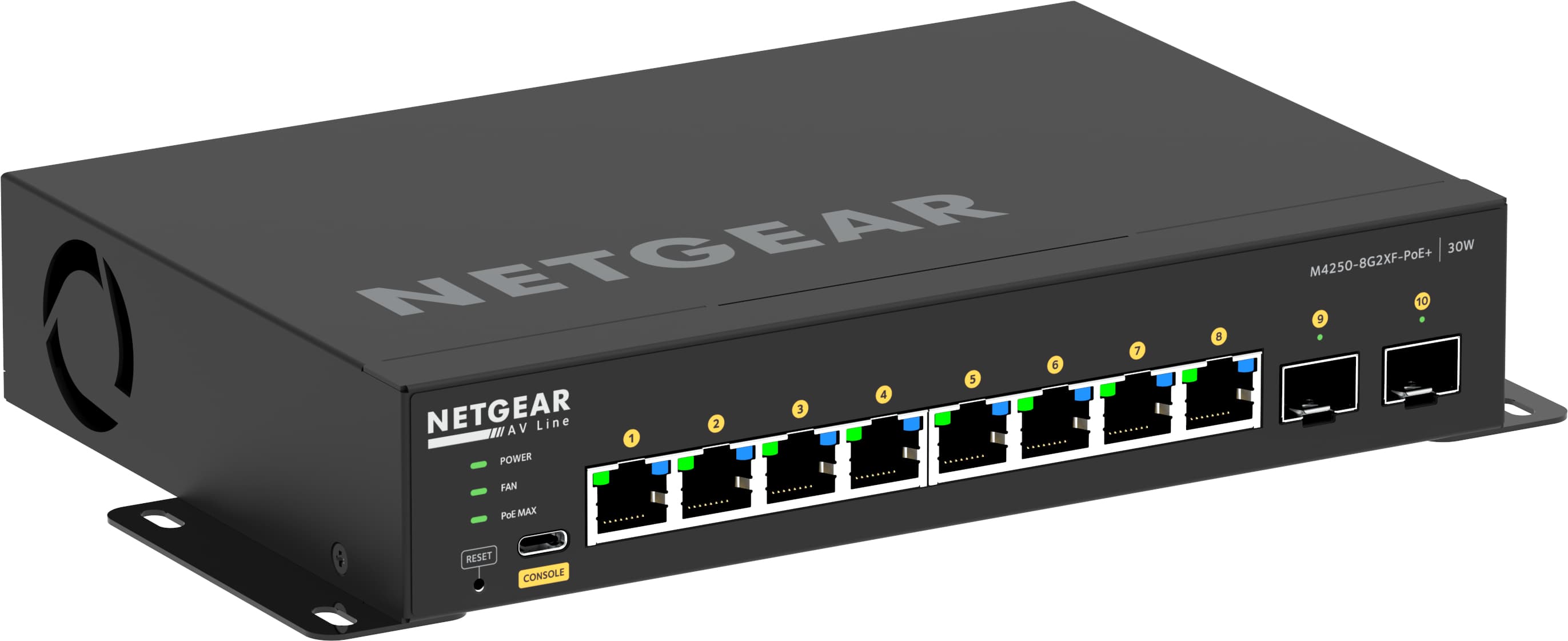

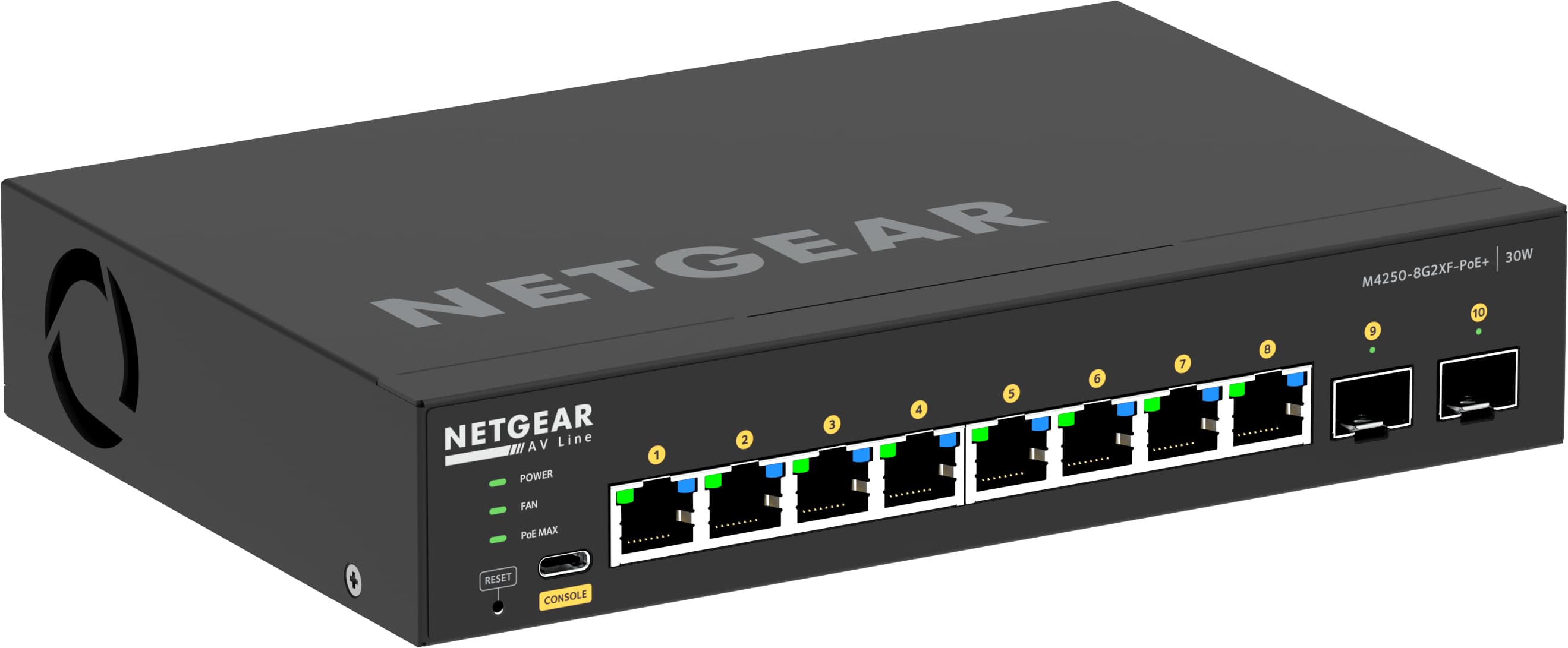

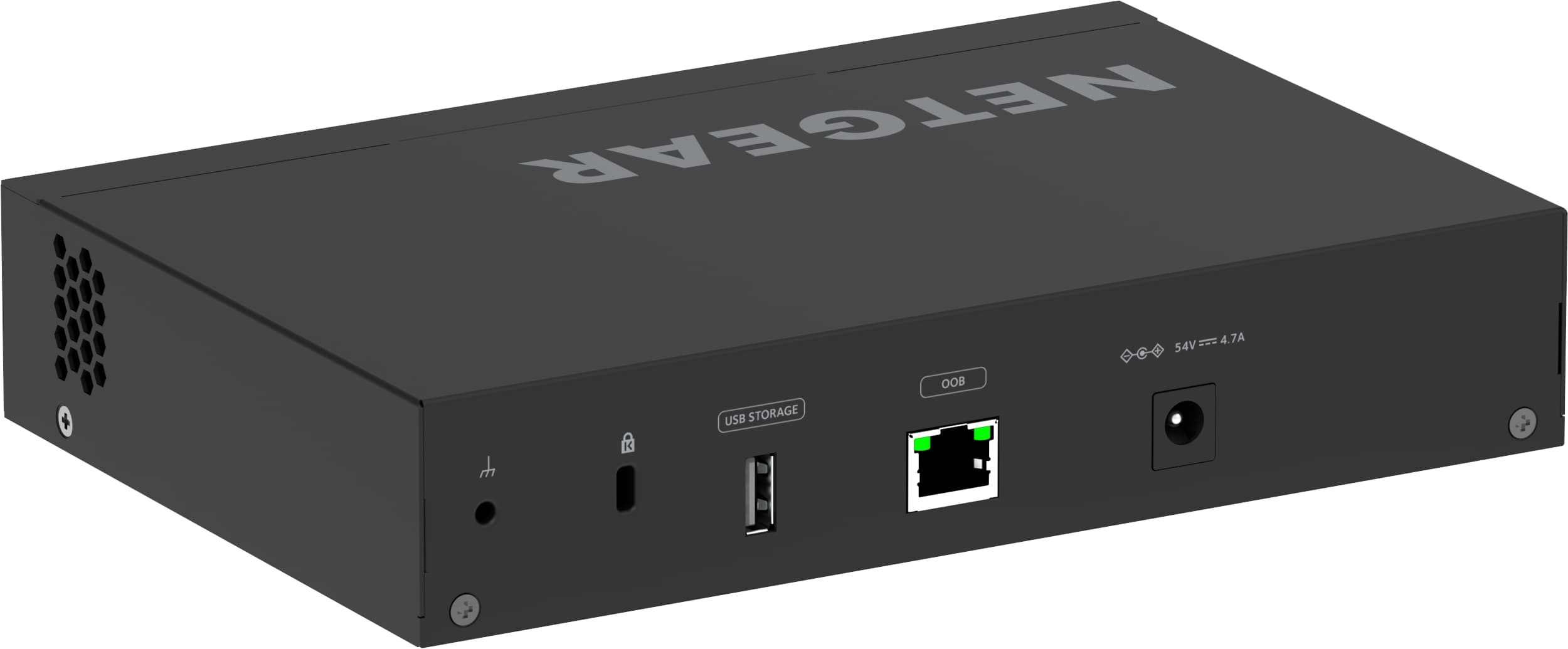

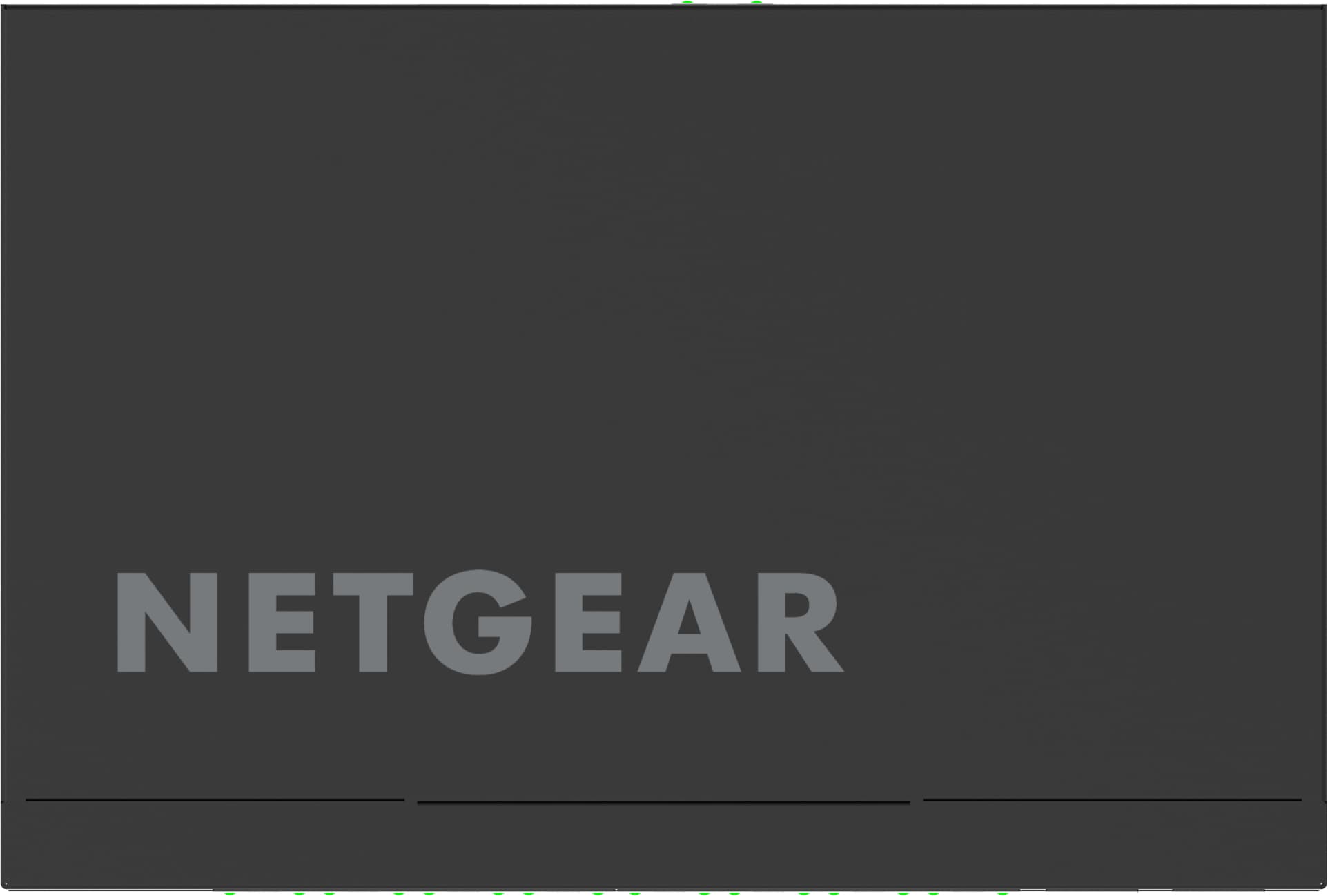

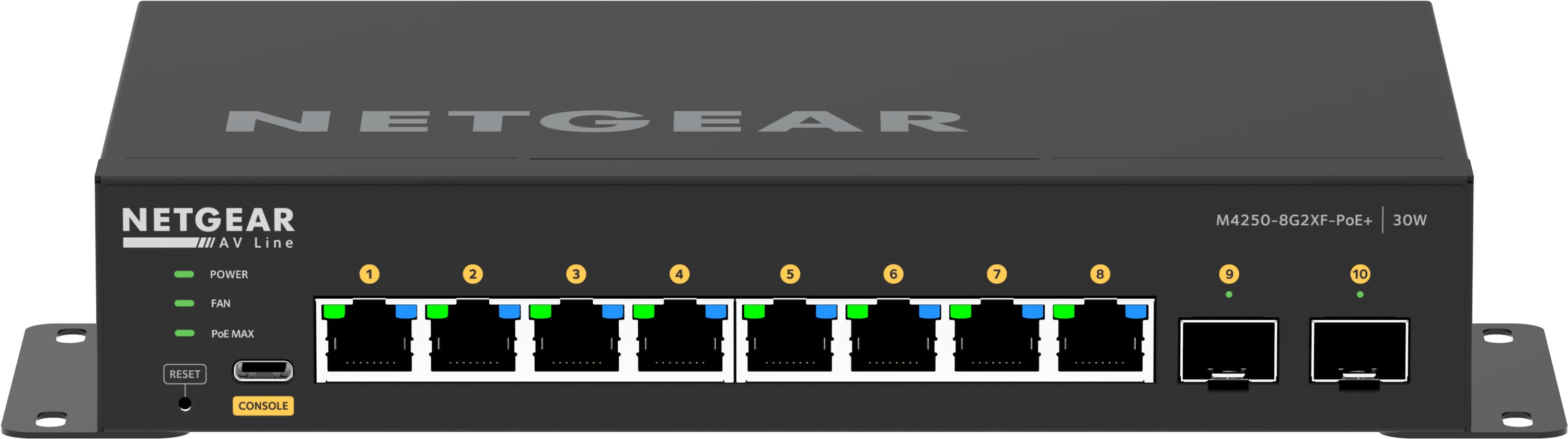

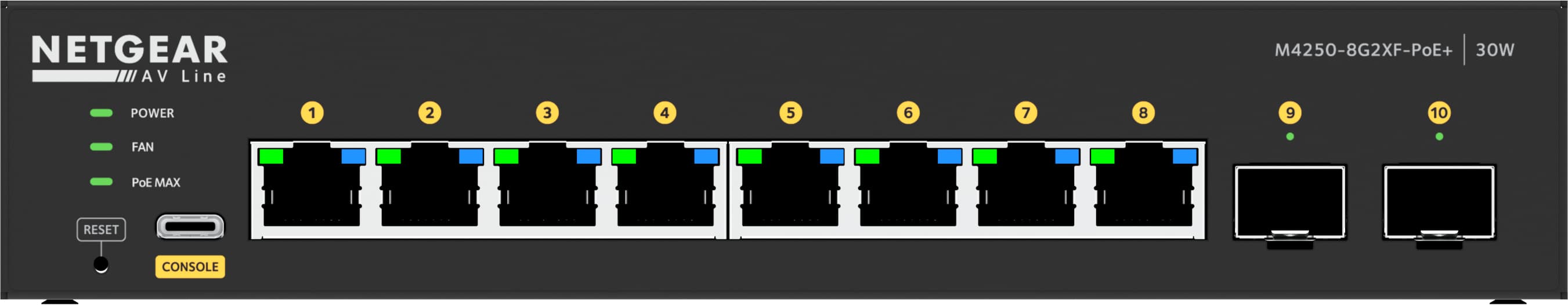

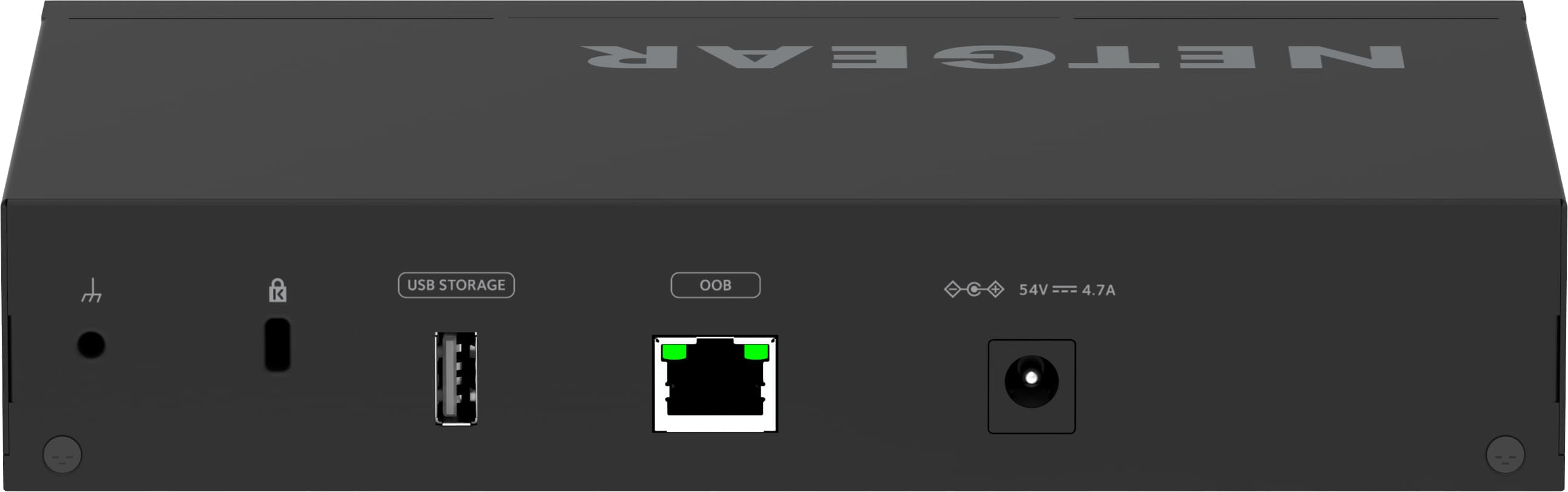

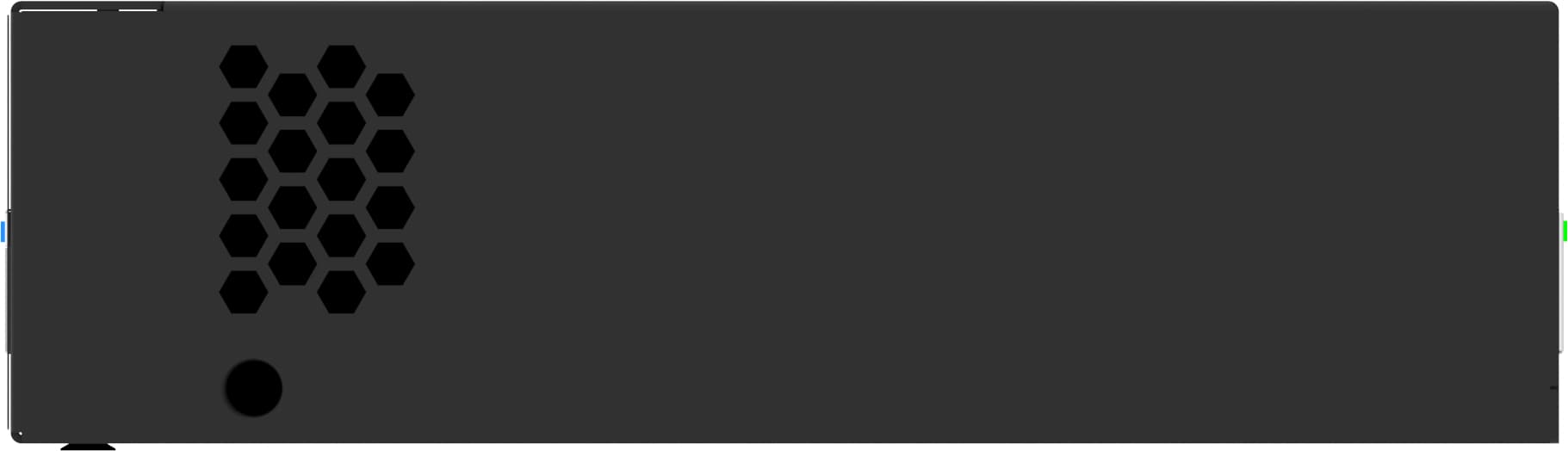

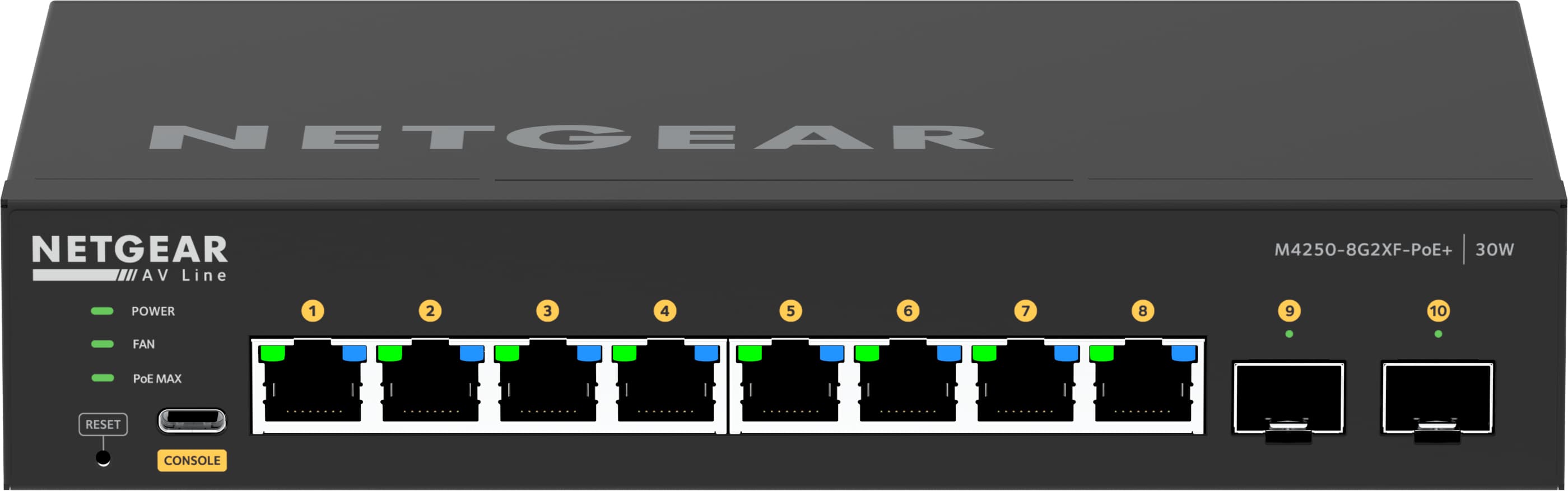

Netgear PoE+ Switch M4250-8G2XF-PoE+ 10 Port1/14
Netgear

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch

Part number
1418956
MPN
GSM4210PX-100EUS
EAN
606449160222

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

SFP Anschlüsse0
Montage SwitchDesktop
SFP+ Anschlüsse2
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementSmart-Managed
Switch typeManaged
Switch layerL2/L3
All 63 specifications

Description

NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Documents

Specifications

SFP Anschlüsse0
Montage SwitchDesktop
SFP+ Anschlüsse2
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementSmart-Managed

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplexYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

MAC address table16000 entries
Switching capacity24 Gbit/s
Store-and-forwardYes

Security

DHCP featuresDHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication
Authentication typeRADIUS

Multicast features

Multicast supportYes
IPv4 multicast entries2000

Design

Rack mountingYes
Product colourBlack
LED indicatorsPoE, Power, Status

Performance

Built-in processorYes
Processor modelARM Cortex-A9
Processor frequency1250 MHz
Internal memory2048 MB
Noise level30.06 dB

Power

Power sourceAC/DC
Power supply includedYes
AC input voltage200 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget220 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
Heat dissipation559.555 BTU/h

Weight & dimensions

Width210 mm
Depth140 mm
Height40 mm
Weight967 g

Packaging content

User guideYes
ManualYes
Weight2.79 kg
