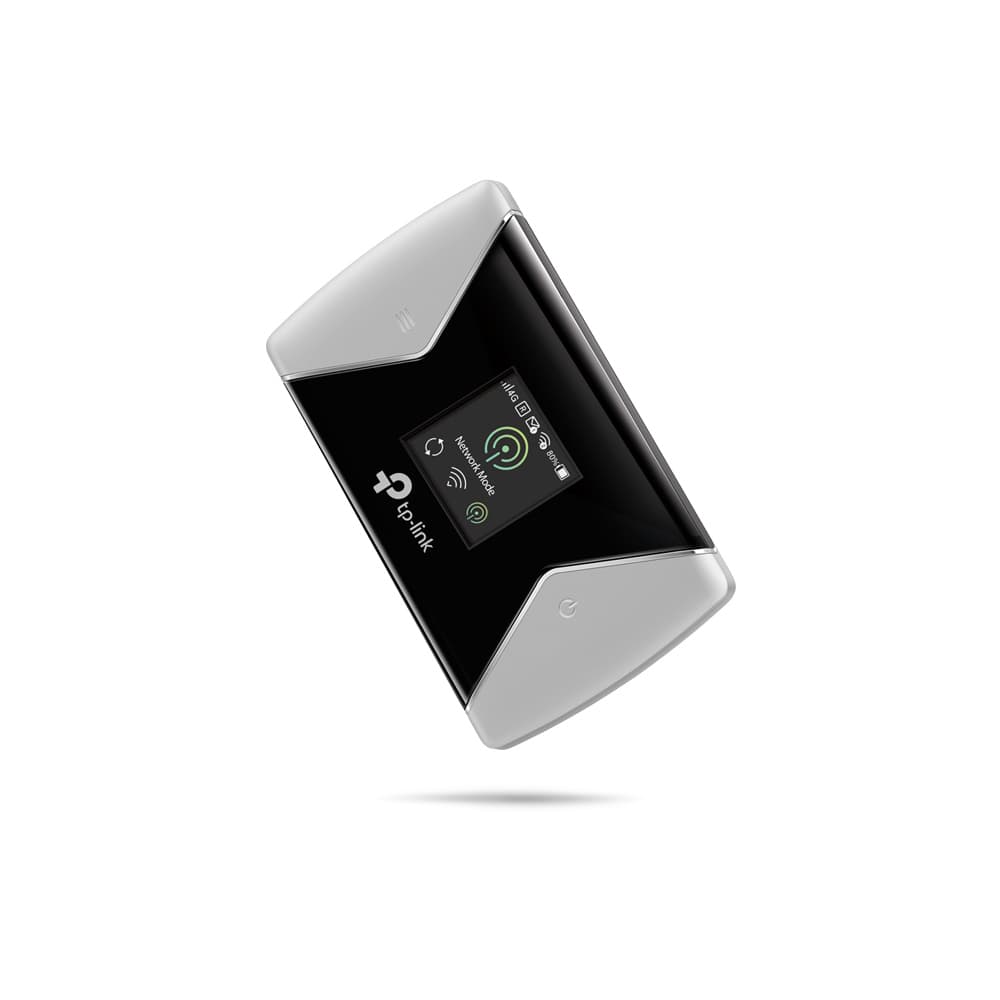

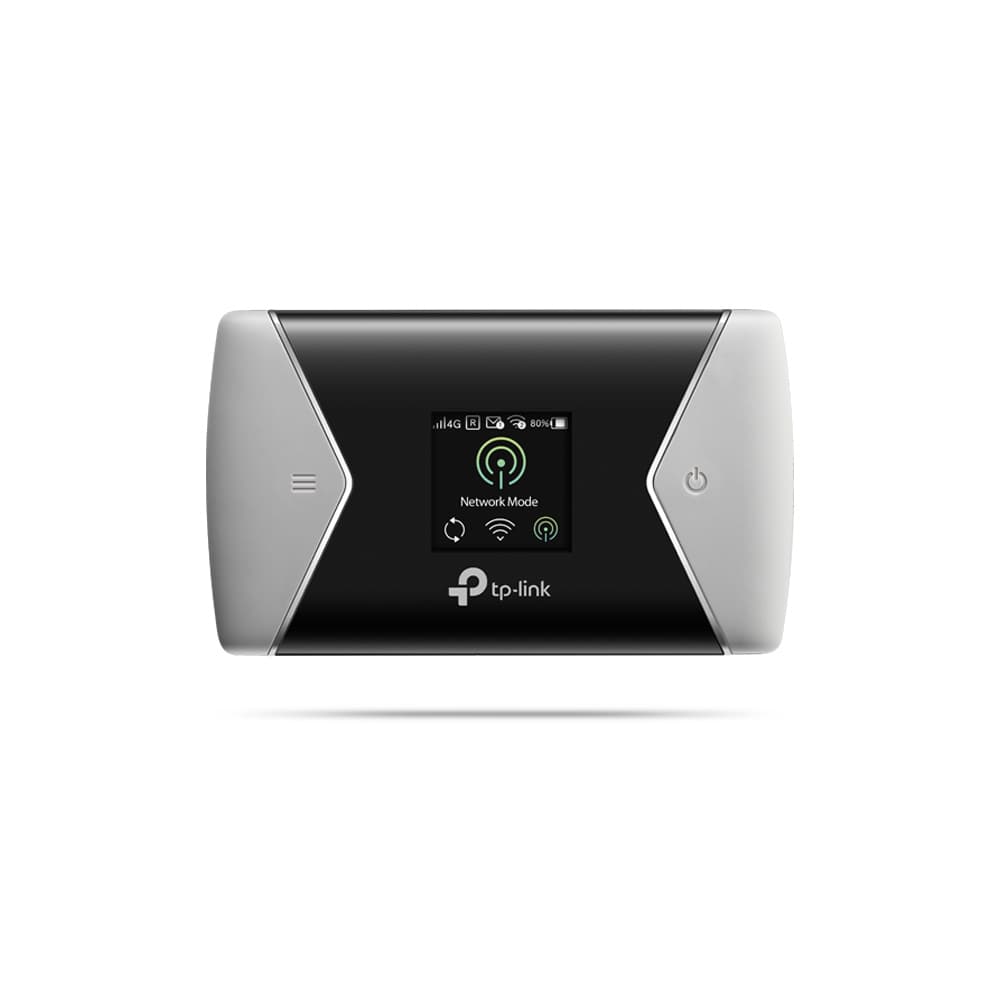

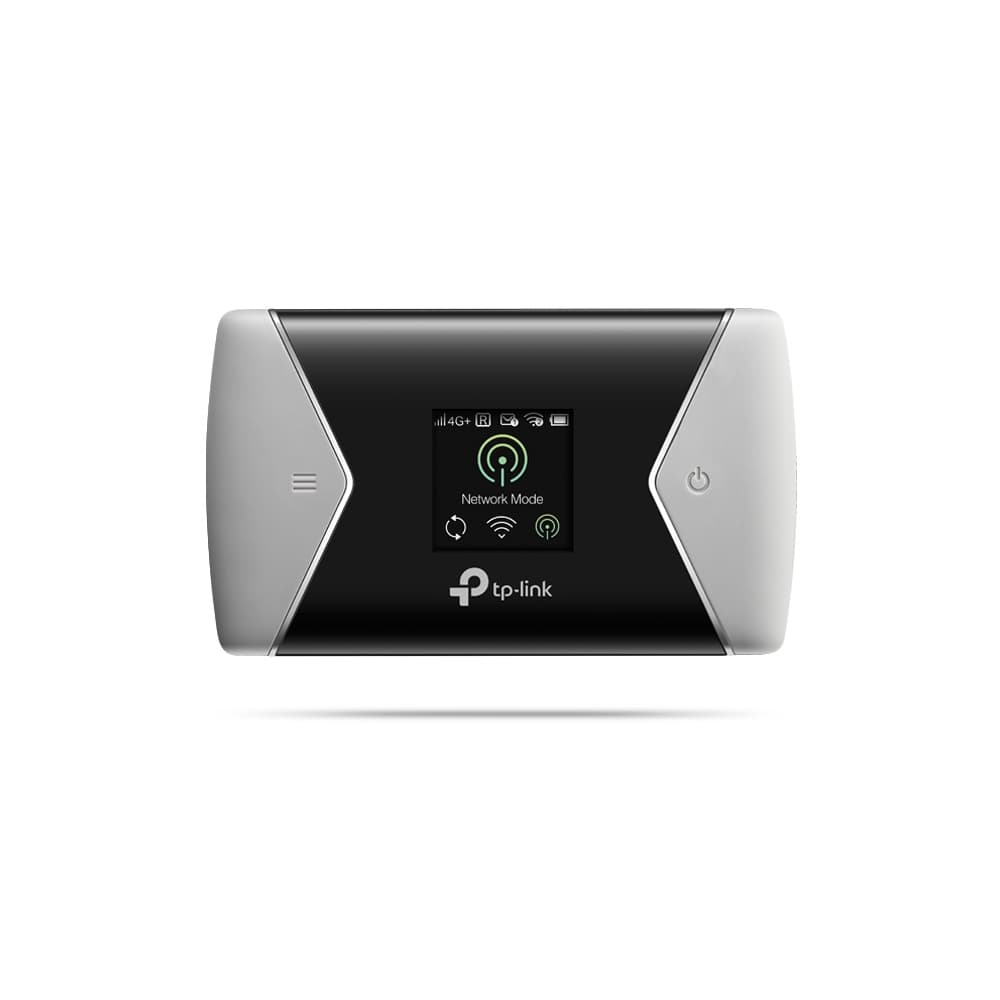

TP-Link 300Mbps LTE-Advanced Mobile Wi-Fi M7450

Part number: 603490
MPN: M7450
EAN: 1210002604147

TP-Link 300Mbps LTE-Advanced Mobile Wi-Fi M7450, Cellular network router, Black, Grey, Portable, TFT, 3.66 cm (1.44"), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Antennenanschluss Hardware	Antennen Intern vor verbaut
Display vorhanden	Ja
Interfaces	MicroSD, Micro-USB 2.0
Mobilfunk Standard	2G (EDGE), 2G (GPRS), 2G (GSM), 3G (HSPA), 3G (HSPA+), 3G (UMTS), 4G/LTE, 4G+ (LTE-Advanced)
SIM-Kartengrösse	Micro-SIM (3FF), Nano-SIM (4FF), Standard-SIM (1FF)
Detail colour	Schwarz, Weiss
Device type	Cellular network router
Market positioning	Portable

Description

TP-Link 300Mbps LTE-Advanced Mobile Wi-Fi M7450. Device type: Cellular network router, Product colour: Black, Grey, Market positioning: Portable. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WLAN data transfer rates supported: 300 Mbit/s. Data network: Edge, GPRS, GSM, HSPA, LTE, UMTS, 2G standards: Edge, GPRS, 3G standards: DC-HSDPA, HSPA, HSPA+, UMTS. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 32 GB. Security algorithms: WPA-PSK, WPA2-PSK

Documents

Data sheetPDF · DE

Specifications

Antennenanschluss Hardware	Antennen Intern vor verbaut
Display vorhanden	Ja
Interfaces	MicroSD, Micro-USB 2.0
Mobilfunk Standard	2G (EDGE), 2G (GPRS), 2G (GSM), 3G (HSPA), 3G (HSPA+), 3G (UMTS), 4G/LTE, 4G+ (LTE-Advanced)
SIM-Kartengrösse	Micro-SIM (3FF), Nano-SIM (4FF), Standard-SIM (1FF)
Detail colour	Schwarz, Weiss

Design

Device type	Cellular network router
Market positioning	Portable
Built-in display	Yes
Display type	TFT
Display diagonal	3.66 cm (1.44")
Reset button	Yes
LED indicators	Yes

Ethernet LAN features

Ethernet LAN	No
DHCP client	Yes
DHCP server	Yes

Wireless LAN features

Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	300 Mbit/s

Mobile network

Data network	Edge, GPRS, GSM, HSPA, LTE, UMTS
2G standards	Edge, GPRS
3G standards	DC-HSDPA, HSPA, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
2G bands supported	850,900,1800,1900 MHz
3G bands supported	900,2100 MHz
4G bands supported	800,900,1800,2100,2600 MHz
GSM bands supported	850,900,1800,1900 MHz
UMTS bands supported	900,2100 MHz
Number of simultaneous SIM cards	1

Ports & interfaces

USB port	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Security

Security algorithms	WPA-PSK, WPA2-PSK

Certificates

Certification	CE, RoHS

Packaging content

Cables included	Micro-USB

Battery

Battery capacity	3000 mAh

Performance

Antenna type	Internal
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Yes

Power

Power source type	Battery

Operational conditions

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	112 mm
Depth	65 mm
Height	16 mm

Packaging data

Package width	149 mm
Package depth	101 mm
Package height	60 mm
Package weight	260 g

Logistics data

Harmonized System (HS) code	85176990
Weight	0.27 kg
