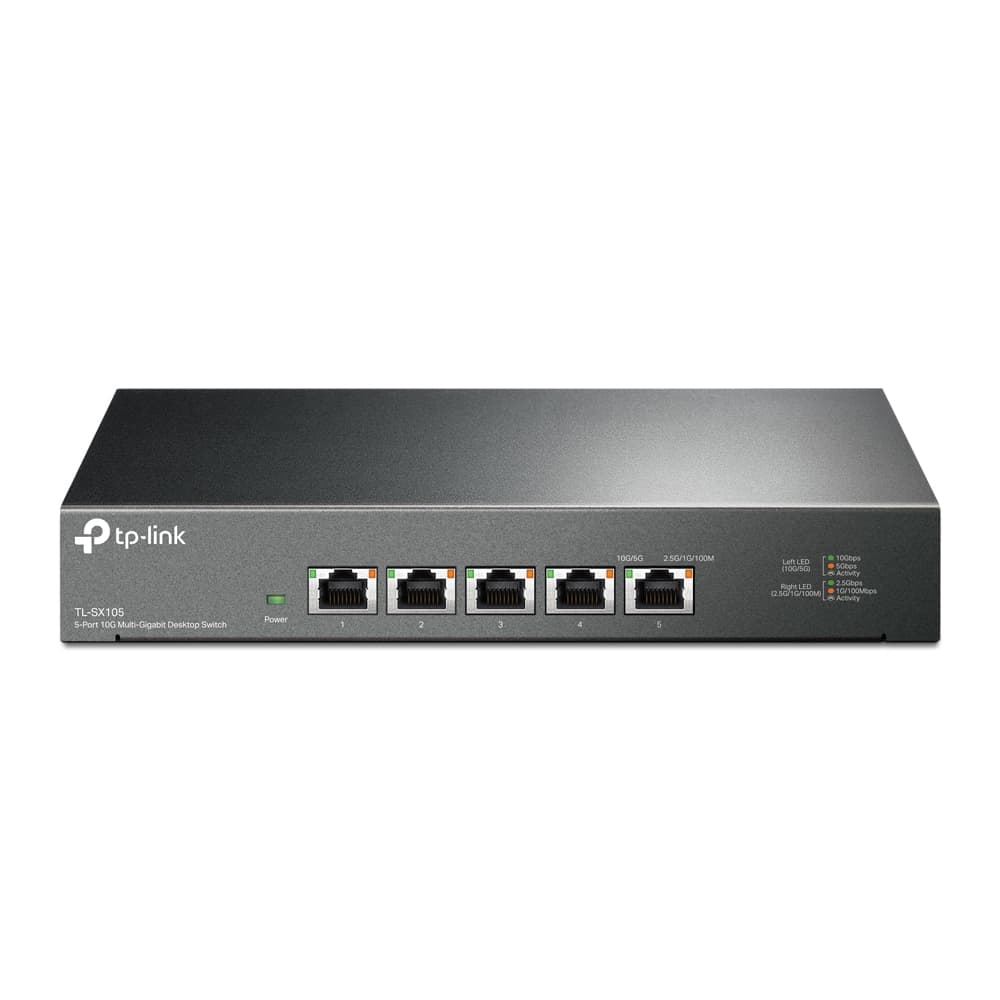

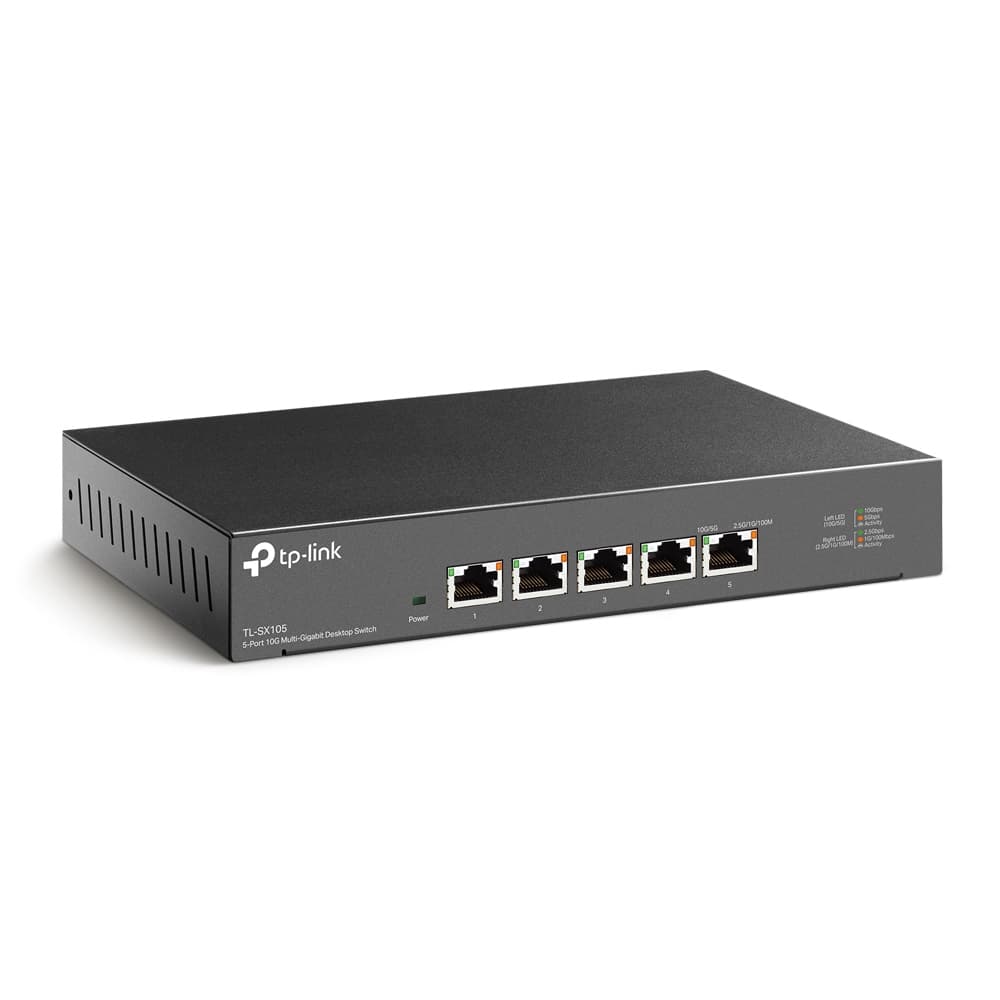

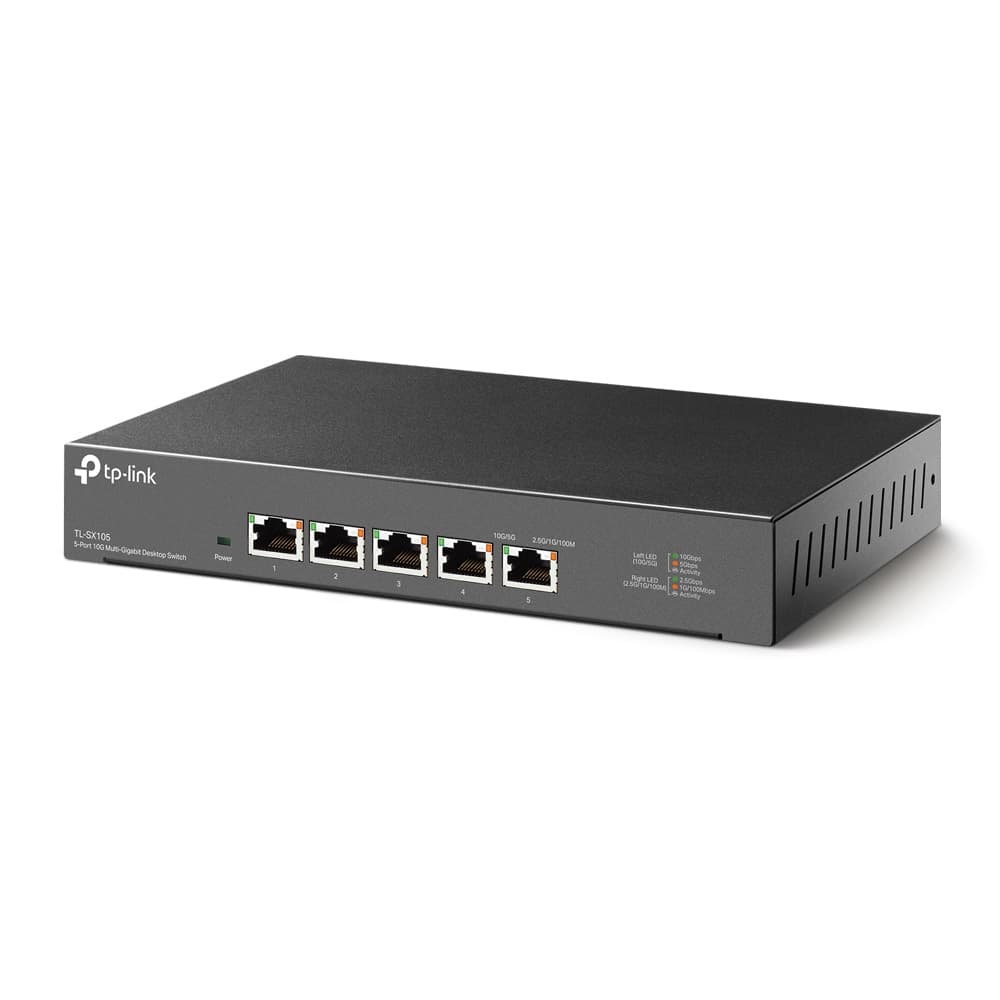

TP-Link Switch Omada Unmanaged Switch 5 x 10G Ports TL-SX105 5 Port

Hover to zoom1/5

TP-Link 5-Port 10G Desktop Switch

Part number: 1217343
MPN: TL-SX105
EAN: 1210002617246

TP-Link 5-Port 10G Desktop Switch, Unmanaged, 10G Ethernet (100/1000/10000), Wall mountable

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5

Description

TP-Link 5-Port 10G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 32000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	Desktop, Wand
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	5

Network

Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

MAC address table	32000 entries
Switching capacity	100 Gbit/s
Forwarding rate	74.4 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	16 MB

Design

Rack mounting	No
Product colour	Black
LED indicators	Yes
Wall mountable	Yes

Performance

Fanless	Yes

Power

Power source	DC
Power supply included	Yes
Input current	2 A
Input voltage	12 V
Power consumption (max)	21.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	226 mm
Depth	131 mm
Height	35 mm

Packaging content

Cables included	AC
Manual	Yes

Packaging data

Package type	Box
Package width	240 mm
Package depth	315 mm
Package height	70 mm
Package weight	1.58 kg

Certificates

Certification	CE, FCC ,RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	1.60 kg
