TP-Link Switch Omada Unmanaged Switch 8 x 10G Ports TL-SX1008 8 Port

Hover to zoom1/5

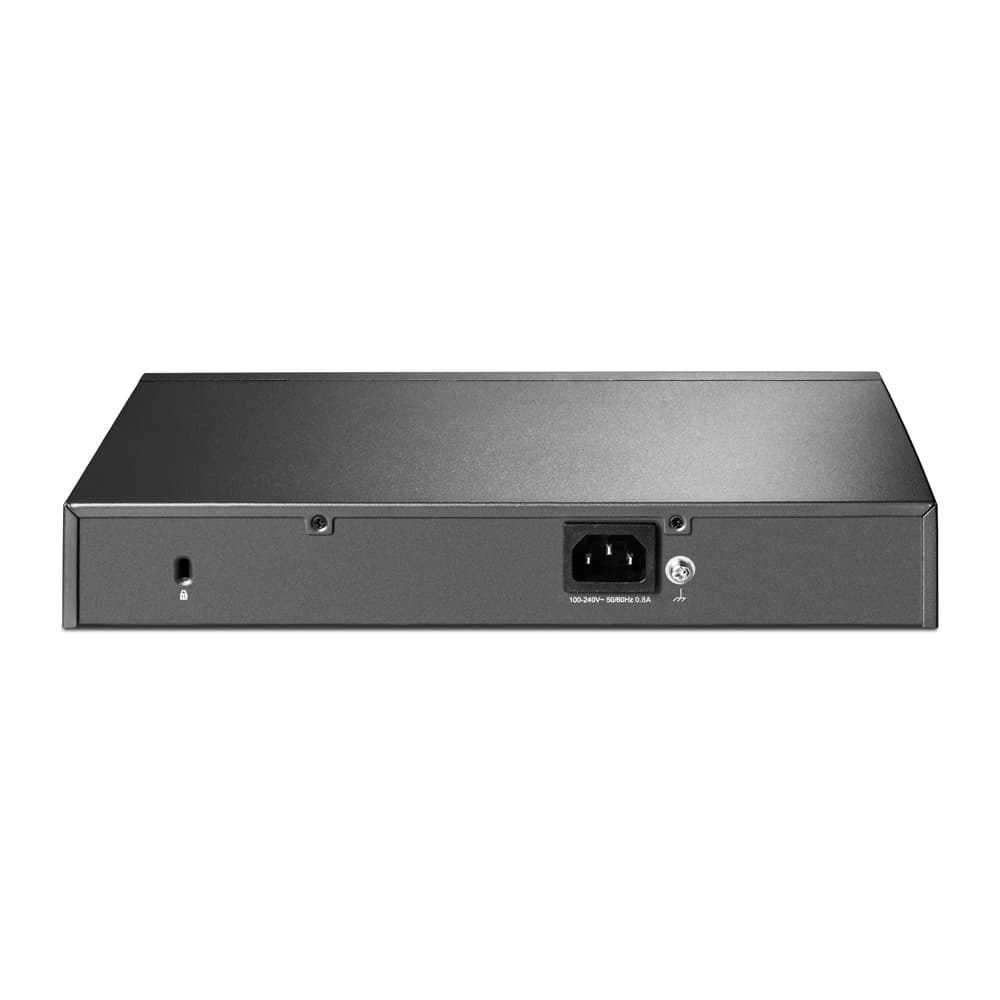

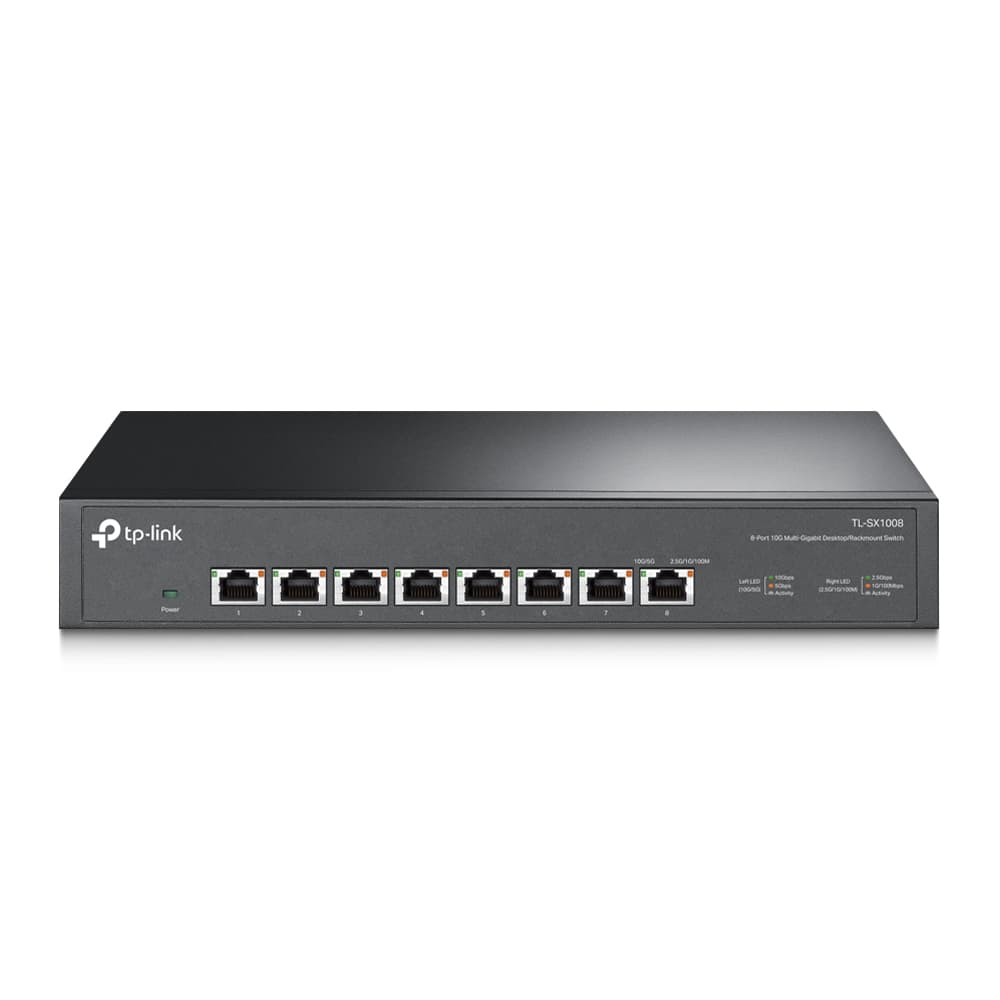

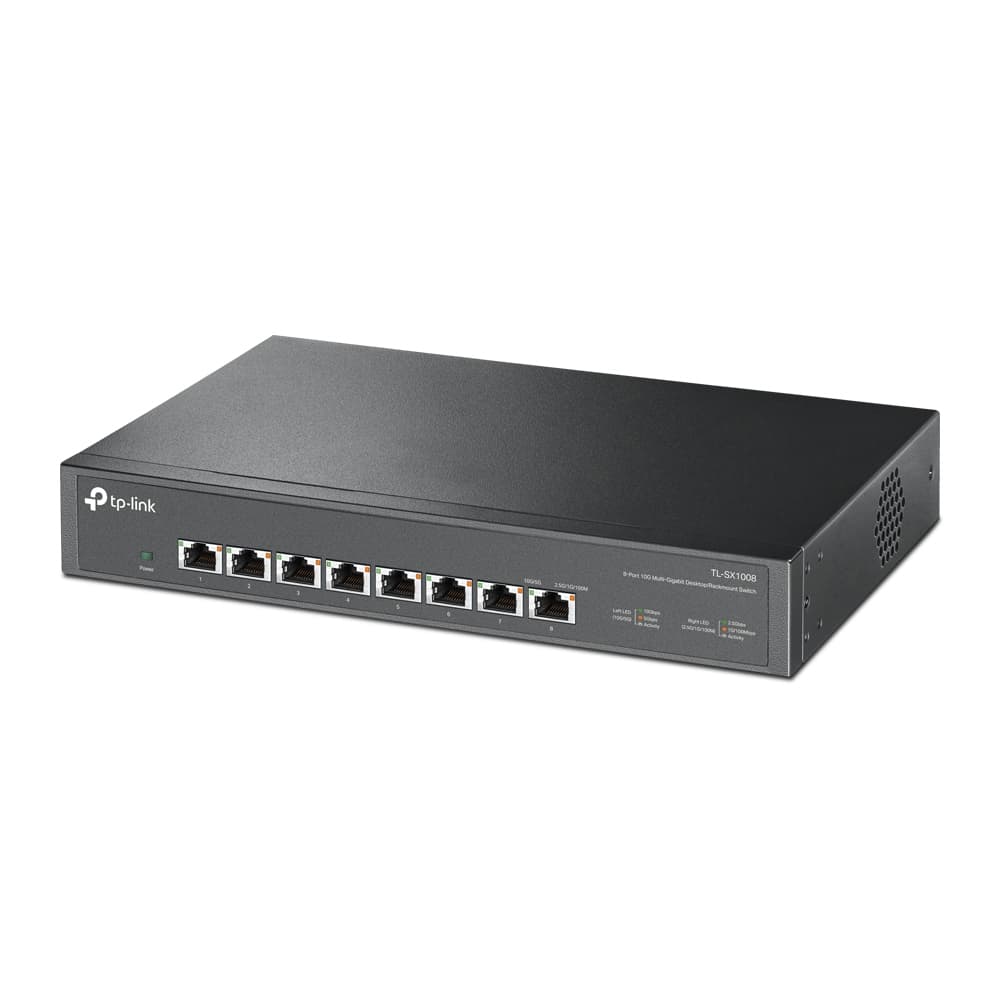

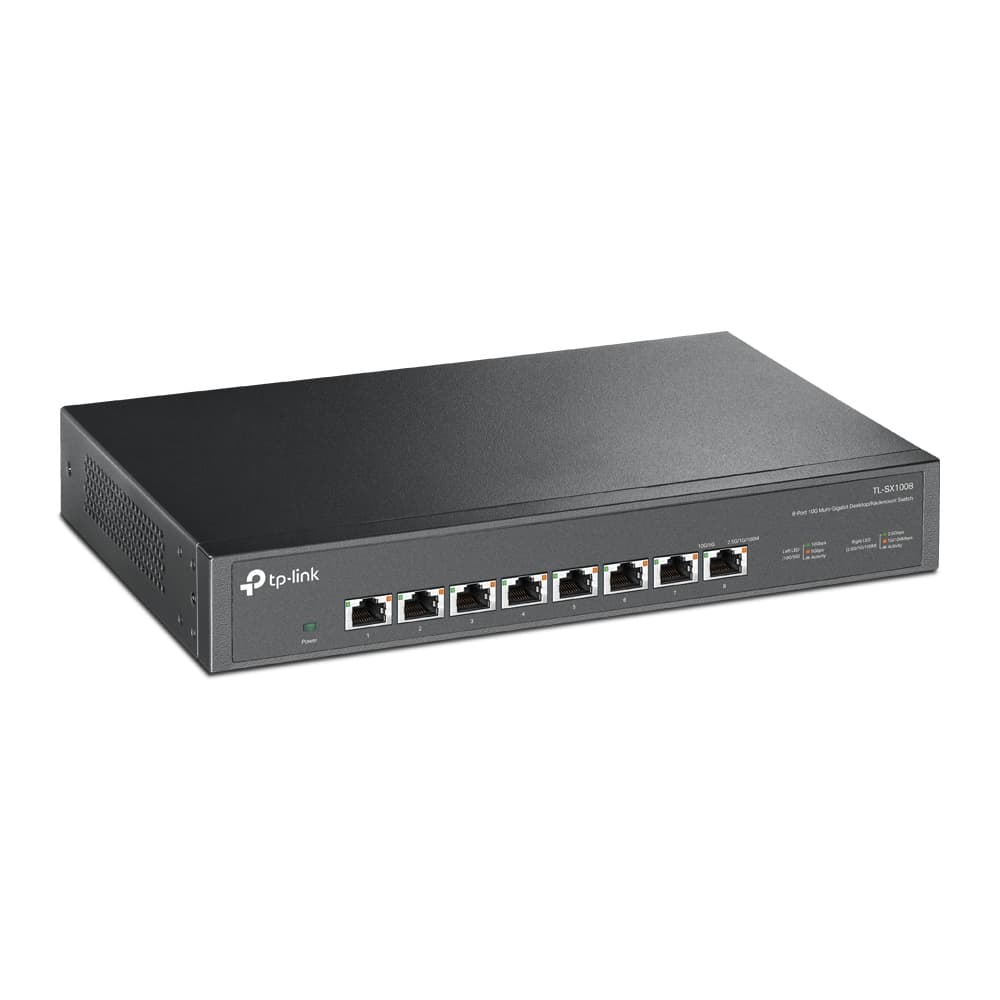

TP-Link 8-Port 10G Desktop/Rackmount Switch

Part number: 1217342
MPN: TL-SX1008
EAN: 1210002617222

TP-Link 8-Port 10G Desktop/Rackmount Switch, Unmanaged, 10G Ethernet (100/1000/10000), Rack mounting, 1U

SFP Anschlüsse	0
Montage Switch	19" Rack, Desktop
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8

Description

TP-Link 8-Port 10G Desktop/Rackmount Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x. Rack mounting, Form factor: 1U

Documents

Data sheetPDF · DE

Specifications

SFP Anschlüsse	0
Montage Switch	19" Rack, Desktop
SFP+ Anschlüsse	0
QSFP+ Anschlüsse	0
SFP28 Anschlüsse	0
Switch Management	Unmanaged

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
10G Ethernet (copper) ports quantity	8

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x
10G support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

MAC address table	32000 entries
Switching capacity	160 Gbit/s
Forwarding rate	119 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	16 MB

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	1 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (max)	28.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Package type	Box
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	2.07 kg

Certificates

Certification	CE, FCC ,RoHS

Logistics data

Harmonized System (HS) code	85176990
Weight	2.42 kg
