TP-Link Switch Omada L3 48 x 1G + 6 x 10G Ports SG6654X 54 Port1/6
TP-Link

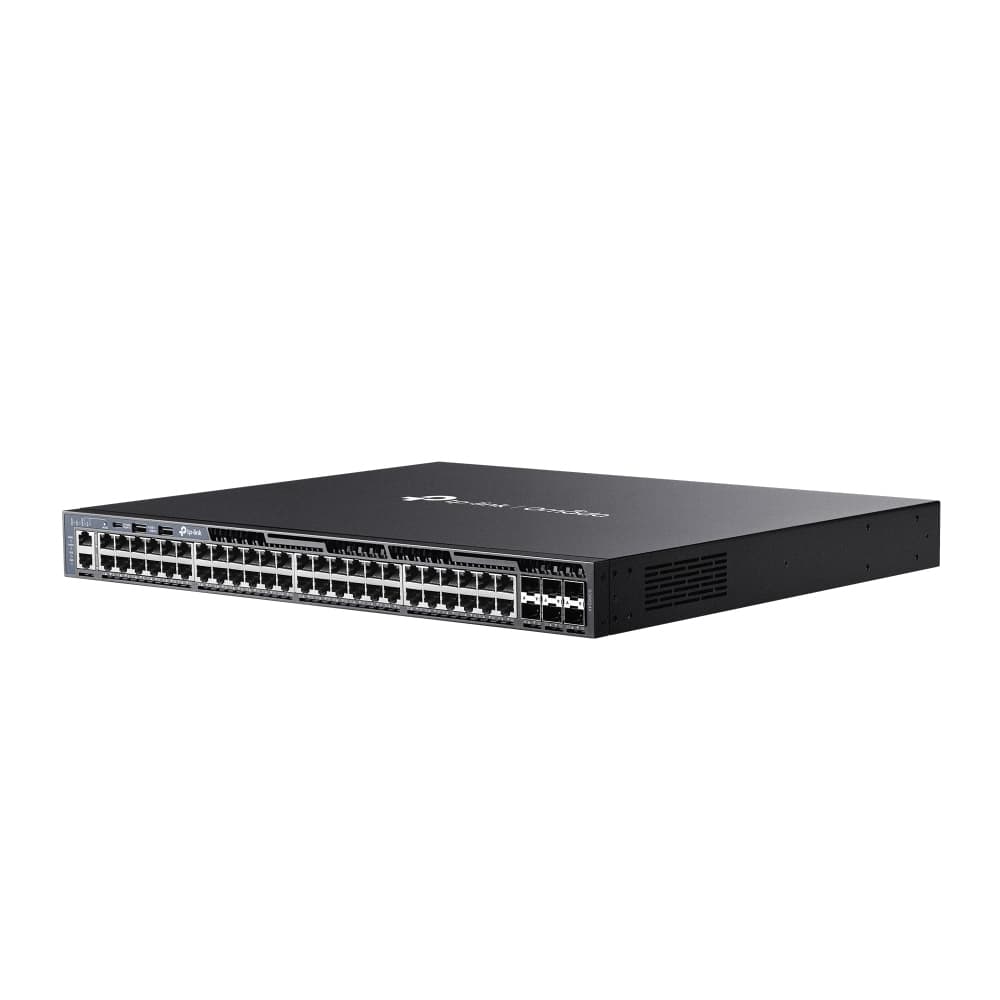

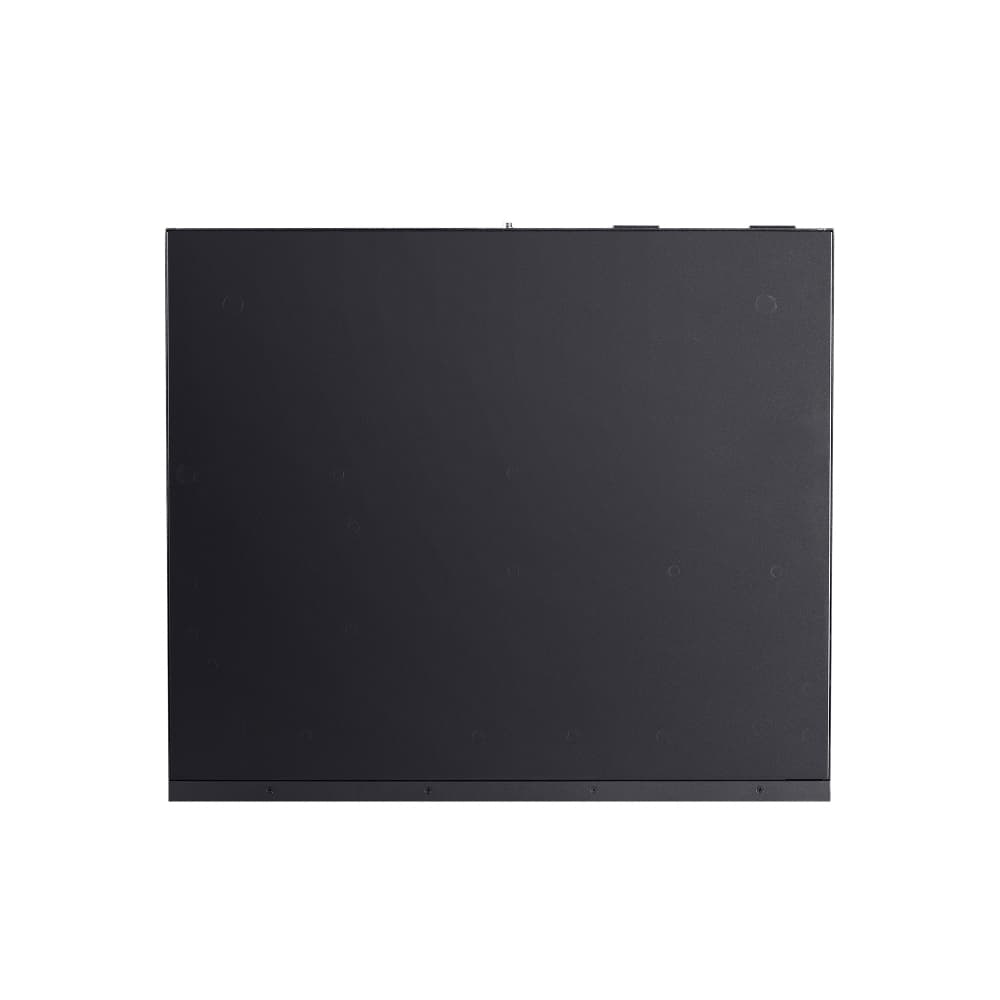

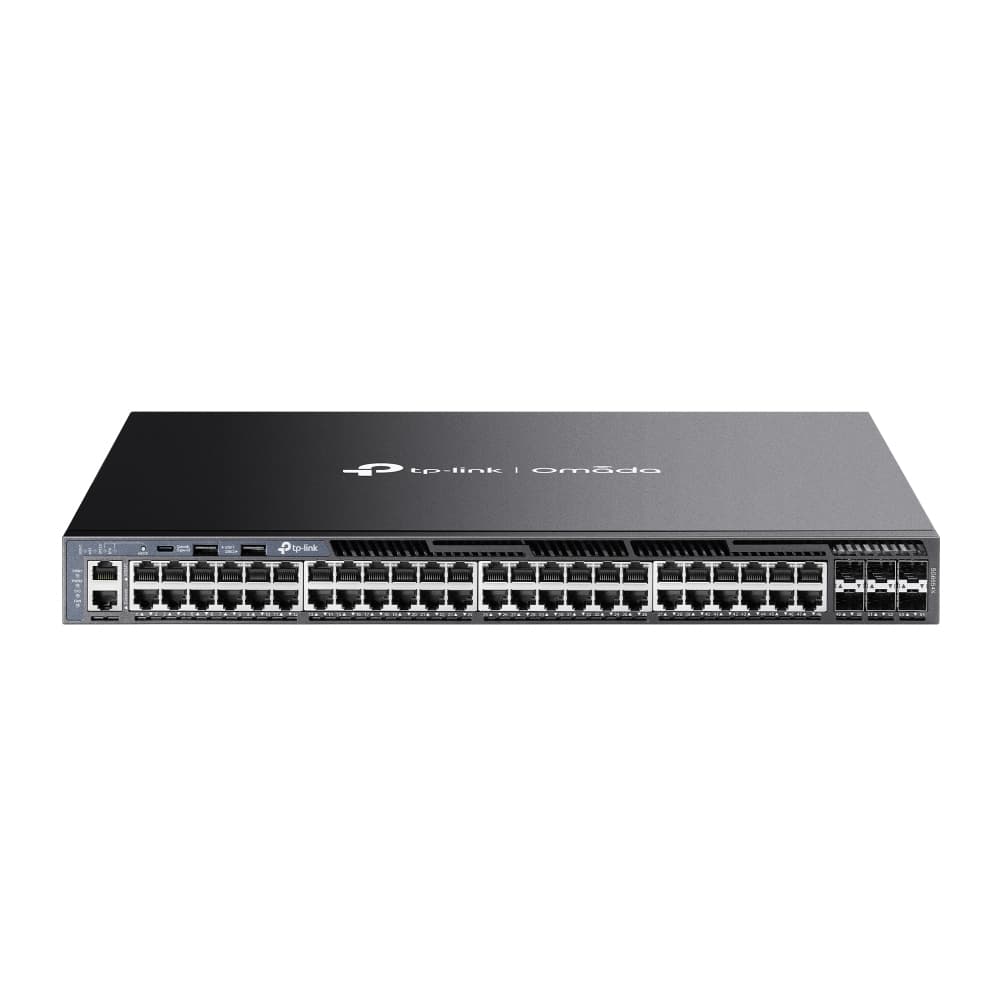

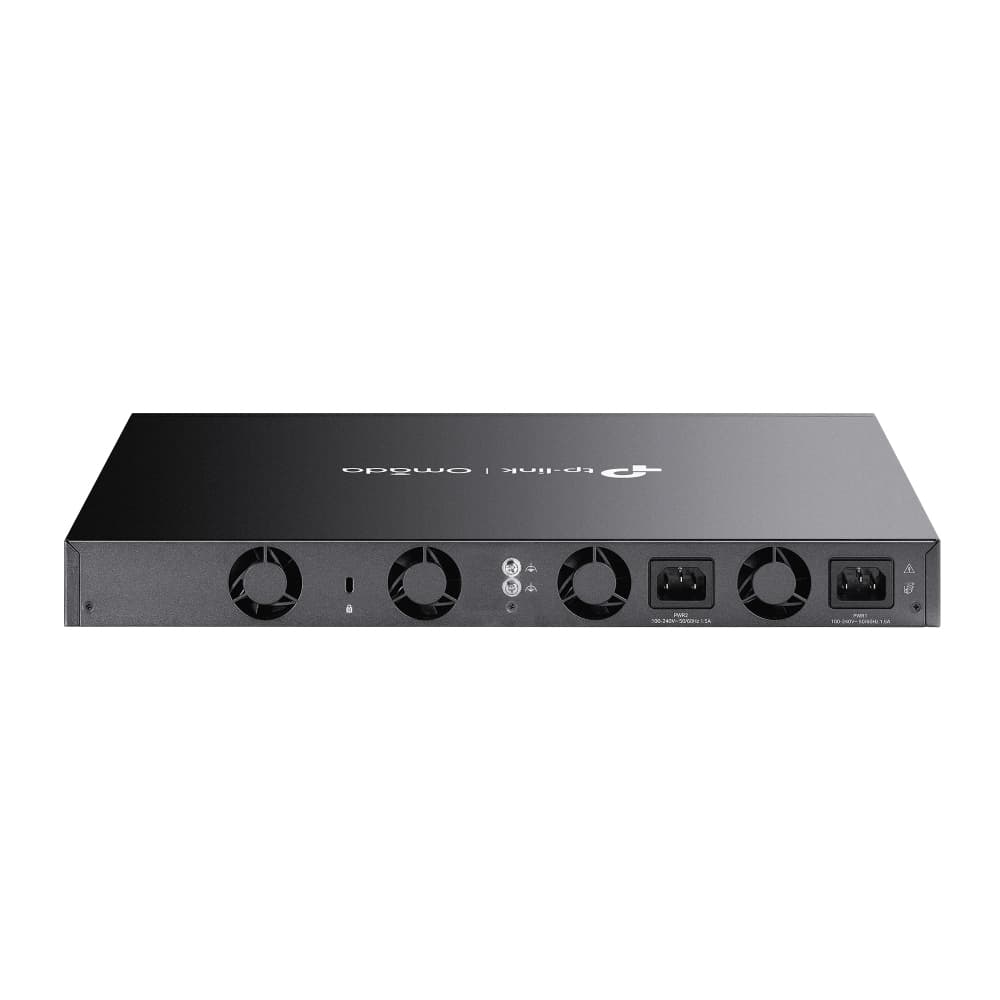

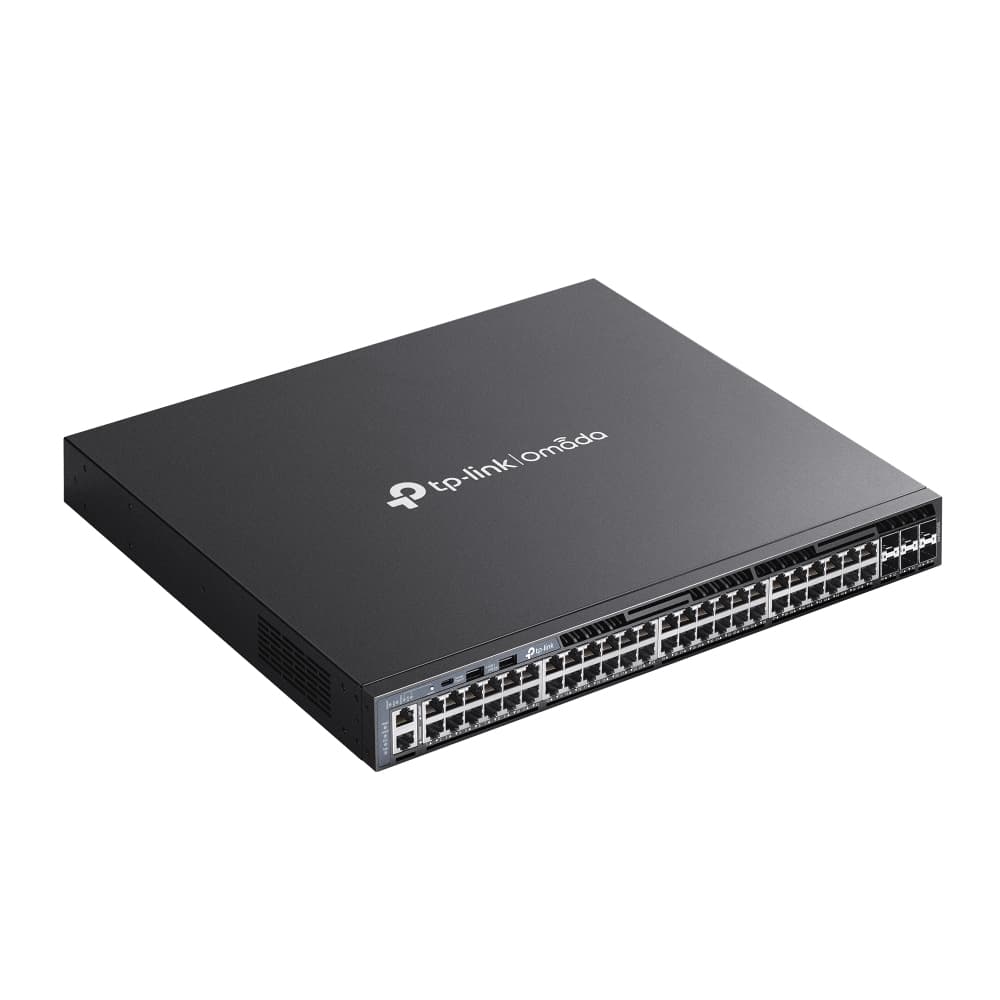

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots

Part number
1752292
MPN
SG6654X
EAN
4895252501452

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse6
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed
Switch typeManaged
Switch layerL3
All 69 specifications

Description

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Rack mounting, Form factor: 1U

Documents

Specifications

SFP Anschlüsse0
Montage Switch19" Rack
SFP+ Anschlüsse6
QSFP+ Anschlüsse0
SFP28 Anschlüsse0
Switch ManagementCloud-Managed

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity6
Console portRJ-45/USB Type-C
USB 2.0 ports quantity2

Network

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
10G supportNo
Port mirroringYes
IP routingYes
Flow control supportYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Number of VLANs4000

Data transmission

MAC address table32000 entries
Switching capacity216 Gbit/s
Forwarding rate160.7 Mpps
Static routeYes
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory3 MB

Security

DHCP featuresDHCP relay, DHCP snooping, DHCPv6 snooping
Access Control List (ACL)Yes
IGMP snoopingYes
IGMP entries2048
SSH/SSL supportYes
Loop protectionYes
AuthenticationAuto VLAN, MAC-based authentication, Port-based authentication
Authentication typeRADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans4 fan(s)

Power

Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)39.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation135.81 BTU/h

Weight & dimensions

Width440 mm
Depth380 mm
Height44 mm

Packaging content

Cables includedAC, LAN (RJ-45)
ManualYes
Weight9.22 kg
