onit
onit PoE++ Injector 60 W
PoE++ Injector · 10/100/1000 Mbit/s · Max. Performance PoE per port: 60 W
in stock
CHF 23.03
CHF 21.28
CHF 23.00 incl. VAT
1/4TP-Link
All 36 specifications

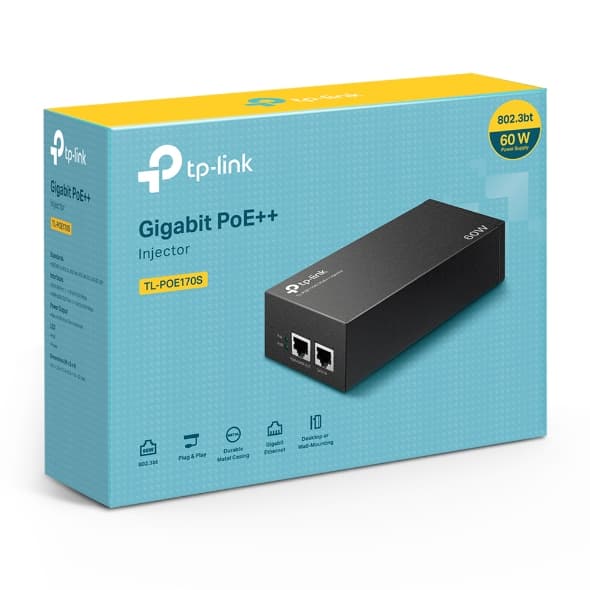

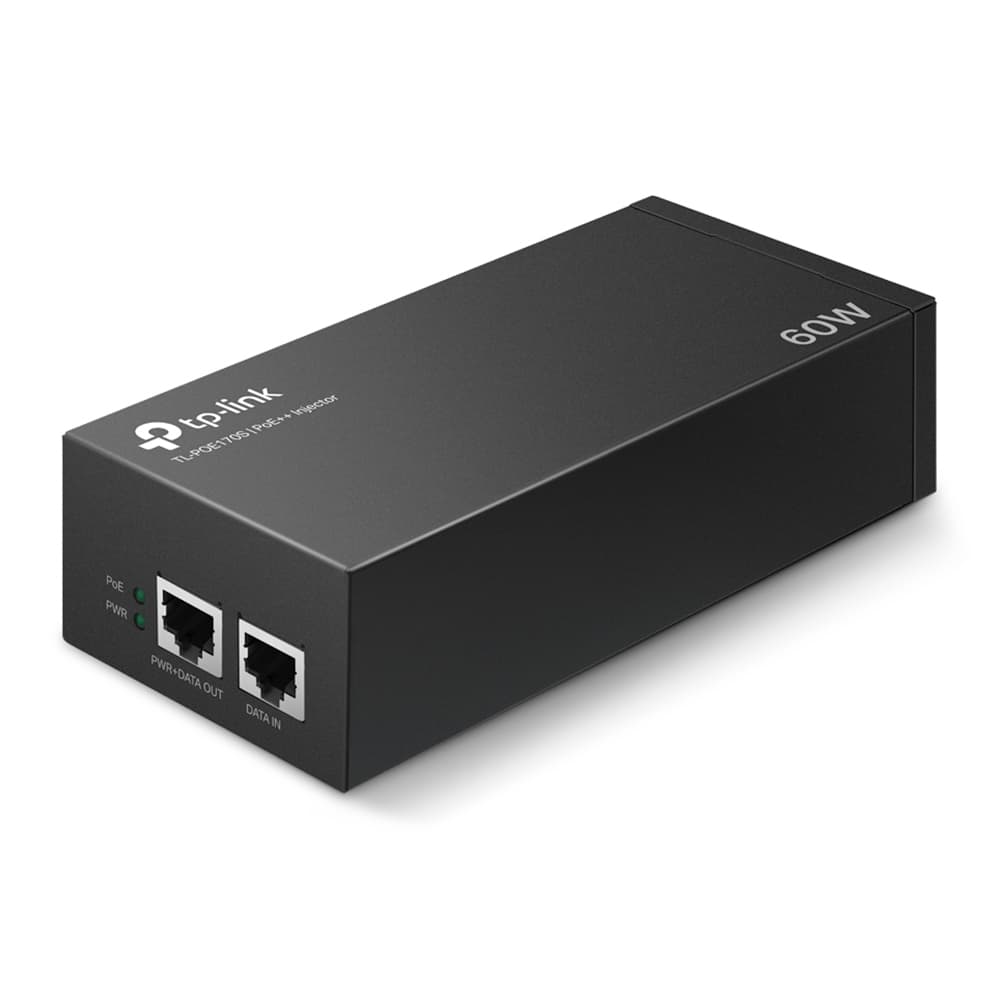

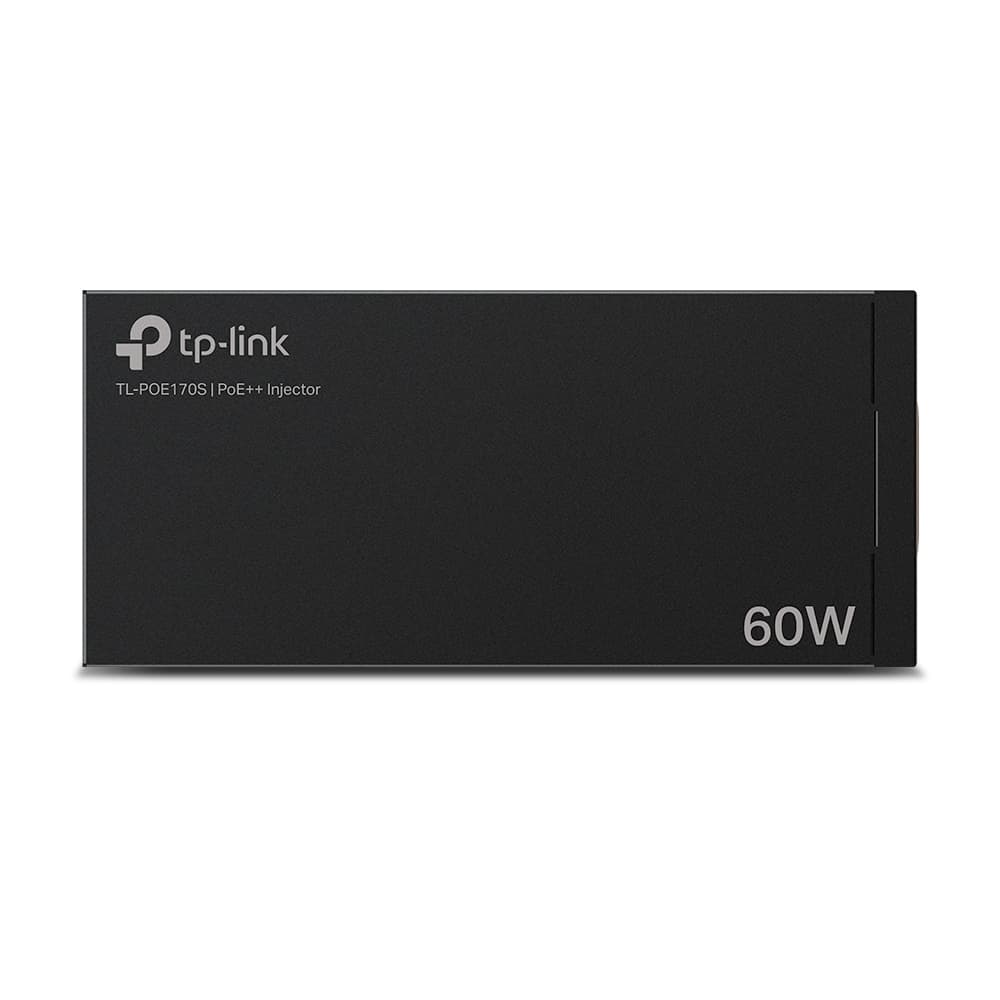

TP-Link Omada PoE++ Injector Adapter
- Part number
- 1363408
- MPN
- POE170S
- EAN
- 4897098683897
TP-Link Omada PoE++ Injector Adapter, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Cat6, Black
| Product type | PoE++ Injector |
|---|---|
| PoE Standard | 802.3af/at/bt Class 6 Type 3 PoE++ 60 Watt |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| Max. Leistung PoE pro Port | 60 W |
| Outdoor use | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
Description
TP-Link Omada PoE++ Injector Adapter. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Housing material: Metal. Output power: 60 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 155 mm, Depth: 70 mm, Height: 42 mm
Documents
Specifications
| Product type | PoE++ Injector |
|---|---|
| PoE Standard | 802.3af/at/bt Class 6 Type 3 PoE++ 60 Watt |
| RJ-45 Geschwindigkeit | 10/100/1000 Mbit/s |
| Max. Leistung PoE pro Port | 60 W |
| Outdoor use | No |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Features
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Wall mountable | Yes |
| Plug and Play | Yes |
Ports & interfaces
| RJ-45 input ports | 1 |
|---|---|
| RJ-45 output ports | 1 |
Power
| Output power | 60 W |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
Certificates
| Certification | FCC, CE, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 155 mm |
|---|---|
| Depth | 70 mm |
| Height | 42 mm |
Packaging content
| Number of products included | 1 pc(s) |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Package width | 190 mm |
|---|---|
| Package depth | 250 mm |
| Package height | 95 mm |
| Package weight | 920 g |
| Package type | Box |
Logistics data
| Harmonized System (HS) code | 85044095 |
|---|---|
| Weight | 0.93 kg |
