1/4TP-Link
All 41 specifications

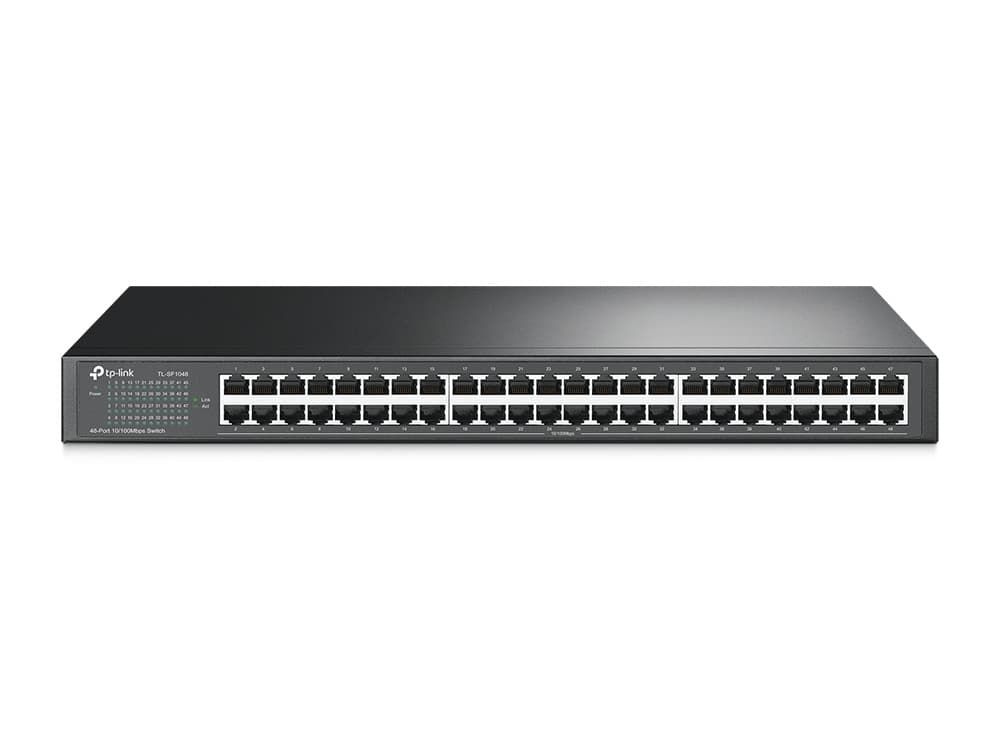

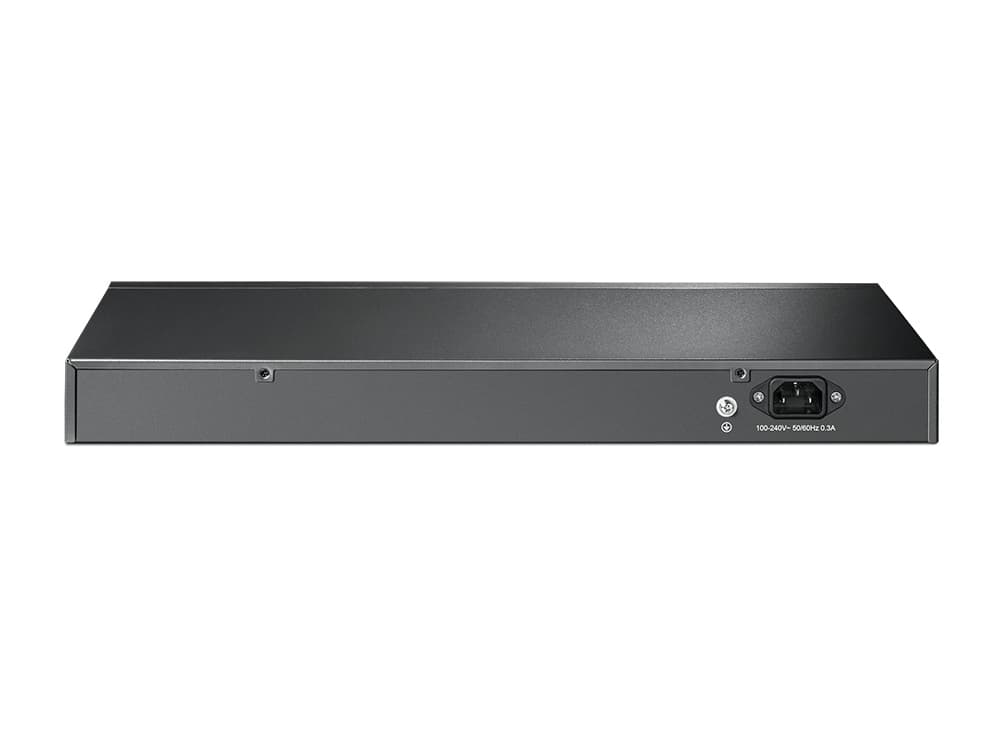

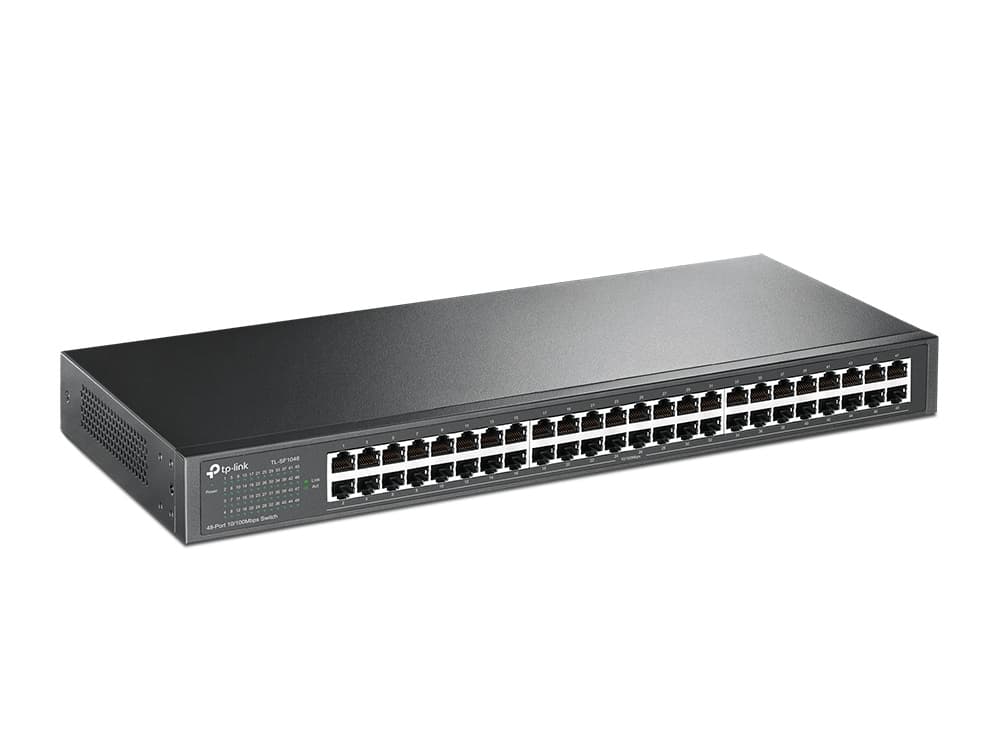

TP-Link TL-SF1048 network switch Unmanaged Fast Ethernet (10/100) 1U Black
- Part number
- 316431
- MPN
- TL-SF1048
- EAN
- 1210002616539
TP-Link TL-SF1048, Unmanaged, Fast Ethernet (10/100), Rack mounting, 1U
| SFP Anschlüsse | 0 |
|---|---|
| Montage Switch | 19" Rack |
| SFP+ Anschlüsse | 0 |
| QSFP+ Anschlüsse | 0 |
| SFP28 Anschlüsse | 0 |
| Switch Management | Unmanaged |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Description
TP-Link TL-SF1048. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Documents
Specifications
| SFP Anschlüsse | 0 |
|---|---|
| Montage Switch | 19" Rack |
| SFP+ Anschlüsse | 0 |
| QSFP+ Anschlüsse | 0 |
| SFP28 Anschlüsse | 0 |
| Switch Management | Unmanaged |
Management features
| Switch type | Unmanaged |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 96 Gbit/s |
| Throughput | 7.14 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 9.9 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
Packaging content
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Weight | 6.10 kg |
