TP-Link Netzwerkkarte TX401 10Gbps PCI-Express x41/6
TP-Link

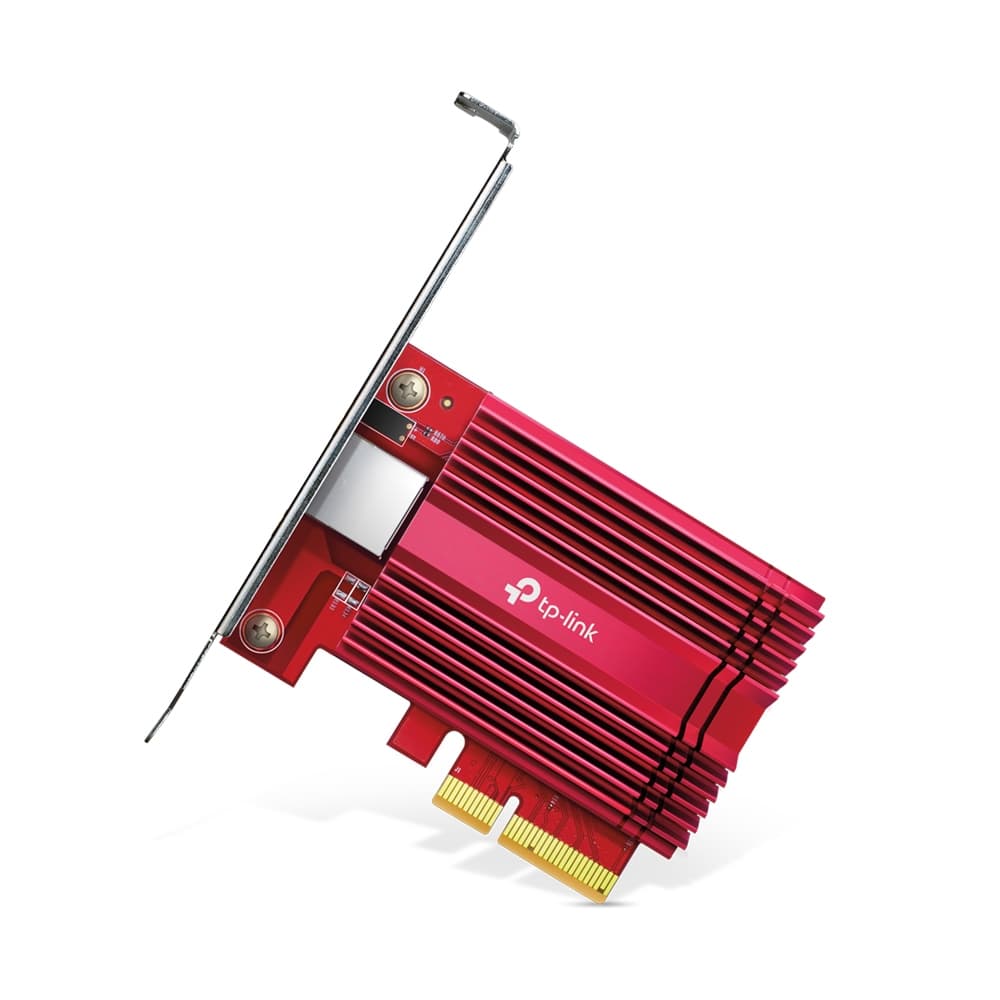

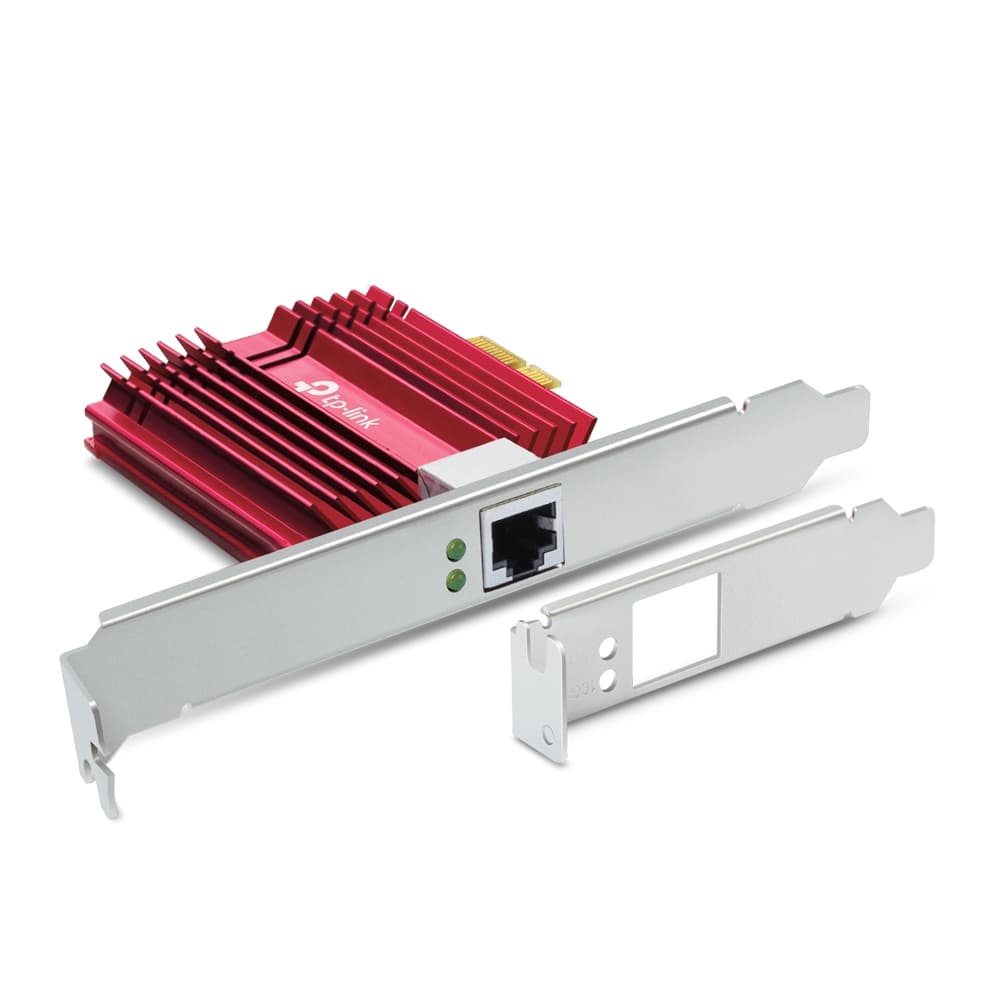

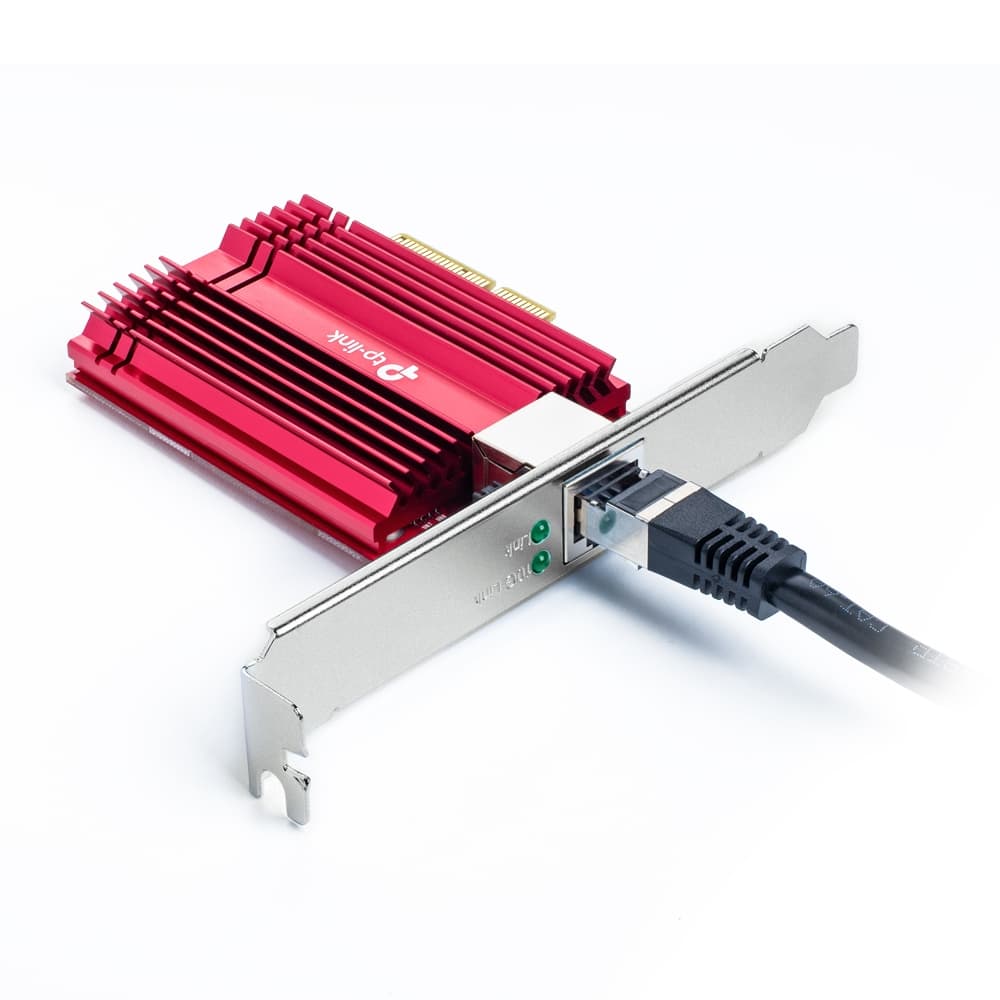

TP-Link TX401 network card Internal Ethernet 10000 Mbit/s

Part number
1366989
MPN
TX401
EAN
1210002617772

TP-Link TX401, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Red

InterfacesRJ-45 (LAN)
Schnittstellengeschwindigkeit10 Gbit/s
Application areaBusiness, Home, Small/Medium Business
FormfaktorFull-Height, Low-Profile
Connection typePCI-Express x4
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
All 39 specifications

Description

TP-Link TX401. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Red

Documents

Specifications

InterfacesRJ-45 (LAN)
Schnittstellengeschwindigkeit10 Gbit/s
Application areaBusiness, Home, Small/Medium Business
FormfaktorFull-Height, Low-Profile
Connection typePCI-Express x4

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version3.0

Network

Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s

Design

InternalYes
Component forPC
Product colourRed
LED indicatorsActivity, Link

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width120.8 mm
Depth98.2 mm
Height21.5 mm

Packaging data

Package width200 mm
Package depth150 mm
Package height44 mm
Package weight300 g

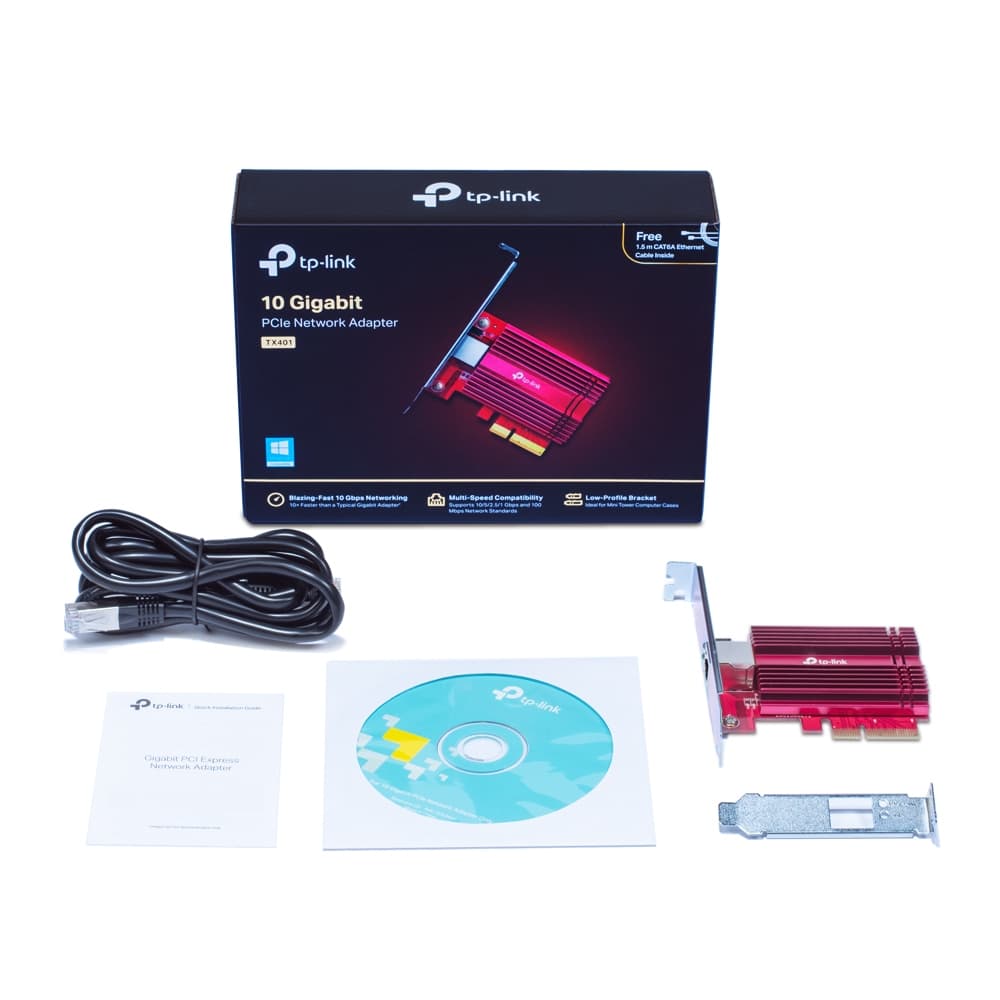

Packaging content

Cables includedLAN (RJ-45)
Mounting brackets includedYes
Resource CDYes
Quick installation guideYes

Technical details

Compliance certificatesRoHS, Federal Communications Commission (FCC), CE

Logistics data

Harmonized System (HS) code85176990

Sustainability

Sustainability complianceYes
Weight0.31 kg
