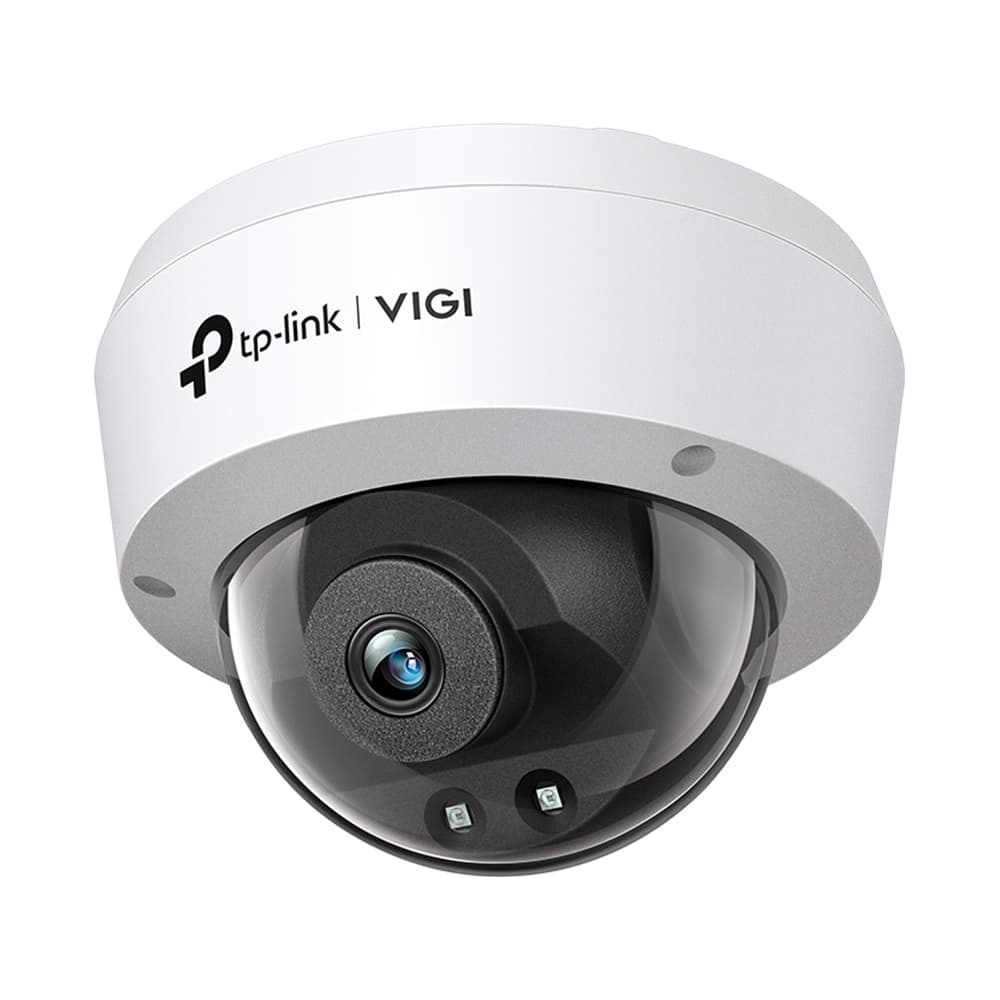

TP-Link VIGI 4MP IR Dome Network Camera

Part number: 1870252
MPN: VIGI C240I(2.8mm)
EAN: 4897098688908

TP-Link VIGI 4MP IR Dome Network Camera, IP security camera, Indoor & outdoor, Wired, CE, BSMI, VCCI, ONVIF, Ceiling/wall, Black, White

Type	IP security camera
Indoor/Outdoor	Outdoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	4 Megapixel
Vandal protection	Yes
Application area	Visuelle Videoüberwachung
Placement supported	Indoor & outdoor
Connectivity technology	Wired

Description

TP-Link VIGI 4MP IR Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 88.8°, Lens viewing angle, vertical: 48.9°, Lens viewing angle, diagonal: 106.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm

Documents

Specifications

Type	IP security camera
Indoor/Outdoor	Outdoor
Tag-/Nacht-Funktion	IR-Cut-Filter & IR-LED
Bildsensor Auflösung	4 Megapixel
Vandal protection	Yes
Application area	Visuelle Videoüberwachung

Performance

Placement supported	Indoor & outdoor
Connectivity technology	Wired
Day/night mode	Yes
Certification	CE, BSMI, VCCI, ONVIF

Design

Mounting type	Ceiling/wall
Product colour	Black, White
Form factor	Dome
Housing material	Plastic
International Protection (IP) code	IP67
IK code	IK10

Camera

Minimum illumination	0 lx
Lens viewing angle, horizontal	88.8°
Lens viewing angle, vertical	48.9°
Lens viewing angle, diagonal	106.5°

Image sensor

Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")

Lens system

Number of lenses	1
Lens diameter	2.8 mm

Night vision

Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	850 nm

Video

Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Video streaming	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Bit rate	64 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes

Network

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 channels

Storage

Built-in HDD	No

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Security

Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Mirror	Yes
Digest authentication	Yes

Management features

Web-based management	Yes
Management software	VIGI App, VIGI Security Manager, VIGI NVR

Power

Power source type	PoE
Power consumption (max)	5 W

Operational conditions

Operating temperature (T-T)	-30 - 60 °C

Weight & dimensions

Width	115 mm
Depth	115 mm
Height	86 mm

Features

Basic event	Motion Detection, Camera Tampering Detection, Exception

Packaging data

Package width	153 mm
Package depth	193 mm
Package height	120 mm
Package weight	460 g

Sustainability

Compliance certificates	CE

Packaging content

Number of cameras	1
Mounting kit	Yes
Weight	0.48 kg
