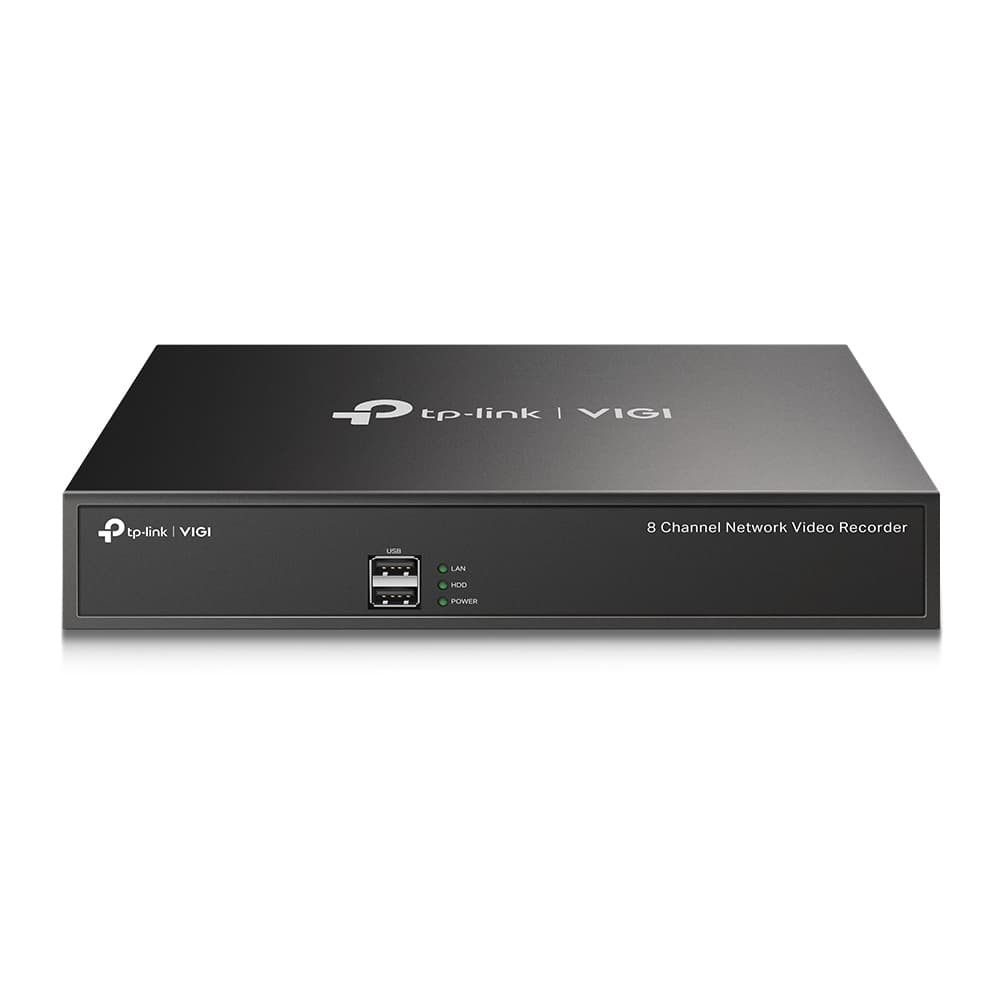

TP-Link VIGI 8 Channel Network Video Recorder

TP-Link Netzwerkrekorder VIGI NVR1008H 0 TB, 8 Kanal1/3
Part number
1913983
MPN
VIGI NVR1008H
EAN
1210002618595

TP-Link VIGI 8 Channel Network Video Recorder, 8 channels, 1920 x 1080 pixels, 4 channels, 1080p, 1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024, 80 Mbit/s

Number of Pre-installed Hard Drives0
Number of Channels8
Number of Drive Bays1
Hard Drive Form Factor3.5"
Case TypeDesktop, Rack
Compatible withONVIF
Video input channels8 channels
Maximum Resolution1920 x 1080 pixels
All 40 specifications

Description

TP-Link VIGI 8 Channel Network Video Recorder. Video input channels: 8 channels, Maximum resolution: 1920 x 1080 pixels, Number of simultaneously playbacked channels: 4 channels. HDD interface: Serial ATA. Rack capacity: 1U, Product colour: Black. Output voltage: 12 V, Power supply: 18 W. Width: 246.2 mm, Depth: 148.2 mm, Height: 42.6 mm

Documents

Specifications

Number of Pre-installed Hard Drives0
Number of Channels8
Number of Drive Bays1
Hard Drive Form Factor3.5"
Case TypeDesktop, Rack
Compatible withONVIF

Performance

Video input channels8 channels
Maximum Resolution1920 x 1080 pixels
Number of simultaneously playbacked channels4 channels
Video recording modes1080p
Supported resolutions1920 x 1080, 1280 x 720, 1440 x 900, 1280 x 1024
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity0 TB
HDD interfaceSerial ATA
Number of HDDs supported1

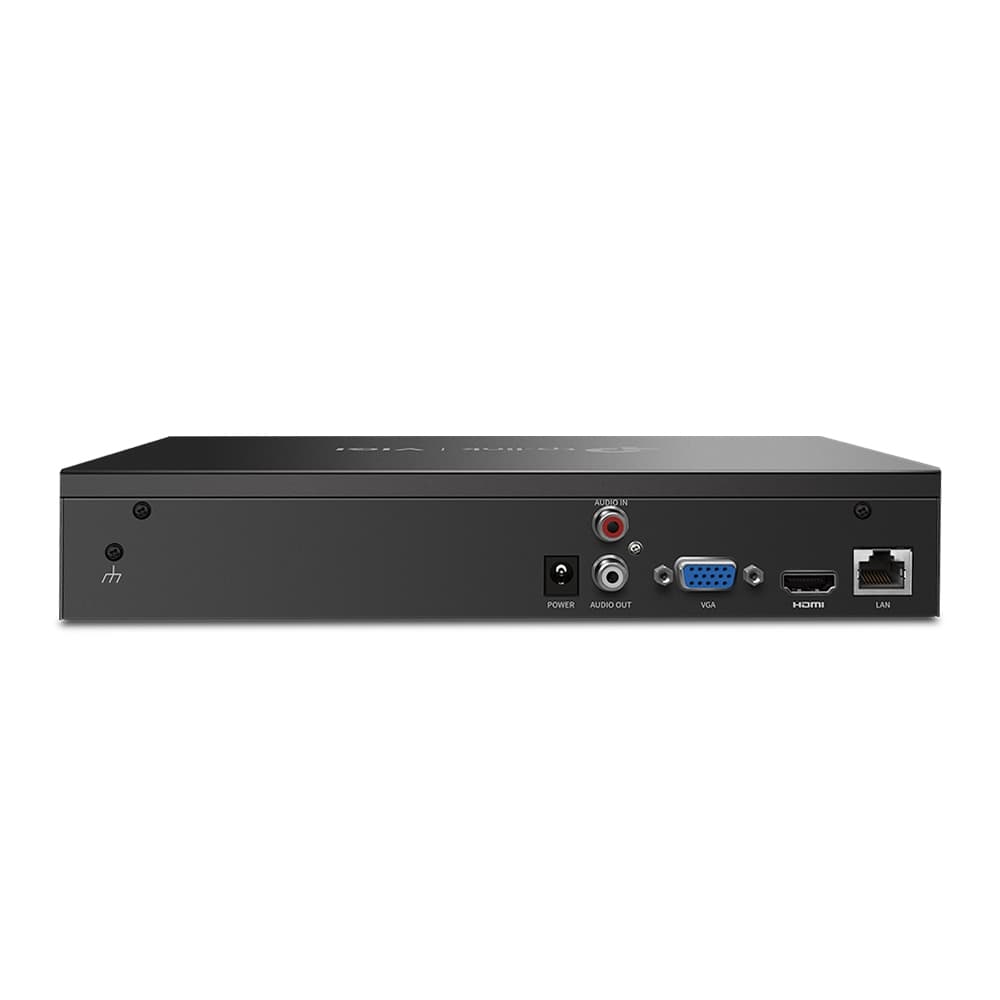

Ports & interfaces

Number of Ethernet LAN Connections (RJ-45)1
Number of HDMI Ports1
USB 2.0 ports quantity2
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes

Features

Rack mountingYes
Rack Capacity1U
ColourBlack

Power

Output Voltage12 V
Power Supply18 W

Operational conditions

Operating temperature (T-T)-10 - 55 °C

Weight & dimensions

Width246.2 mm
Depth148.2 mm
Height42.6 mm
Weight578.5 g
Package width277.5 mm
Package depth296.5 mm
Package height64.5 mm
Package Weight1.07 kg

Logistics data

Harmonized System (HS) code85219000
Weight1.33 kg
