TP-Link Netzwerkrekorder VIGI NVR2016H 0 TB, 16 Kanal1/4
TP-Link

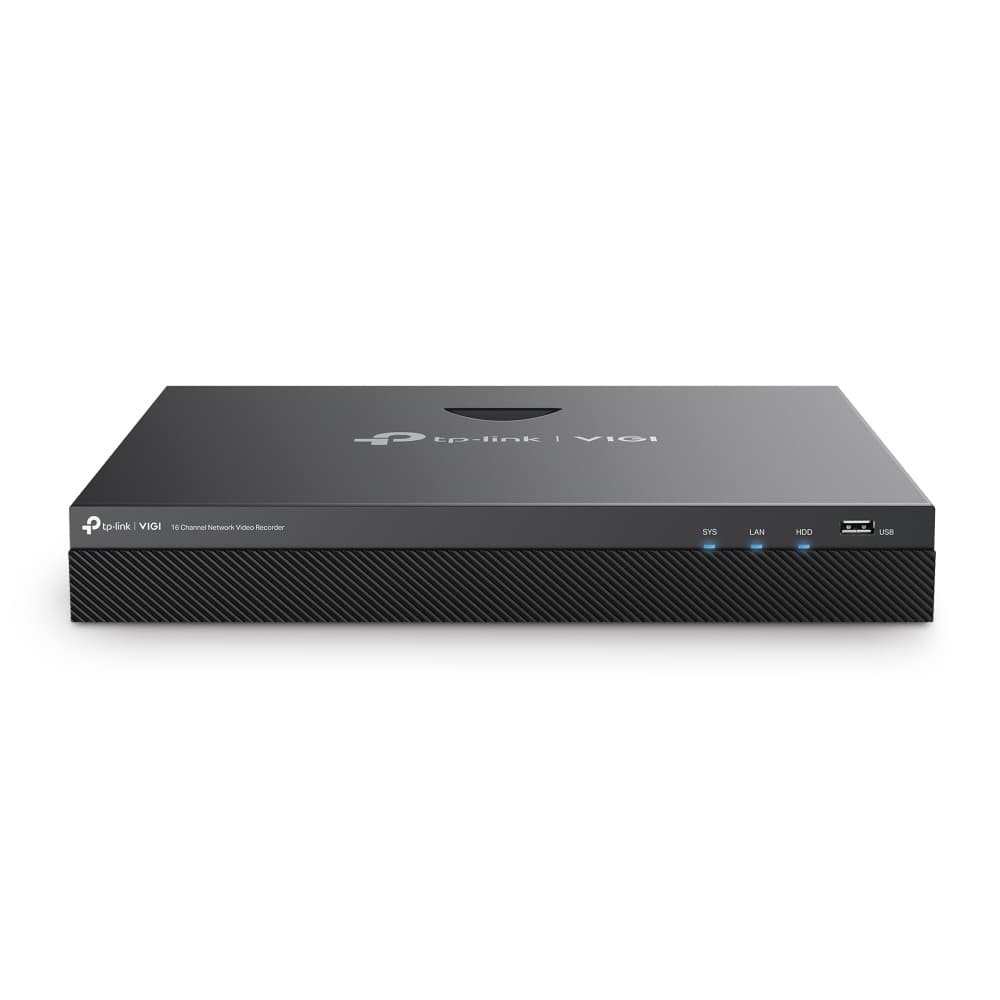

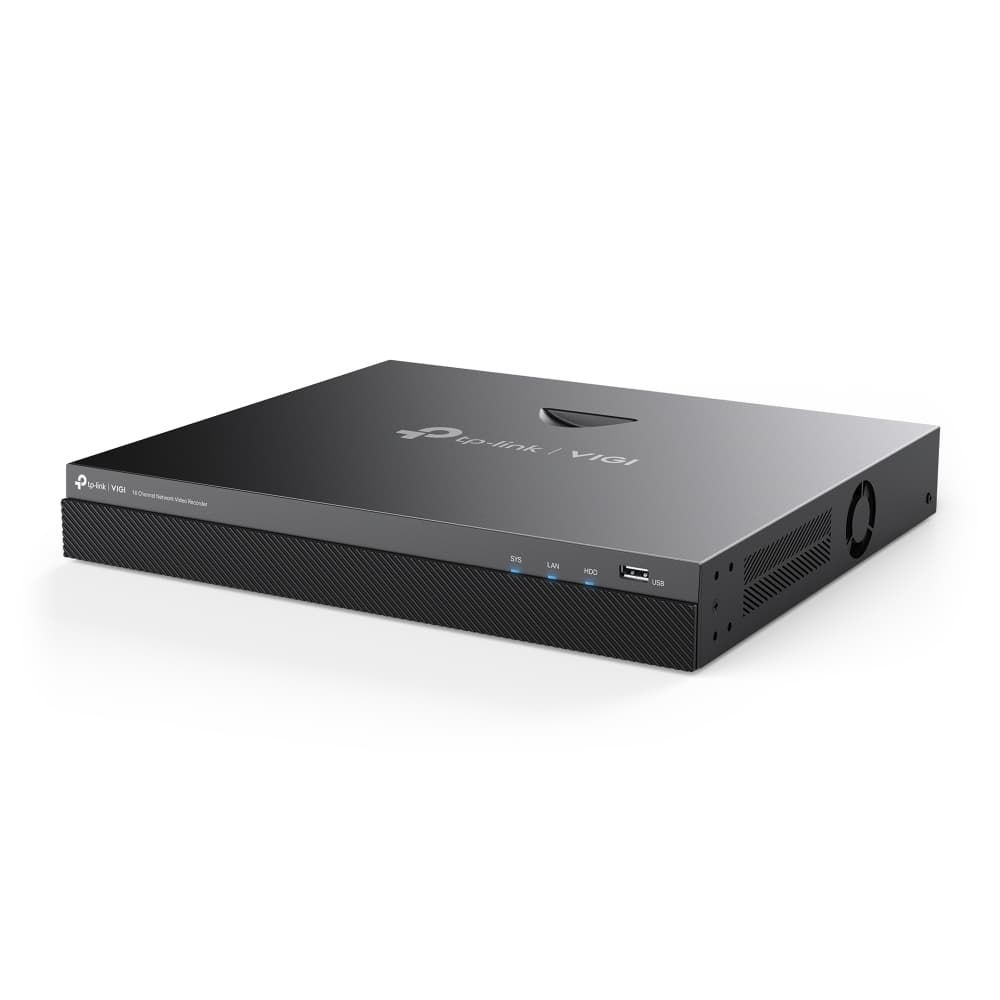

TP-Link VIGI NVR2016H network video recorder Black

Part number
1986253
MPN
VIGI NVR2016H
EAN
4897098683880

TP-Link VIGI NVR2016H, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte2
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF
Video input channels16 channels
Maximum resolution3840 x 2160 pixels
All 53 specifications

Description

TP-Link VIGI NVR2016H. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 24.16 W, Output current: 3.3 A, Output voltage: 12 V

Documents

Specifications

Anzahl Festplatten vorverbaut0
Anzahl Kanäle16
Anzahl Laufwerkschächte2
Festplatten Formfaktor3.5"
Gehäuse BauartDesktop
Kompatibel mitONVIF

Performance

Video input channels16 channels
Maximum resolution3840 x 2160 pixels
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Supported resolutionsHDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controlsYes
Maximum frame rate30 fps
Input bandwidth80 Mbit/s
Output bandwidth60 Mbit/s
Recording modesManual, Schedule

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Maximum storage capacity10 TB
HDD interfaceSATA
Number of HDDs supported2

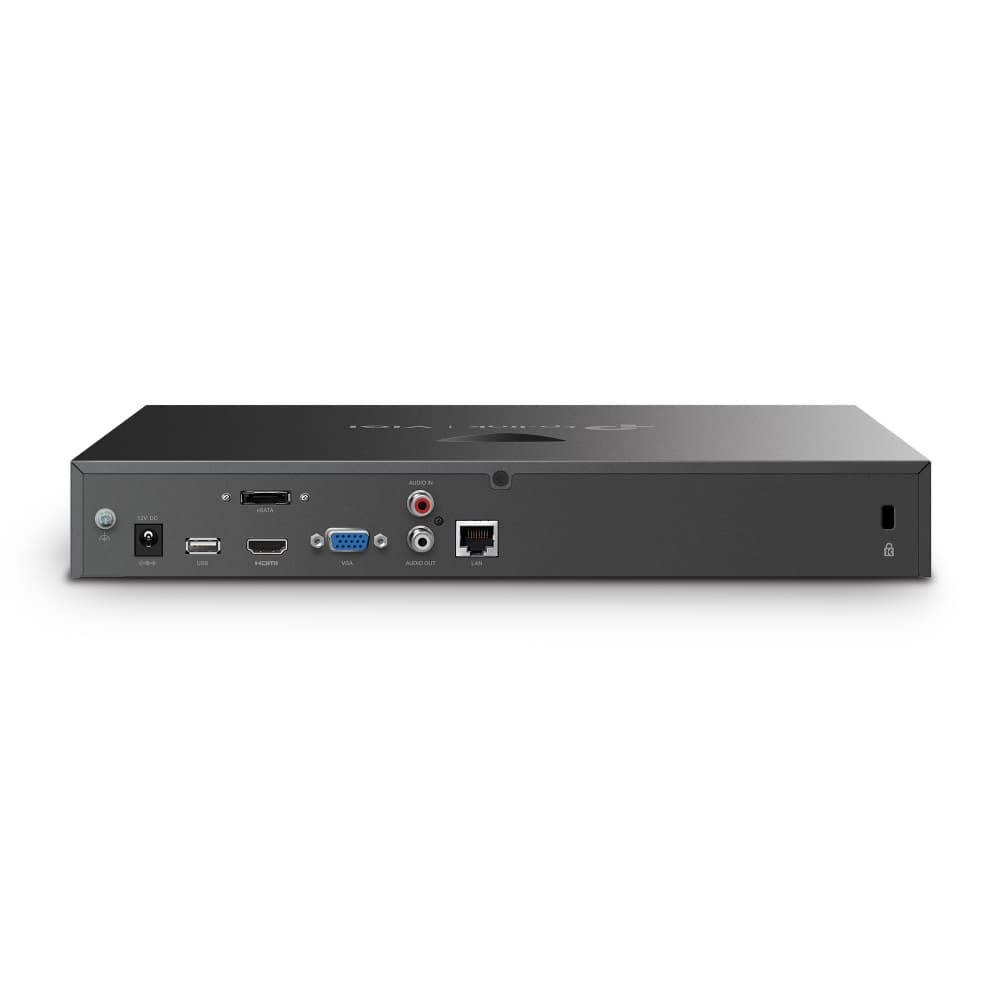

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
HDMI ports quantity1
VGA (D-Sub) output ports1
USB 2.0 ports quantity2
eSATA ports quantity1
Internal SATA ports quantity2
eSATAYes
Line-inYes
Audio output1
DC-in jackYes
Supported network protocolsUPnP (Plug and Play), NTP (Network Timing)

Features

Reset buttonYes
Product colourBlack
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Power

Power consumption (max)24.16 W
Output current3.3 A
Output voltage12 V

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width330 mm
Depth285 mm
Height45 mm
Weight1.9 kg
Package weight3.2 kg
Weight3.01 kg
