APC

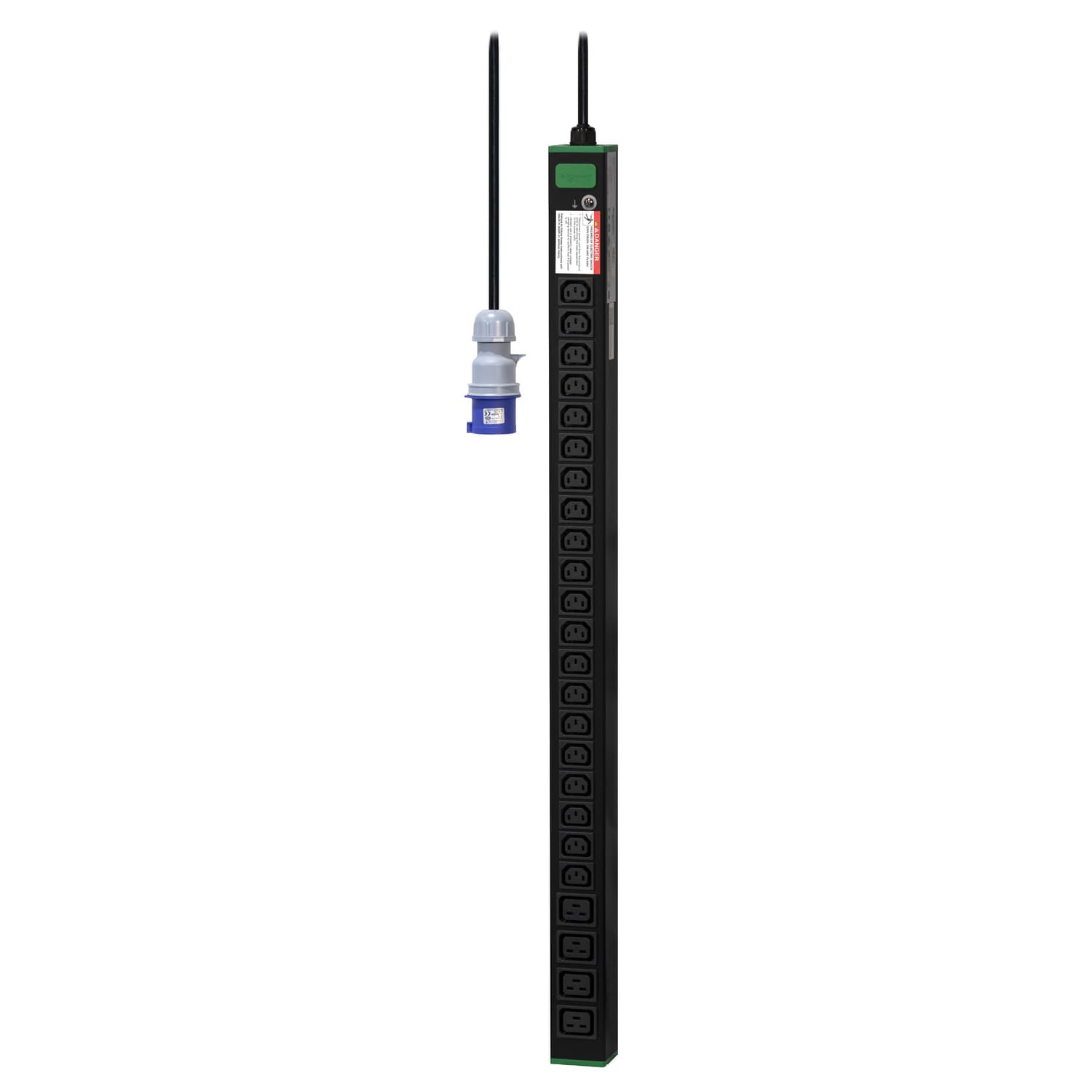

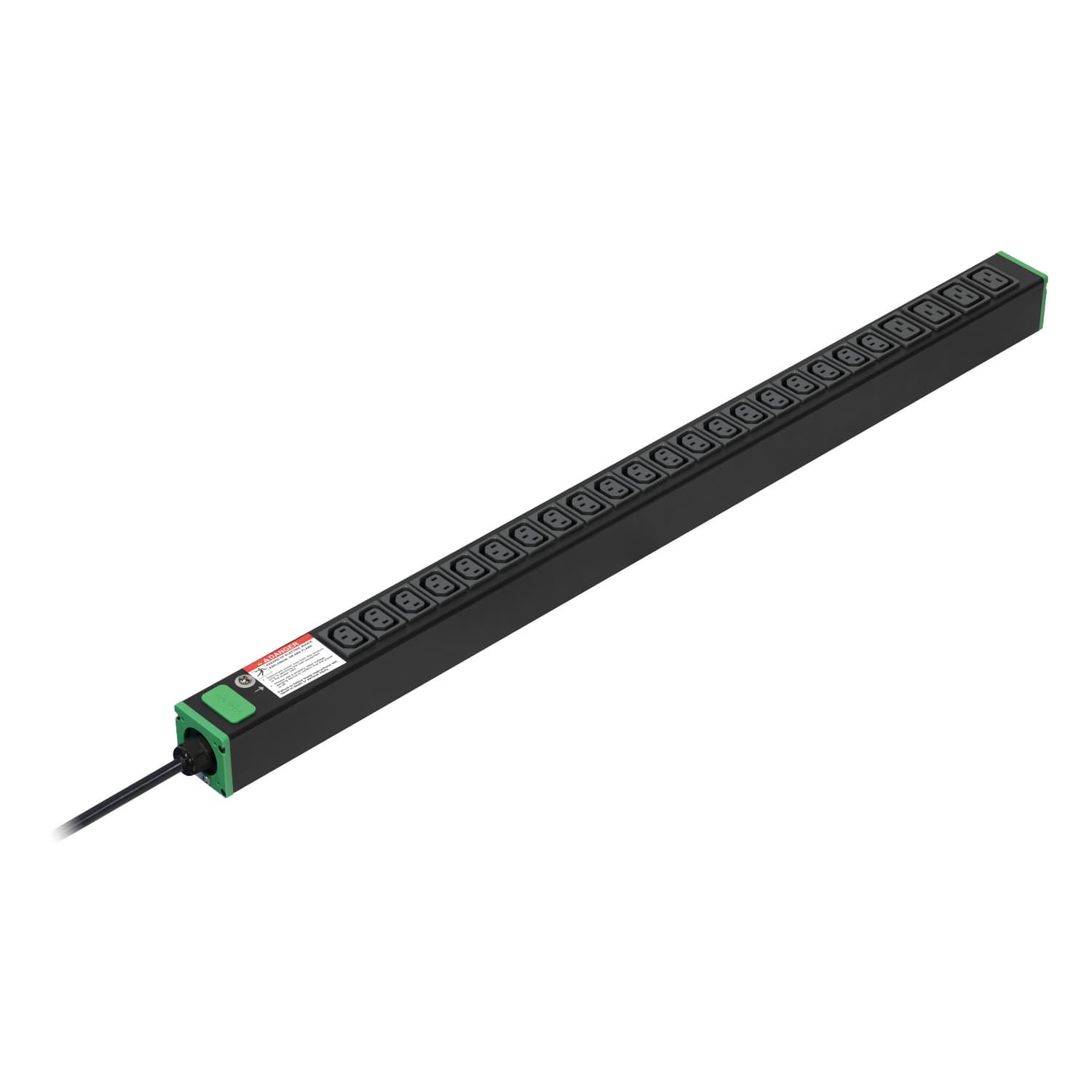

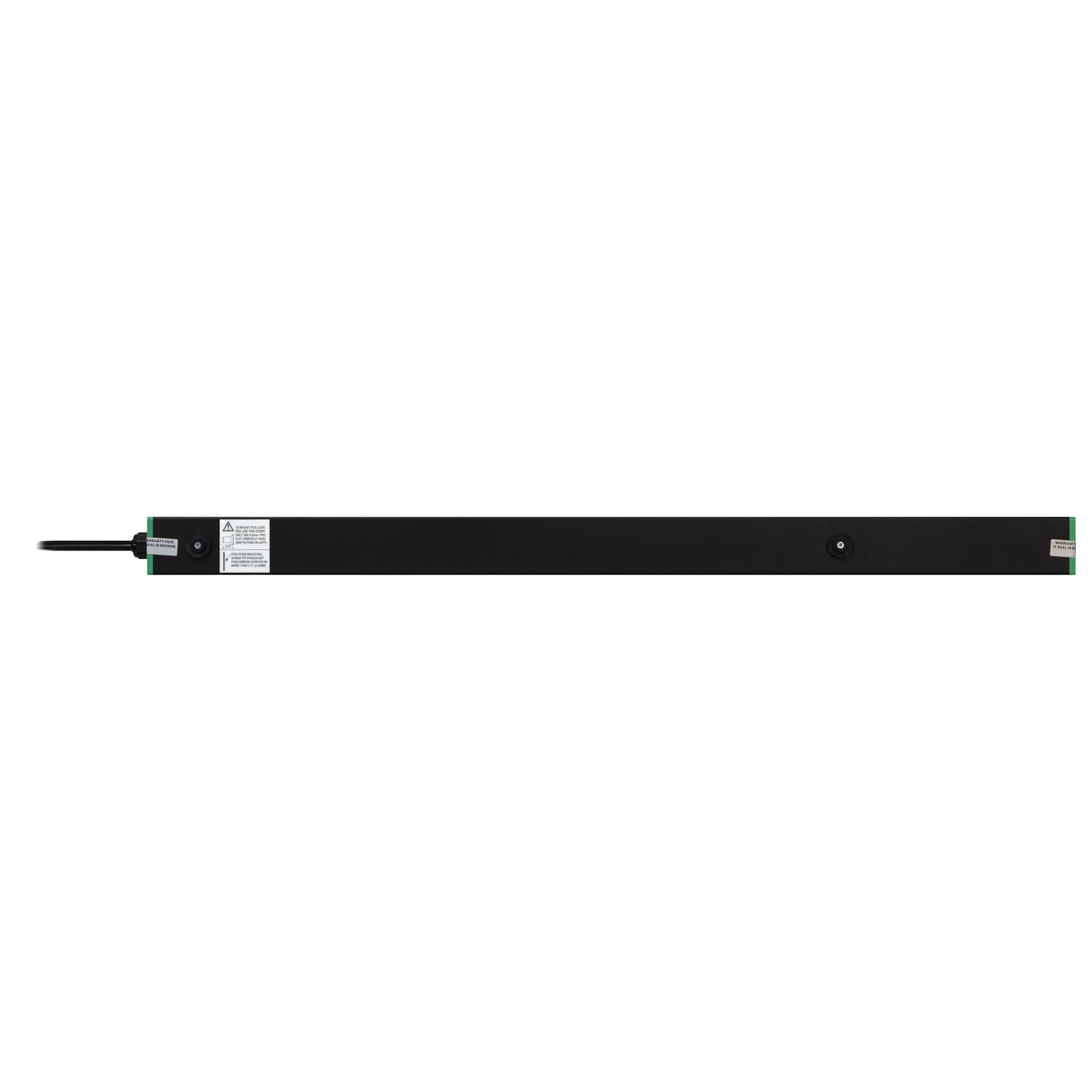

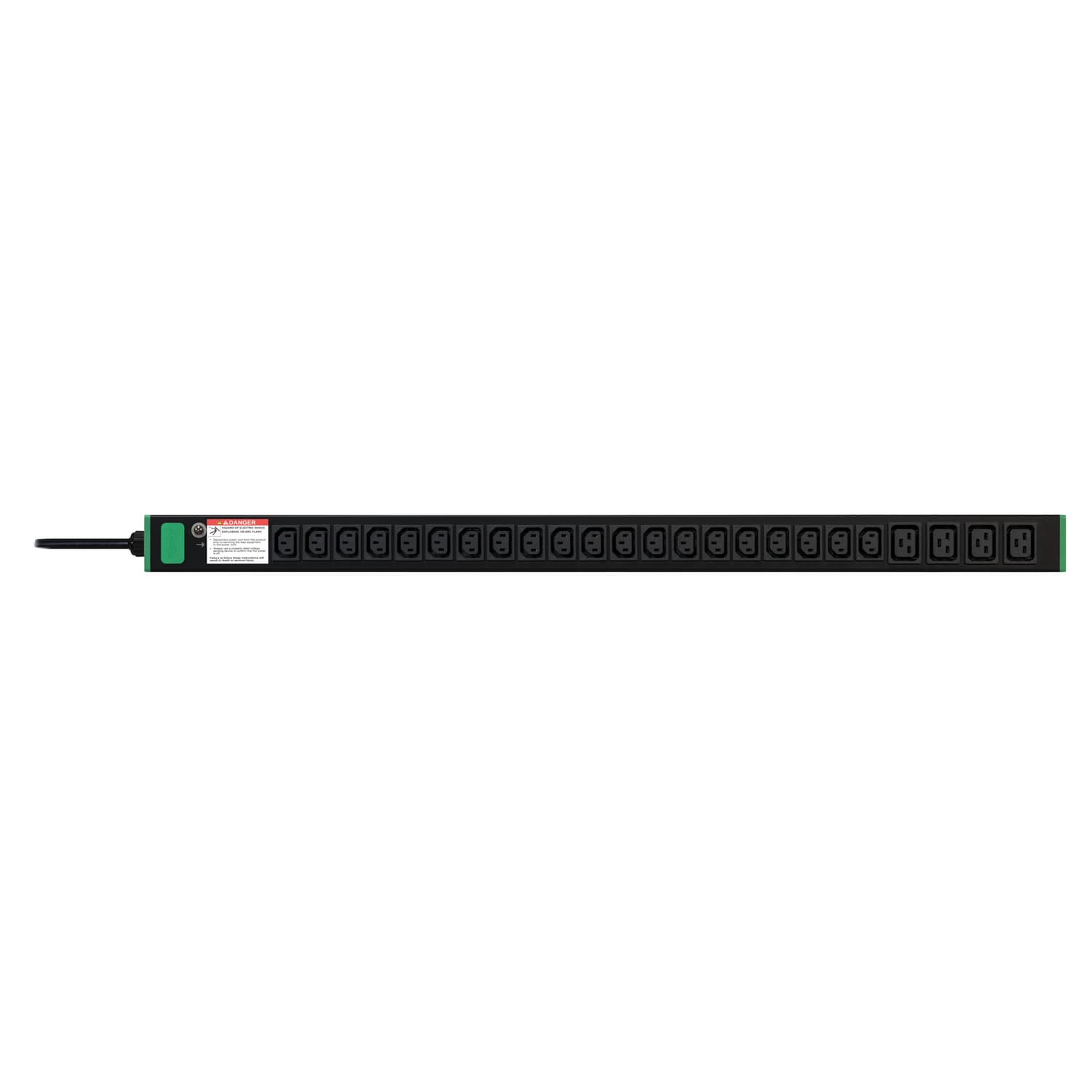

APC Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
Hoch · APC · Zero-U-Space PDU
10 in stock
CHF 422.16
CHF 397.36
CHF 429.55 incl. VAT
1/5APC
All 27 specifications
APC Easy Rack PDU, Basic, Vertical, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG
- Part number
- 2186515
- MPN
- SEP6117G
- EAN
- 731304804550
APC Easy Rack PDU, Basic, Vertical, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
| Steckeranordnung | Hoch |
|---|---|
| Steckerleisten Serie | APC |
| Steckerleisten Typ | Basis PDU |
| Steckertyp Eingang | IEC 309-16A |
| Output connector type | C13, C19 |
| Steckdosenanzahl | 24 |
| PDU types | Basic |
| Rack capacity | 0U |
Description
APC Easy Rack PDU, Basic, Vertical, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Nominal input voltage: 200 - 240 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Width: 56 mm, Depth: 900 mm, Height: 56 mm. Package weight: 2.74 kg, Package width: 170 mm, Package depth: 106 mm
Documents
Specifications
| Steckeranordnung | Hoch |
|---|---|
| Steckerleisten Serie | APC |
| Steckerleisten Typ | Basis PDU |
| Steckertyp Eingang | IEC 309-16A |
| Output connector type | C13, C19 |
| Steckdosenanzahl | 24 |
Design
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Type | Single-phase |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
Power
| Nominal input voltage | 200 - 240 V |
|---|---|
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Output voltage | 230 V |
| Maximum power | 3700 W |
Weight & dimensions
| Width | 56 mm |
|---|---|
| Depth | 900 mm |
| Height | 56 mm |
| Weight | 1.9 kg |
Packaging data
| Package weight | 2.74 kg |
|---|---|
| Package width | 170 mm |
| Package depth | 106 mm |
| Package height | 126 mm |
| Weight | 2.50 kg |
