Aten Basis PDU PE0218SG 1U, 18 Port, 16A1/3
Aten

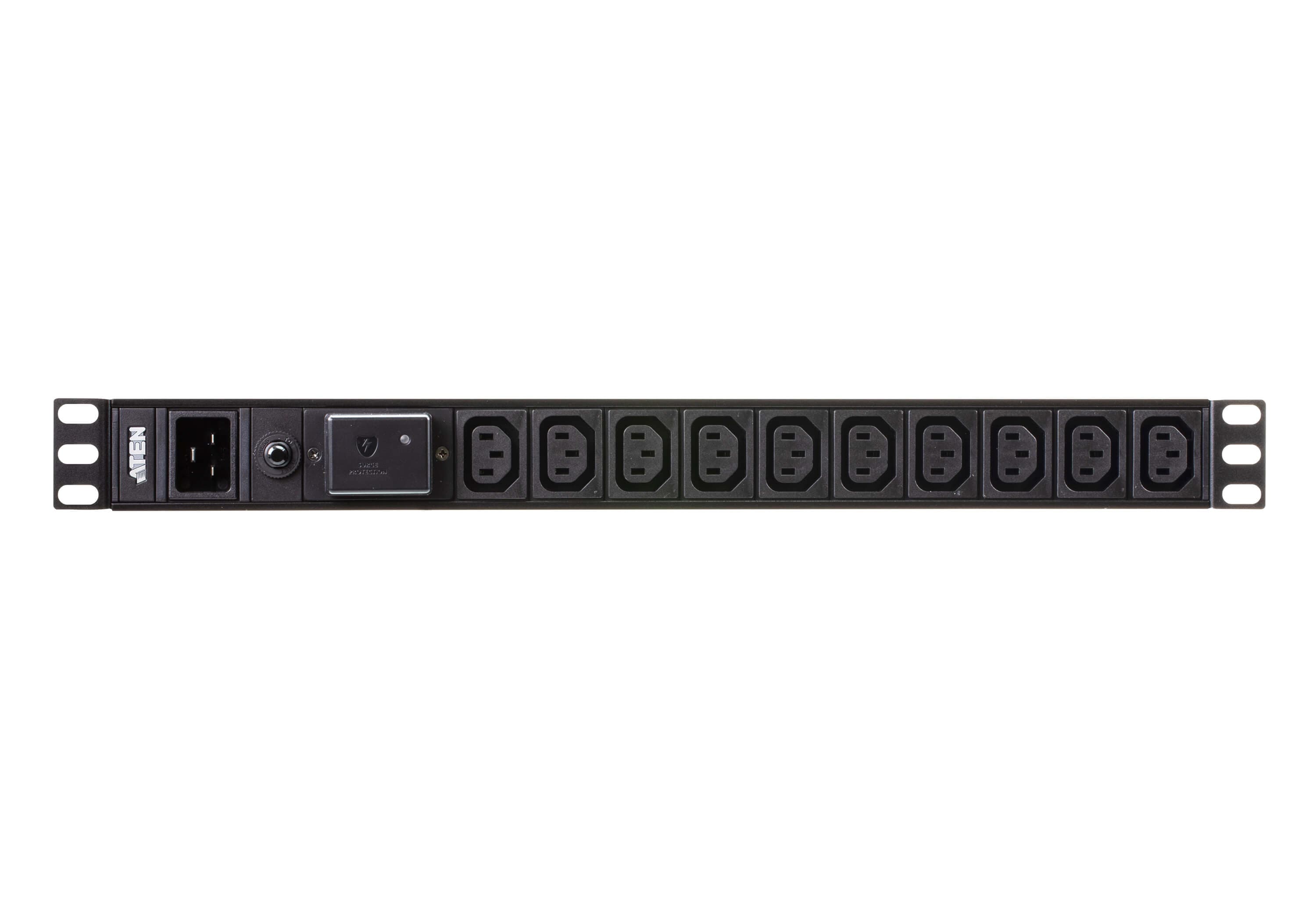

ATEN 1U Basic PDU with Surge Protection

Part number
1393413
MPN
PE0218SG
EAN
4719264648915

ATEN 1U Basic PDU with Surge Protection, Basic, 1U, Aluminium, Black, 18 AC outlet(s), C13 coupler, C19 coupler

SteckeranordnungHoch
Steckerleisten SerieAten
Steckerleisten TypBasis PDU
Steckertyp EingangC20
Output connector typeC13, C19
Steckdosenanzahl18
PDU typesBasic
Rack capacity1U
All 41 specifications

Description

ATEN 1U Basic PDU with Surge Protection. PDU types: Basic, Rack capacity: 1U, Housing material: Aluminium. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 3 m. Nominal input voltage: 100-240 V, Maximum current: 16 A, AC input frequency: 50-60 Hz. Certification: CE A CE, LVD

Documents

Specifications

SteckeranordnungHoch
Steckerleisten SerieAten
Steckerleisten TypBasis PDU
Steckertyp EingangC20
Output connector typeC13, C19
Steckdosenanzahl18

Design

PDU typesBasic
Rack capacity1U
Housing materialAluminium
Product colourBlack

Ports & interfaces

AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler

Features

Cable length3 m

Power

Nominal input voltage100-240 V
Maximum current16 A
AC input frequency50-60 Hz
Load capacity3840 VA
Power protection featuresOver current
Surge protectionYes

Certificates

CertificationCE A CE, LVD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Weight & dimensions

Width482 mm
Depth44.4 mm
Height88.5 mm
Weight1.89 kg

Packaging content

Cables includedAC
ManualYes

Packaging data

Package weight2.02 kg
Package width123 mm
Package depth696 mm
Package height150 mm

Logistics data

Master (outer) case net weight18.9 kg
Master (outer) case width650 mm
Master (outer) case length710 mm
Master (outer) case height322 mm
Master (outer) case gross weight22.5 kg
Products per master (outer) case10 pc(s)
Weight2.08 kg
