APC Steckdosenleiste Easy PDU SEP6127G1/4
APC

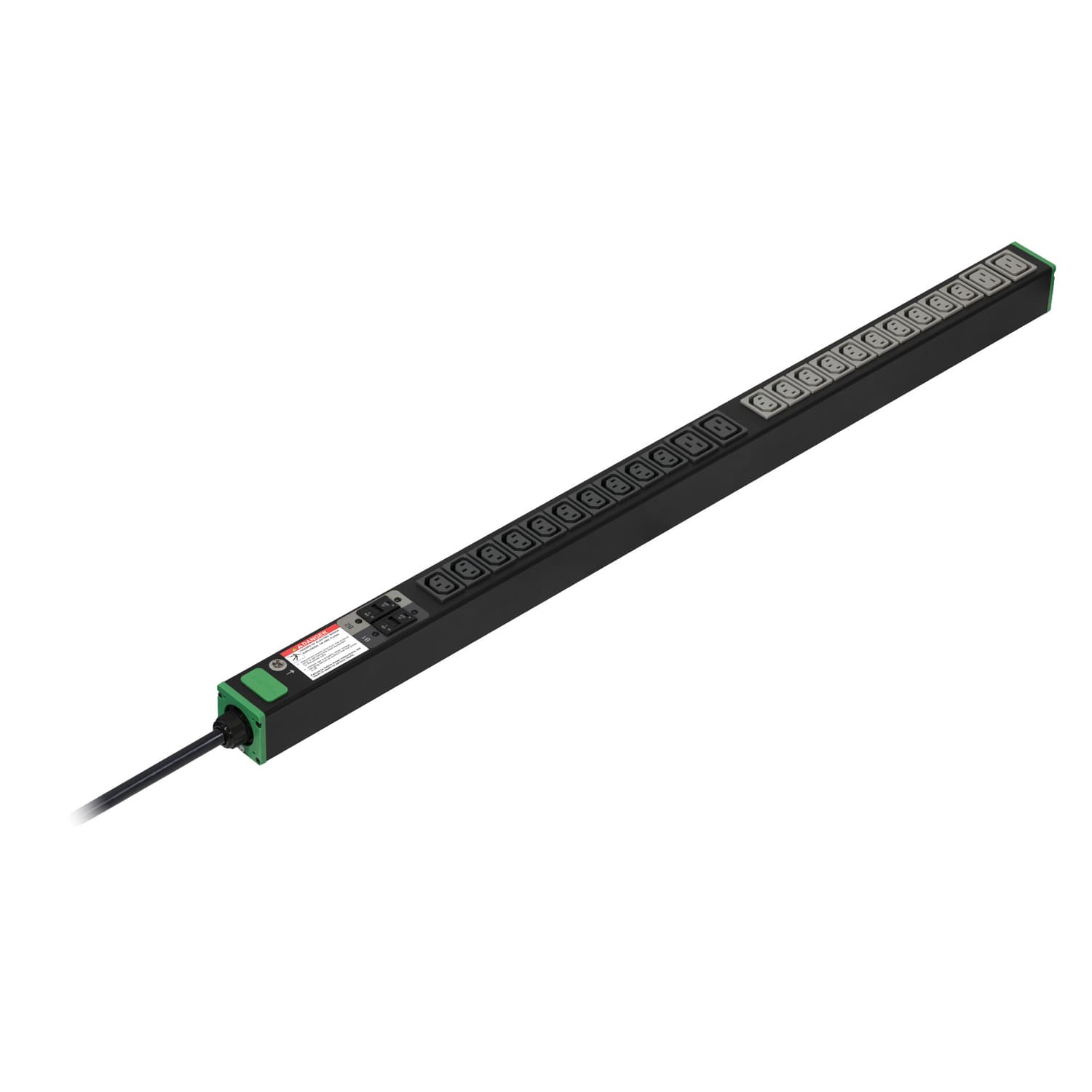

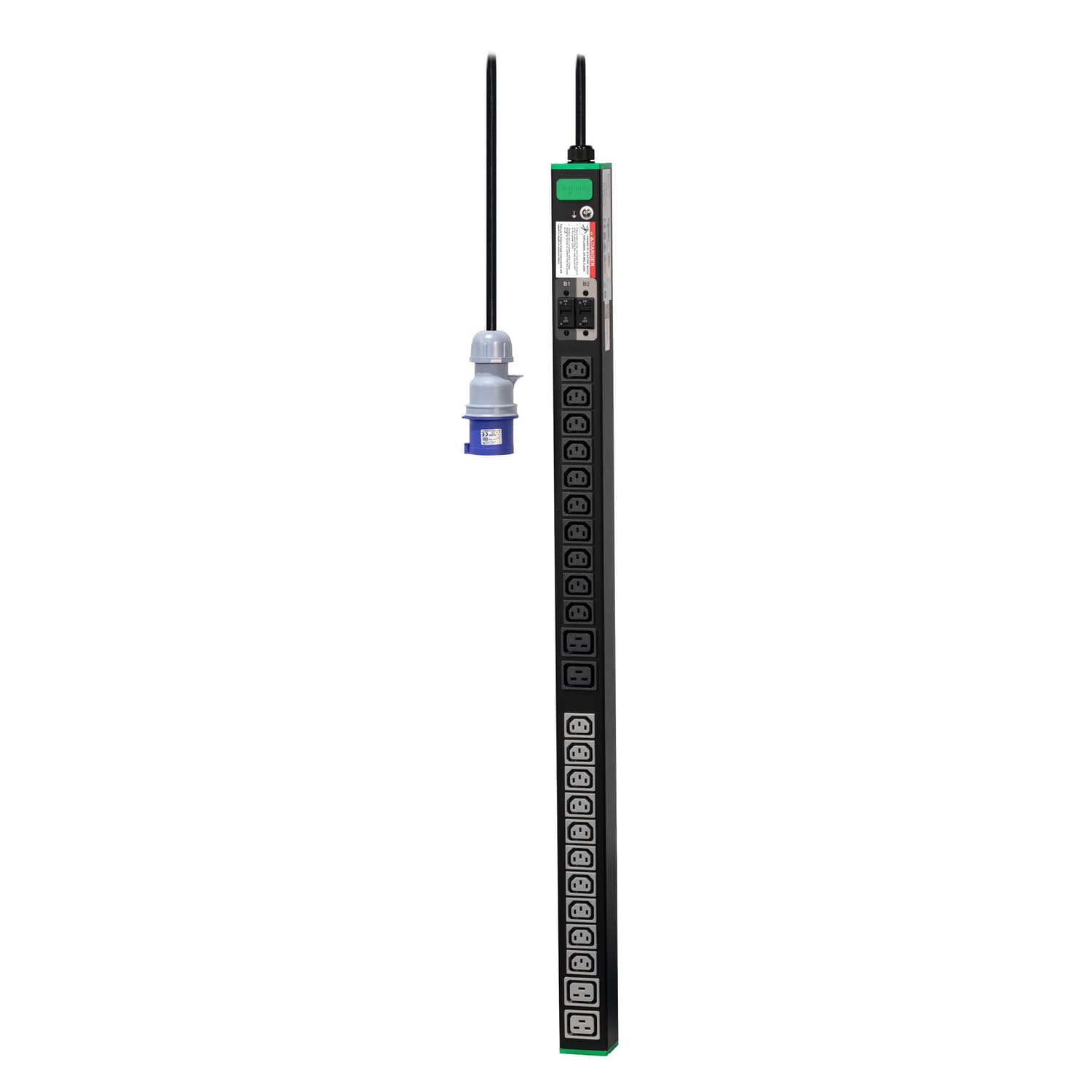

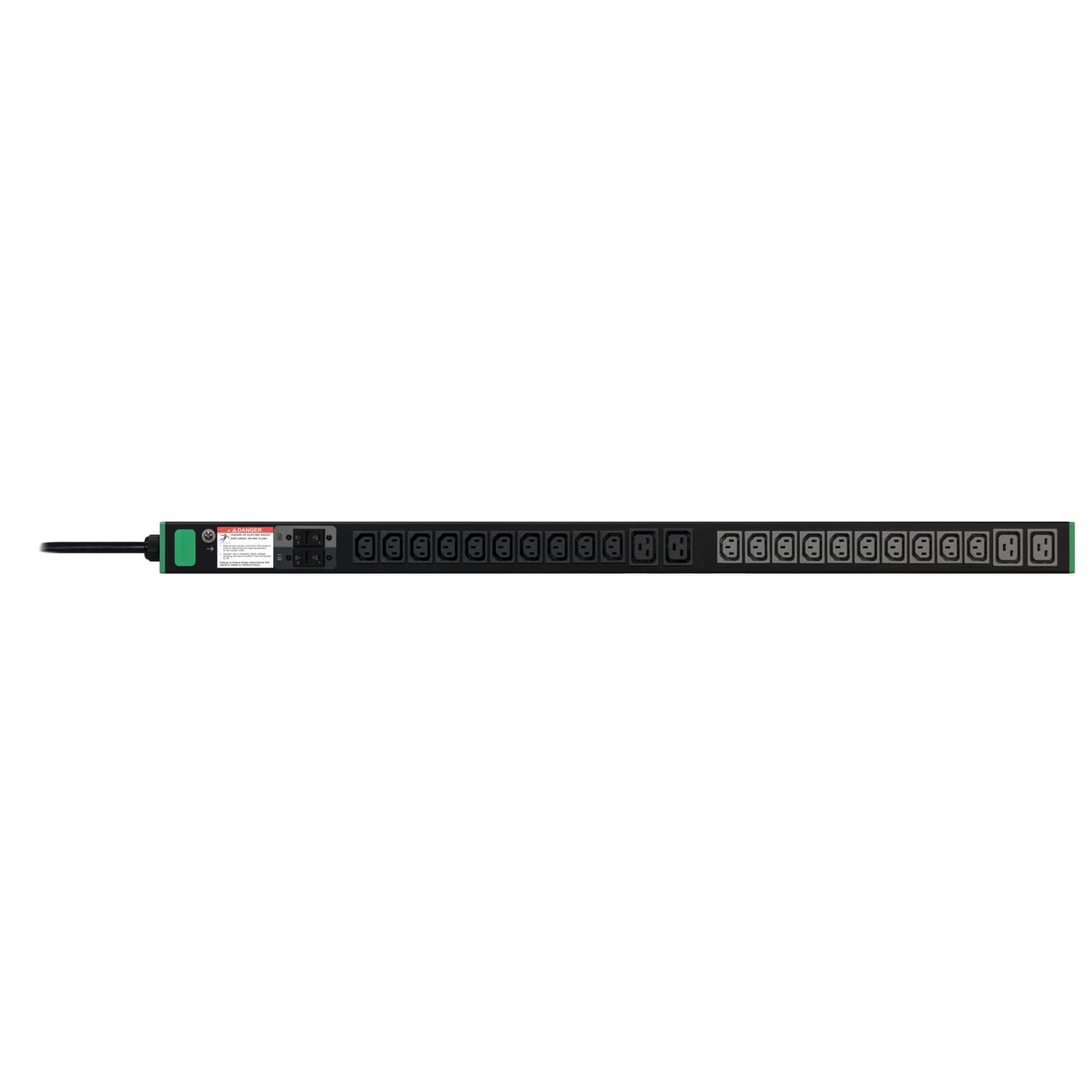

APC Easy Rack PDU, Basic, Vertical, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG

Part number
2186516
MPN
SEP6127G

APC Easy Rack PDU, Basic, Vertical, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG, Basic, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)

Plug arrangementHigh
Series connector stripsAPC
Type of connectorsBase PDU
Type of connector inputIEC 309-32A
Output connector typeC13, C19
Socket number24
PDU typesBasic
Rack capacity0U
All 31 specifications

Description

APC Easy Rack PDU, Basic, Vertical, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 PLUG. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Nominal input voltage: 200 - 240 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Certification: CE. Width: 56 mm, Depth: 1000 mm, Height: 56 mm

Documents

Specifications

Plug arrangementHigh
Series connector stripsAPC
Type of connectorsBase PDU
Type of connector inputIEC 309-32A
Output connector typeC13, C19
Socket number24

Design

PDU typesBasic
Rack capacity0U
TypeSingle-phase
MountingVertical
Detail colourBlack

Ports & interfaces

AC outlets quantity24 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugIEC 60309

Power

Nominal input voltage200 - 240 V
Maximum current32 A
AC input frequency50/60 Hz
Output voltage230 V
Maximum power7400 W

Certificates

CertificationCE

Operational conditions

Operating temperature (T-T)-5 - 60 °C
Storage temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width56 mm
Depth1000 mm
Height56 mm
Weight2.45 kg

Packaging data

Package weight3.34 kg
Package width170 mm
Package depth1160 mm
Package height126 mm
Weight4.40 kg
