Aten
ATEN 4P USB3.0 DisplayPORT Dual View KVMP SW
Desktop · Lokal
3 in stock
CHF 646.62
CHF 699.00 incl. VAT

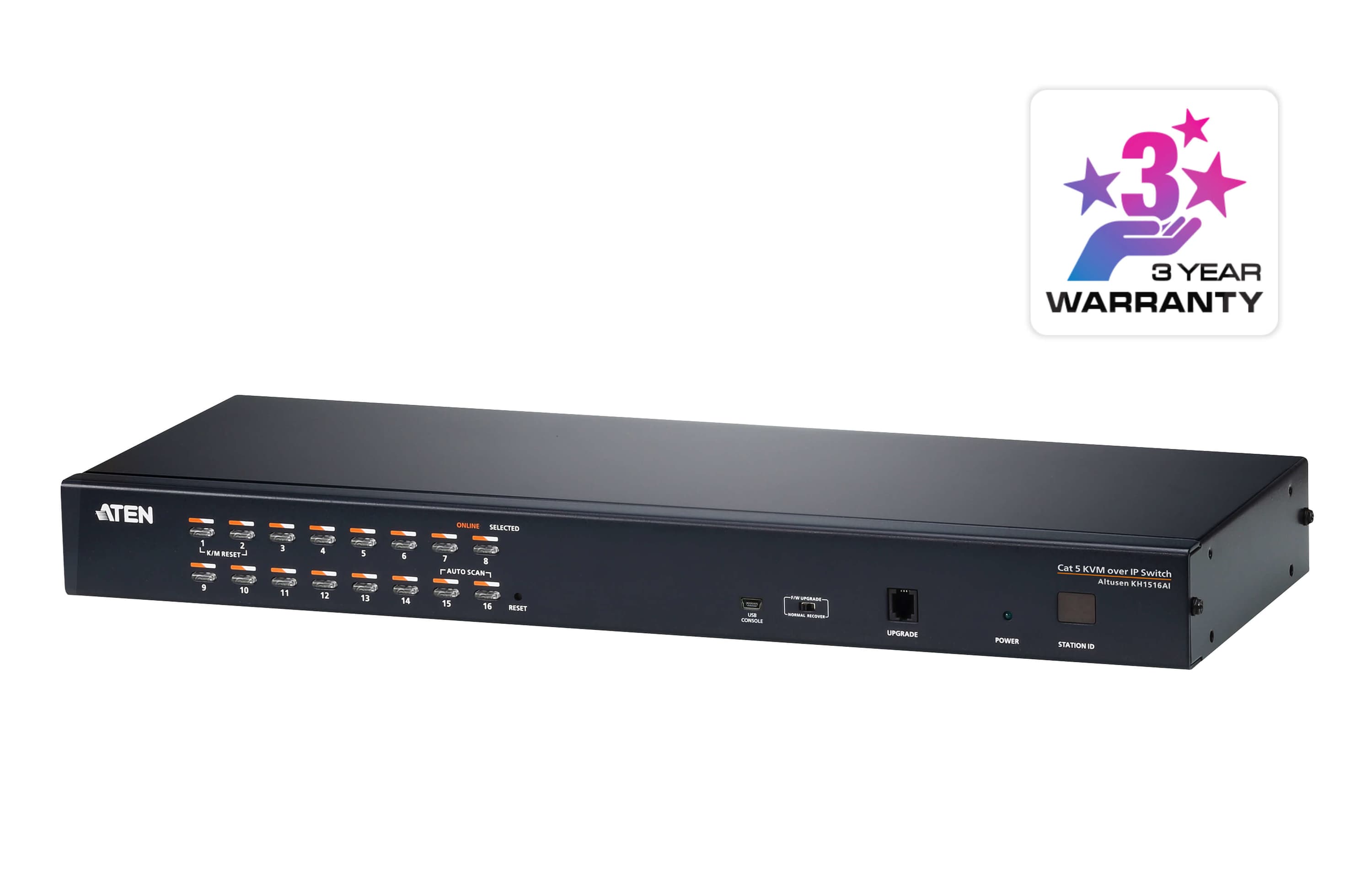

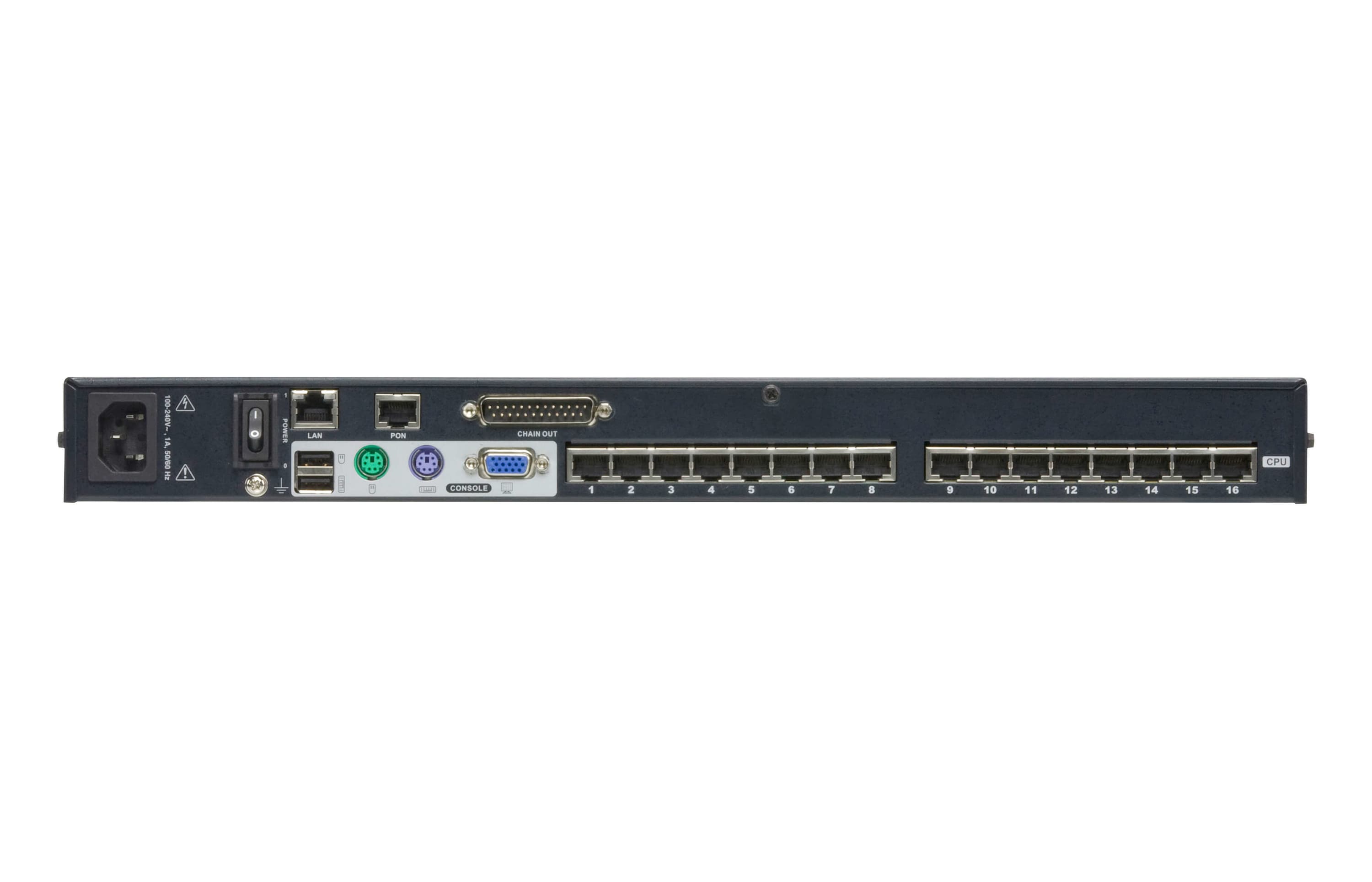

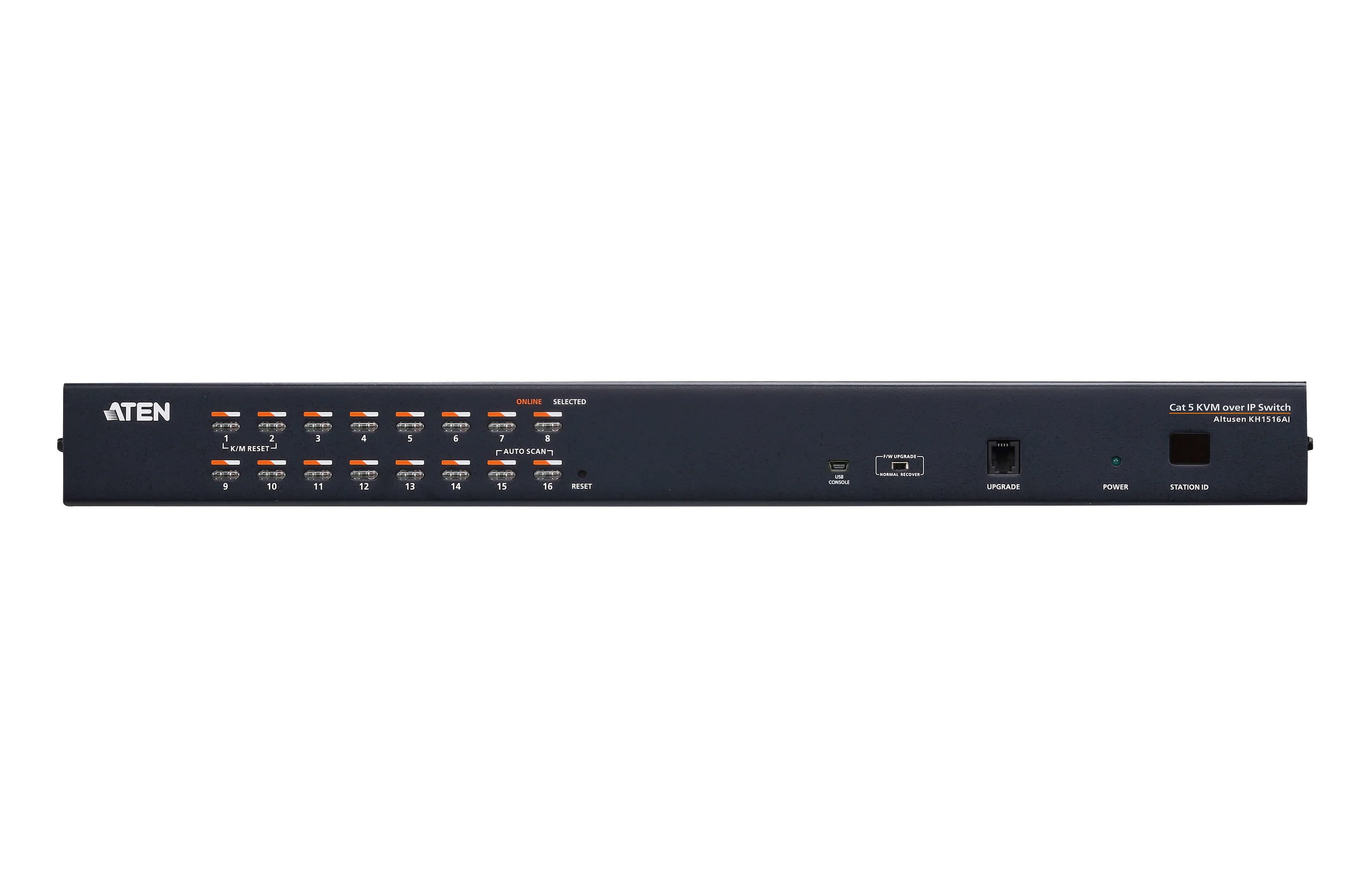

1/4ATEN 16-Port CAT5e/6 KVM Over IP Switch, 1920 x 1200 pixels, Ethernet LAN, WUXGA, 8.9 W, Black
| Console Ports | PS/2, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Installation | 19" Rack |
| KVM Type | Netzwerk |
| Power Supply | Internes Netzteil |
| Max. Resolution | 1600 x 1200 (UXGA) |
| Number of Computers | 16 |
| Keyboard Port Type | USB, PS/2 |
| Console Ports | PS/2, USB 2.0, VGA |
|---|---|
| Computer Ports | RJ-45 |
| Installation | 19" Rack |
| KVM Type | Netzwerk |
| Power Supply | Internes Netzteil |
| Max. Resolution | 1600 x 1200 (UXGA) |
| Number of Computers | 16 |
|---|---|
| Keyboard Port Type | USB, PS/2 |
| Mouse Port Type | USB, PS/2 |
| Video Port Type | VGA |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| Ethernet/LAN | Yes |
|---|---|
| Number of Ethernet LAN Connections (RJ-45) | 16 |
| HD Type | WUXGA |
|---|---|
| Maximum Resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Colour | Black |
|---|---|
| Case Material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in Display | No |
|---|
| Power Source | AC |
|---|---|
| Input Voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input Current | 1 A |
| Power Consumption (Standard Operation) | 8.9 W |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 437.2 mm |
|---|---|
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 3.14 kg |
| Package width | 131 mm |
|---|---|
| Package depth | 540 mm |
| Package height | 233 mm |
| Package Weight | 3.63 kg |
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
| Master (outer) case net weight | 9.42 kg |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Weight | 3.82 kg |
